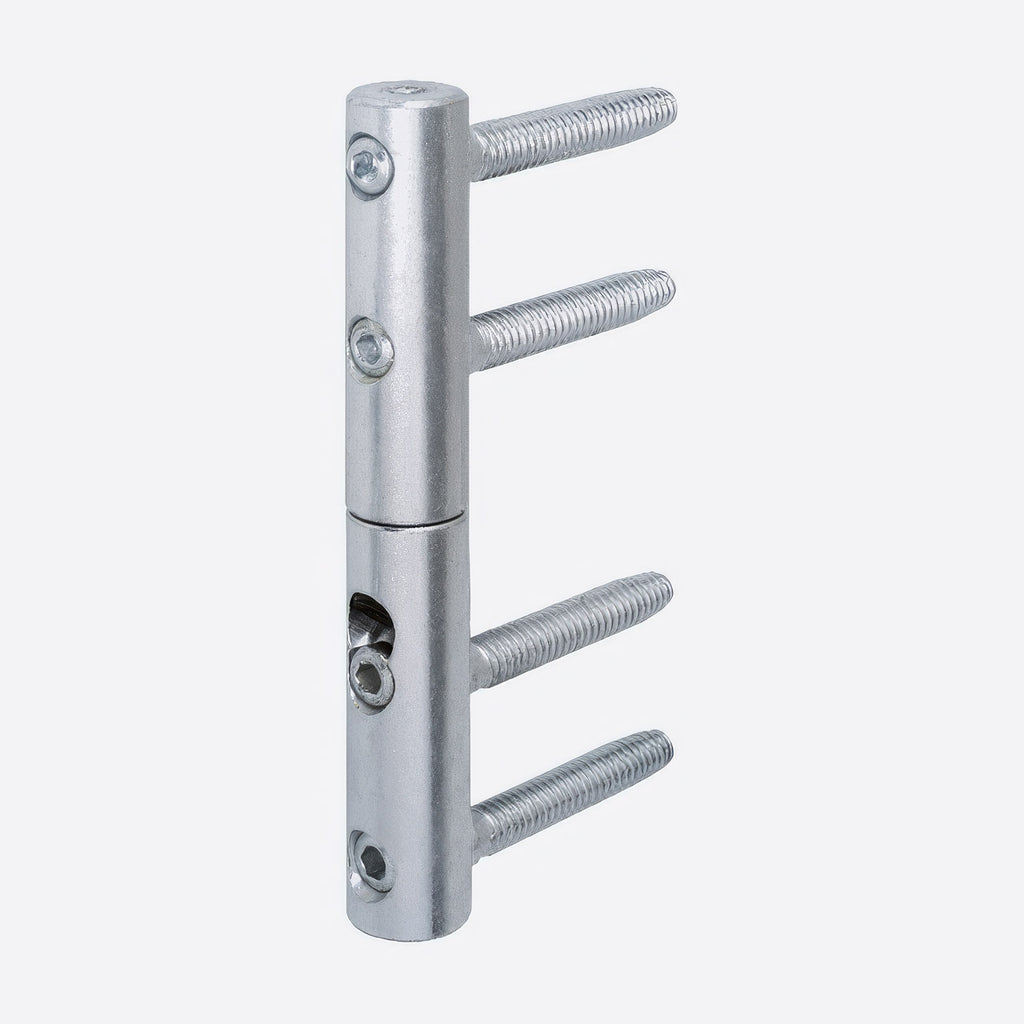

  • Zenit hinge

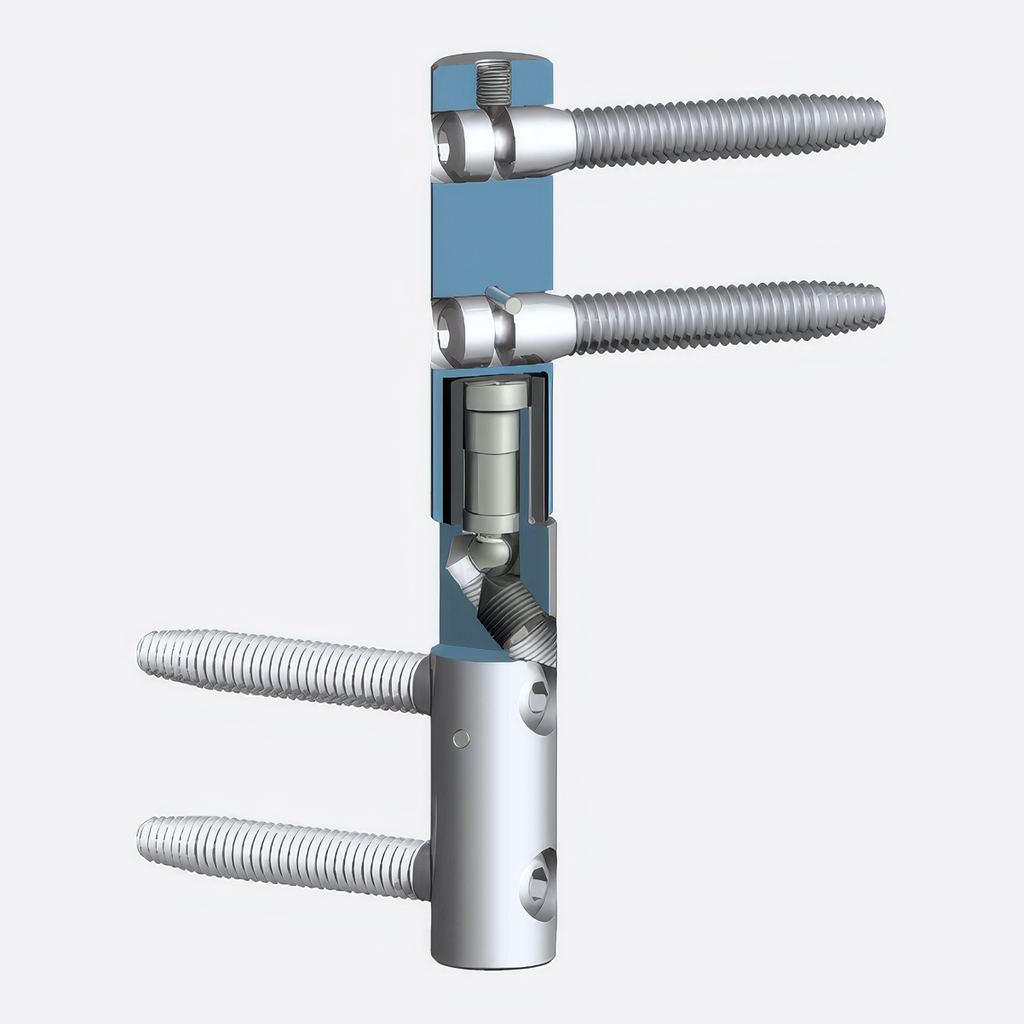

  • Cross section of Zenit

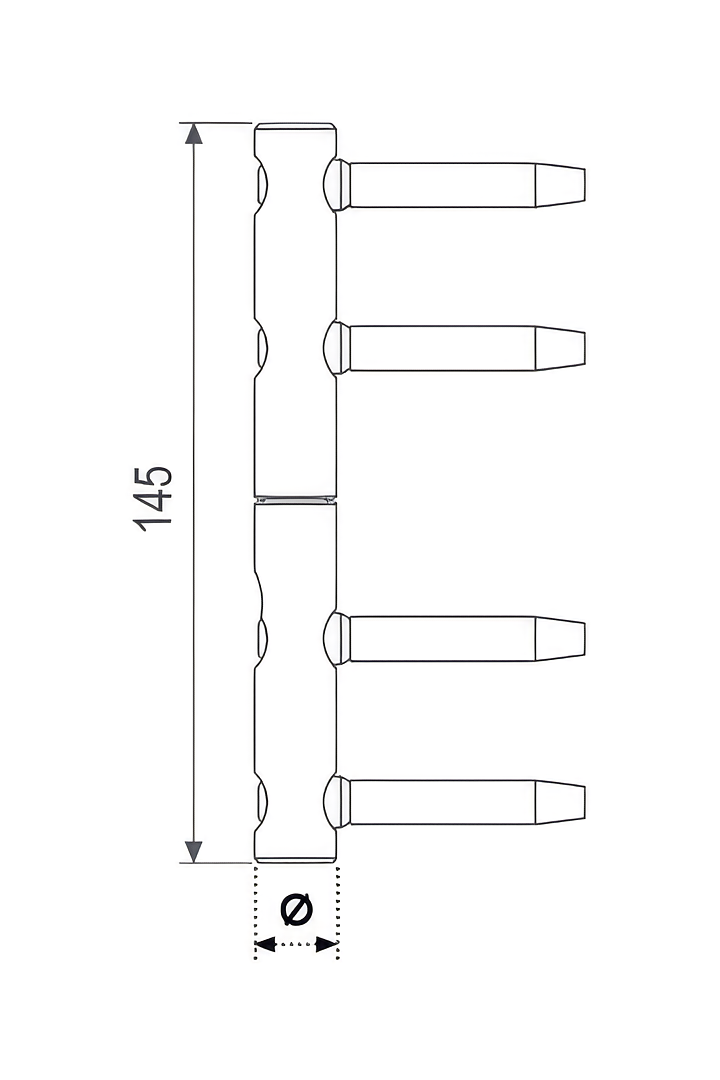

  • Technical drawing of Zenit
  • Hinge finishes
Zenit

Zenit

Three-axis adjustable hinge for heavy wooden doors
$0.00
Shipping calculated at checkout.

Designed for heavy timber entrance doors, the Zenit hinge provides three-dimensional adjustment for precise alignment. Its threaded pins screw directly into wood, offering strong pull resistance and stable installation. The hinge incorporates a steel pivot on a stainless steel ball for smooth and reliable door movement.

Features
Adjustment System
  • Three-dimensional adjustment: vertical, lateral, and pressure
  • Door pressure regulator compensates for settling of the wood
  • Adjustments performed using a 5 mm Allen key
  • M6 dowel prevents unintentional loosening and locks the adjustment
Performance
  • Stainless steel revolving ball reduces friction and improves movement
  • Vertical adjustment distributes weight evenly across hinges
  • Self-lubricating bronze bushing ensures smooth operation even after long periods without use
Construction
  • Four threaded adjusting shanks with 1.8 mm pitch
  • Hardened steel pins secure the threaded shank
  • Steel pivot supported by a stainless steel ball point
  • Designed for strong pull resistance and high load capacity
Installation
  • Threaded pins screw directly into wood
  • Jigs available for rebated door assembly
Materials
  • Material: Galvanized steel
  • Steel pivot with stainless steel ball
Compatible Materials
  • Compatible with: Wood and timber entrance doors
Dimensions

  • Height: 145 mm
  • Hinge diameter: 16 mm or 20 mm
  • Maximum load capacity: up to 140 kg
  • Vertical adjustment range: up to 4 mm

Need additional specifications or technical guidance? Contact Us.
