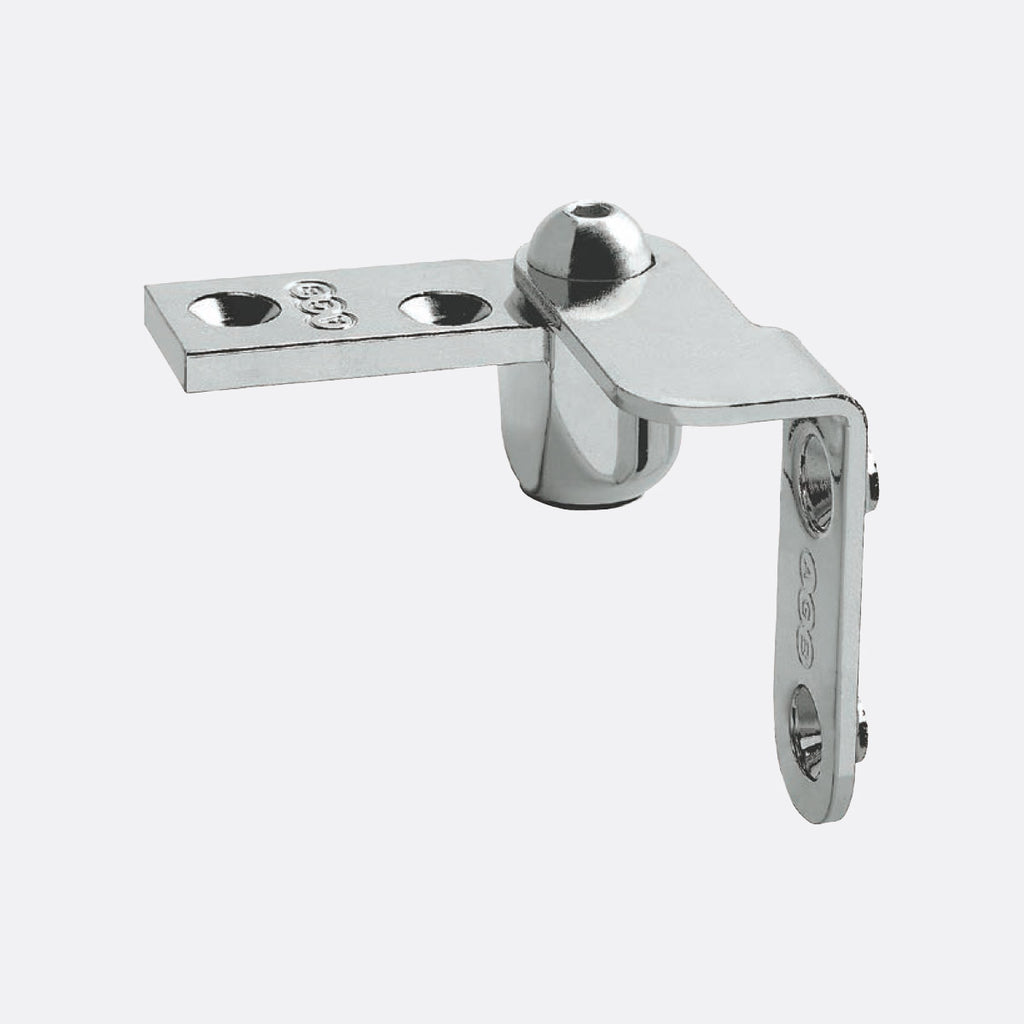

  • 2R hinge

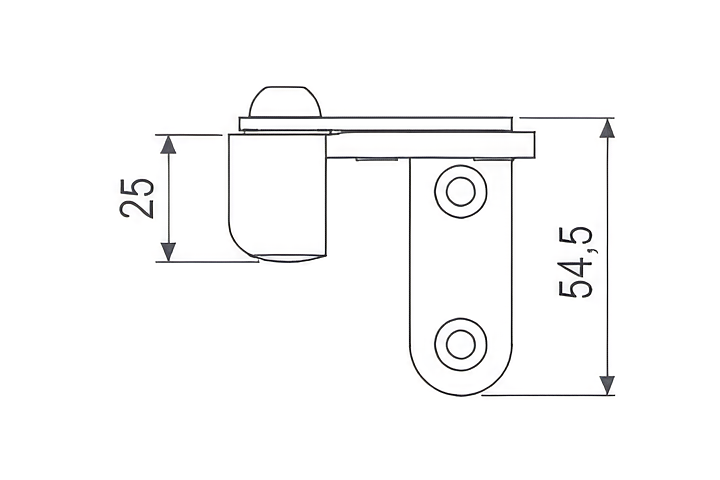

  • Technical drawing of 2R
  • Finishes available for 2R
2R

2R

Adjustable hinge for interior flush doors.
$0.00
Shipping calculated at checkout.

2R is an adjustable hinge designed for interior flush doors. It allows vertical and horizontal adjustments to simplify installation and alignment. The hinge supports reversible door configurations and enables non-handed door installations with up to 180° opening.

Features
Adjustability
  • Vertical adjustment capability
  • Horizontal adjustment using an octagonal cam washer
  • Adjustable using 4 mm and 5 mm Allen keys
Installation
  • Reversible hinge configuration
  • Allows installation on non-handed doors
  • Designed for flush interior doors
  • Offset fastening holes for installation
Construction
  • Die-cast hinge body
  • Brass hinge pin for vertical adjustment
  • Nylon cam washer for seal pressure adjustment
  • Snap fastening hinge cap
  • Support bracket designed for 5 mm diameter screws
Performance
  • Supports door weight up to 40 kg
  • Allows doors to open up to 180°

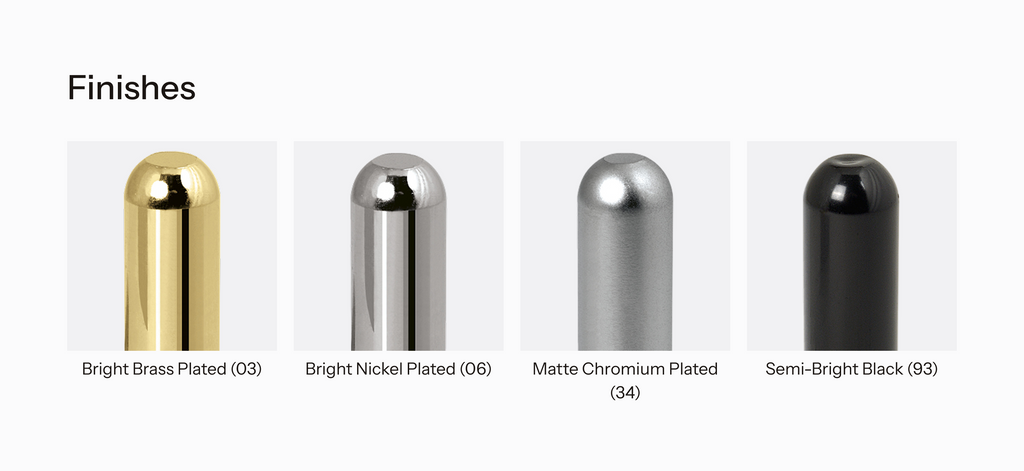

Finishes
  • Enamelled brass plated
  • Nickel plated
  • Matte chromium plated
  • Matte black
Material
  • Steel
  • Brass components
Compatible Materials
  • Wood door panels
Dimensions

Height
  • 54.5 mm
Vertical Adjustment
  • 5 mm
Door Panel Thickness
  • Designed for 45 mm door panels
  • Compatible with 41–44 mm panels upon request
Maximum Door Weight
  • 40 kg

Need additional specifications or technical guidance? Contact Us.
