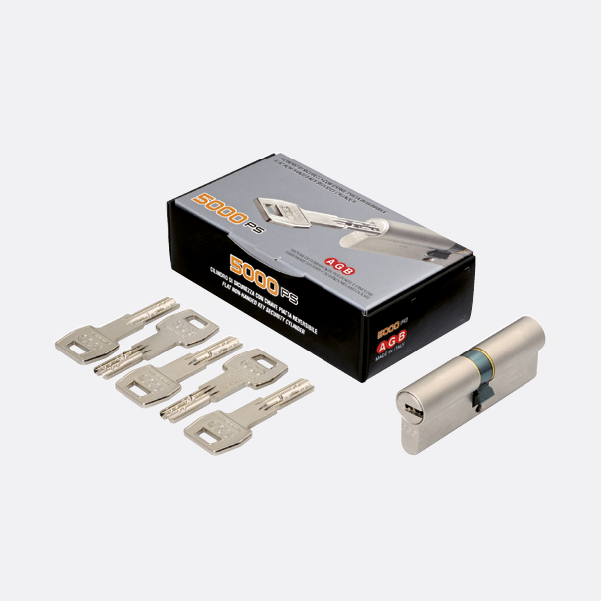

  • Components in the 5000 PS box: cylinder and keys.

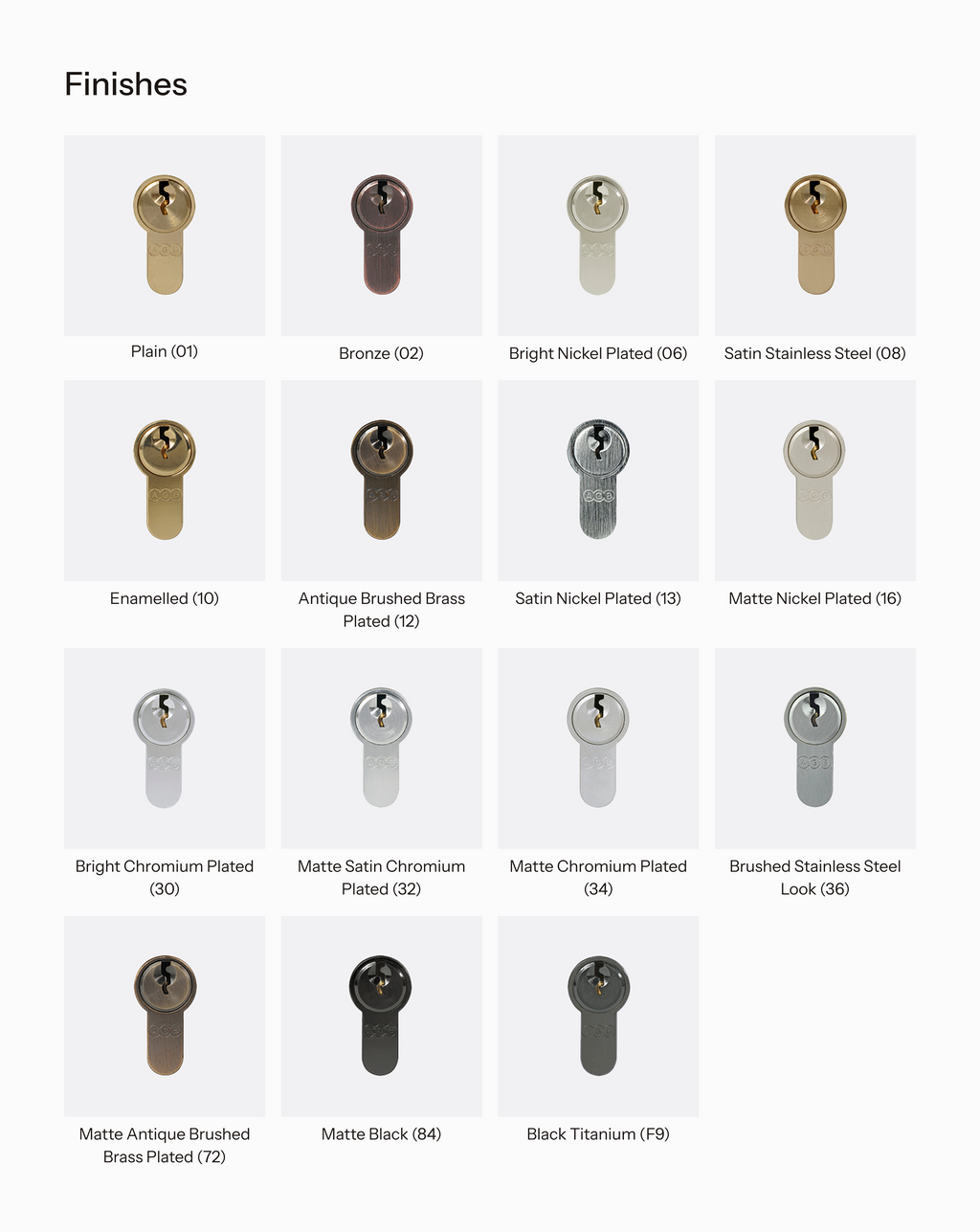

  • Chart showing cylinder finishes

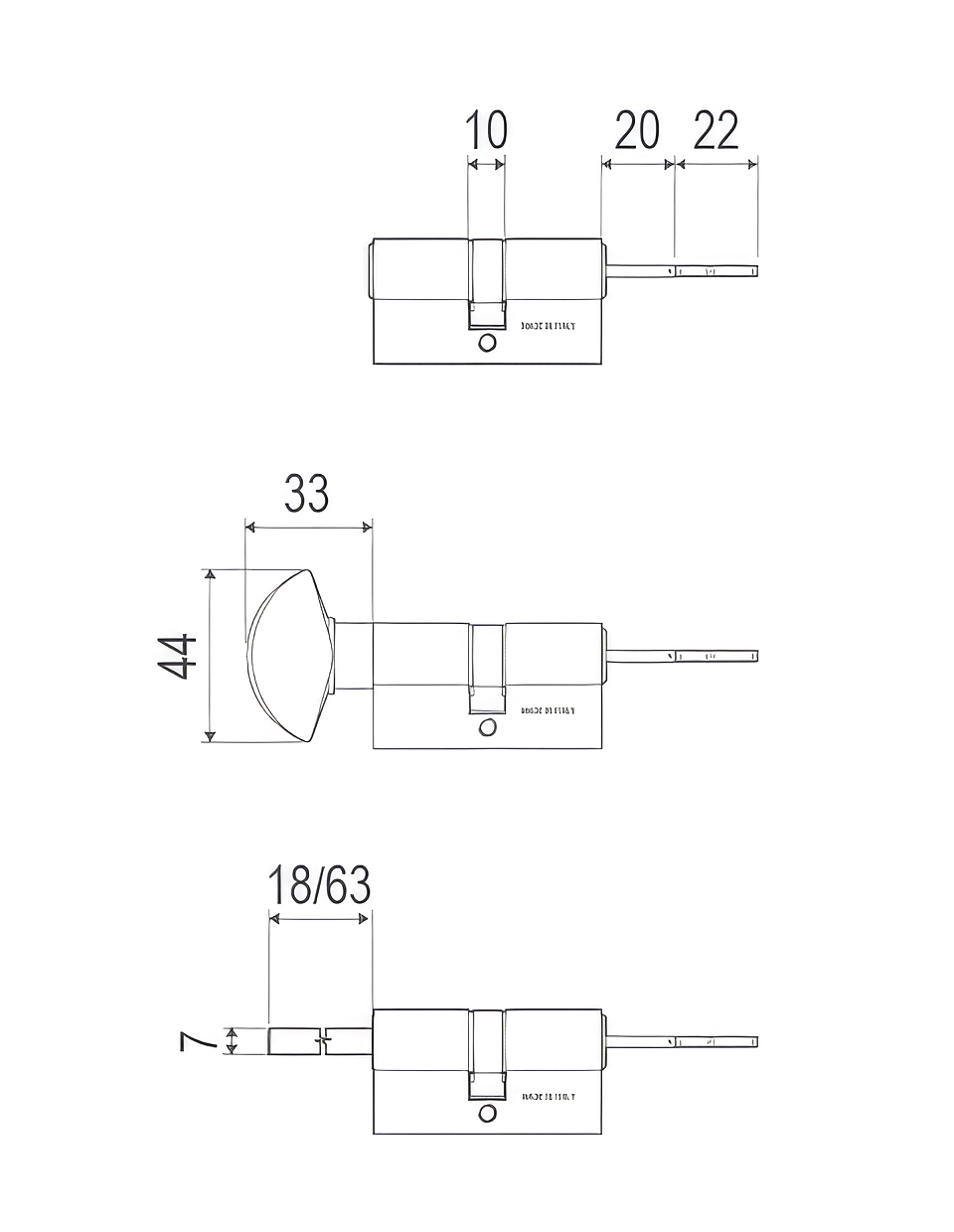

  • 5000 PS technical drawing
5000 PS

5000 PS

Euro profile security cylinder with flat reversible key.
$0.00
Shipping calculated at checkout.

Euro profile security cylinder with flat reversible key compatible with protective rim guards. The cylinder uses passive and active pins for a wide range of coding and includes anti-drill pins in hardened steel, antibumping protection, and an anti-pull cam. Certified according to EN 1303 standards. Supplied with five keys.

Features
Security
  • 3 anti-drill pins in hardened steel on each side
  • Anti-pull cam in sintered steel
  • Antibumping protection
Pin System
  • 6 active pins
  • 9 passive pins
Keys
  • 5 flat reversible keys with long neck resistant to torsion
  • Customisable key cover
Function
  • Double function (two keys inserted at the same time)
Certifications
  • EN 1303
  • ICIM EN1303
  • SKG
  • GOST-R
  • EN 1634 (fire door)
Dimensions

Dimensions vary depending on cylinder configuration.

Need additional specifications or technical guidance? Contact Us.
