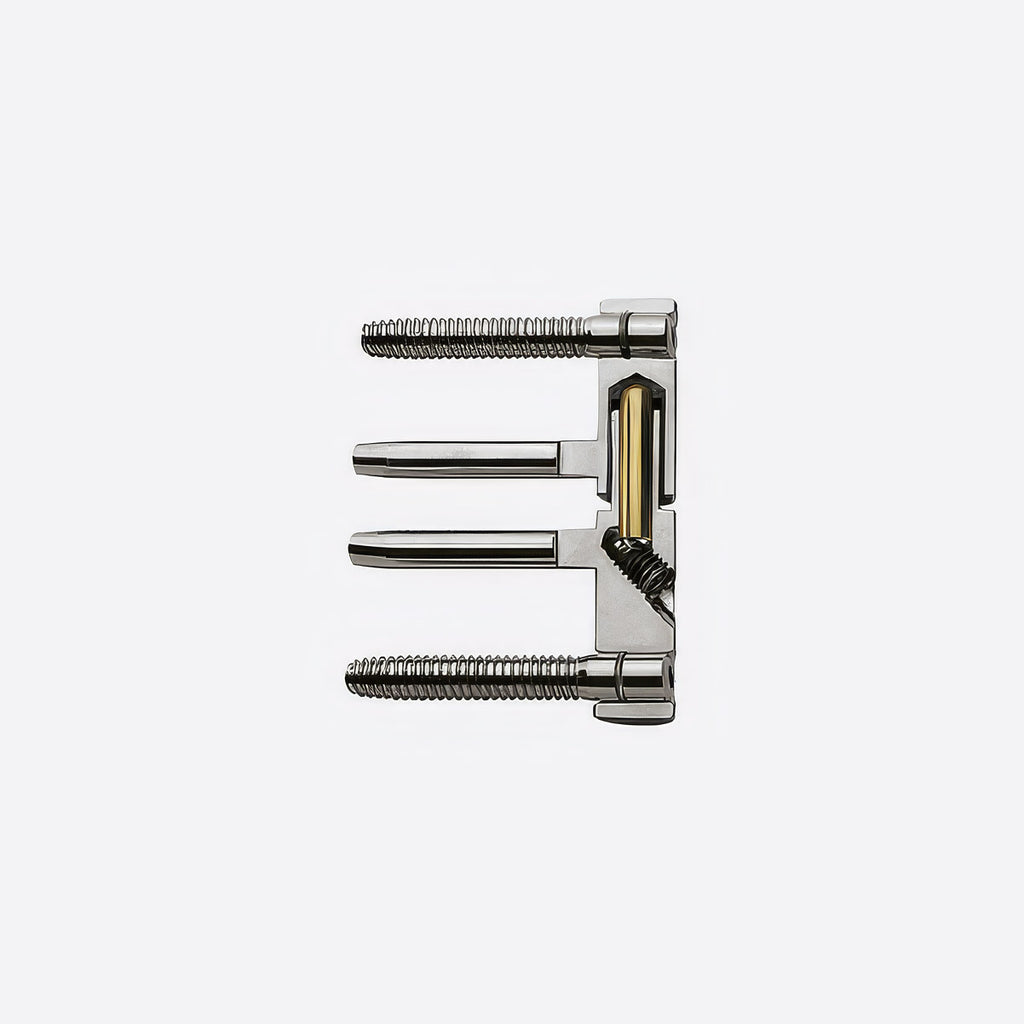

  • Cross section of 3D

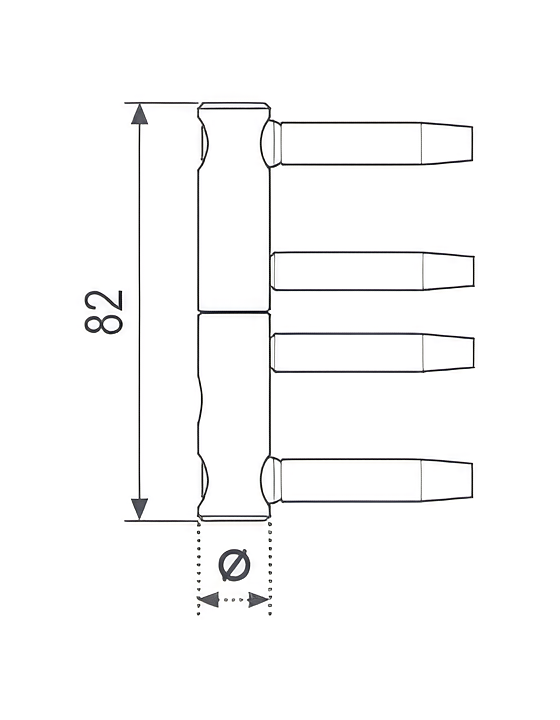

  • Technical drawing of 3D
  • Overview of hinge finishes
3D

3D

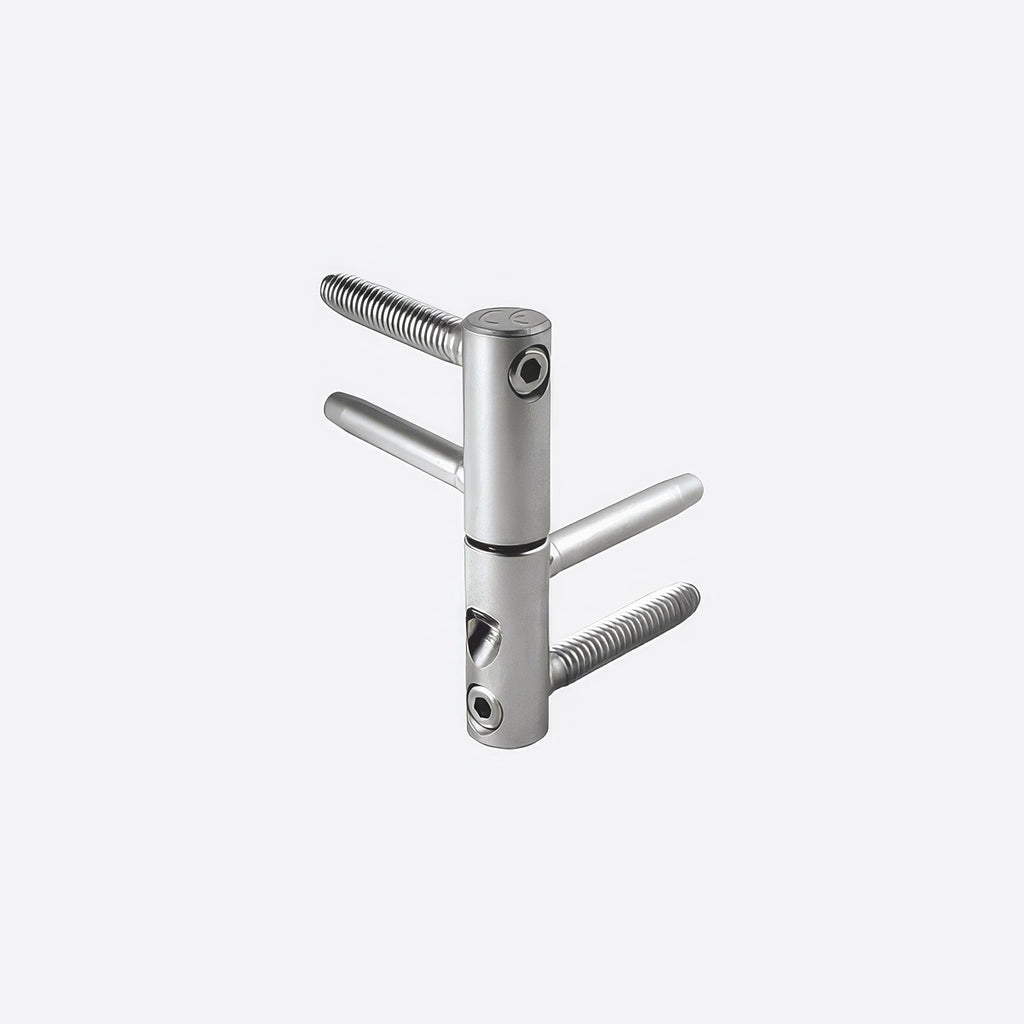

3-axis adjustable hinge for wood doors
$0.00
Shipping calculated at checkout.

3D is a three-axis adjustable hinge designed for wooden doors and windows. The hinge features a revolving stainless steel ball and self-lubricating components for smooth operation and long-term stability. It is certified for fire door applications and supports heavy door installations.

Features
Adjustability
  • Three-axis adjustment system
  • Vertical adjustment via threaded adjusting pin
  • Horizontal pressure adjustment
  • Self-lubricating hinge hole for smoother movement
Performance
  • Designed for heavy doors and window sashes
  • Smooth hinge movement with revolving ball mechanism
  • Suitable for fire doors and smoke doors
Construction
  • Revolving stainless steel ball for stability and smooth operation
  • Threaded adjusting pin secured with a Seeger ring
  • Self-lubricating plastic-coated hinge hole
Certifications
  • CE certified
  • EN 1935 certified hinge
  • EN 1634 fire door certification

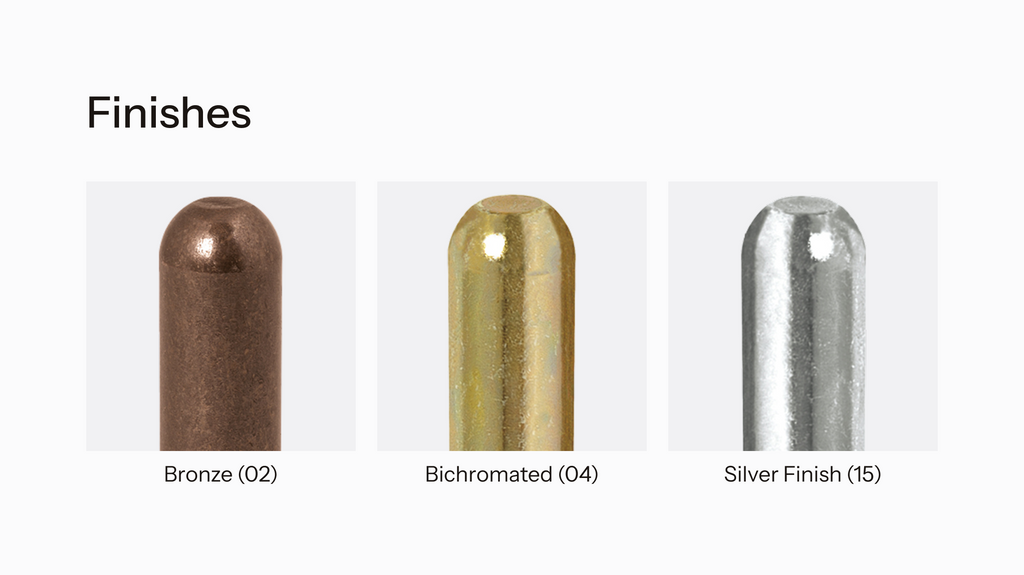

Finishes and Covers
  • Bichromated finish
  • Silver finish
  • Bronze plated finish
  • Multiple decorative cover options available
Material
  • Steel
  • Stainless steel
Compatible Materials
  • Wood doors
  • Wood window frames
Dimensions

Height
  • 82 mm
Diameter
  • 14 mm
  • 16 mm
Vertical Adjustment Range
  • 4 mm
Maximum Door Weight
  • Up to 90 kg
Hinge Length (X Dimension)
  • 39.5 mm (Ø14 version)
  • 48.5–65 mm (Ø16 version)

Need additional specifications or technical guidance? Contact Us.
