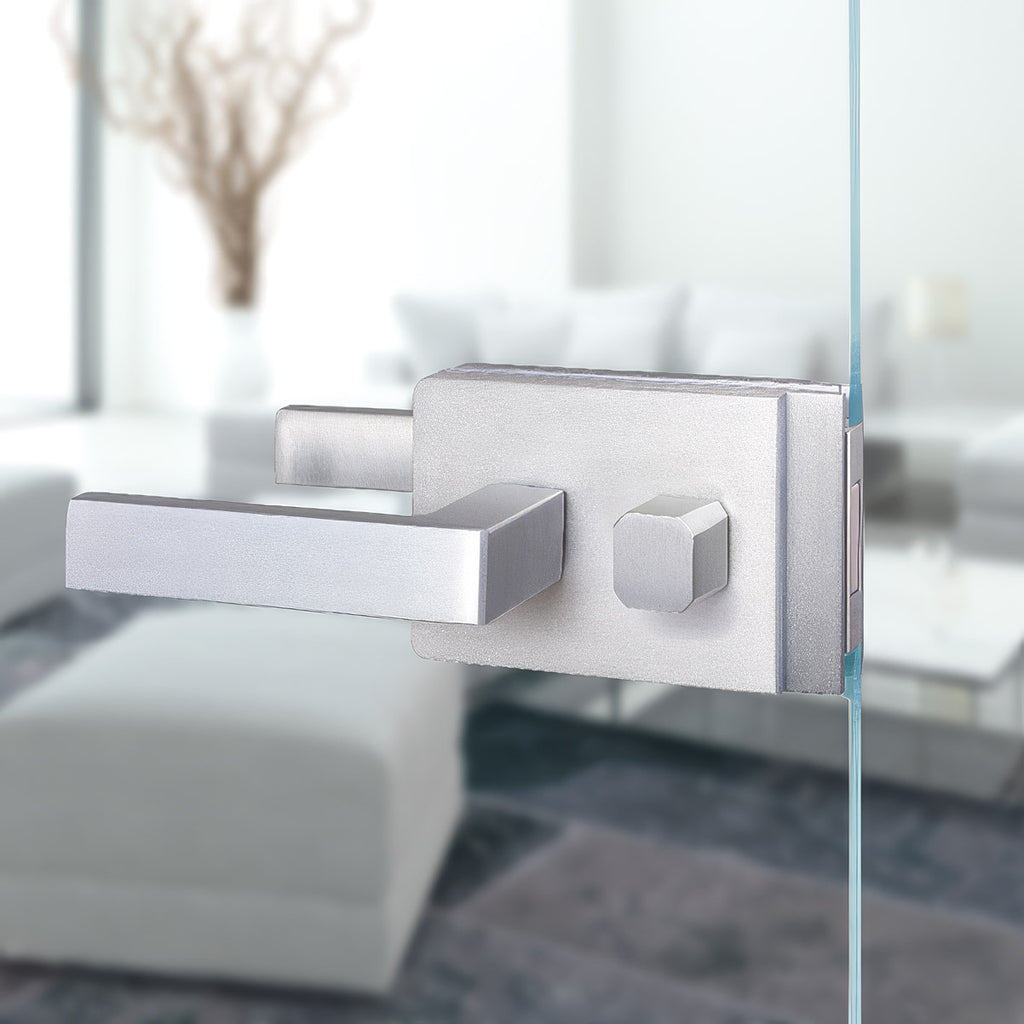

  • Vitra installed on a glass door

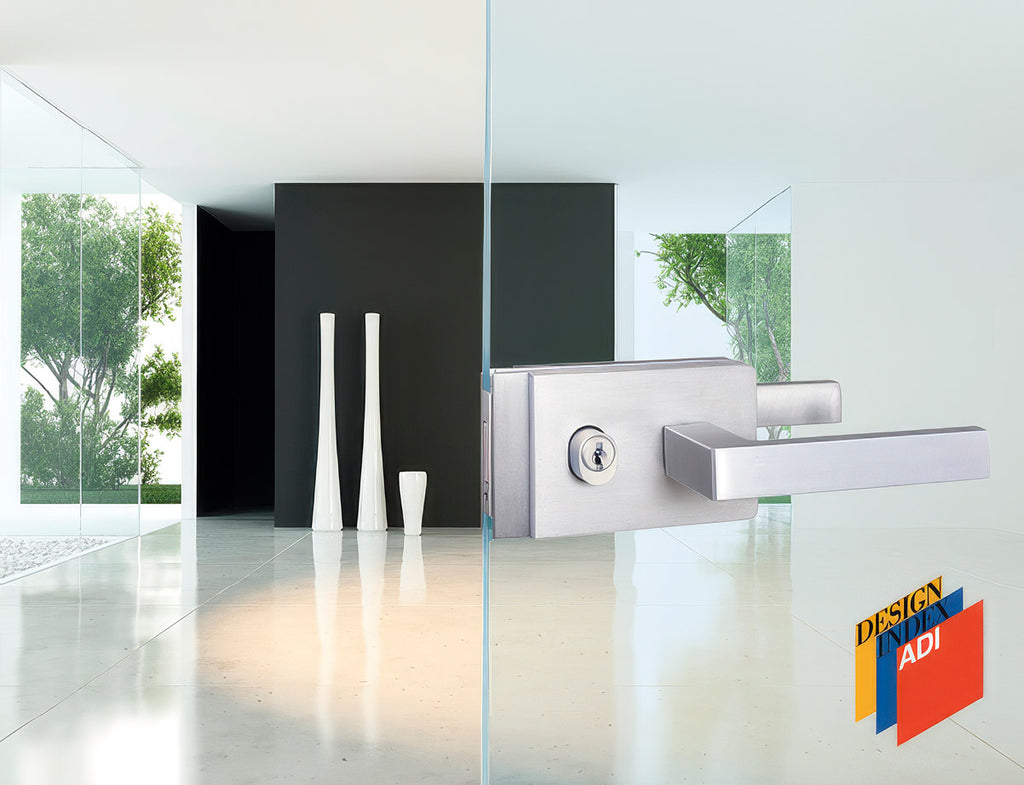

  • Sliding door installed in interior space featuring Design Index ADI selection.

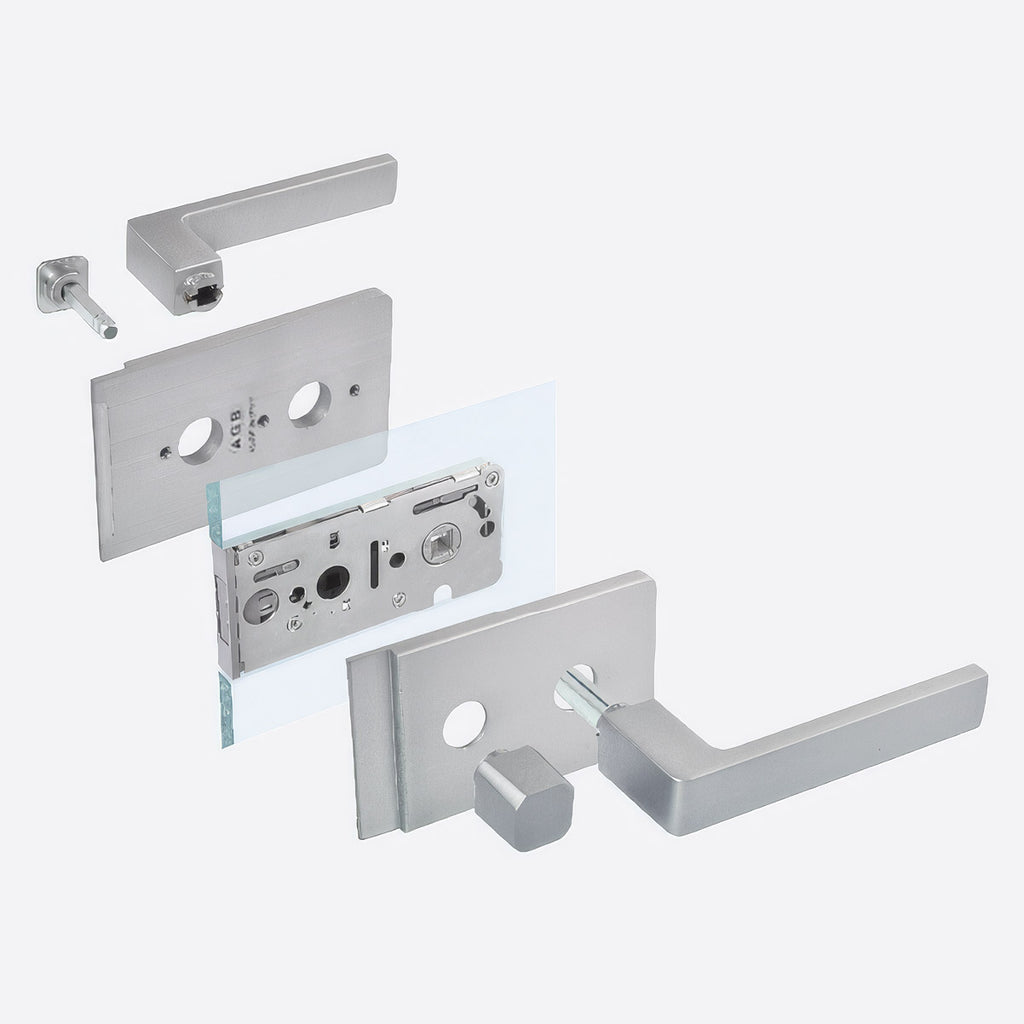

  • Exploded view of Vitra, showing its components.

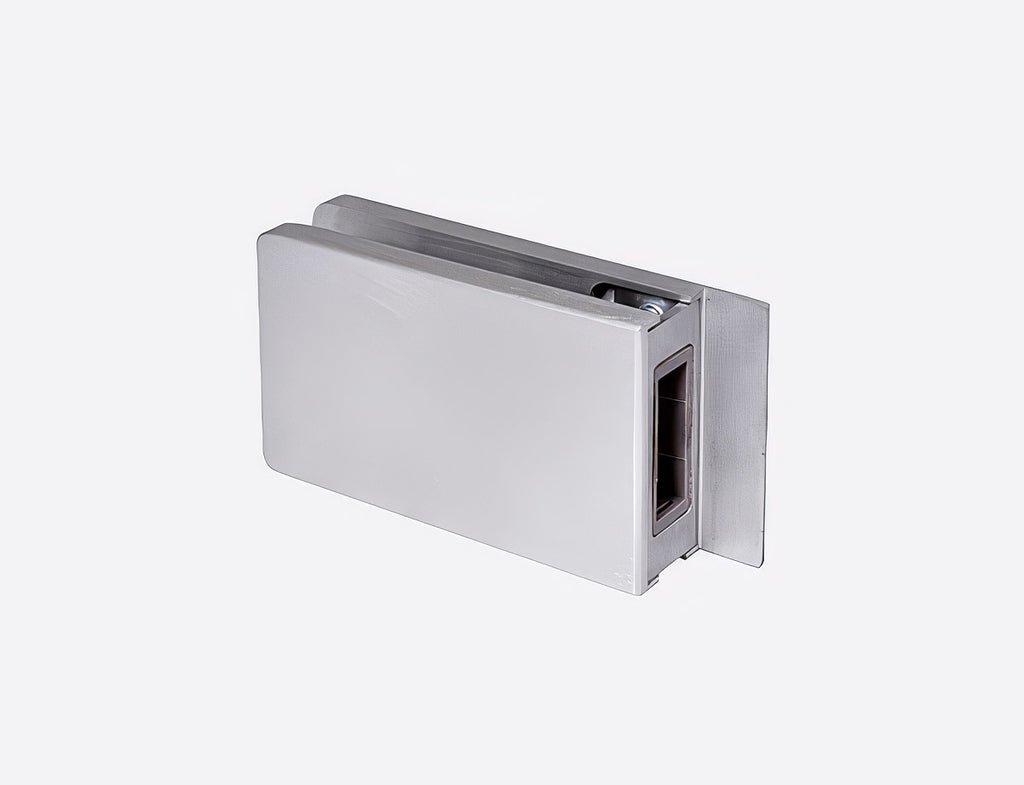

  • Sash striker used with Vitra

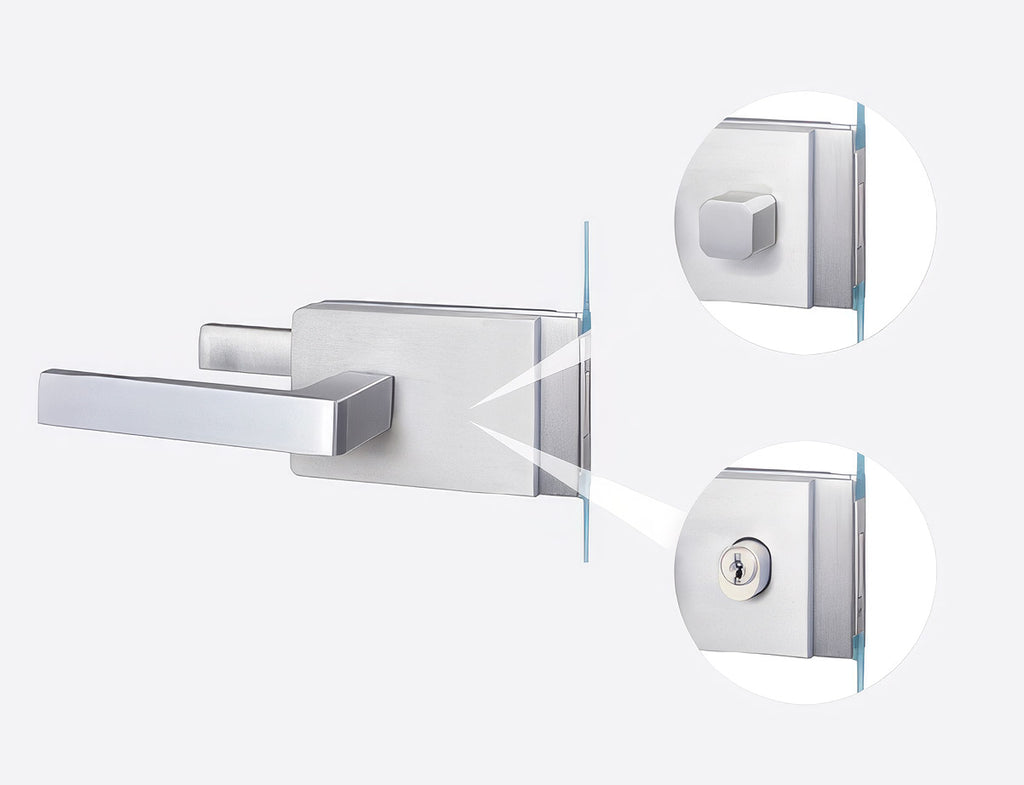

  • Diagram showing lock options for Vitra

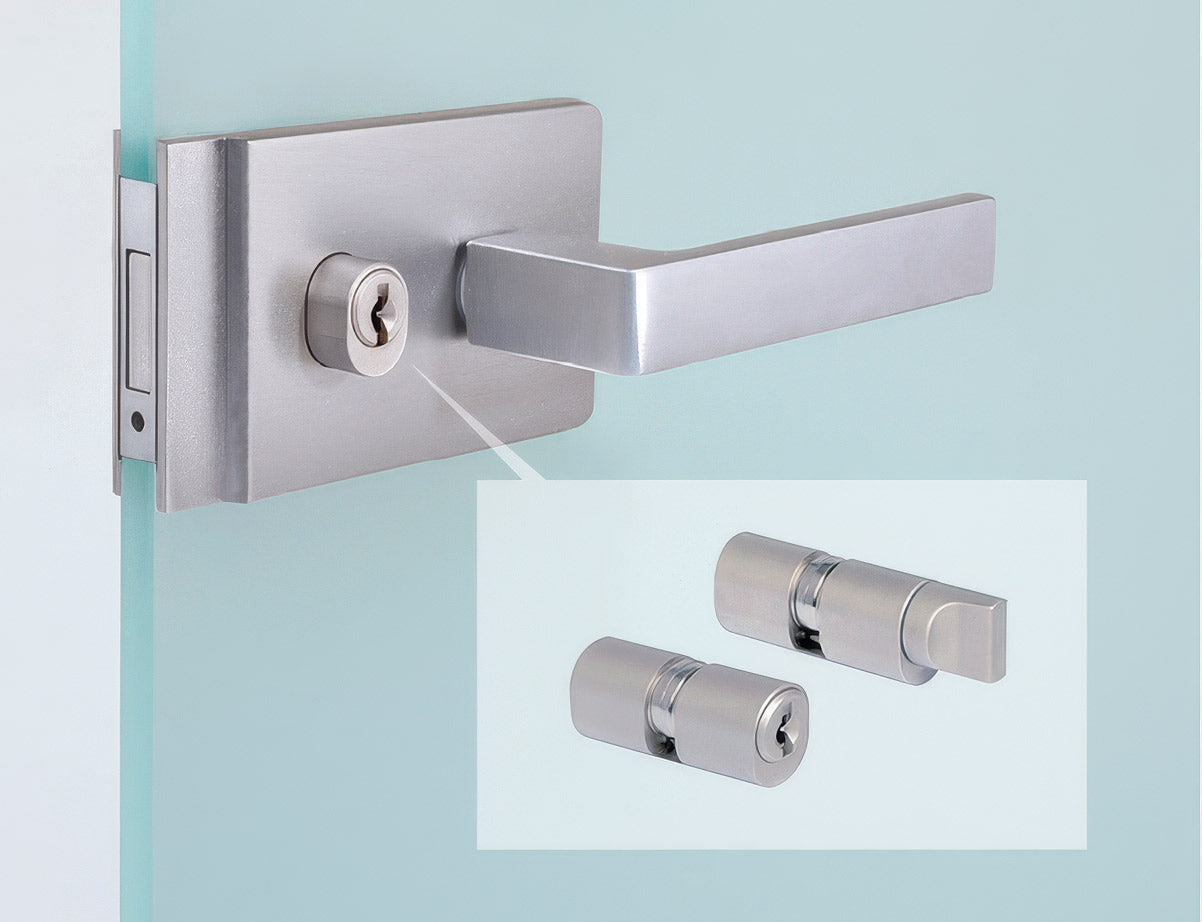

  • Diagram showing Vitra's cylinders

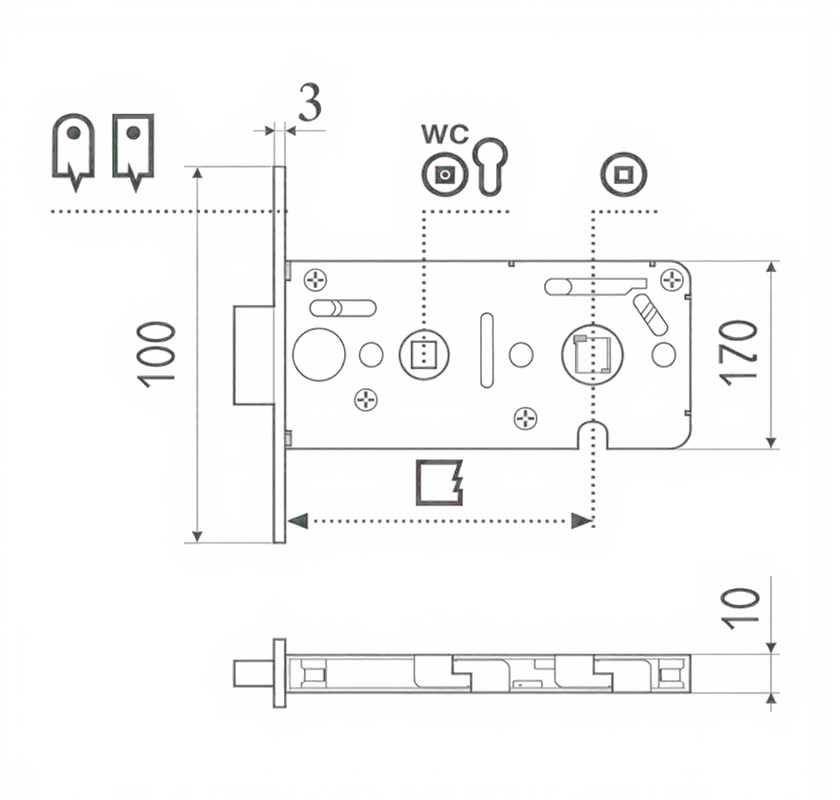

  • Vitra technical drawing
Vitra

Vitra

Magnetic lock for glass interior doors
$0.00
Shipping calculated at checkout.

Vitra is a non-handed magnetic lock designed specifically for glass doors. Integrated within the thickness of the sash, it provides a clean and modern solution for designers and manufacturers of glass door systems. The lock is available in multiple configurations, including handle, cam, and cylinder versions.

Features
Locking Options
  • Bathroom lock (6 mm)
  • Cylinder lock
Hardware Specifications
  • Hub: 8 mm
  • Foreend options:18 mm (round)10.5 mm (square)Version without foreend
Configuration Options
  • Model with handle
  • Model with cam
  • Model with cylinder
Compatibility
  • Compatible with XT magnetic strikers
  • Designed for glass door systems
Material
  • Steel
Compatible Door Material
  • Glass
Dimensions

Foreend
  • 18 mm (round)
  • 10.5 mm (square)
Backset
  • 82 mm
  • 85 mm
Hub
  • 8 mm

Need additional specifications or technical guidance? Contact Us.
