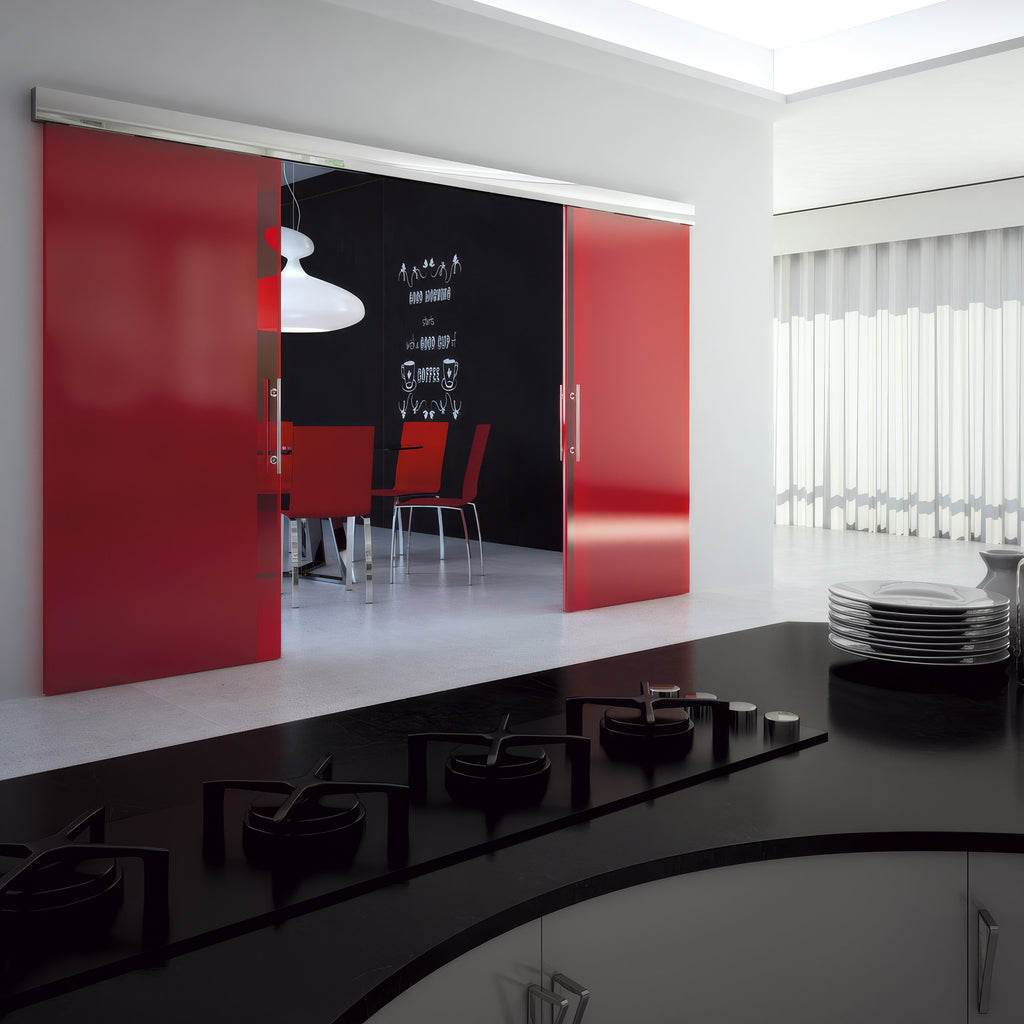

Modern interior with red sliding doors, black and white decor, and a dining area.

Vetro 74

$0.00
Skip to product information
Modern interior with red sliding doors, black and white decor, and a dining area.
1/3
  • Modern interior with red sliding doors, black and white decor, and a dining area.

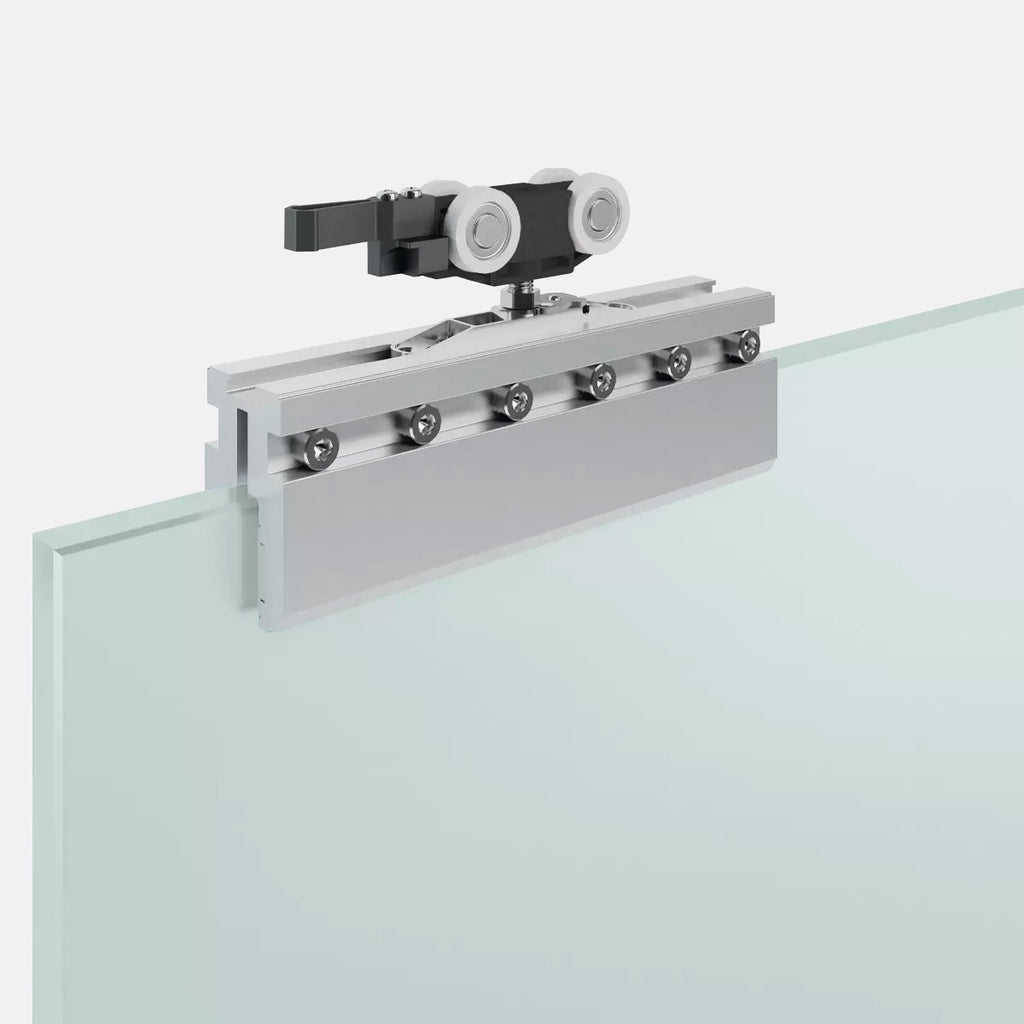

  • Close-up of Vetro 74's sliding mechanism

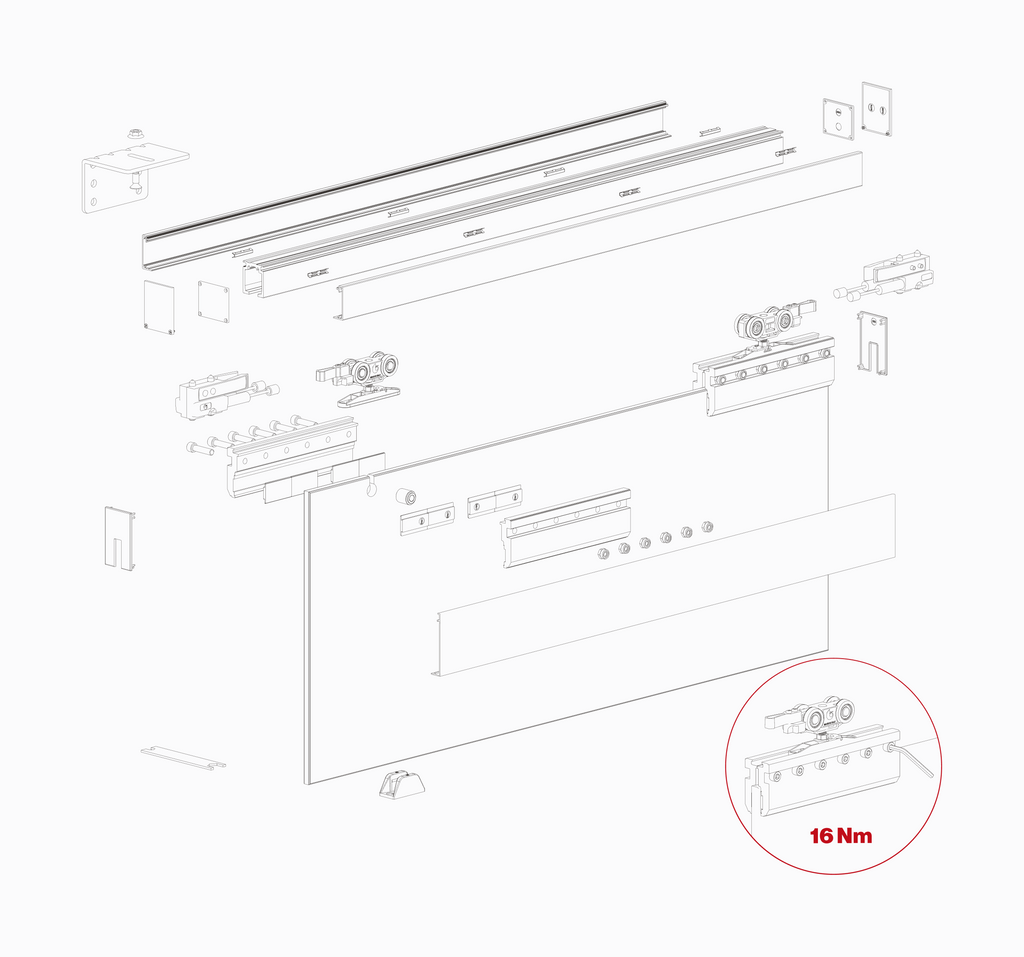

  • Vetro 74 technical drawing
Vetro 74

Vetro 74

Sliding system accessory for glass doors.
$0.00
Shipping calculated at checkout.

Vetro 74 is a sliding system accessory designed for glass doors with a safety hole and clamps with a height of 74 mm. The accessory supports doors weighing up to 250 kg and is suitable for glass with thicknesses up to 19 mm. It integrates sliding trolleys with Fluid technology to provide extremely smooth opening and closing.

Features
System Design
  • Sliding system for glass doors
  • Designed for glass doors with a safety hole
  • Clamp height: 74 mm
Performance
  • Fluid technology provides extremely light and smooth door movement
  • Supports doors with a maximum weight of 250 kg
Hardware
  • Shock absorber included
Materials
  • Door material: Glass
Compatible Materials
  • Compatible with glass up to 19 mm thick
Dimensions

Glass thickness: 15–19.7 mm

Minimum door width: 700 mm

Maximum door weight: 250 kg

Need additional specifications or technical guidance? Contact Us.
