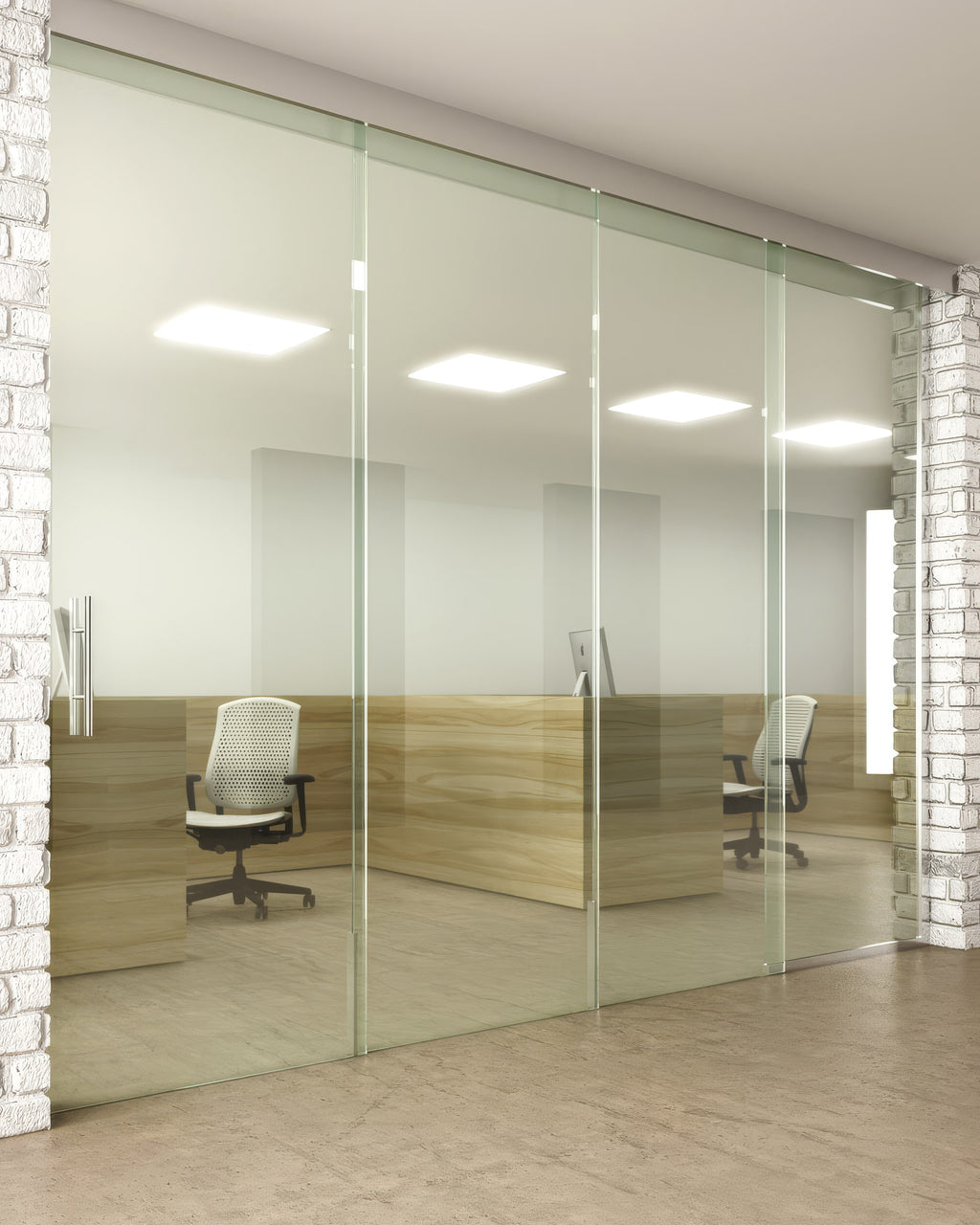

  • Modern office interior with glass walls and wooden desks.

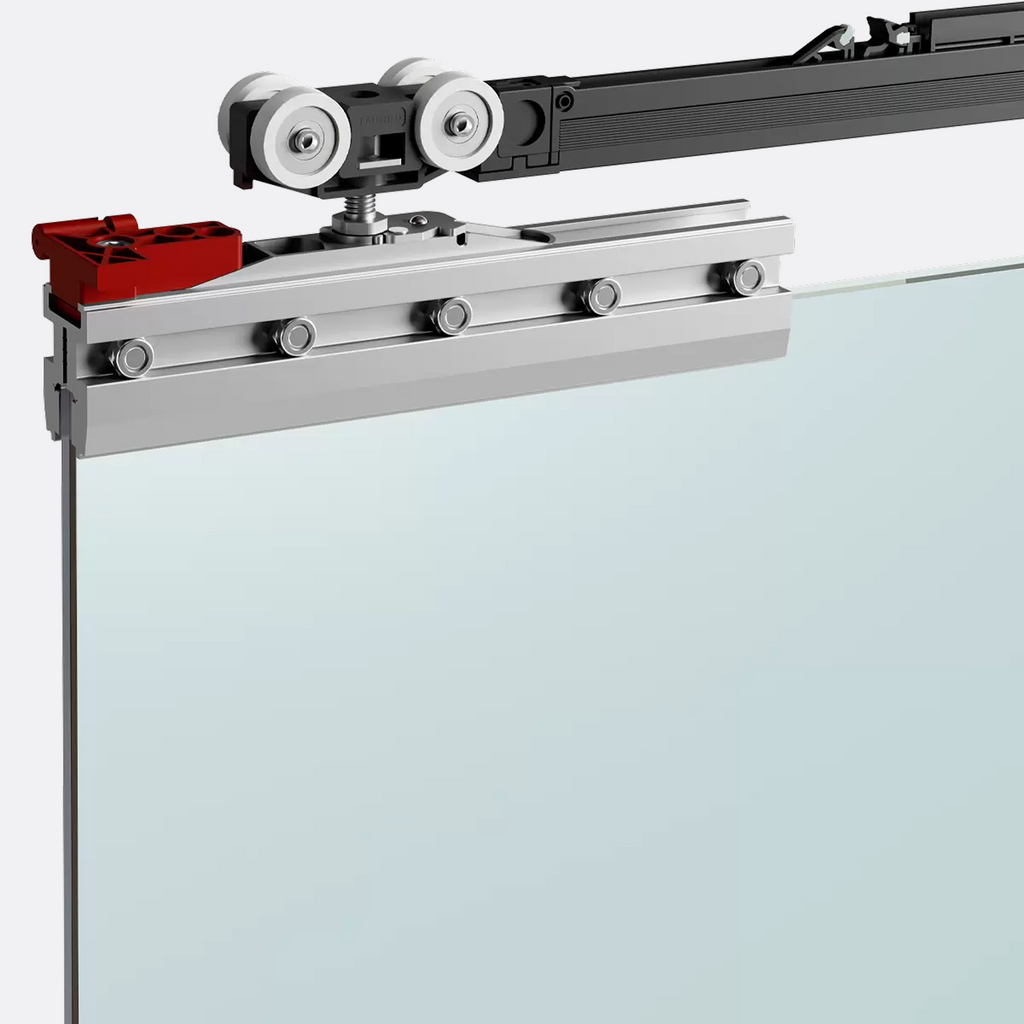

  • Close-up of Vetro 40 Drag's sliding door mechanism

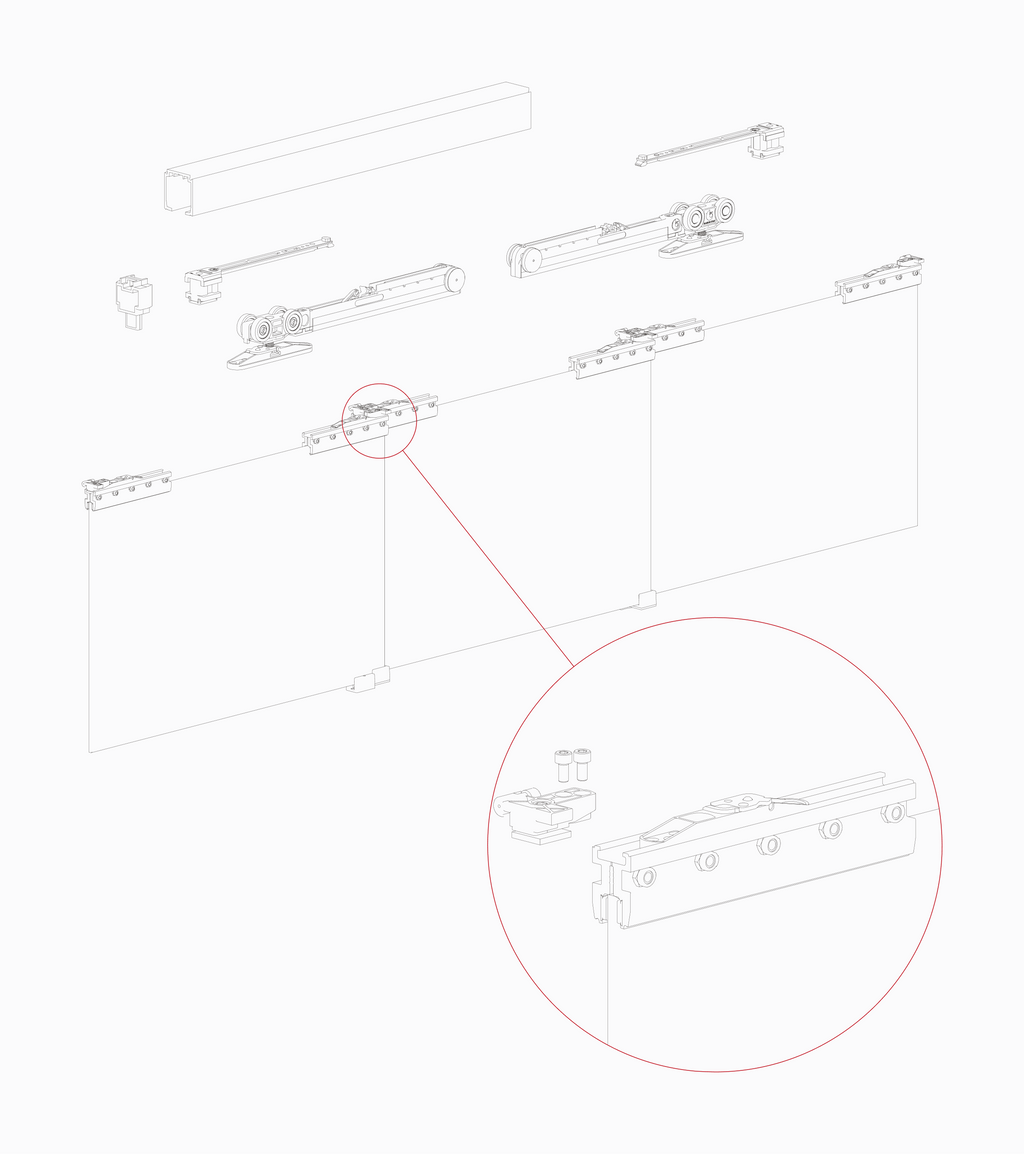

  • Vetro 40 Drag technical drawing
Vetro 40 Drag

Vetro 40 Drag

Sliding system for drag glass doors.
$0.00
Shipping calculated at checkout.

Vetro 40 Drag is a sliding system designed for drag glass doors with a reduced height clamp of only 40 mm. The system features a full-length clamping profile that can be cut to size as needed. Integrated sliding trolleys with Fluid technology provide smooth opening and closing movements.

Features
System
  • Sliding system designed for drag glass doors
  • Reduced height clamp profile (40 mm)
  • Full-length clamping system that can be cut to size
Technology
  • Sliding trolleys with Fluid technology for smooth opening and closing movements
Configuration
  • Designed for manual telescopic glass door applications
Stoppers
  • Fluid dampers
  • Shock absorber
Materials
  • Glass door panels
Compatible Materials
  • Monolithic glass
  • Laminated glass
Dimensions

  • Glass thickness: 8–10.7 mm
  • Minimum door width: 600 mm
  • Maximum door weight: 80 kg

Need additional specifications or technical guidance? Contact Us.
