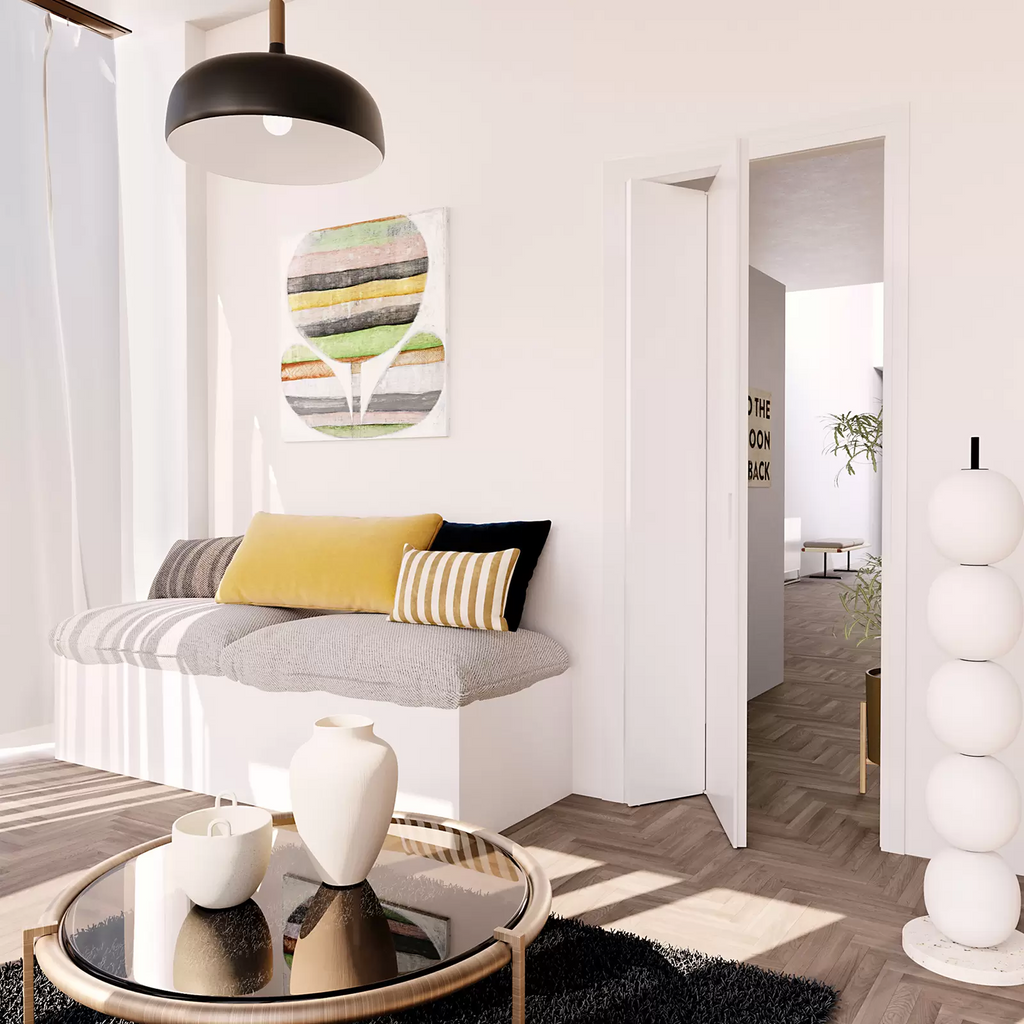

  • Modern living room with a gray sofa, yellow and striped cushions, and a coffee table.

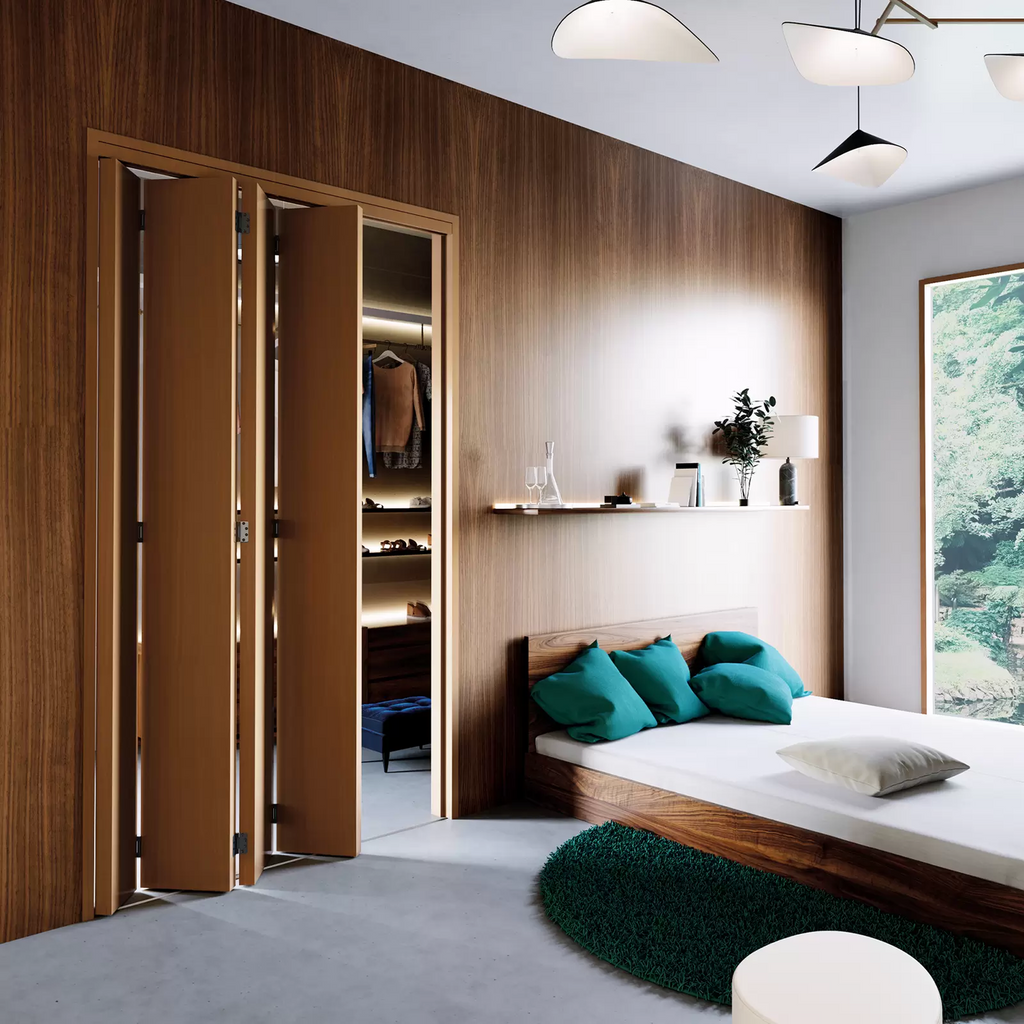

  • Modern bedroom with open closet, bed with teal pillows, and large window.

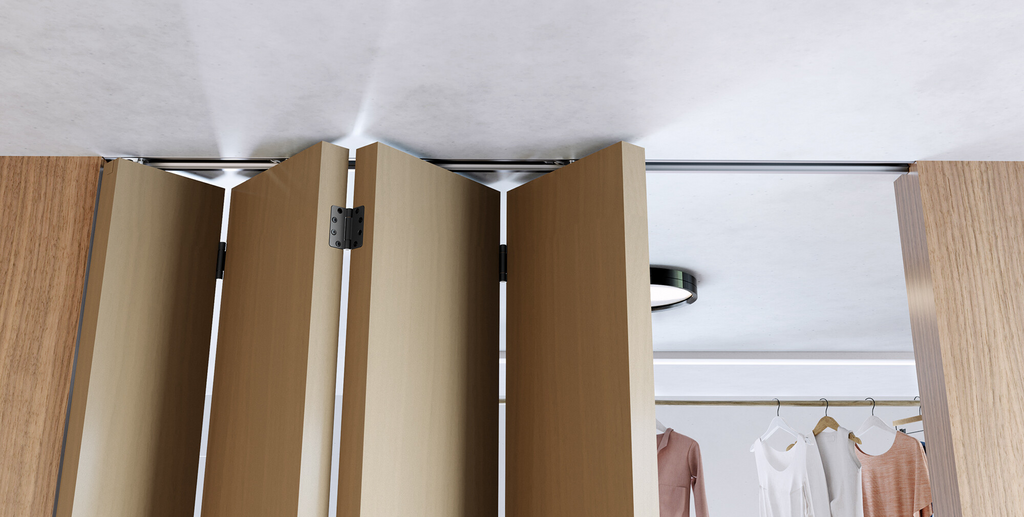

  • Ceiling-mounted folding partition with wooden finish in a room with clothing racks.
  • Versatile with symmetrical panels
  • Versatile with asymmetrical panels
  • Close-up of Fluid Technology used in trolleys

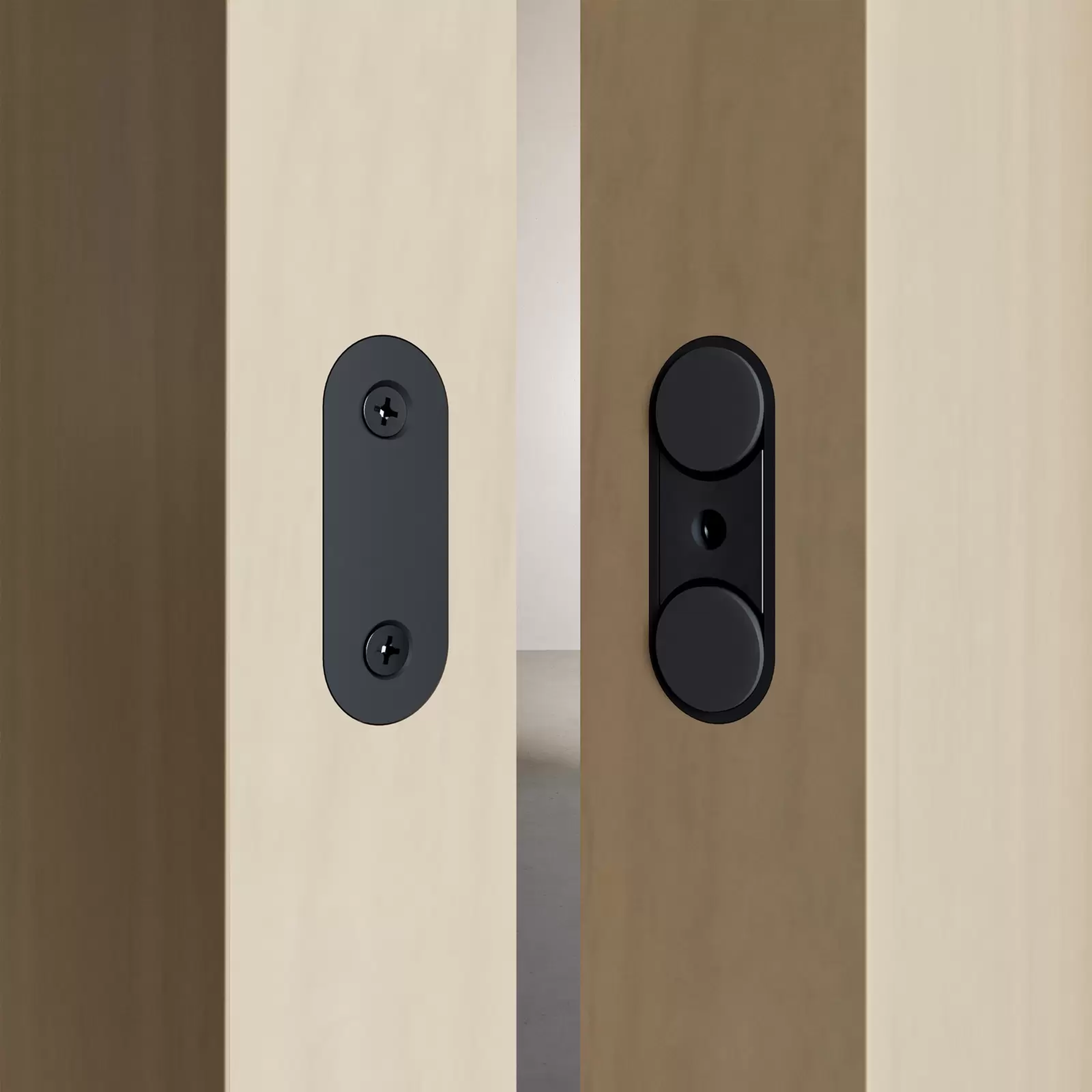

  • Close-up of magnetic aligners on Versatile
  • Close-up of hinges on Versatile

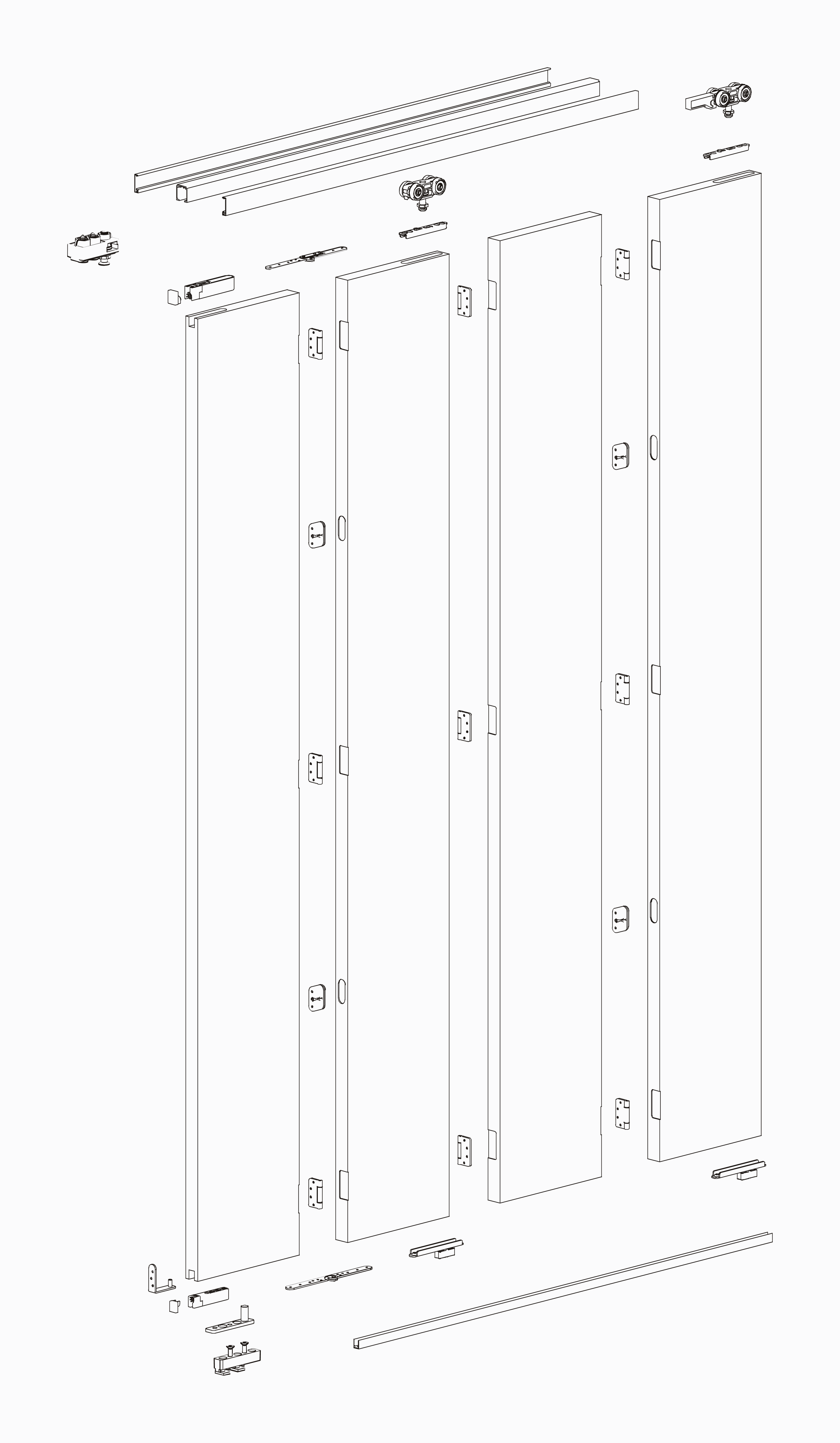

  • Technical Drawing of Versatile
Versatile

Versatile

A flexible system for wooden folding doors.
$0.00
Shipping calculated at checkout.

Versatile is a flexible folding door system designed for wooden folding doors. The system supports multiple configurations, including bi-fold symmetrical doors, bi-fold asymmetrical doors, and multi-fold doors. It can be installed recessed into the jamb or externally under the ceiling and can create doors up to 3 meters (118 1/8") high.

Features
System Configurations
  • Flexible folding system for wooden folding doors
  • Supports bi-fold symmetrical doors
  • Supports bi-fold asymmetrical doors
  • Supports multi-fold door configurations
Panel Configurations

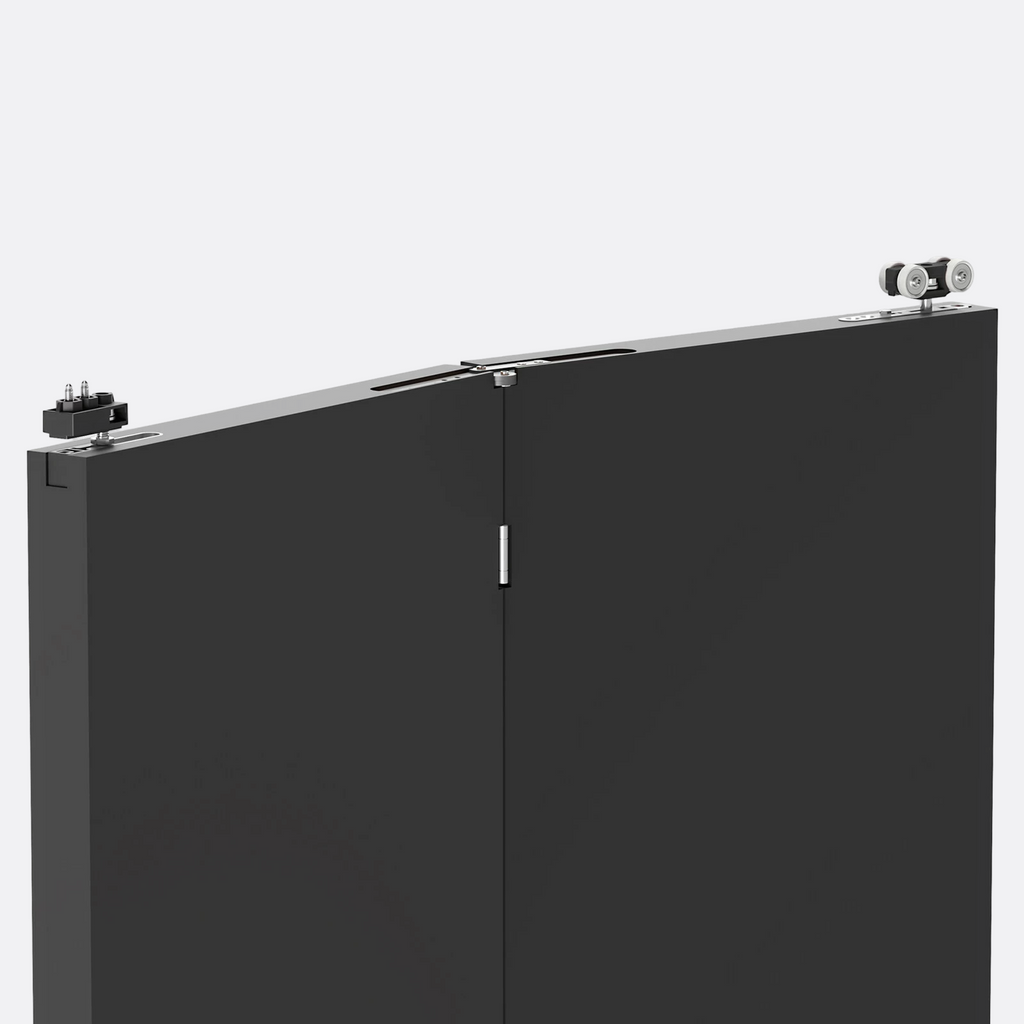

  • Symmetrical panels: sliding trolley fixed on the edge of the panel (side fixing)

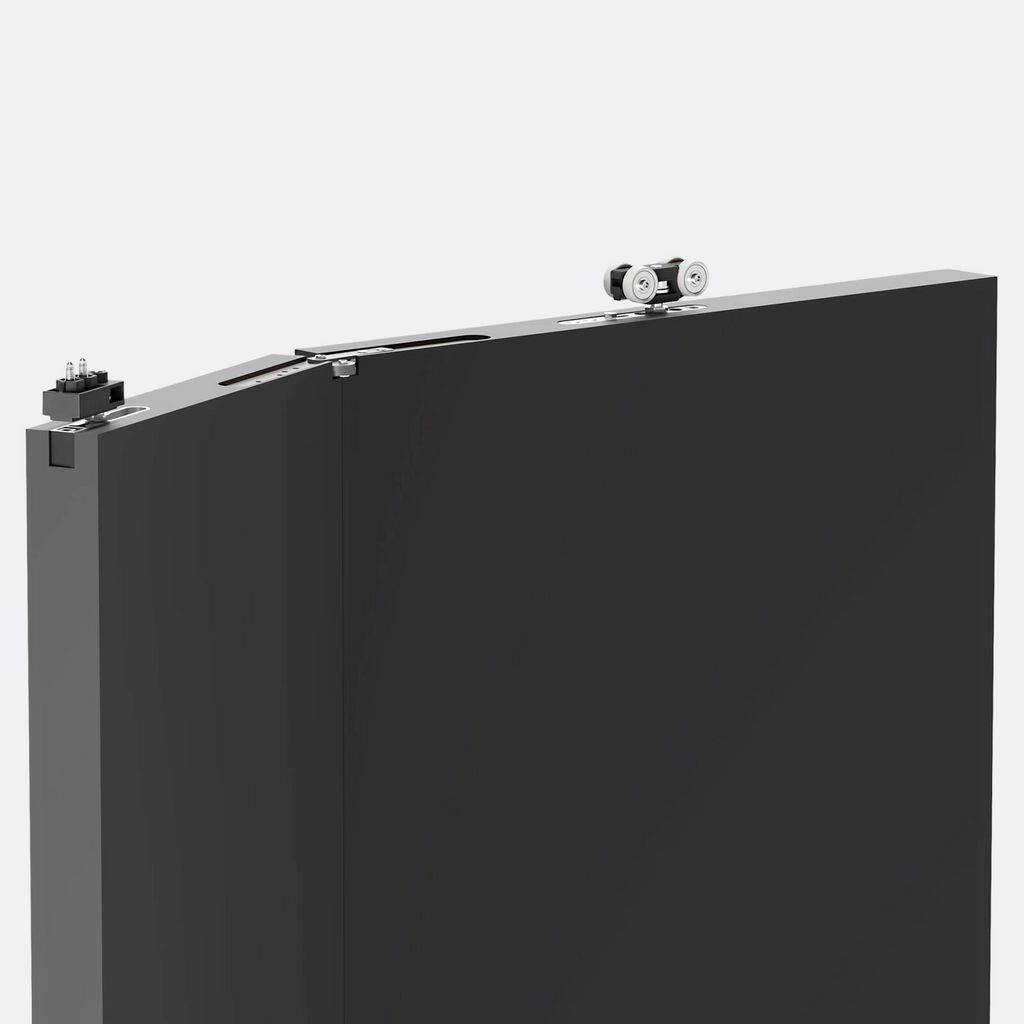

  • Asymmetrical panels: sliding trolley fixed in the middle of the panel (middle fixing)
  • Allows accordion doors in limited spaces by distributing packed panels between two rooms
Space Optimization
  • Designed for small spaces
  • Allows doors to adapt to specific space needs
  • Packed panels can remain confined to one room when open
Installation Options
  • Track can be recessed into the jamb
  • Track can be attached externally under the ceiling
  • Reversible system allowing installation on either side
Closing System
  • Magnetic aligner ensures panels align correctly when closing
  • Creates complete and linear door closing
  • Adjustable to correct the gap between door panels
  • Allows easier installation, as panels can be mounted one at a time

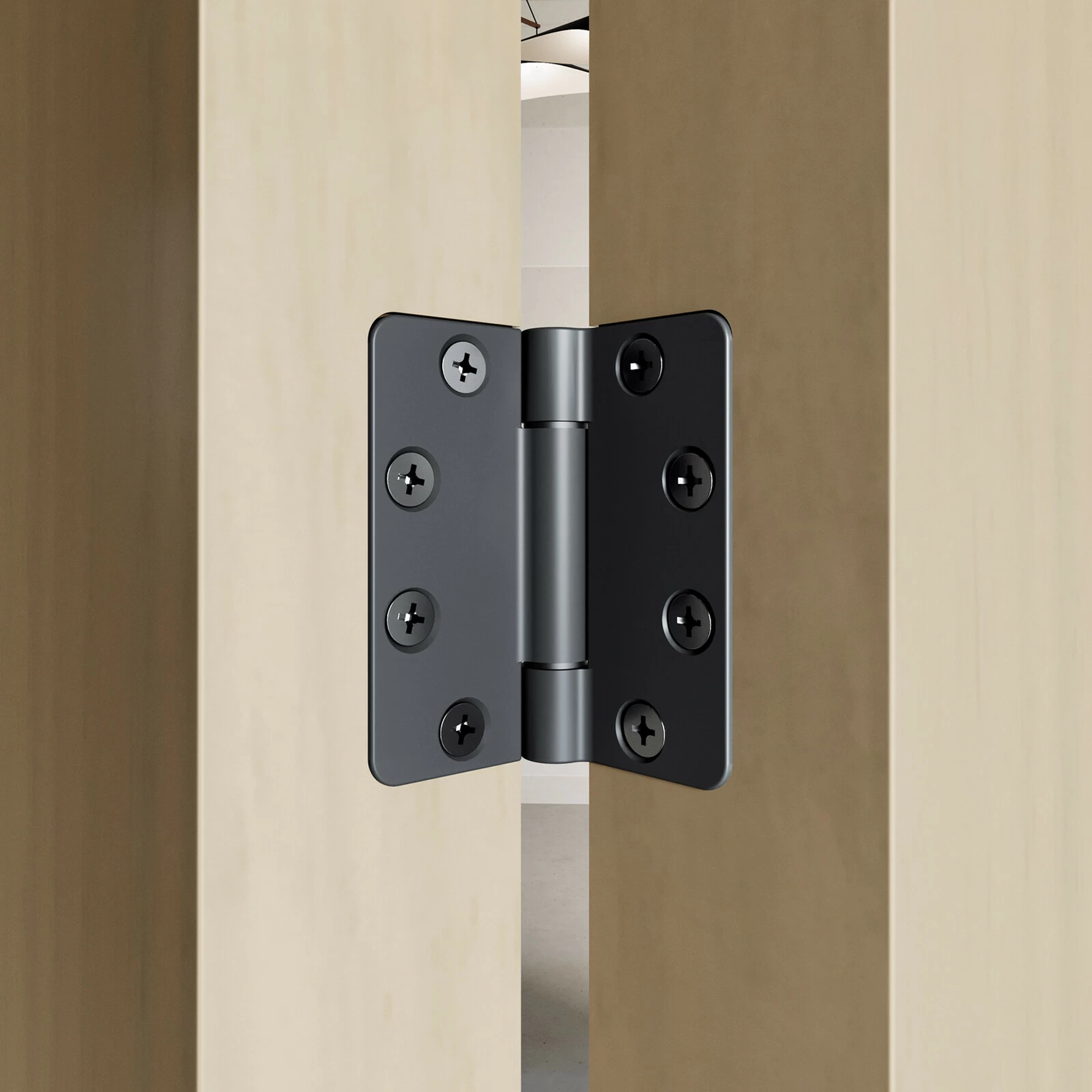

Hinge System
  • Butt hinges included
  • Supports panel thicknesses greater than 40 mm (1 9/16")
  • Ensures precise and aligned door stacking when opening
  • System kit also available without butt hinges
  • Compatible with main invisible hinges on the market
Performance

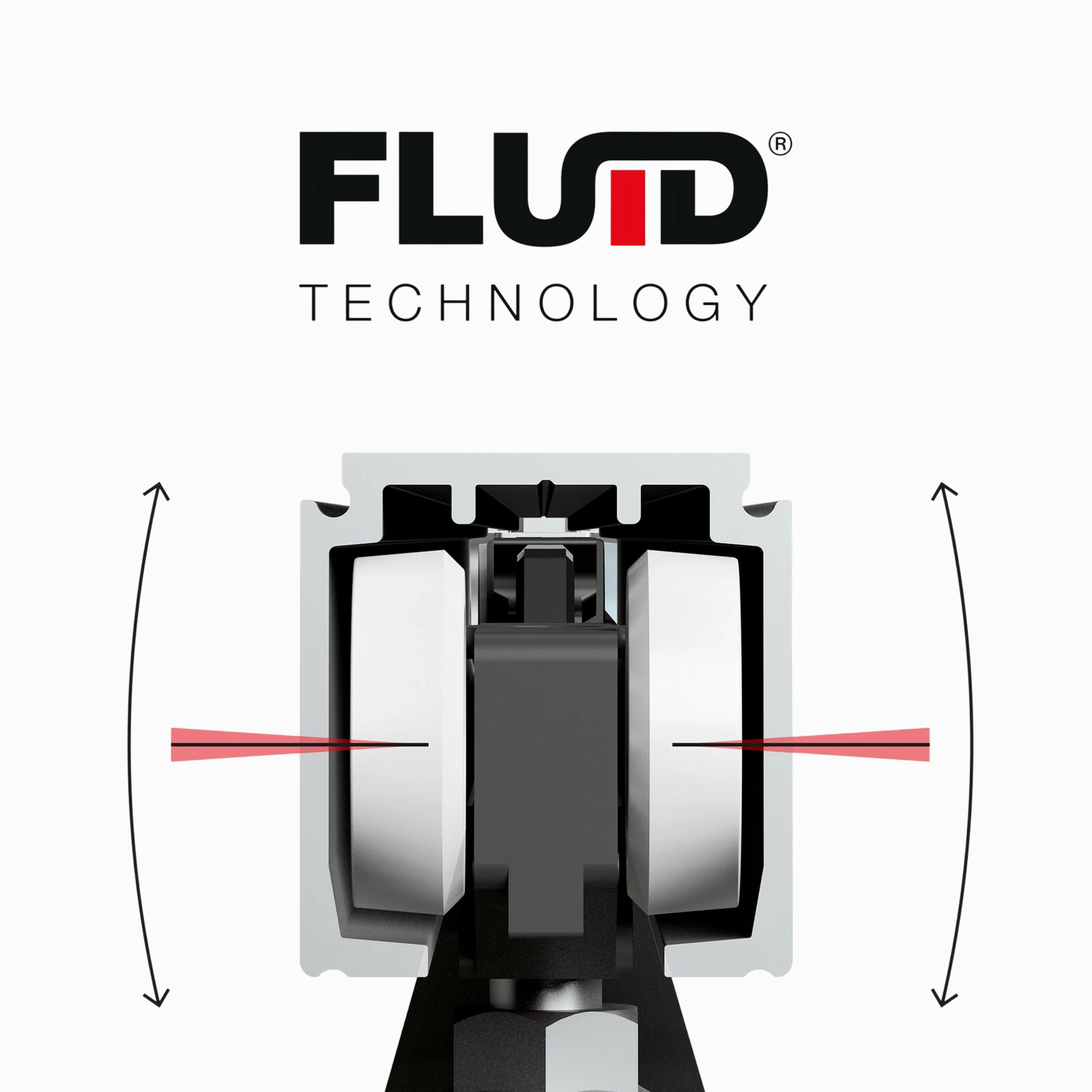

  • Sliding trolleys integrate patented Fluid technology
  • Designed for high-performance, linear, and uniform movement
  • Works even on irregular surfaces
  • Wheels include coated bearings of large dimension
  • Includes memory-shape independent stabilization spacer
  • Stabilizers allow wheels to slide uniformly even if the track installation is not perfectly aligned
Additional Features
  • Magnetic panel alignment
  • Fluid dampers available as stoppers
  • Reduced top gap with Hide bracket, leaving 6 mm (1/4") gap between track and door
Materials
  • Door material: Wood
Compatible Materials
  • Compatible with butt hinges or invisible hinges
Dimensions

  • Maximum door height: up to 3 m (118 1/8")
  • Maximum door weight: 80 kg
  • Minimum panel thickness for included butt hinges: greater than 40 mm (1 9/16")
  • Gap between track and door (with Hide bracket): 6 mm (1/4")

Need additional specifications or technical guidance? Contact Us.
