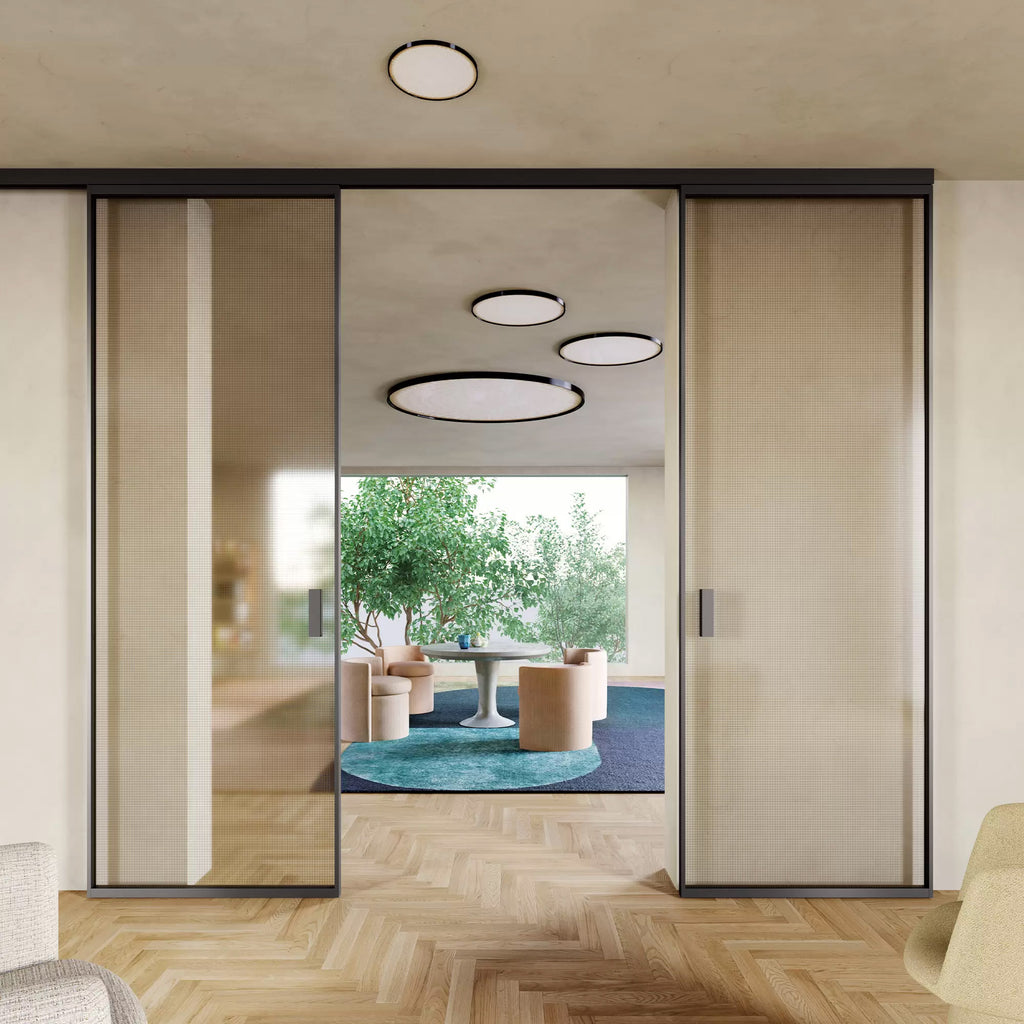

  • Modern interior with sliding glass doors leading to an outdoor patio.

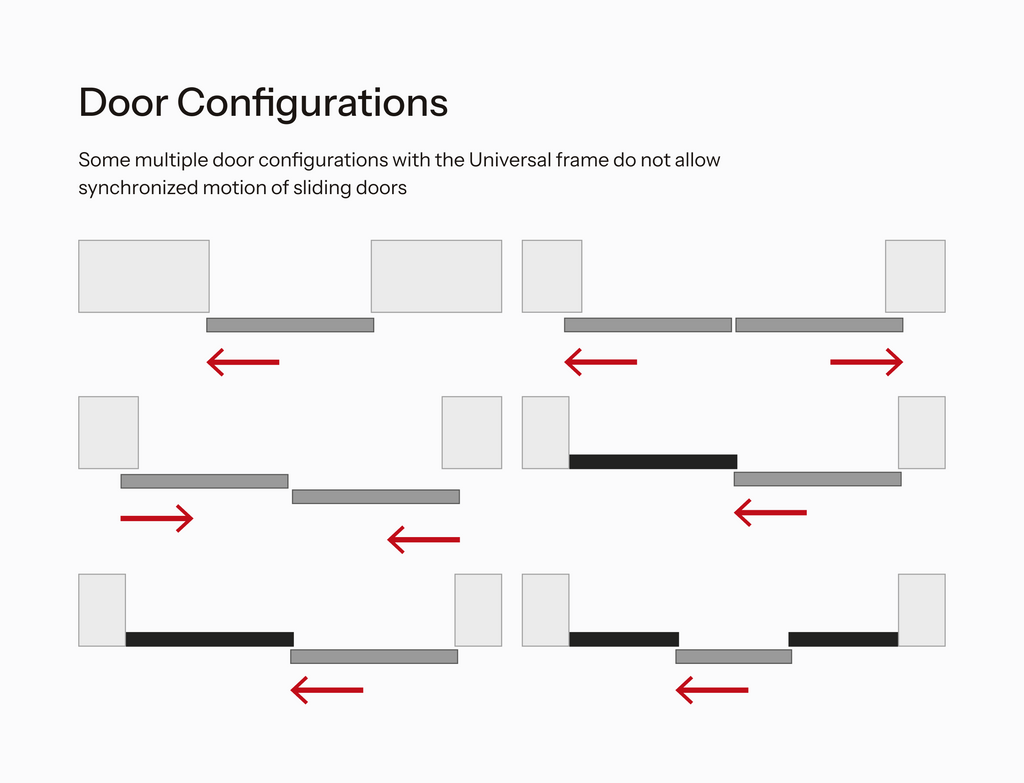

  • Diagram of door configurations with arrows indicating motion

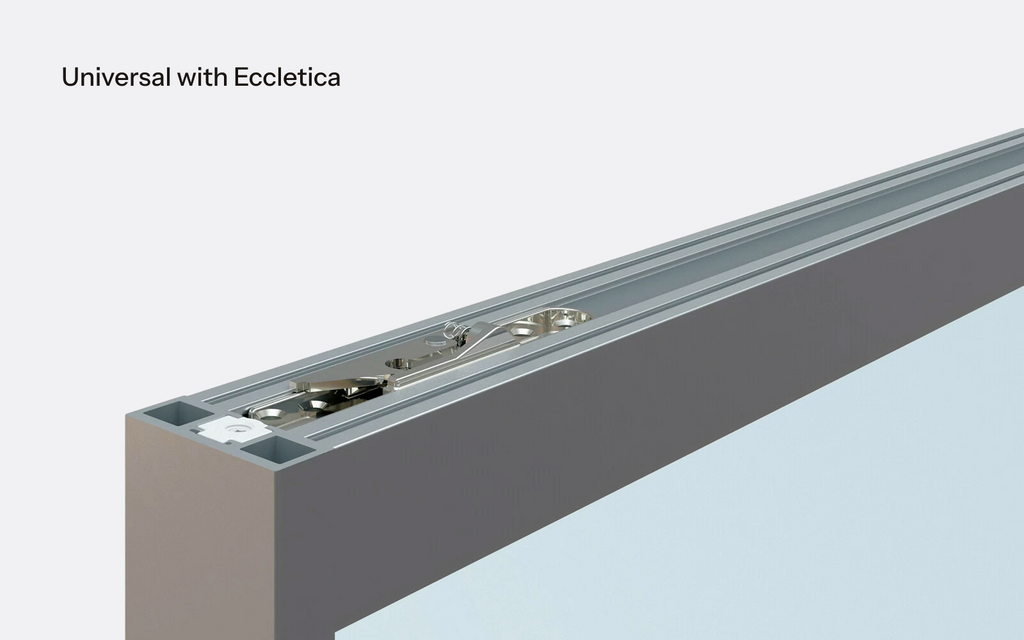

  • Universal aluminum door frame with integrated Ecletica Fluid sliding mechanism.

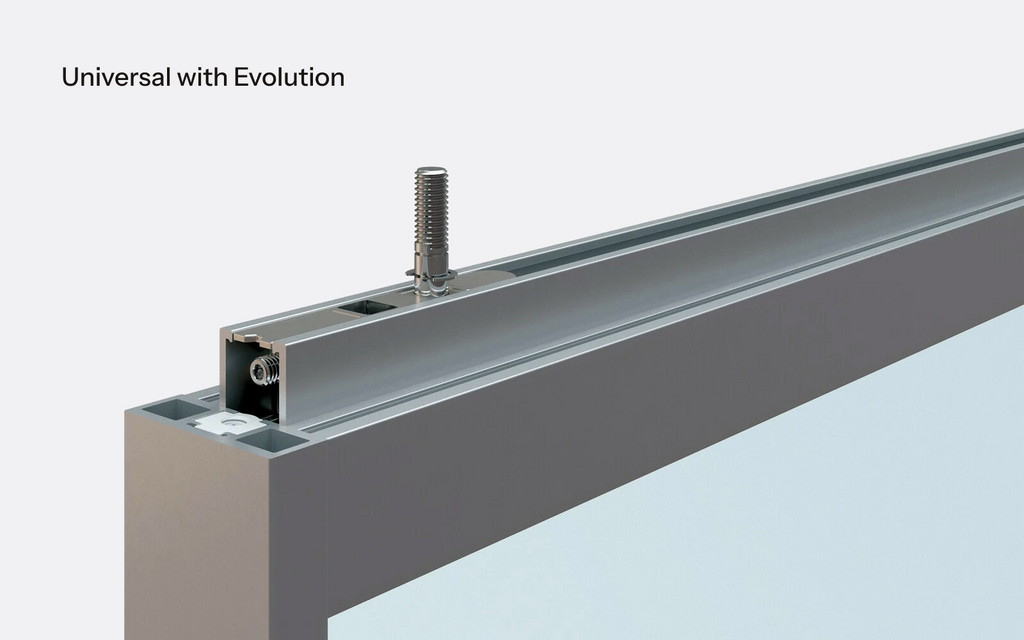

  • Universal aluminum door frame with Evolution Fluid concealed sliding mechanism.

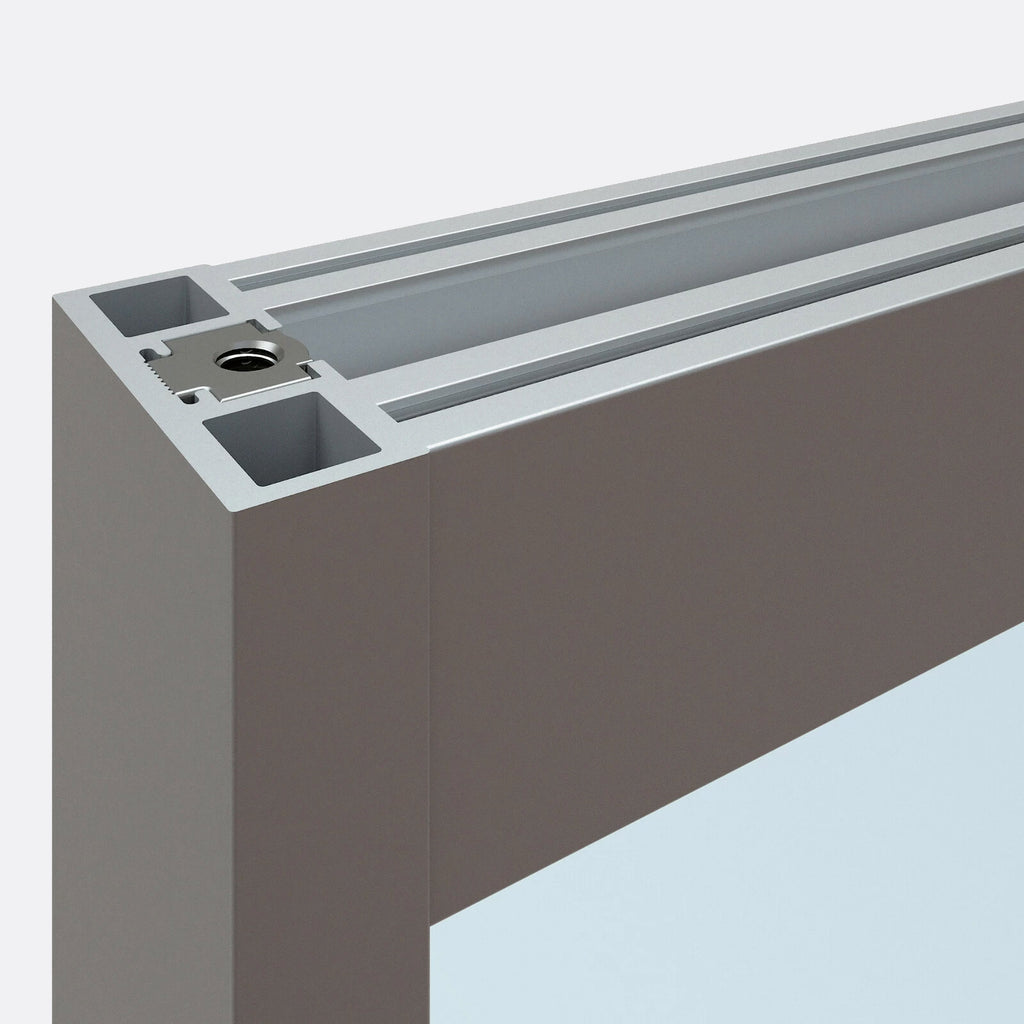

  • Corner close-up of Universal aluminum door frame profile showing structural components.

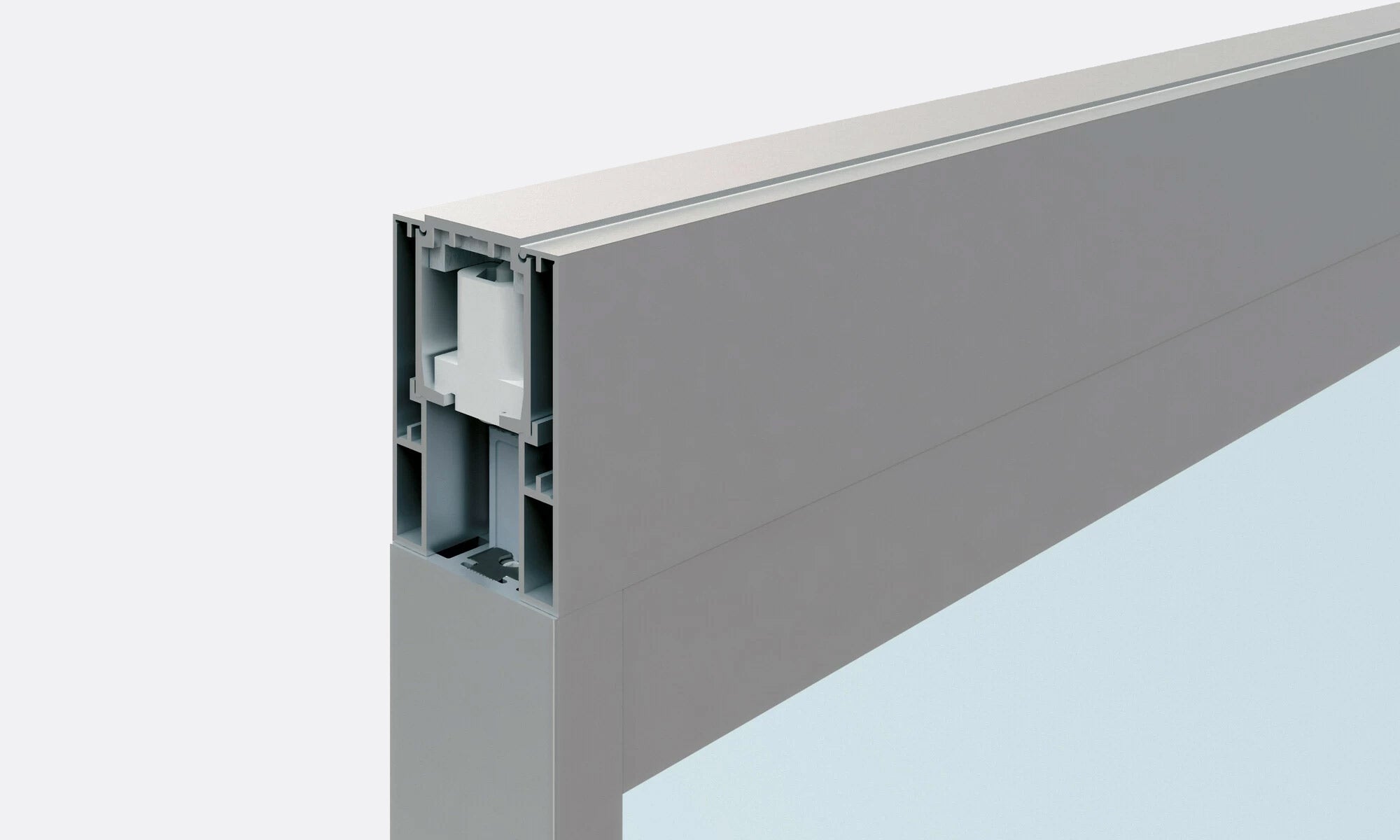

  • Cross-section close-up of Universal aluminum door frame profile with tubular extruded structure.

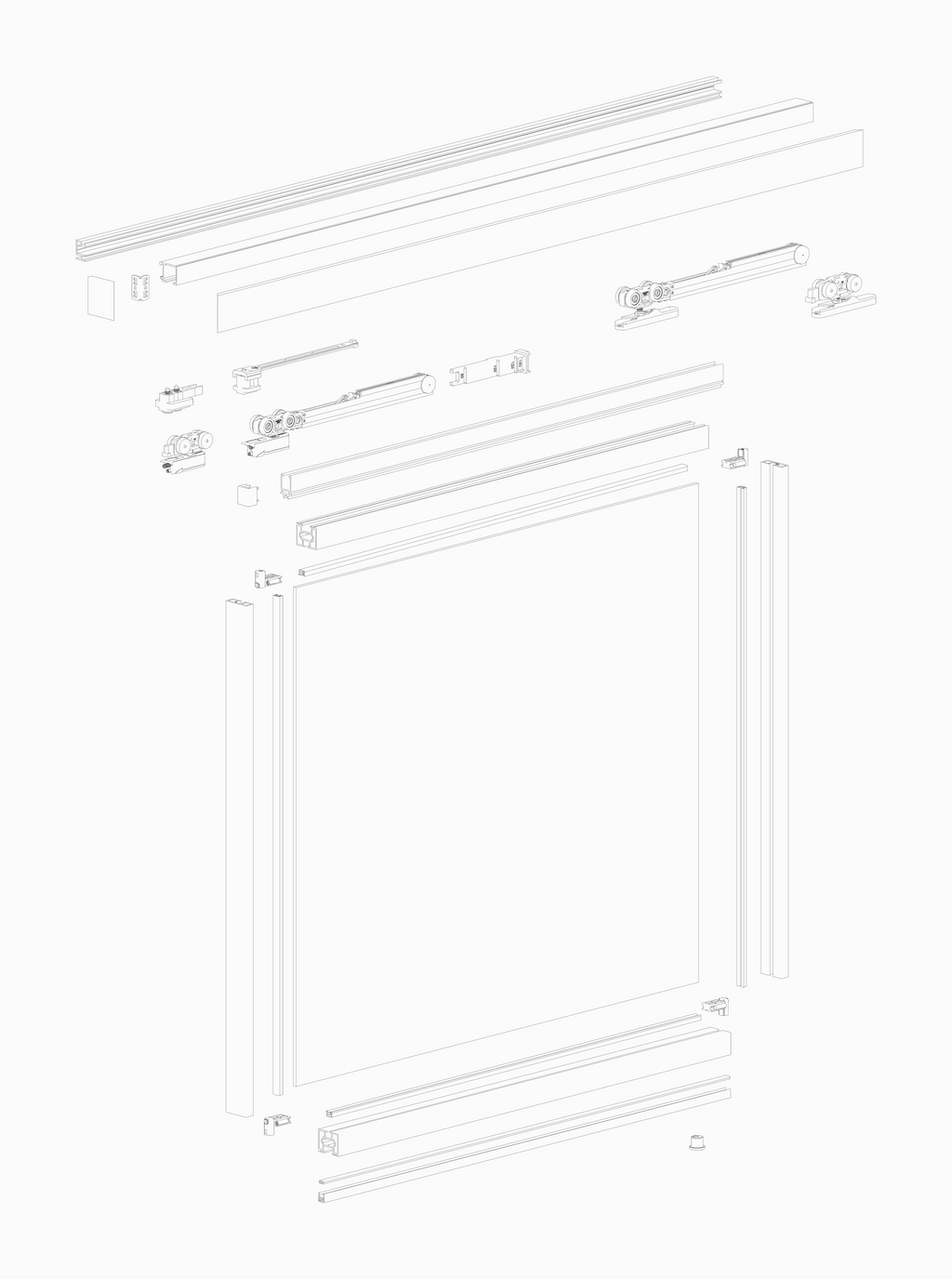

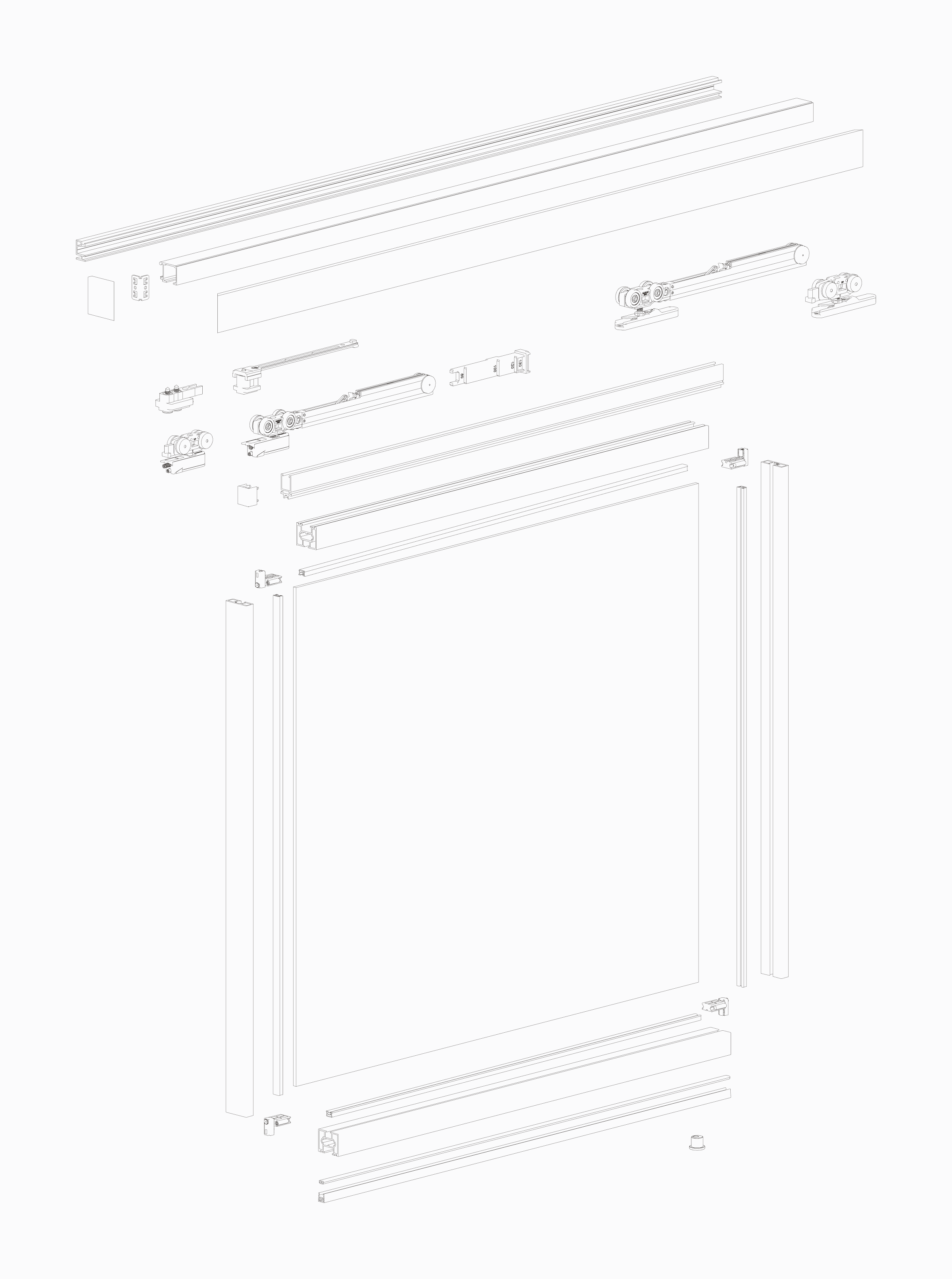

  • Universal technical drawing
Universal

Universal

Aluminum frame for sliding doors and partitions.
$0.00
Shipping calculated at checkout.

Universal is Terno Scorrevoli’s innovative aluminum door frame designed for sliding doors and partitions. Its clean lines, reduced bulk, and high resistance provide exceptional versatility for architects and designers. The frame creates a continuous surface while supporting durable and functional door configurations.

Features
Design
  • Clean lines and reduced dimensions for an elegant aluminum door solution
  • Aluminum cover and door create a continuous surface
  • Minimal and essential frame design
Structural construction
  • Tubular extruded profiles assembled with metal joints
  • No additional drilling required during assembly
  • Profiles can be cut to size without drilling or milling
  • Load-bearing connectors and bi-extruded gaskets support the glass weight through vertical uprights and horizontal cross tracks
Material flexibility
  • Enables glass doors with aluminum frames
  • Integrates with full-thickness wooden doors for mixed configurations
Configuration options
  • Supports multiple layouts including single sliding doors and double sliding doors
  • Compatible with configurations that include fixed panels
  • Sliding doors combined with two or three fixed elements are possible
System compatibility
  • Integrates with Eclecttica Fluid and Evolution Fluid sliding systems
Performance benefits
  • High structural resistance
  • Reduced visual bulk of extrusions
  • Continuous surface design for minimal appearance
Dimensions

  • Door thickness: 4–6.5 mm
  • Door width: 770–1500 mm
  • Maximum door weight: 80 kg

Need additional specifications or technical guidance? Contact Us.
