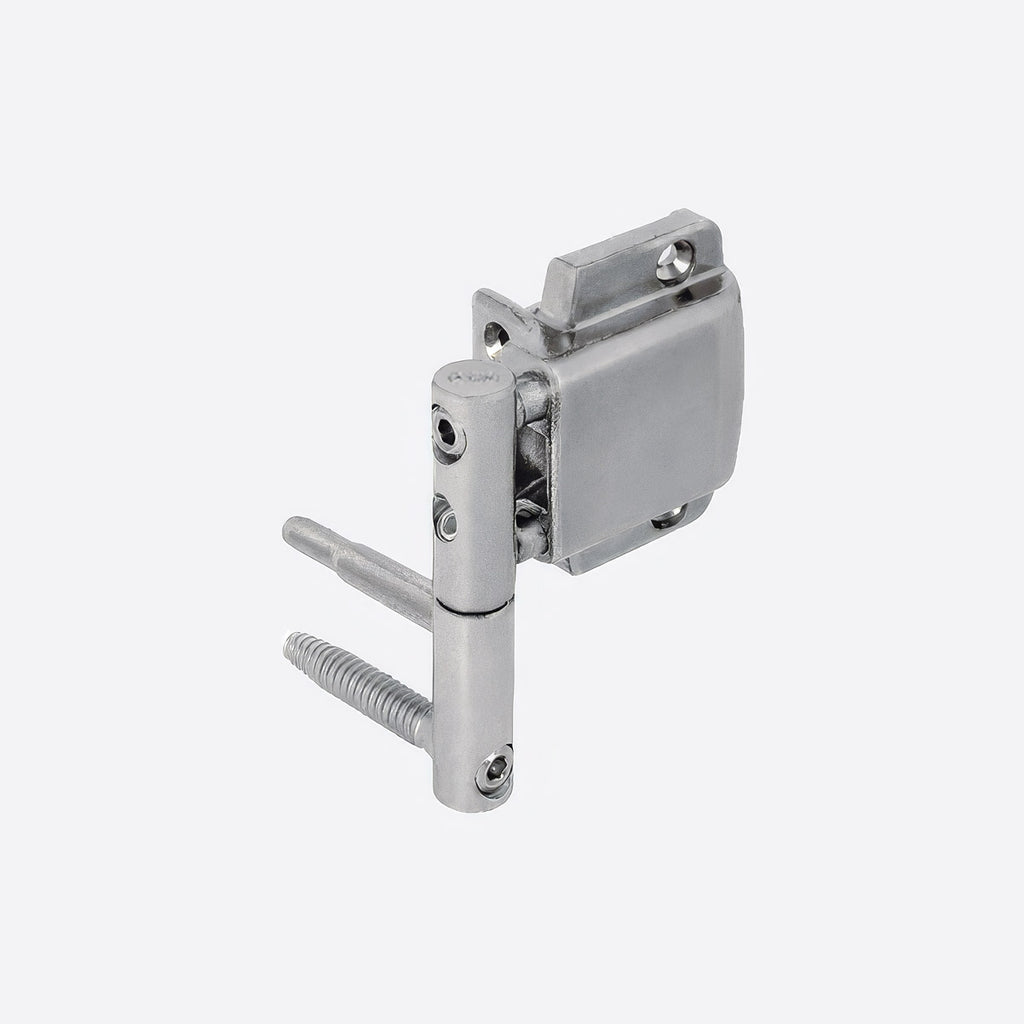

  • Trimax hinge

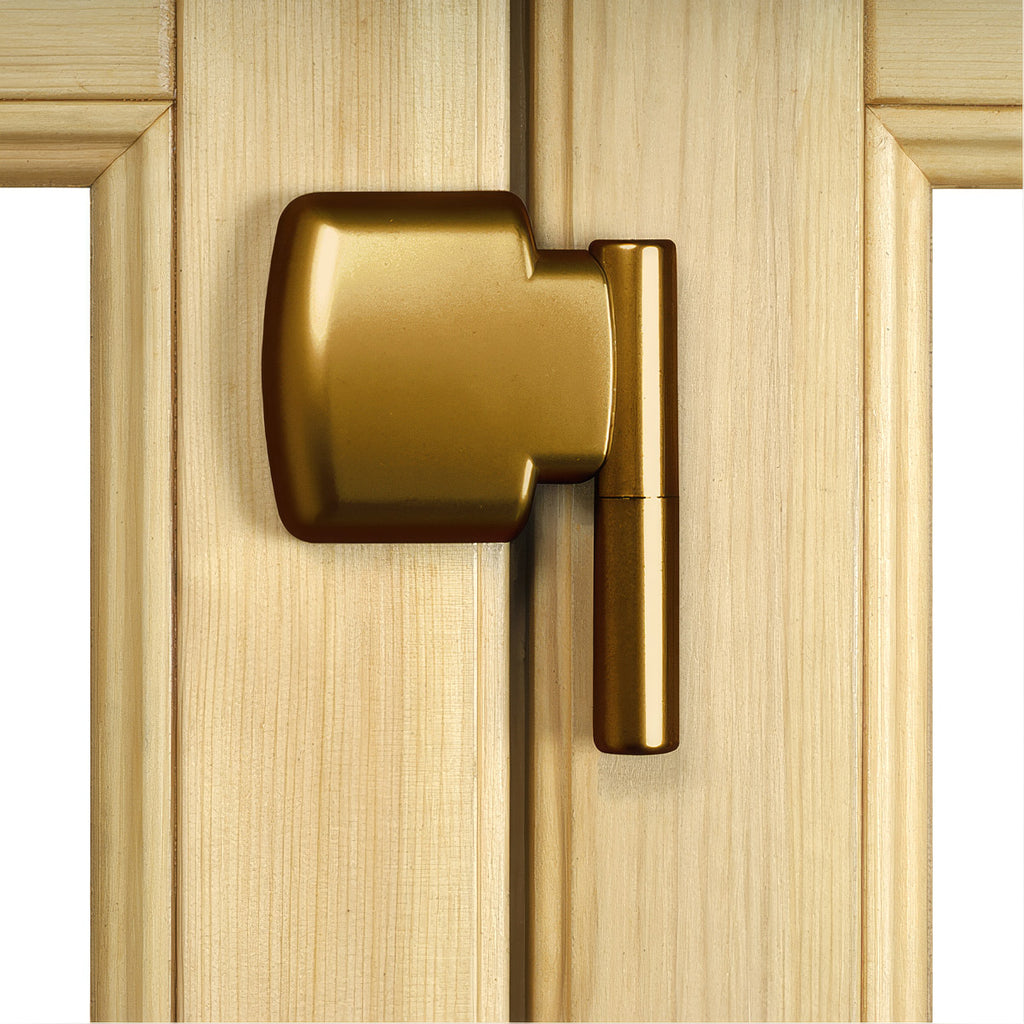

  • Close-up of Trimax installed on a wood cabinet door

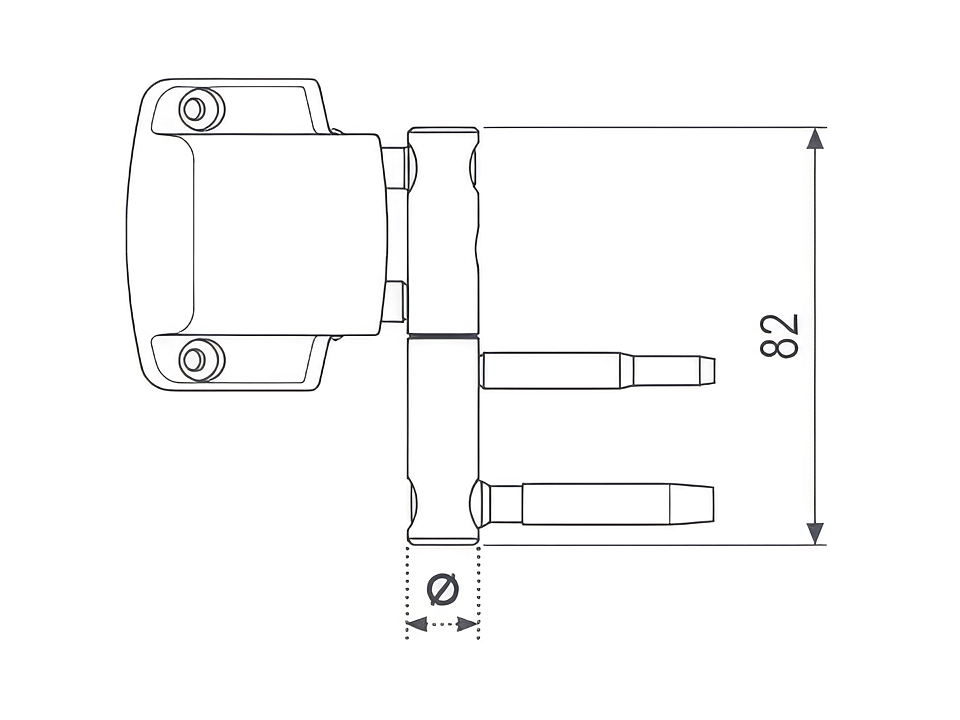

  • Technical drawing of Trimax
  • Hinge finishes
Trimax

Trimax

Adjustable hinge for multi-sash wood windows
$0.00
Shipping calculated at checkout.

Designed for external windows and doors with three or four sashes, the Trimax hinge enables efficient installation and adjustment in multi-sash assemblies. Its drilling pattern matches the 3D hinge system, simplifying machining and assembly on automatic production lines. The hinge secures the sash using four inclined screws for strong load capacity and stable anchoring.

Features
Adjustment System
  • Three-direction adjustment: vertical, horizontal, and pressure
  • Vertical adjustment for precise sash alignment
  • Horizontal adjustment up to ±3 mm
  • Pressure adjustment to fine-tune door compression
  • Adjustments performed using integrated adjustment screws
Installation
  • Auto-centering pins with through hole to reduce risk of wood cracking
  • Designed for easy installation and stable anchoring in the frame
  • Compatible drilling pattern with 3D hinge systems for simplified machining on automatic lines
  • Secured using four inclined screws for improved load capacity
Construction
  • Smooth and threaded pin configuration for sash attachment
  • One smooth pin and one threaded pin on the sash component
  • Designed for durable and stable long-term use
Materials
  • Material: Steel
Compatible Materials
  • Compatible with: Wood window and door frames
Dimensions

  • Height: 82 mm
  • Hinge diameter: 14 mm
  • Vertical adjustment range: up to 4 mm
  • Horizontal adjustment range: ±3 mm
  • Minimum distance between rebates: 4 mm
  • Recommended gap between rebates: 5–6 mm

Need additional specifications or technical guidance? Contact Us.
