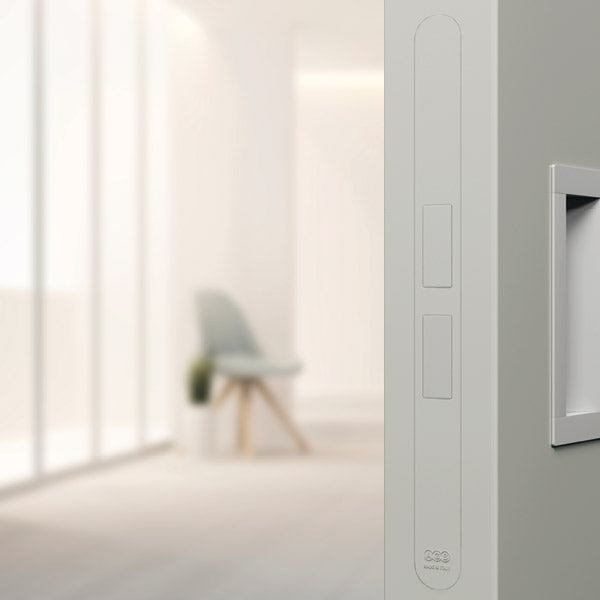

  • Modern interior with a light gray wall and a chair in the background
  • Touch product demo video
  • Touch product image
  • Lock finishes, which includes Matte Chromium Plated, Semi-Bright Black, and Matte White RAL 9016

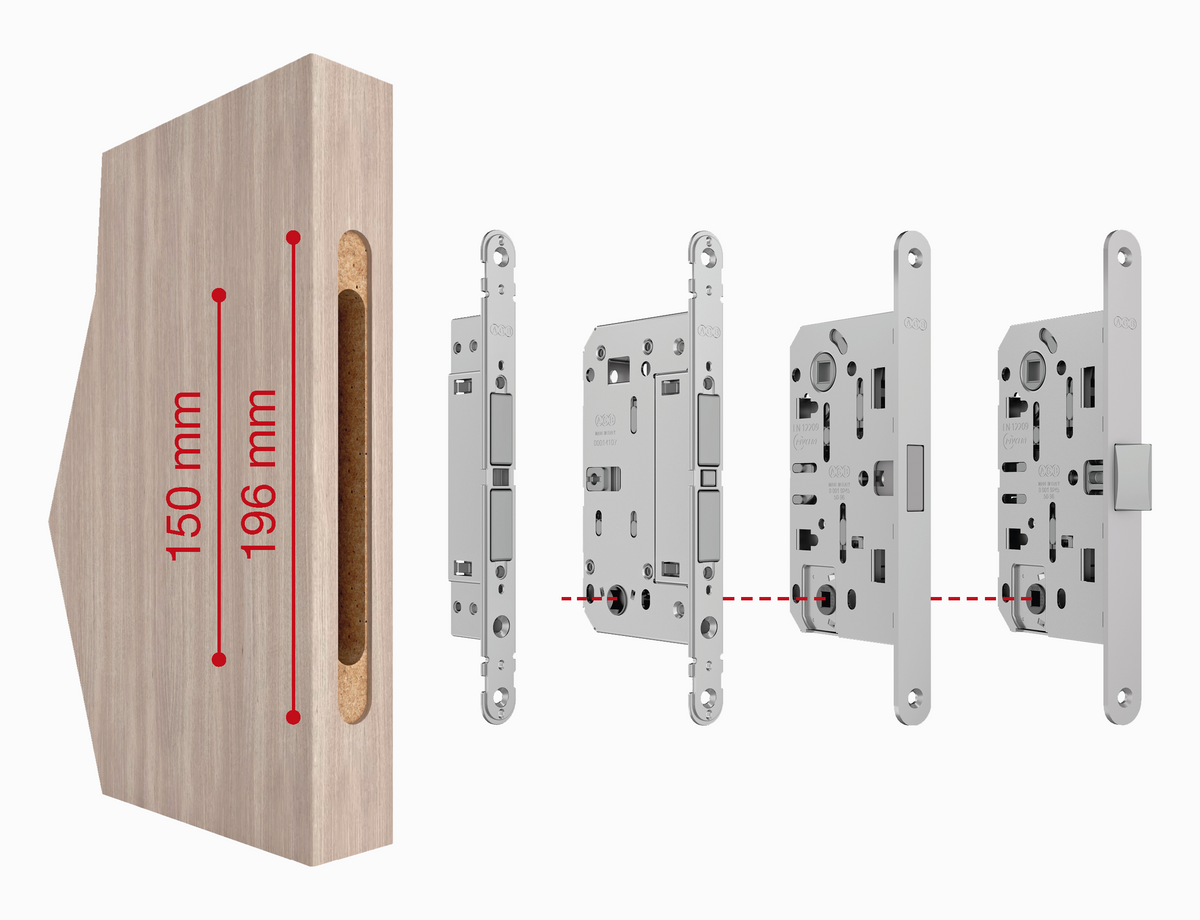

  • Door panel milling diagram showing compatibility with Touch or traditional handle locks, with measurements of 150 mm and 196 mm.

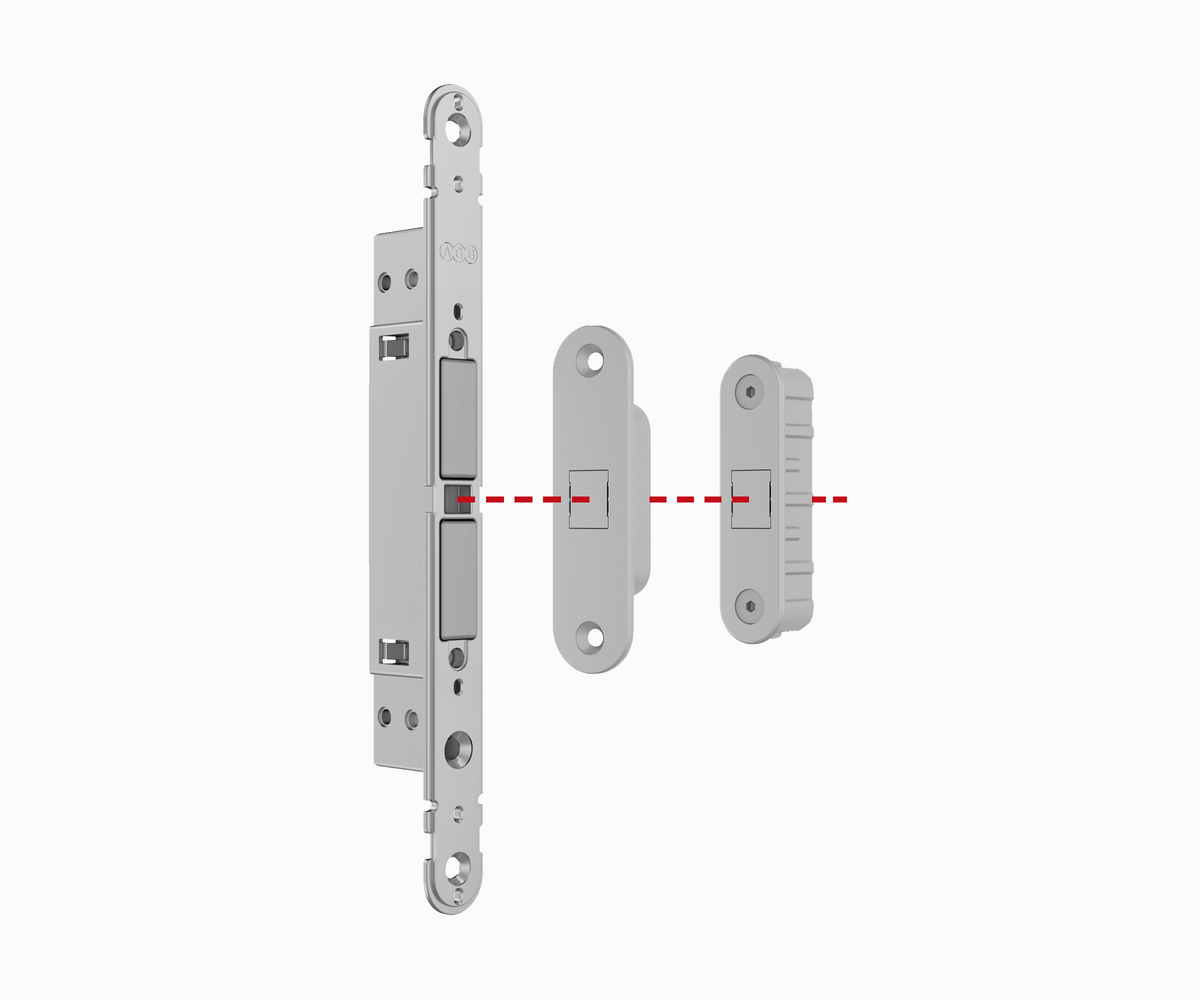

  • Diagram showing lock and striker positioning for Touch system with Easy-Touch and Alu-Touch strikers.

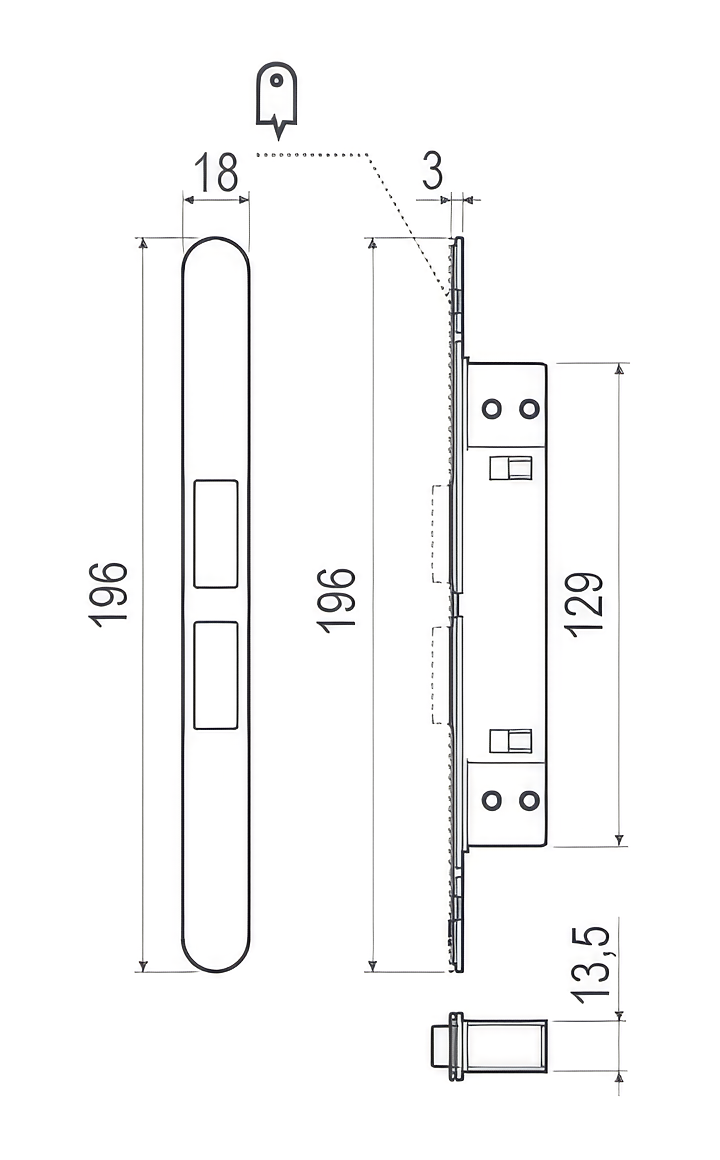

  • Touch technical drawing
Touch

Touch

Magnetic door catcher for interior doors
$0.00
Shipping calculated at checkout.

Patented contactless magnetic door catcher for interior doors. The adjustable magnetic catching force ensures reliable closing regardless of the gap between door and frame. The system allows designers full freedom to integrate custom or minimal handles into the door design.

Features
Design
  • Minimal design with no visible screws
  • Allows freedom to choose or design custom door handles
  • Ideal for flush door solutions and concealed doors
Magnetic Catch System
  • Patented contactless magnetic catching mechanism
  • Adjustable catching force
  • Ensures reliable closing even with variable door gaps
  • Magnets release only when the door aligns with the striker
Adjustment & Installation
  • Magnetic throw adjustable using a 2.5 mm Allen key
  • Clip cover hides fixing screws and magnet adjustment screws
  • Compatible with standard milling for handle or Touch system
Compatibility
  • Compatible with Easy‑Touch and Alu‑Touch strikers
  • Compatible with milling for Polaris 2XT and Mediana Evolution
Compatible Materials
  • Interior doors
  • Concealed or flush doors
  • Wooden wall door systems
Dimensions

Faceplate (foreend)
  • 18 mm

Additional milling reference shown in diagrams

  • 150 mm
  • 196 mm

Need additional specifications or technical guidance? Contact Us.
