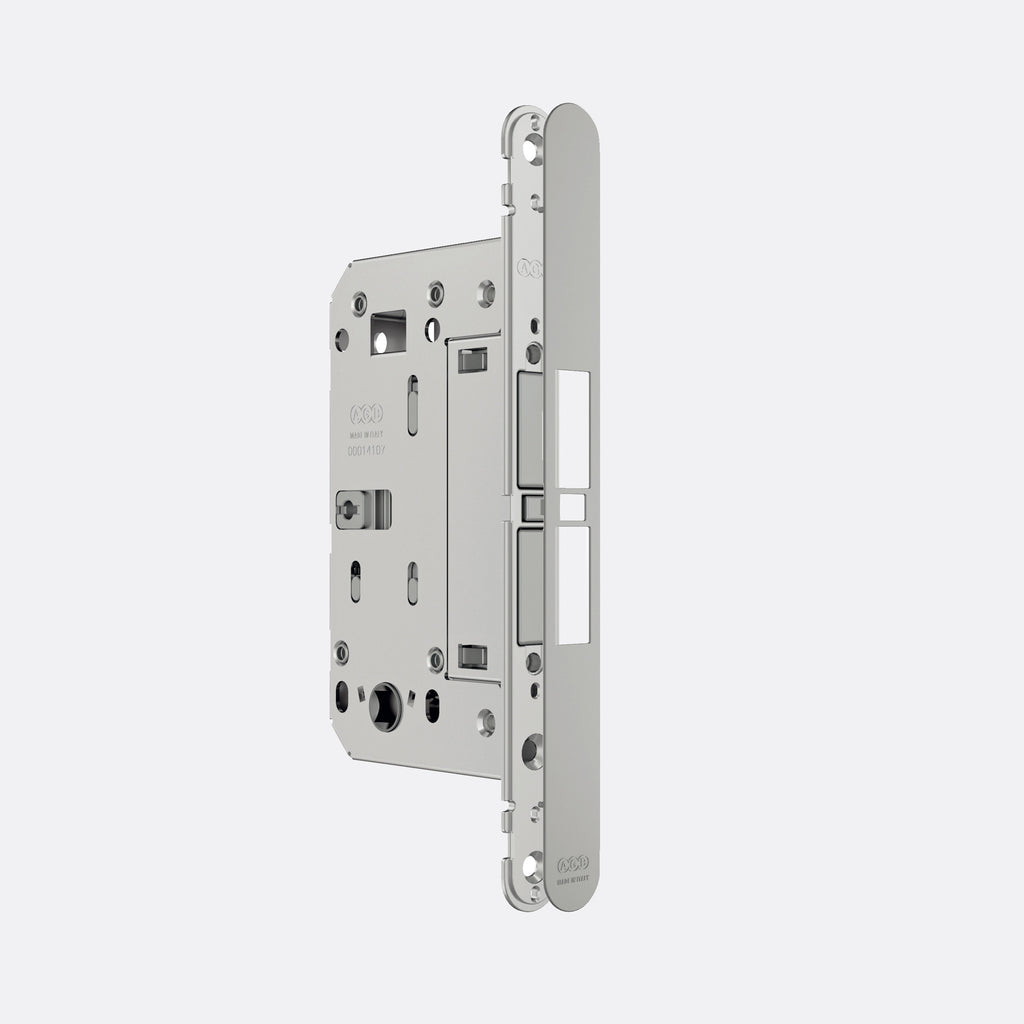

  • Touch & Close lock body

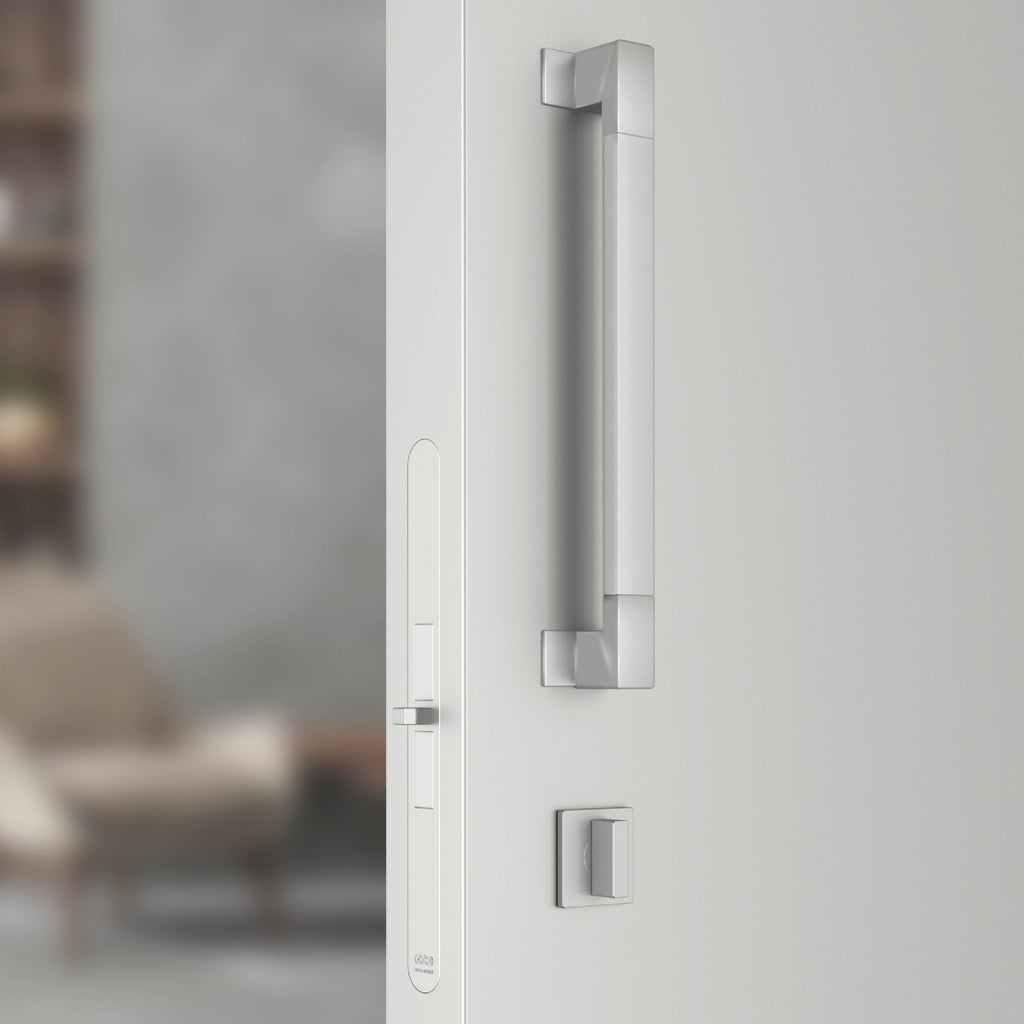

  • Close-up image of Touch & Close installed on a white door
  • Modern bathroom with a bathtub and open closet revealing a bedroom featuring Design Index ADI selection

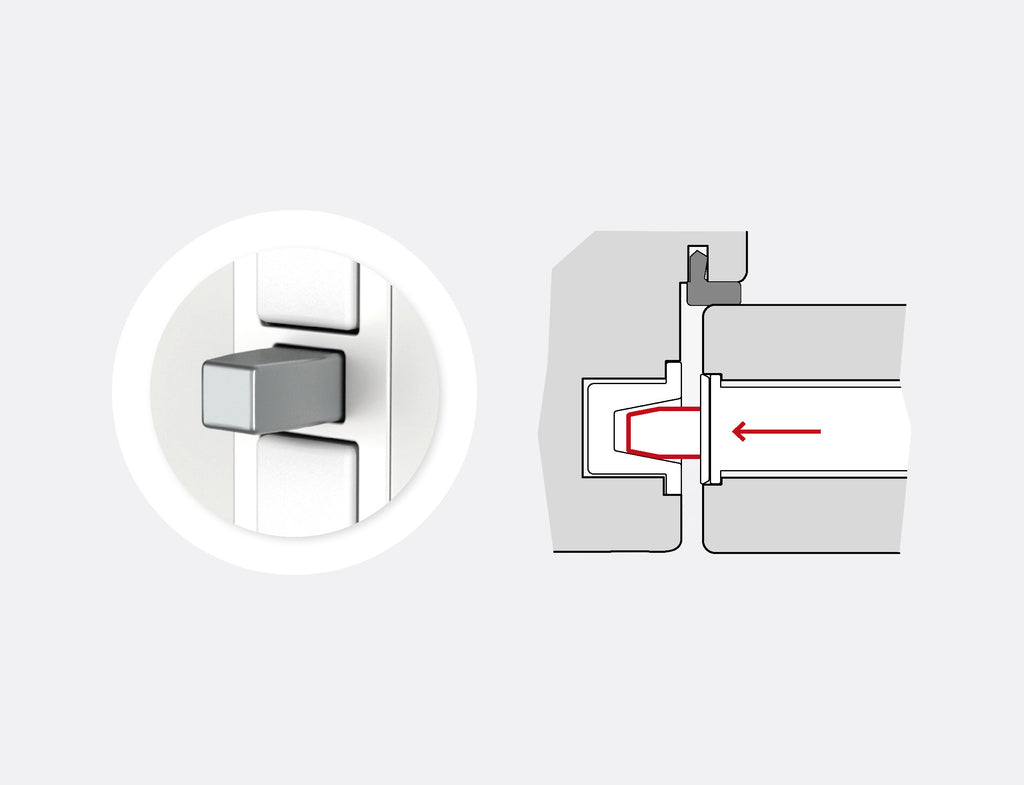

  • Diagram demonstrating bolt and striker compatibility when closing

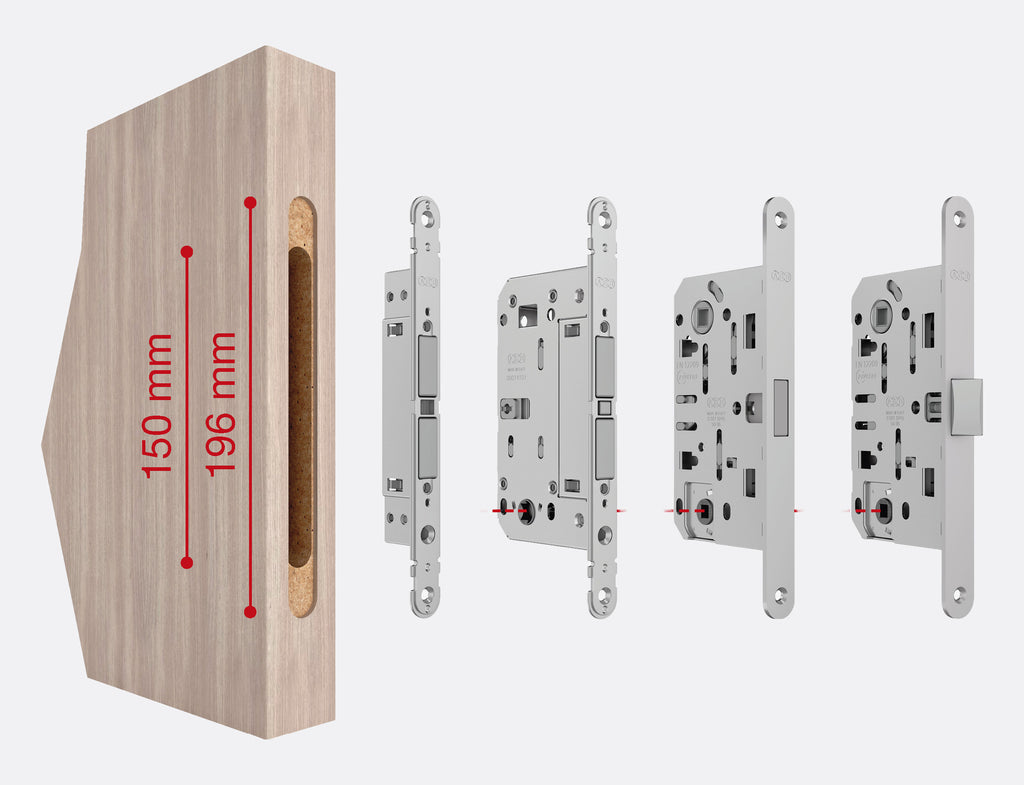

  • Diagram showing compatibility with different locks

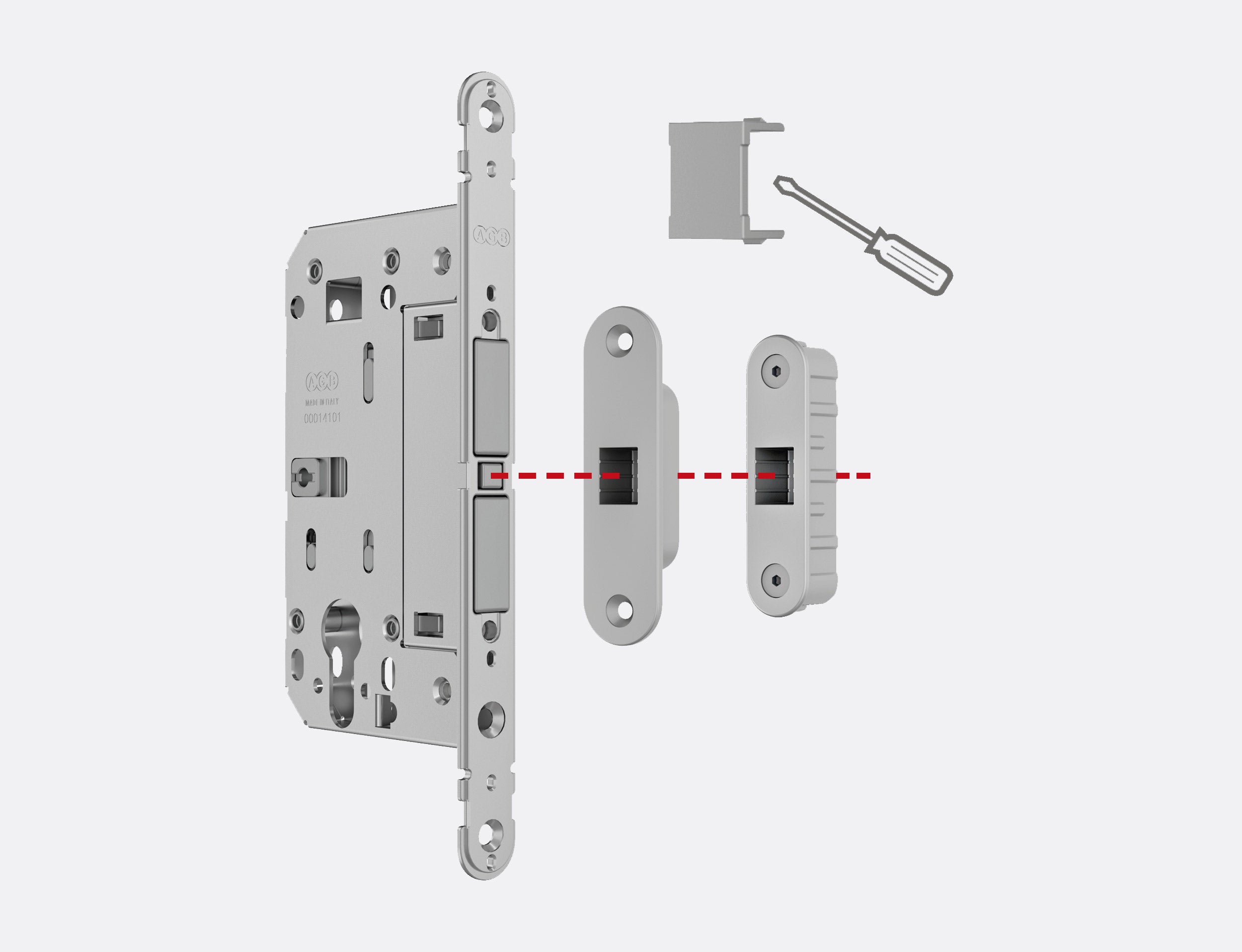

  • Diagram demonstrating Touch & Close compatibility with other strikers

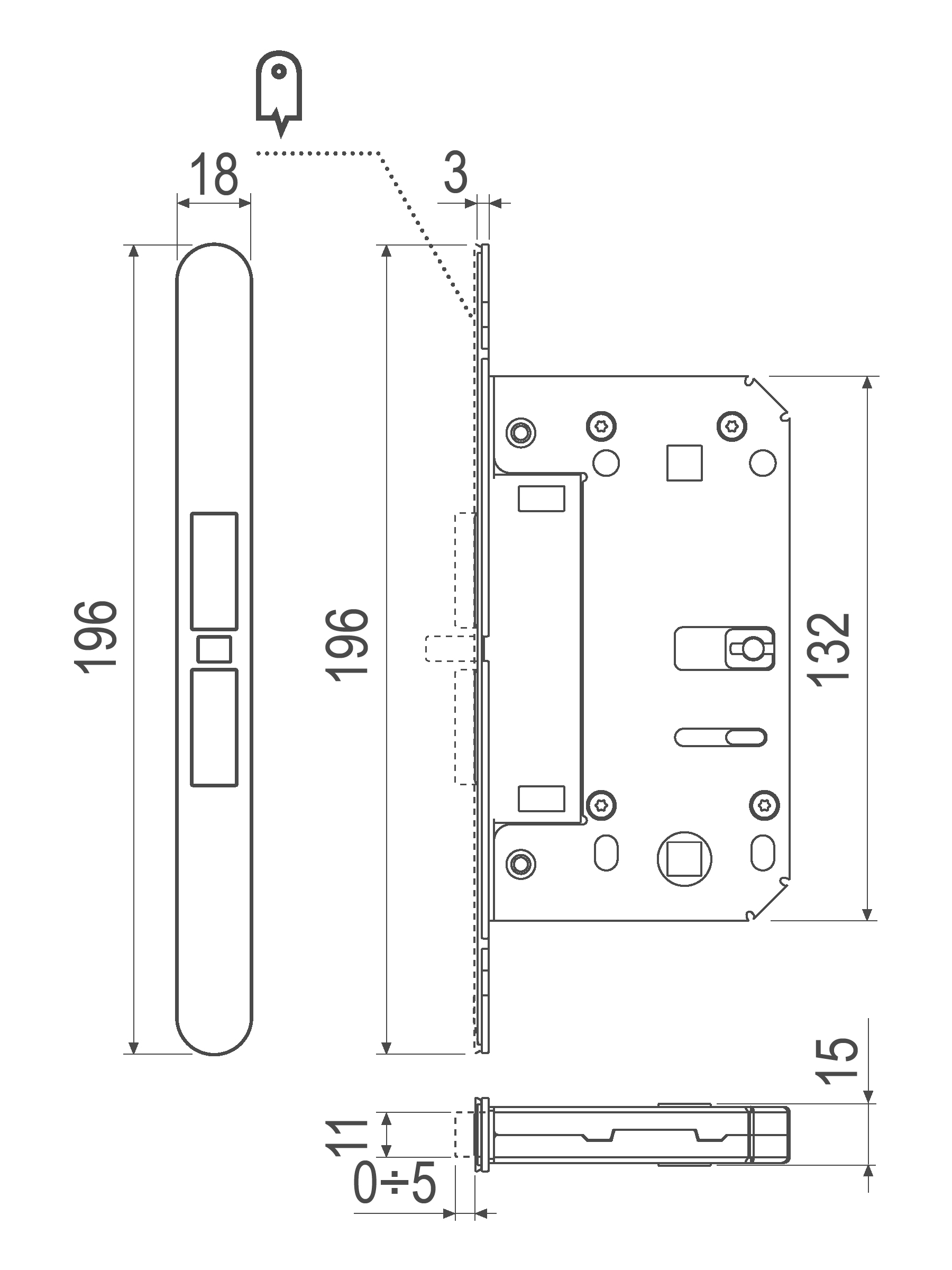

  • Touch & Close technical drawing

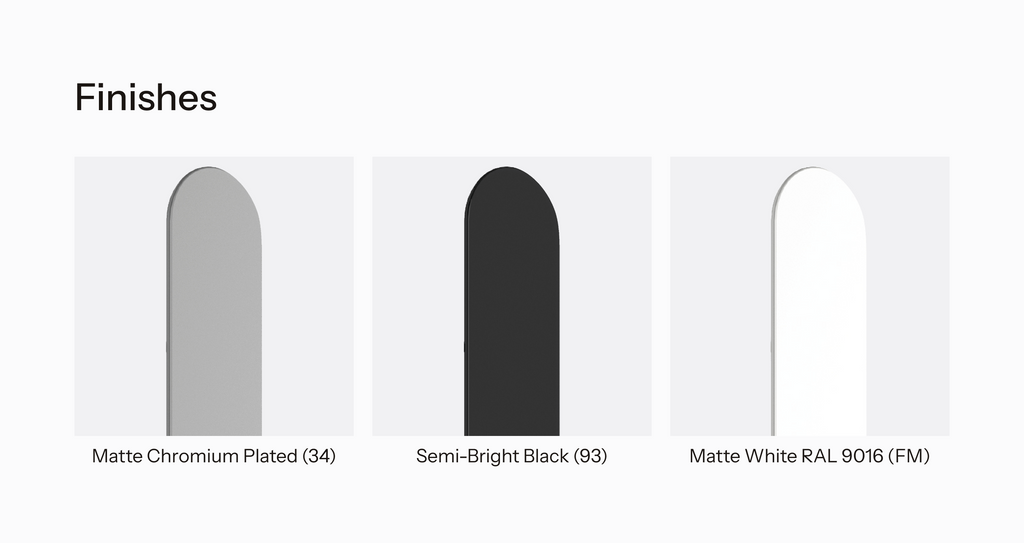

  • Lock finishes, which includes Matte Chromium Plated, Semi-Bright Black, and Matte White RAL 9016
Touch & Close

Touch & Close

Magnetic privacy catch for interior doors
$0.00
Shipping calculated at checkout.

Touch & Close combines a magnetic door catcher with a lock to provide privacy for interior spaces. The system allows the door to close smoothly while enabling secure locking when needed. Available with either a bathroom lock or a European profile cylinder.

Features
Function
  • Magnetic closure with integrated locking option
  • Designed to provide privacy in interior rooms
Locking Options
  • Bathroom lock (8 mm)
  • European profile cylinder
Hardware Specifications
  • Foreend: 18 mm
  • Backset: 50 mm / 60 mm
Compatibility
  • Compatible with Polaris 2XT and Mediana Evolution milling
  • Compatible with Easy-Touch and Alu-Touch strikers
Installation
  • Standard milling allows switching between Touch and a traditional handle
  • Thin milling required only on the door jamb for dedicated installations

Compatible Door Material

  • Not specified in the provided content
Dimensions

Faceplate (foreend)
  • 18 mm
Backset
  • 50 mm
  • 60 mm

Need additional specifications or technical guidance? Contact Us.
