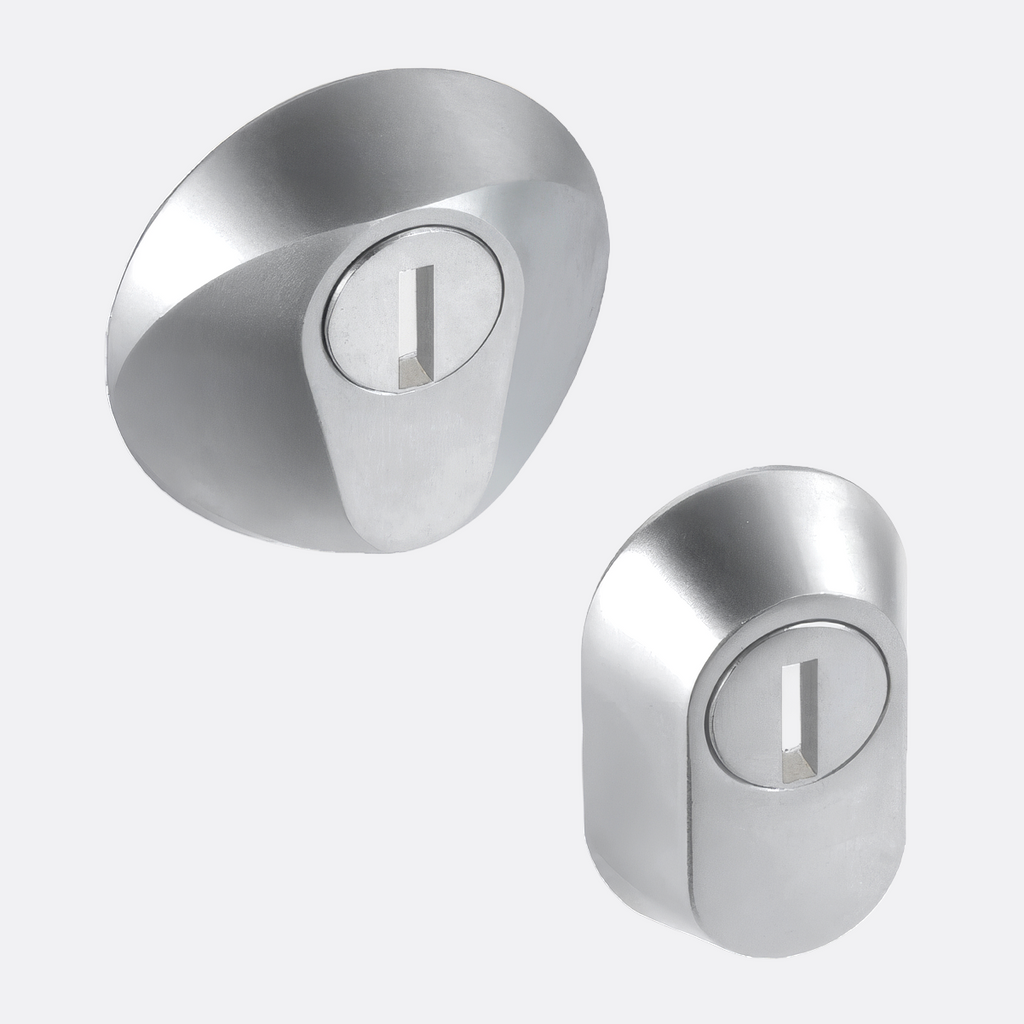

  • Silver rim guards against a white background

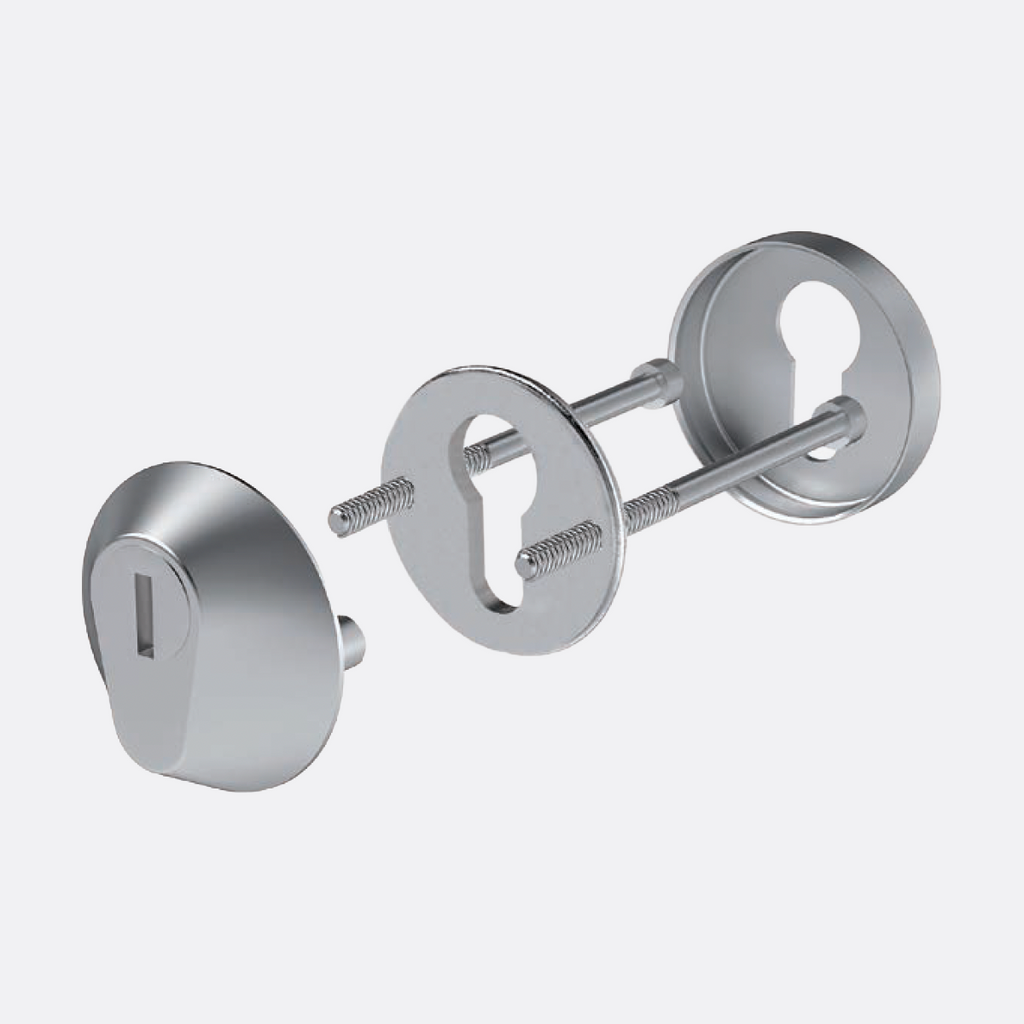

  • Exploded view of rim guard showing exterior cover, escutcheon plates, and mounting hardware components

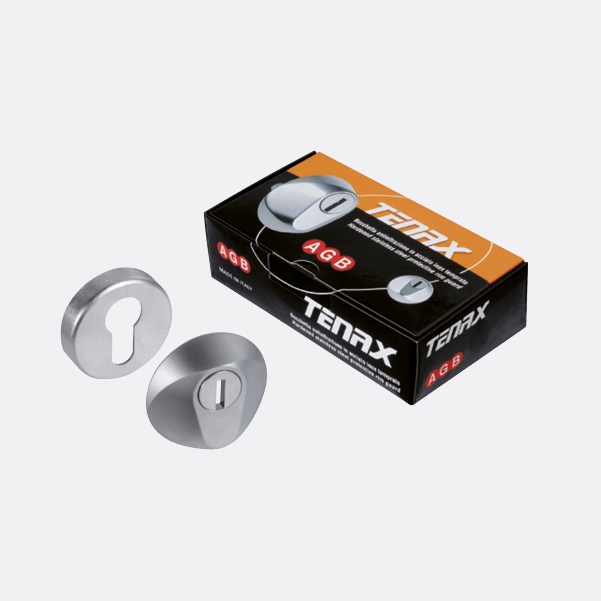

  • Components included in the box for Tenax

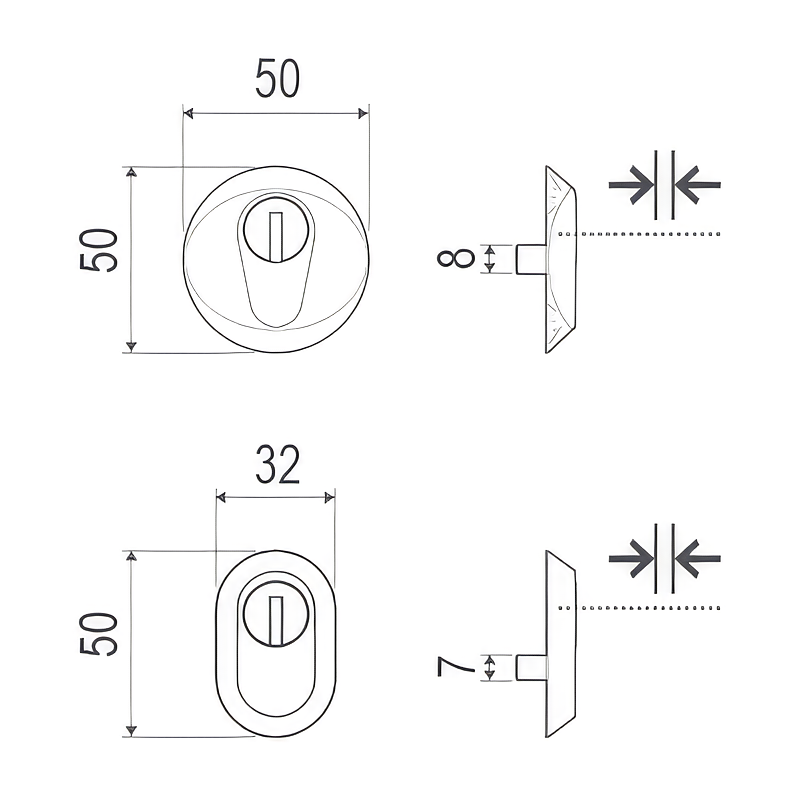

  • Tenax technical drawing
Tenax

Tenax

Protective rim guard for cylinders.
$0.00
Shipping calculated at checkout.

Tenax is a protective rim guard designed to enhance door security. The oblique plane geometric form makes it completely toolproof, with a scratch-resistant and corrosion-resistant surface. Round and oval versions are available with multiple thickness options depending on cylinder protrusion.

Features
Security
  • Oblique plane geometric shape makes it completely toolproof
Construction
  • Unique body thanks to the surface in special steel
  • Anti-scratch surface
  • Corrosion resistant in salt spray over 1,000 hours
Versions
  • Round Tenax (38 mm axis)
  • Oval Tenax (20 mm axis)
Thickness Options
  • Five thickness variations from 10 to 18 mm
Finish
  • Matte satin chromium plated
  • Glided PVD
Compatibility
  • Suitable for all AGB cylinders with a flat reversible key
Dimensions

Round version
  • Diameter: 50 mm
  • Projection: 8 mm
  • Axis: 38 mm
Oval version
  • Width: 32 mm
  • Height: 50 mm
  • Projection: 7 mm
  • Axis: 20 mm
Thickness options (X) according to cylinder protrusion (S)
  • 10 mm thickness: suitable for cylinder protrusion 0–4 mm
  • 12 mm thickness: suitable for cylinder protrusion 0–6 mm
  • 14 mm thickness: suitable for cylinder protrusion 2–8 mm
  • 16 mm thickness: suitable for cylinder protrusion 4–10 mm
  • 18 mm thickness: suitable for cylinder protrusion 6–12 mm

Need additional specifications or technical guidance? Contact Us.
