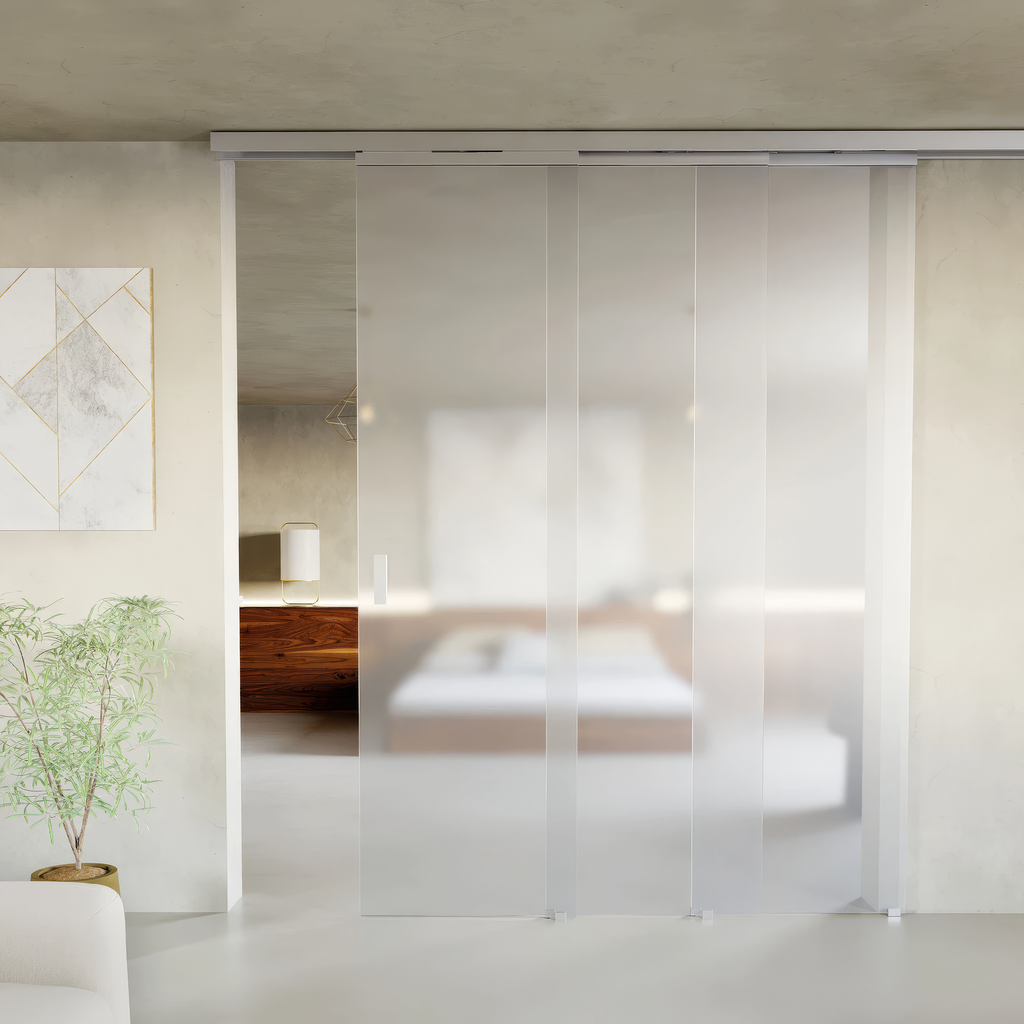

Modern interior with a glass sliding door leading to a bedroom.

T-Belt Vetro40

Anodized Silver
$0.00
Skip to product information
Modern interior with a glass sliding door leading to a bedroom.
1/5
  • Modern interior with a glass sliding door leading to a bedroom.
  • Close-up of T-Belt's telescopic mechanism for sliding doors
  • Close-up of T-Belt's belt tensioner, which adjusts sliding door quality
  • Close-up of the patented Fluid soft-closing system
  • Technical diagram showing different sliding door configurations
T-Belt Vetro40

T-Belt Vetro40

Telescopic belt-driven sliding system for glass doors
$0.00
Shipping calculated at checkout.

T-Belt Vetro40 is a telescopic sliding system for frameless glass doors that uses a dedicated belt and pulley mechanism for smooth, controlled movement. The system features 200 mm clamps only 40 mm high, allowing secure fixing without drilling and enabling precise installation. Designed for refined architectural spaces, it supports synchronized movement of multiple doors while maintaining a minimal aesthetic.

Features
System
  • Telescopic system for multiple glass doors
  • Belt-driven mechanism with pulleys for smooth and controlled movement
  • Designed for frameless glass doors
  • 200 mm clamps with reduced height (40 mm) for secure fixing without drilling
Movement & Performance
  • Belt system enables fluid and silent sliding movement
  • Eliminates direct contact between surfaces to improve user experience
  • Supports synchronized movement between multiple doors
Adjustment & Installation
  • Belt tensioner allows precise regulation of sliding quality
  • Enables millimetric adjustment of movement
  • Direct adjustment simplifies installation and maintains consistent performance over time
Soft-Closing Technology
  • Patented Fluid soft-closing system with 50 mm stroke
  • Provides smooth and controlled door closing
  • Reduces impacts and mechanical jolts
  • Easy integration with the Fluid add-on kit without structural modifications
Compatibility
  • Compatible with Vetro40 clamps
  • Compatible with T-Belt modular kits
  • Allows configurations for single or multiple doors
Space Optimization
  • Suitable for multi-door configurations
  • Maximizes passage space when doors are fully open
Materials
  • Door material: Glass
Compatible Materials
  • Glass doors
Finishes
  • Anodized Silver
  • Anodized Black
  • Anodized Nickel
  • Anodized Graphite
  • Metal Grey
  • White (RAL-9002)
Dimensions

  • Glass thickness: 8–8.7 mm and 10–10.7 mm
  • Door width: 600–1250 mm
  • Maximum door weight: 80 kg

Need additional specifications or technical guidance? Contact Us.
