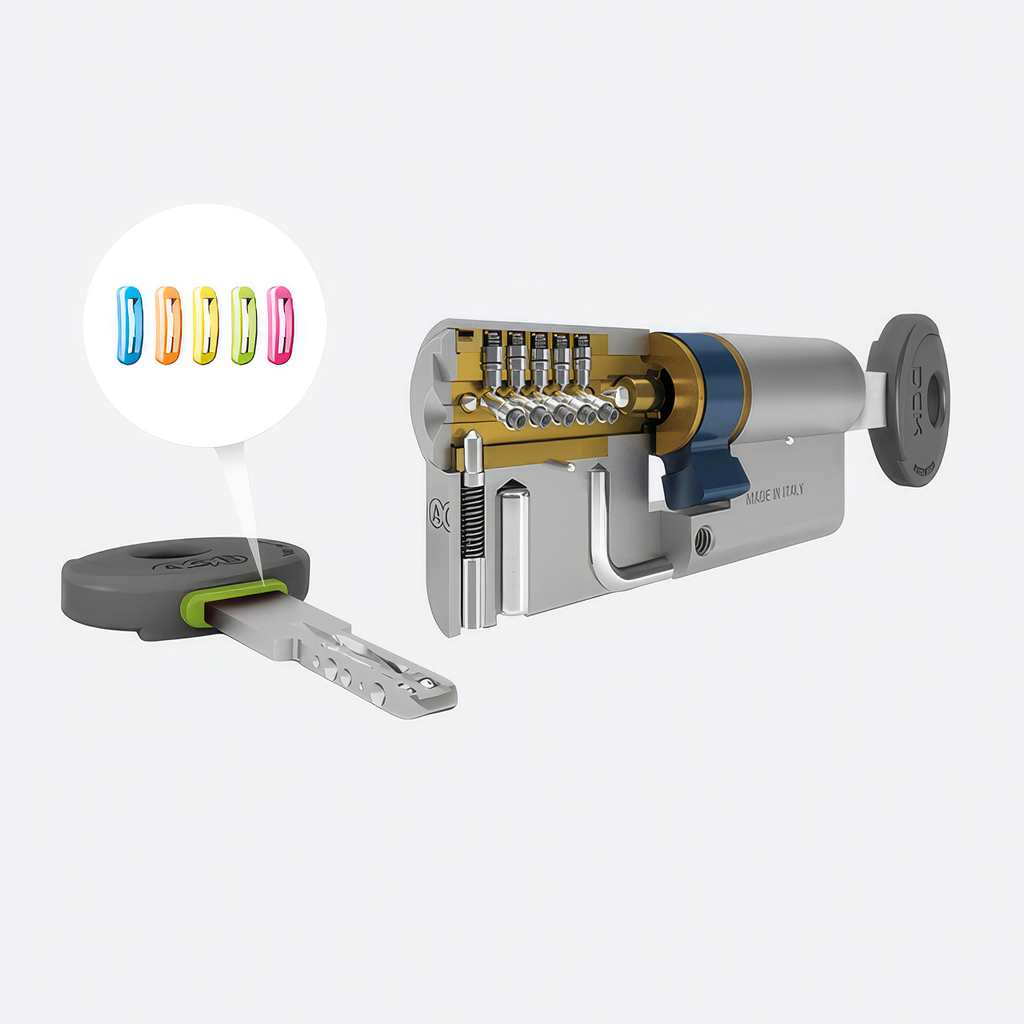

  • Lock mechanisms and key, with cover options
  • Chart showing cylinder finishes

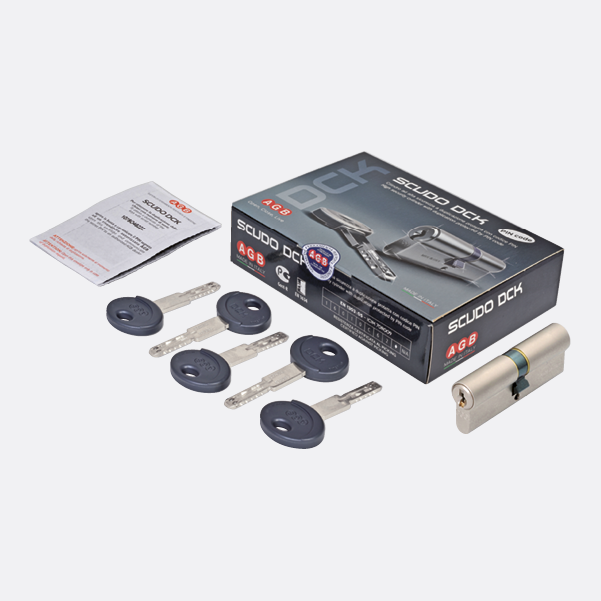

  • Components included in the box for Scudo DCK: keys and cylinder

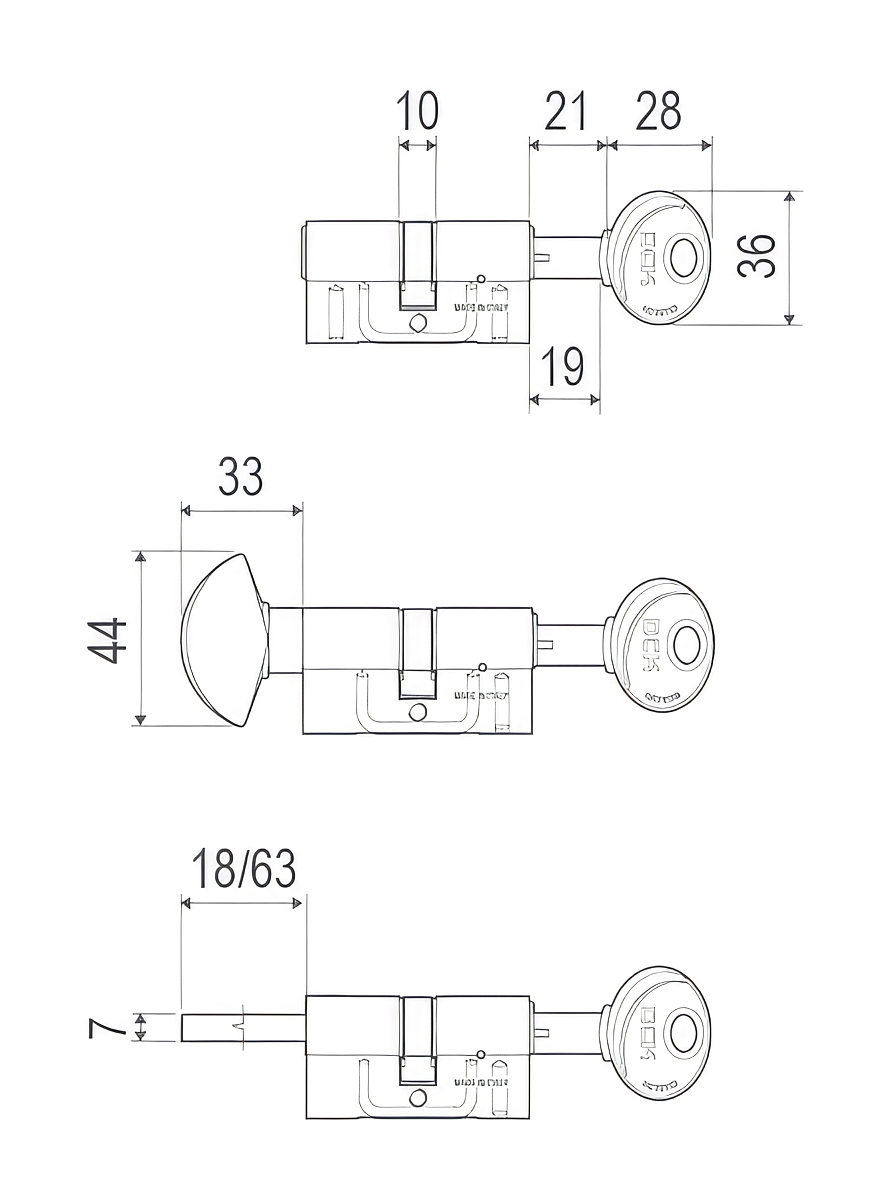

  • Scudo DCK technical drawing
Scudo DCK

Scudo DCK

High-security cylinder with controlled key.
$0.00
Shipping calculated at checkout.

High security cylinder with a duplicated controlled key protected by PIN code. The cylinder ensures high passive resistance against break-in attempts thanks to hardened stainless steel radial asymmetric pins, anti-drill pins, and an anti-burglar insert in special steel. It includes five high-resistance nickel silver flat reversible keys with AGB-patented ergonomic grip and customizable colour inserts.

Features
Key Control
  • Duplicated controlled key protected by PIN code
Pins
  • 15 hardened stainless steel radial asymmetric pins
  • Fixed pins for operating the key rollers
Anti-Drill Protection
  • 3 hardened steel anti-drill pins on each side
Reinforcement
  • Anti-burglar insert in special steel
  • U-shaped reinforcement
Cam
  • Anti-pull cam in steel
Keys
  • 5 high-resistance nickel silver flat reversible keys
  • 5 patented keys
  • AGB-patented ergonomic grip
Customisation
  • Customisable keys with inserts of different colours (ordered separately)
Function
  • Double-function version available (2 keys inserted simultaneously)
Certifications
  • GOST-R
  • ICIM EN1303
  • EN 1634 (fire door)
Dimensions

Dimensions vary depending on cylinder configuration.

Need additional specifications or technical guidance? Contact Us.
