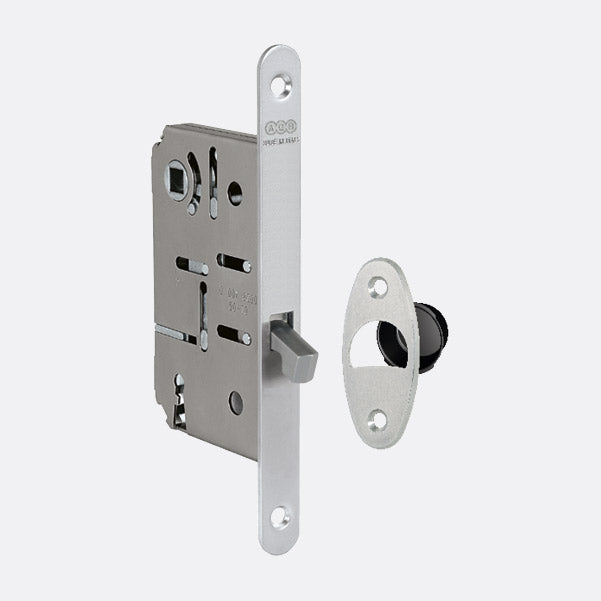

  • Scivola T lock body

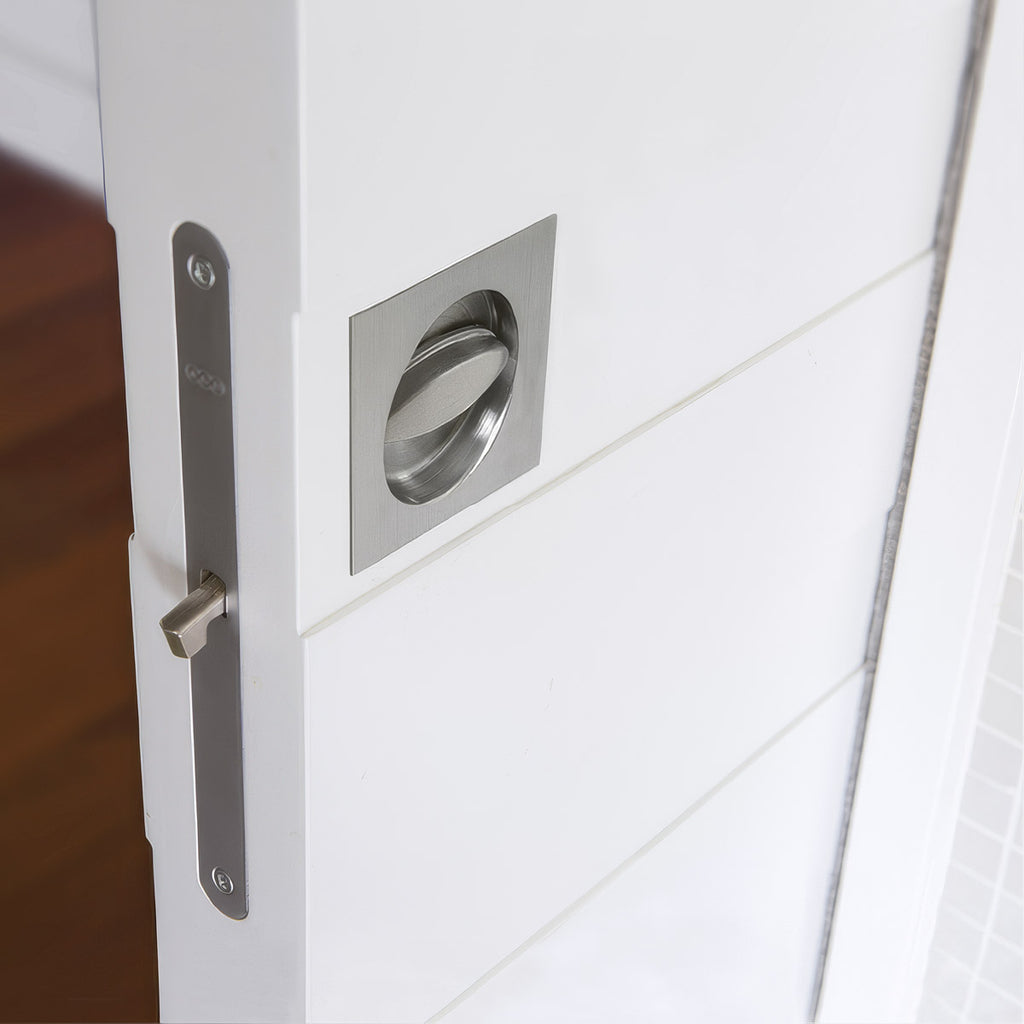

  • Scivola T installed on a white door
  • Close-up image of the patented head of the hook

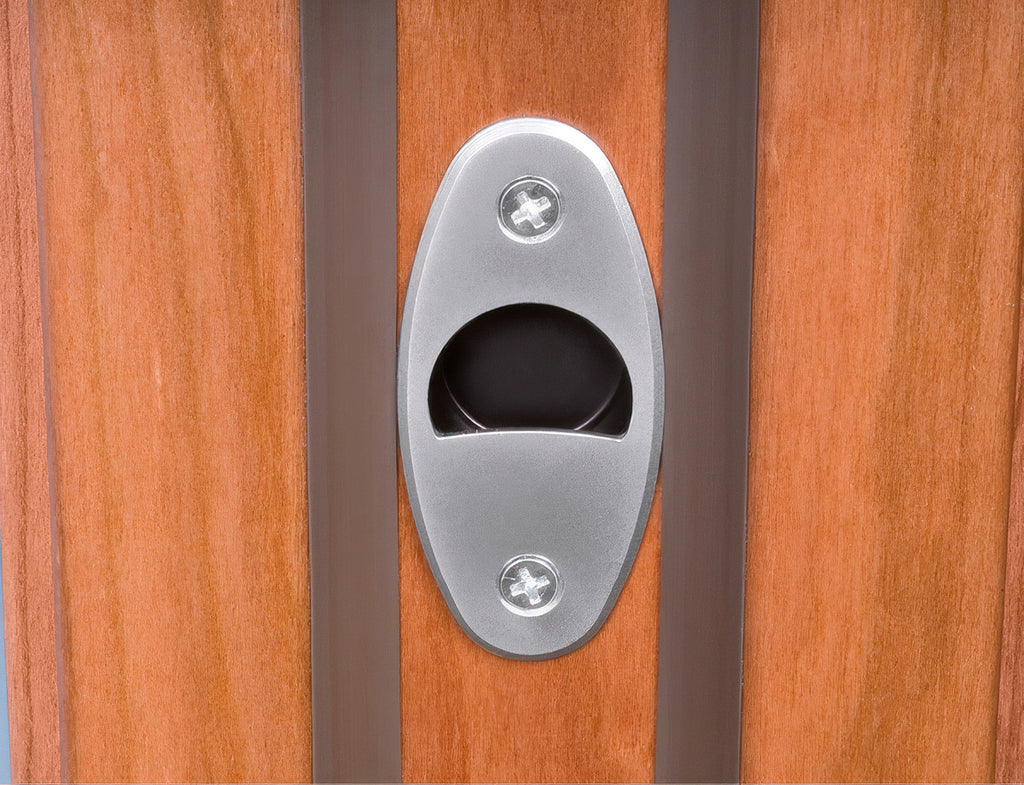

  • Close-up of striker used with Scivola T

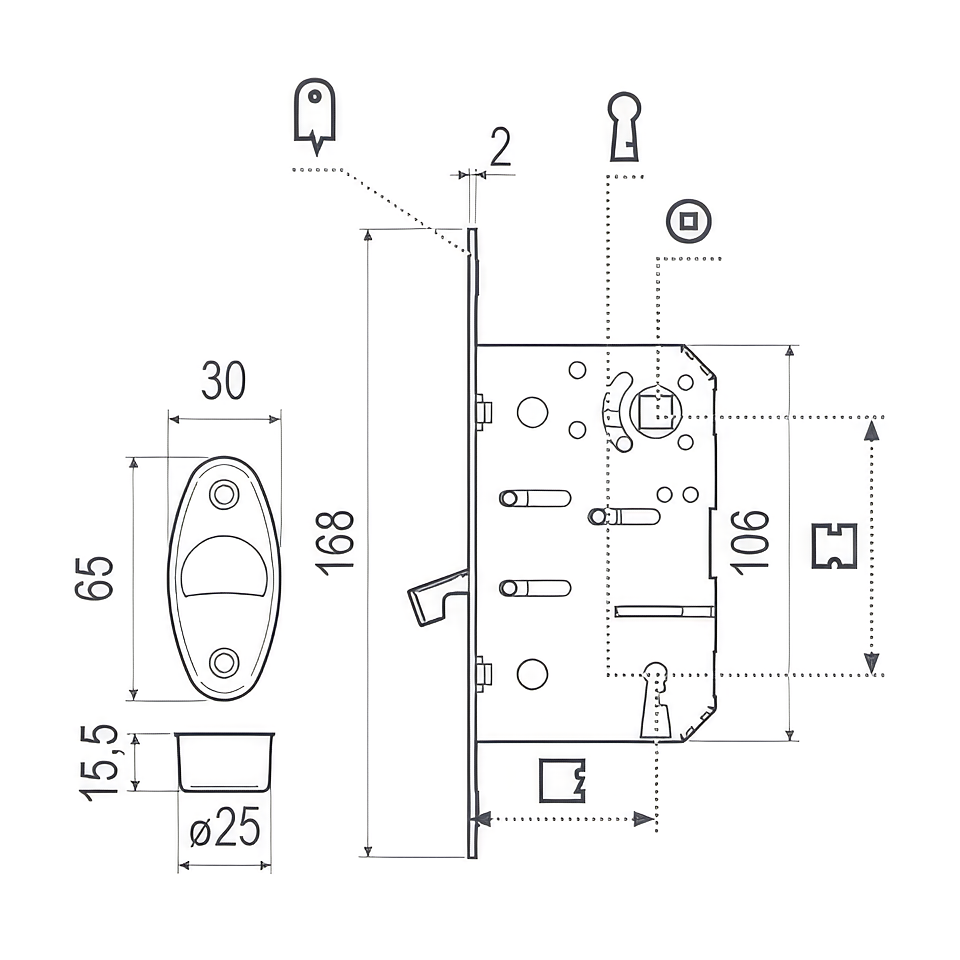

  • Scivola T technical drawing
  • Lock finishes, which includes Bright Brass Plated, Bright Nickel Plated, and Matte Chromium Plated
Scivola T

Scivola T

Sliding door hook lock for internal doors
$0.00
Shipping calculated at checkout.

Hook lock designed for internal sliding doors, providing reliable and precise closure. The Scivola T mechanism allows wide tolerances between the hook and striker, ensuring smooth operation even with minor door shifts after installation. Supplied as a kit including flush handles, catches, and a finger pull for sliding doors.

Features
Closing System
  • Key lock
Design
  • Hook mechanism ensures secure closure
  • Wide tolerance between hook and striker for reliable operation
  • Smooth handle and key movement
  • Patented hook tip for marking the striker position on the jamb
Installation
  • Fast installation with minimal drilling
  • Striker plate designed for easy positioning
Compatibility
  • Compatible with Mediana and XT lock milling patterns
Materials
  • Steel
Dimensions

Axis
  • 70 mm
Faceplate (foreend)
  • 16 mm
  • 18 mm
Backset
  • 50 mm

Hub

  • 8 mm

Need additional specifications or technical guidance? Contact Us.
