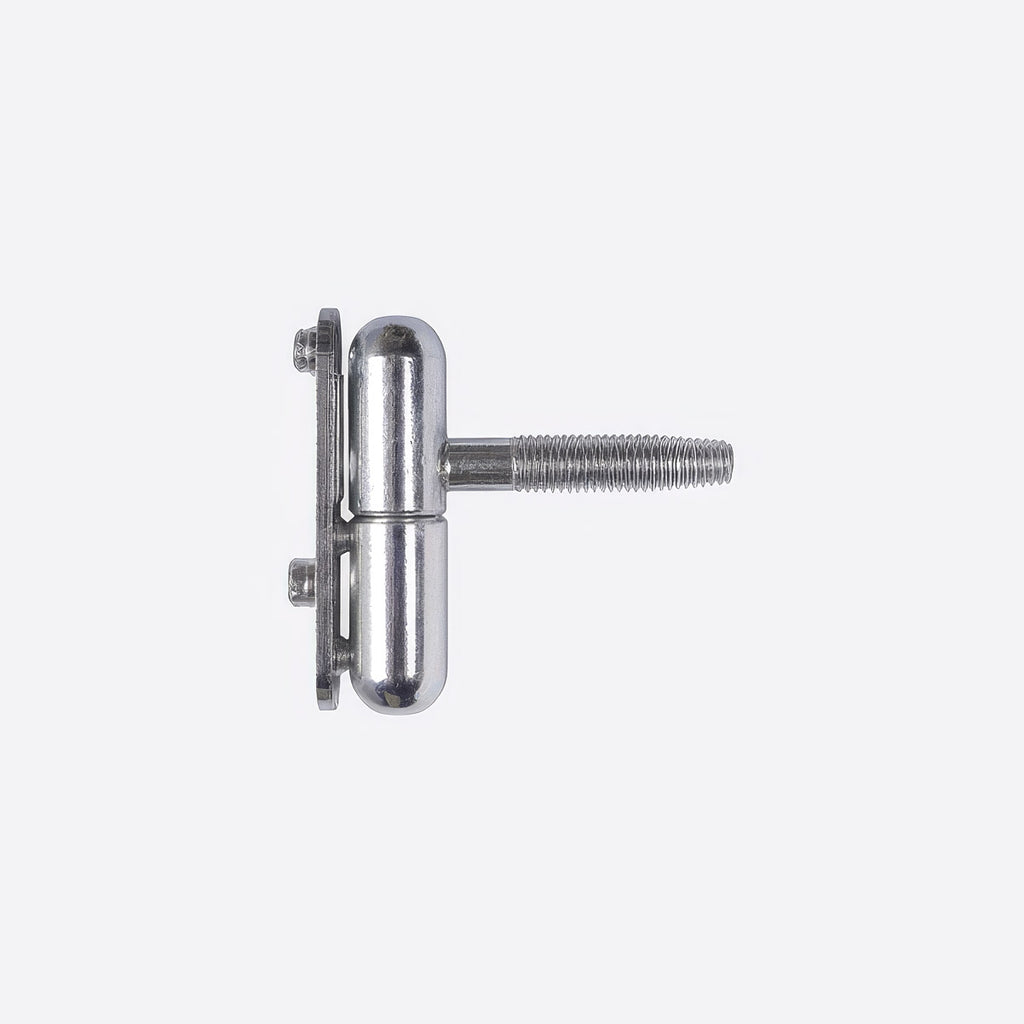

  • Rever hinge
  • Close-up of Rever installed on a cabinet door

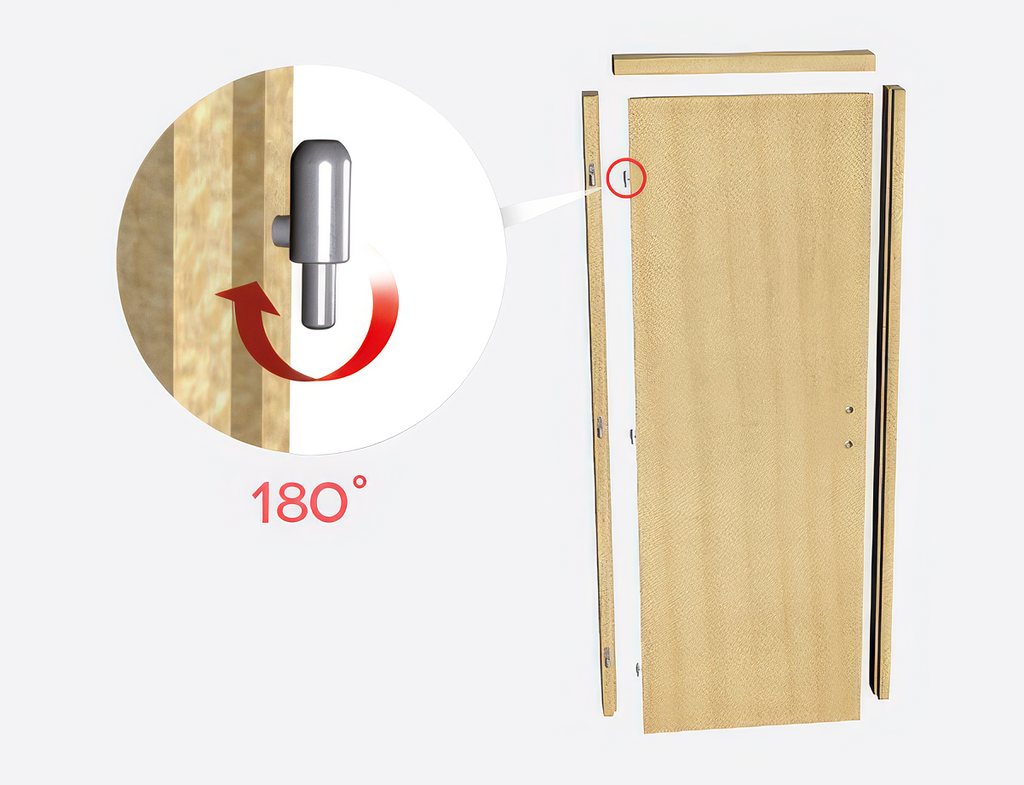

  • Diagram demonstrating the rotating capability of Rever

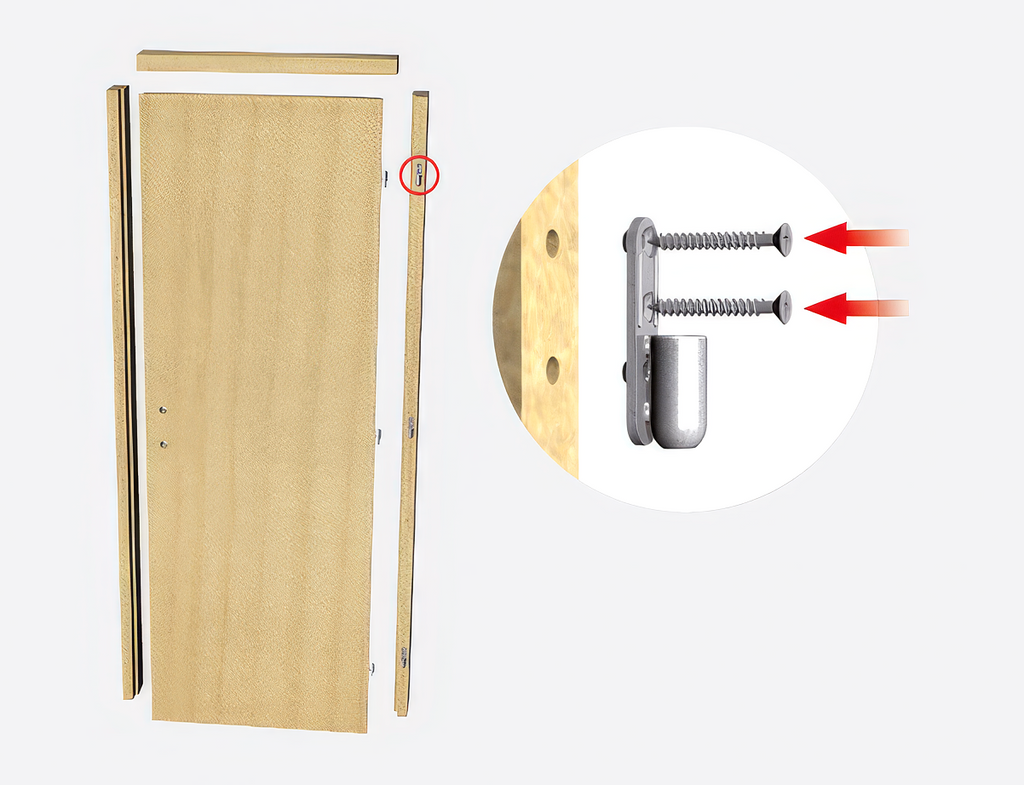

  • Diagram demonstrating installation of Rever

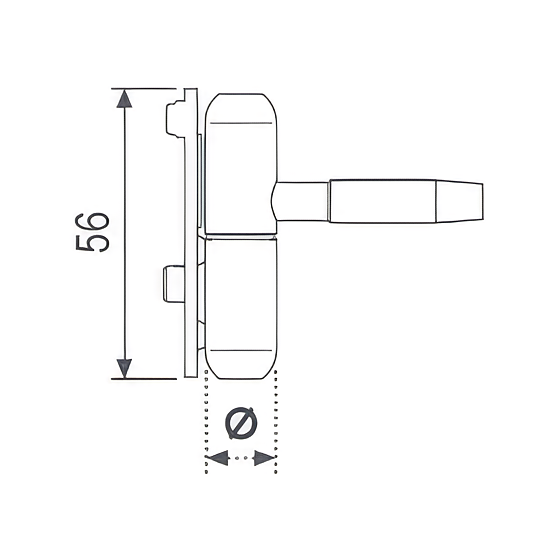

  • Technical drawing of Rever
Rever

Rever

Reversible hinge for flush wood doors
$0.00
Shipping calculated at checkout.

Designed for reversible flush doors, the Rever hinge allows the door handing to be defined simply by rotating the hinge body. The system works with Centro or Mediana Evolution locks to enable fast and error-free door reversibility. Its design supports reliable installation and long-lasting load capacity.

Features
Door Reversibility
  • Door handing can be defined by rotating the hinge body 180°
  • Allows fast reversal of panel and frame without additional machining
  • Compatible with Centro and Mediana Evolution locks for reversible door systems
Construction
  • Two extruded pins symmetrical to the central threaded pin
  • Threaded pin and fastening plate with screw
  • Designed to support reliable and long-lasting load capacity
Installation
  • Panel part can be pre-installed on the door panel during manufacturing
  • Frame part attaches with screws and pins for secure installation
Materials
  • Material: Steel
  • Finish: Silver Finish (15)
Compatible Materials
  • Compatible with: Wood doors
Dimensions

Height: 56 mm

Hinge diameter: 14 mm

Vertical axis options: 11 mm or 13 mm

Threaded pin length (standard): 40 mm

Need additional specifications or technical guidance? Contact Us.
