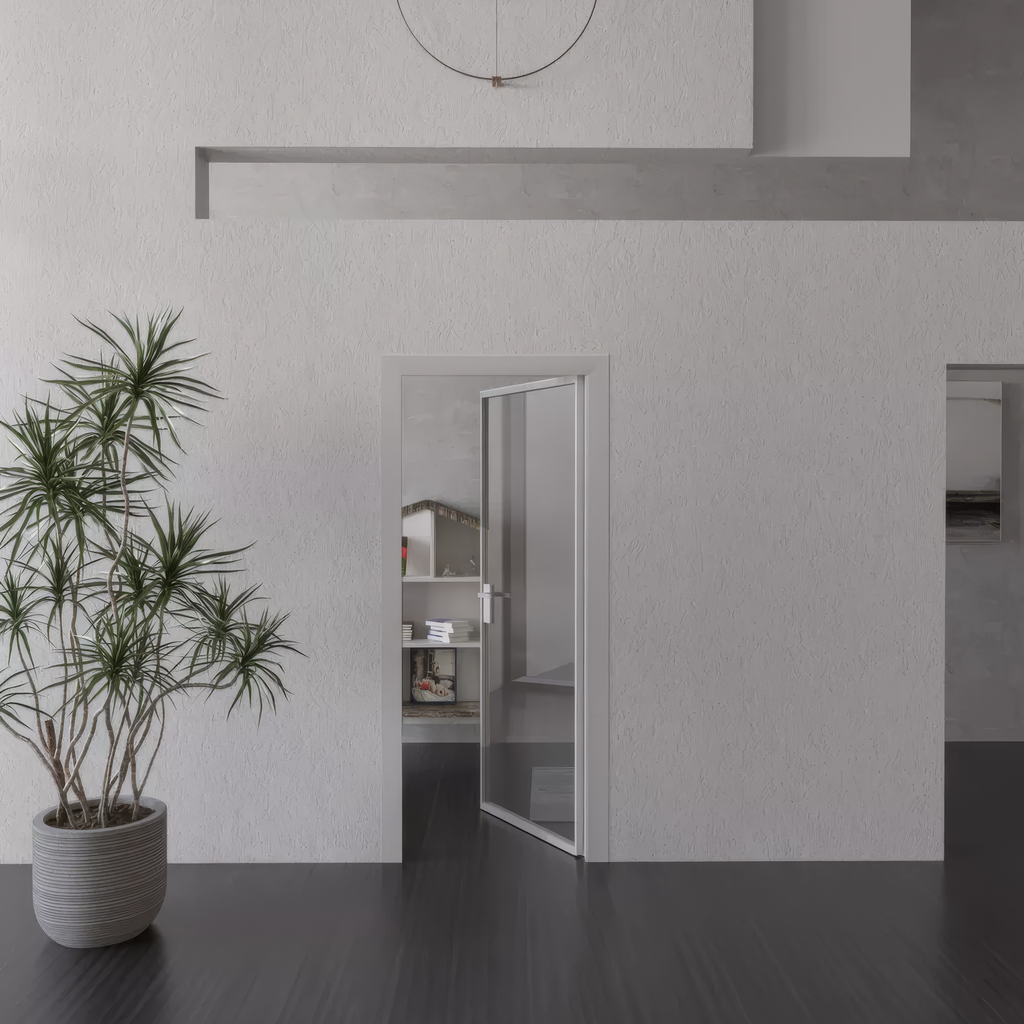

  • Glass door opening up to 90 degrees

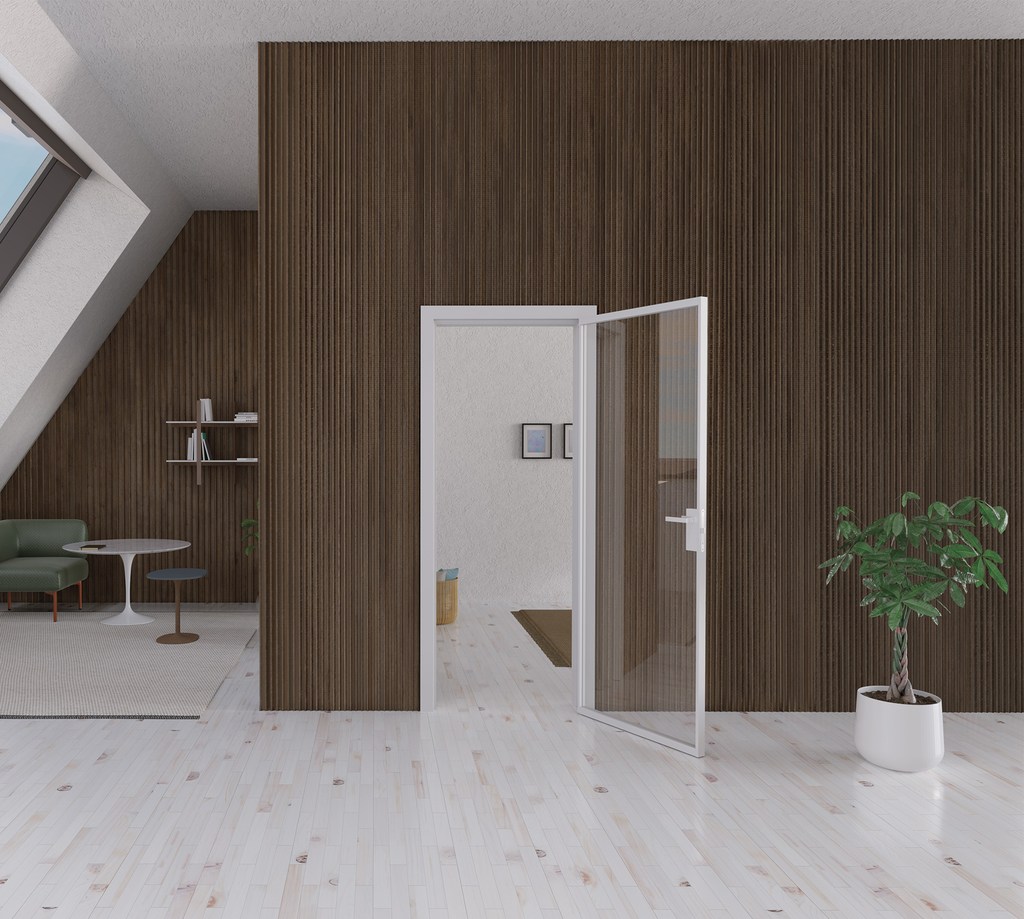

  • Modern interior with wooden walls, a glass door, and a potted plant.

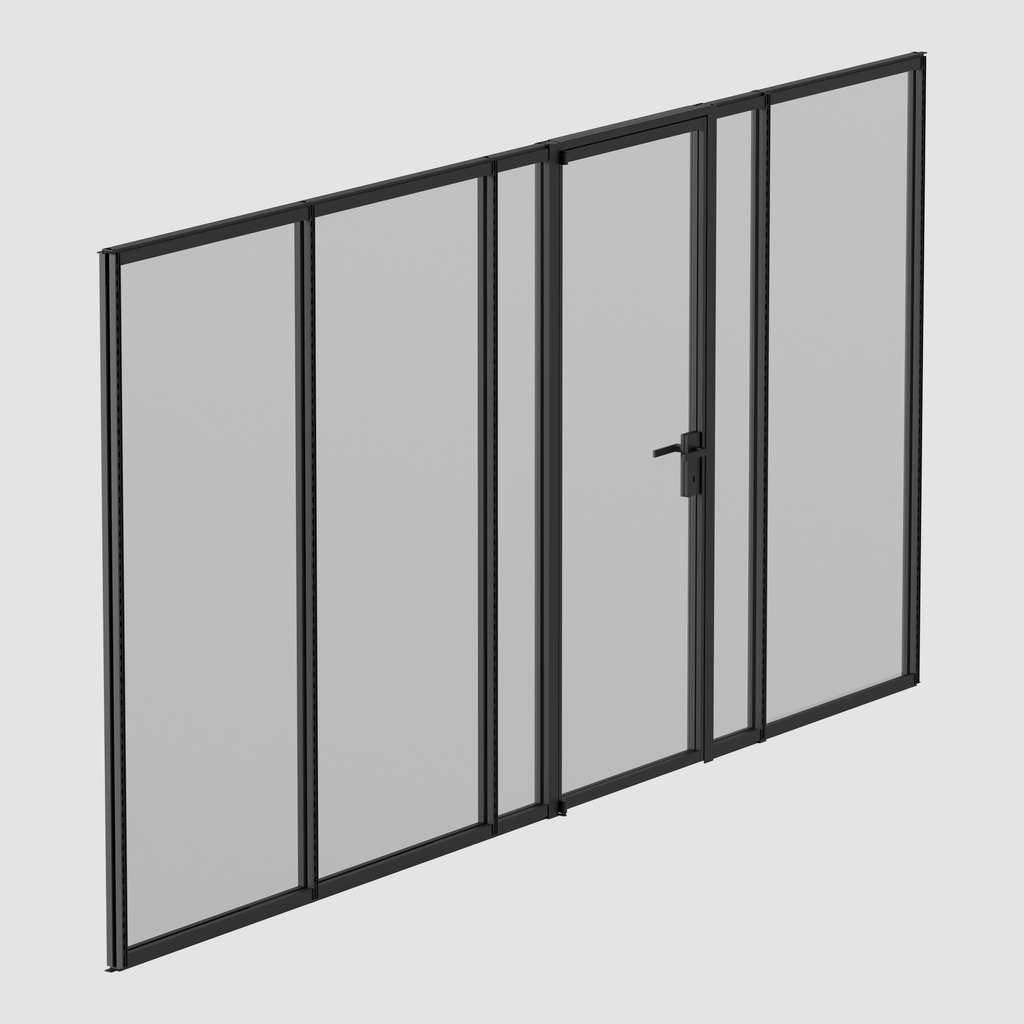

  • Pivot Grid swinging doors

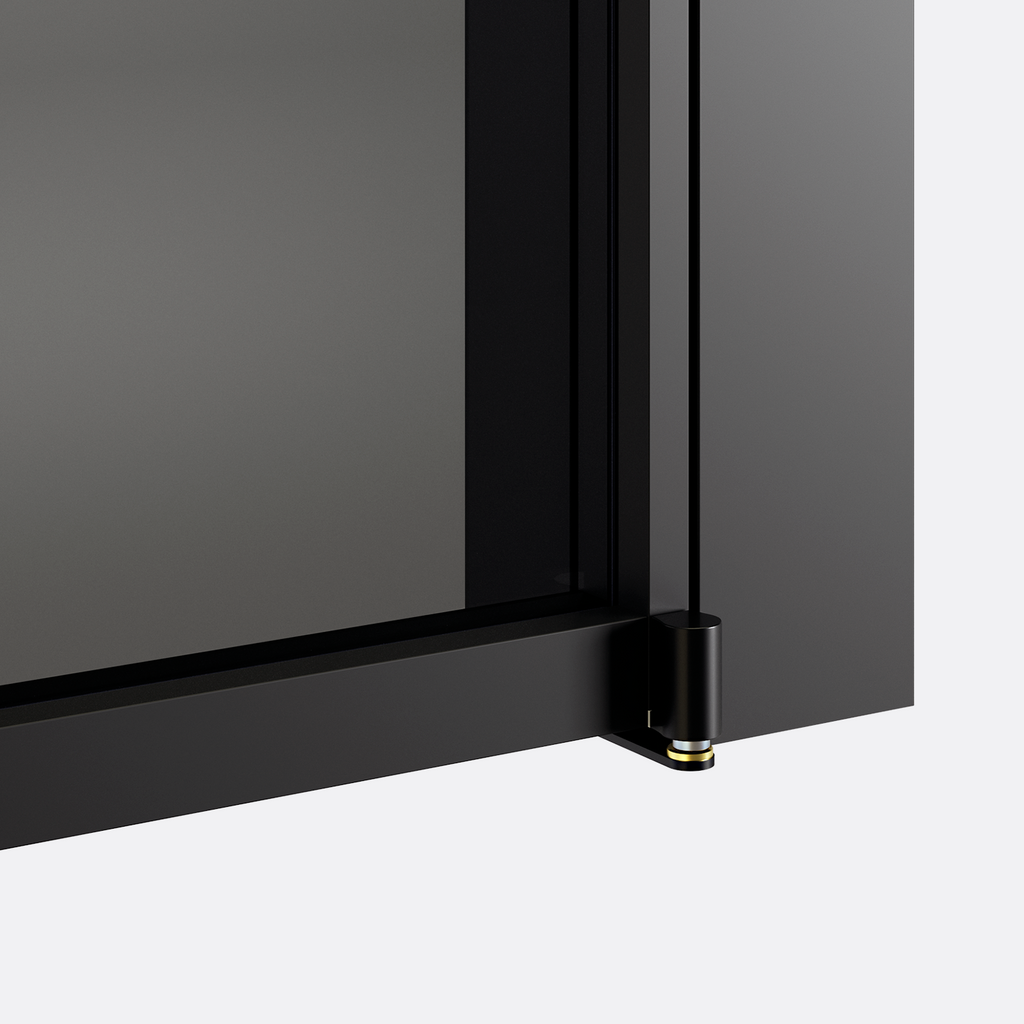

  • Close-up of Pivot swinging mechanism

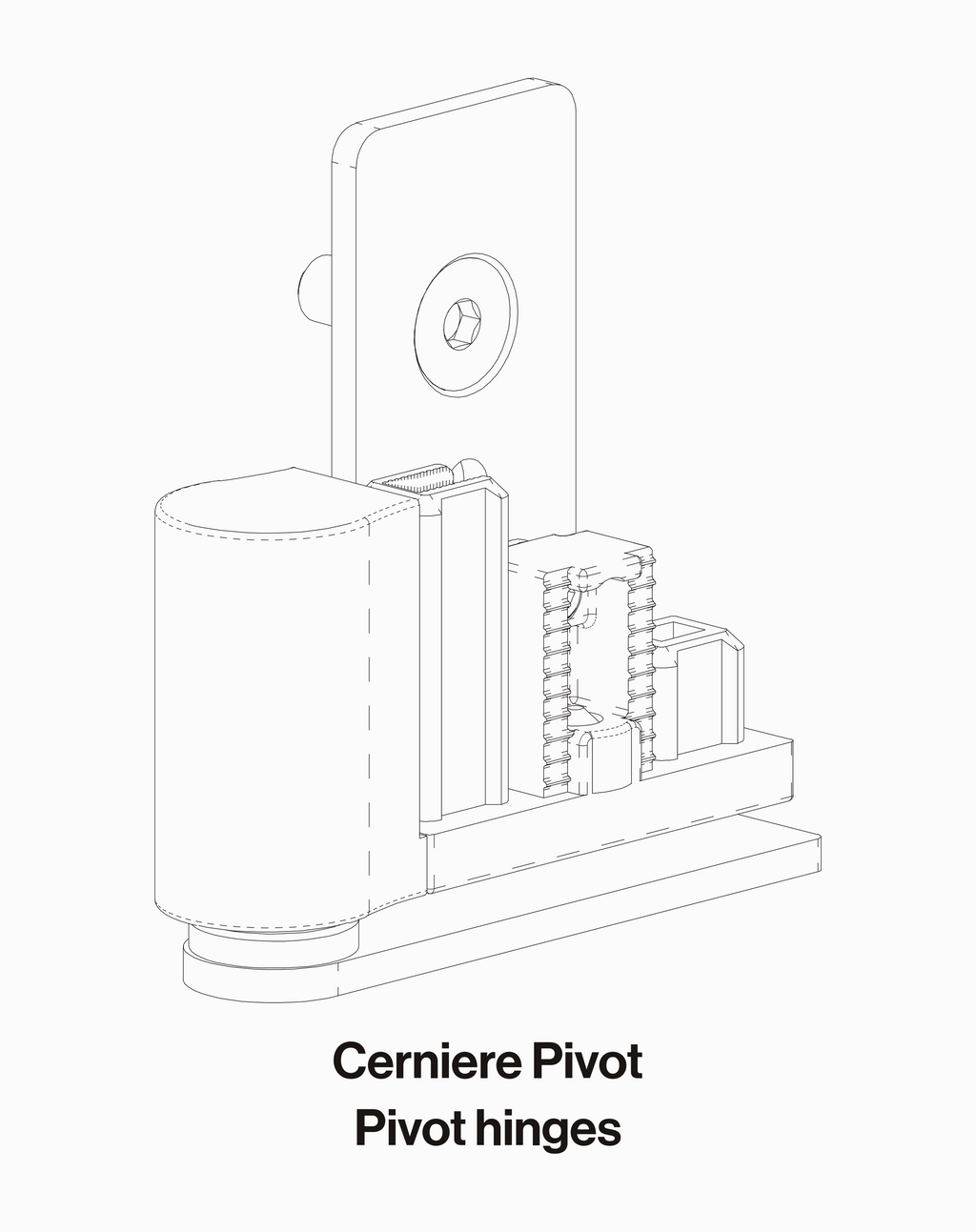

  • Technical drawing of Pivot
Pivot

Pivot

Hinge system for swing doors.
$0.00
Shipping calculated at checkout.

Pivot System is a hinge system for swing doors with opening up to 180°. The system is designed to meet a wide range of installation requirements. It can be installed on aluminum frames of the Universal series or on wooden doors, integrating with the telescopic jamb using a patented coupling system.

Features
System
  • Hinge system for swing doors
  • Opening up to 180°
  • Designed to meet multiple installation requirements
Components
  • Pair of hinges with an off‑centre axis
  • Handle shells
  • Zamak fittings
Installation
  • Can be installed on the aluminium frame of the Universal series (with 6–8 mm thick glass panes)
  • Can be installed on wooden doors
  • Integrates with the telescopic jamb with a patented coupling system
  • Components can also be installed on the wall system GRiD System
  • Frame size can be adapted to the available space by trimming the extrusions with a 90° cut
Dimensions

Opening angle: up to 90° and 180°

Need additional specifications or technical guidance? Contact Us.
