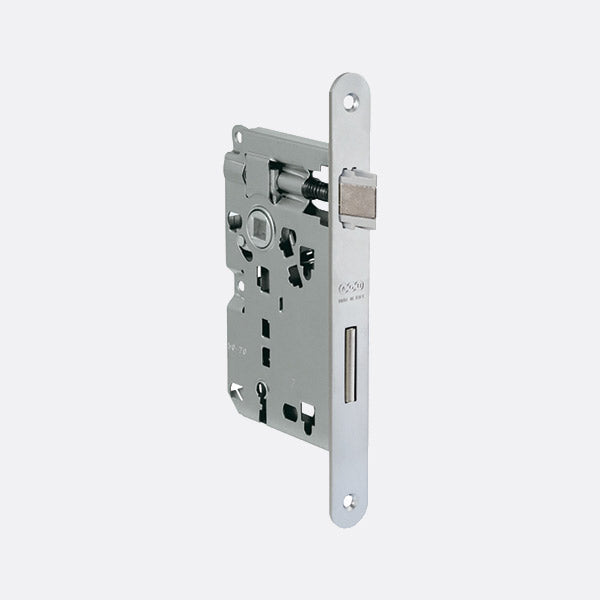

  • Patent Piccola lock body

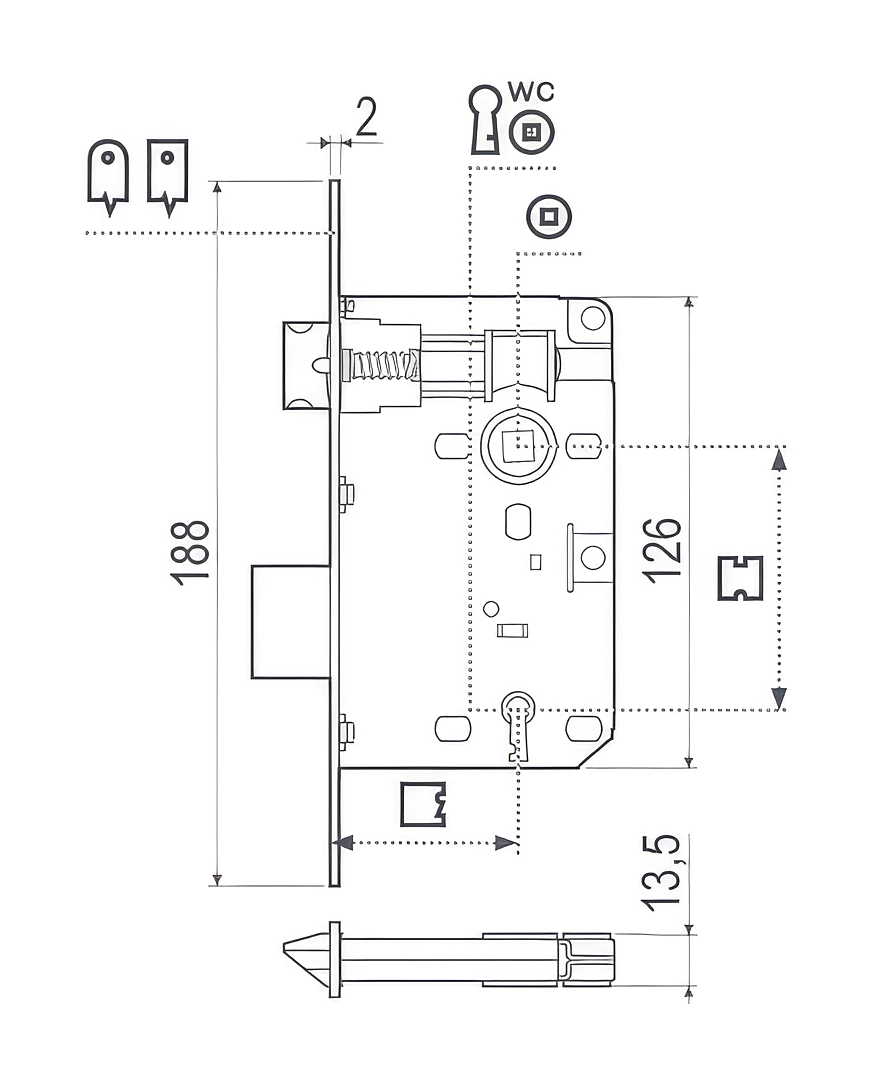

  • Patent Piccola technical drawing

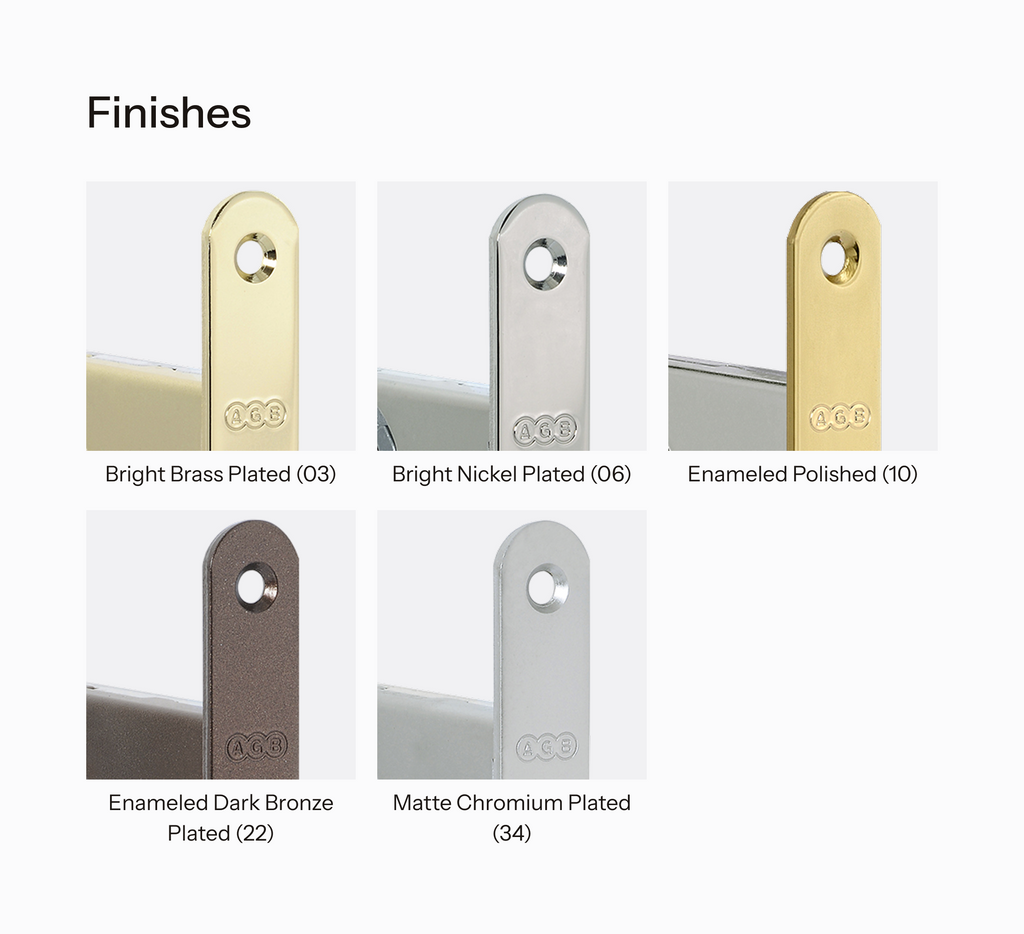

  • Overview of lock finishes available for Patent Piccola
Patent Piccola

Patent Piccola

Compact mortise lock for interior doors
$0.00
Shipping calculated at checkout.

Patent Piccola is a compact version of a classic mortise lock designed for interior doors. Its rounded latch on both sides helps reduce dynamic stress on the door during operation. The reversible latch allows installation on both right- and left-hand doors.

Features
Closing Options
  • Key lock
  • Privacy lock with a 6 mm thumbturn (for bathroom use)
Design
  • Compact version of a traditional interior door lock
  • Rounded latch on both sides to reduce door stress
  • Reversible latch for right- and left-hand doors
Materials
  • Steel
  • Brass
Compatible Materials
  • Interior door panels
Dimensions

Axis
  • 70 mm
Faceplate (foreend)
  • 20 mm
Backset
  • 25 mm
  • 30 mm
  • 35 mm
  • 40 mm
  • 45 mm
  • 50 mm
  • 60 mm
Hub
  • 8 mm

Need additional specifications or technical guidance? Contact Us.
