Opera DQ SL lock body

Opera DQ SL

$0.00
Skip to product information
Opera DQ SL lock body
1/2

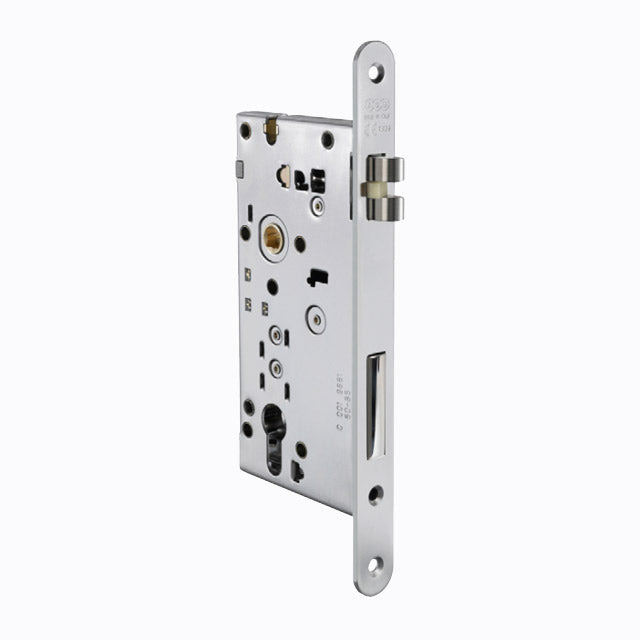

  • Opera DQ SL lock body

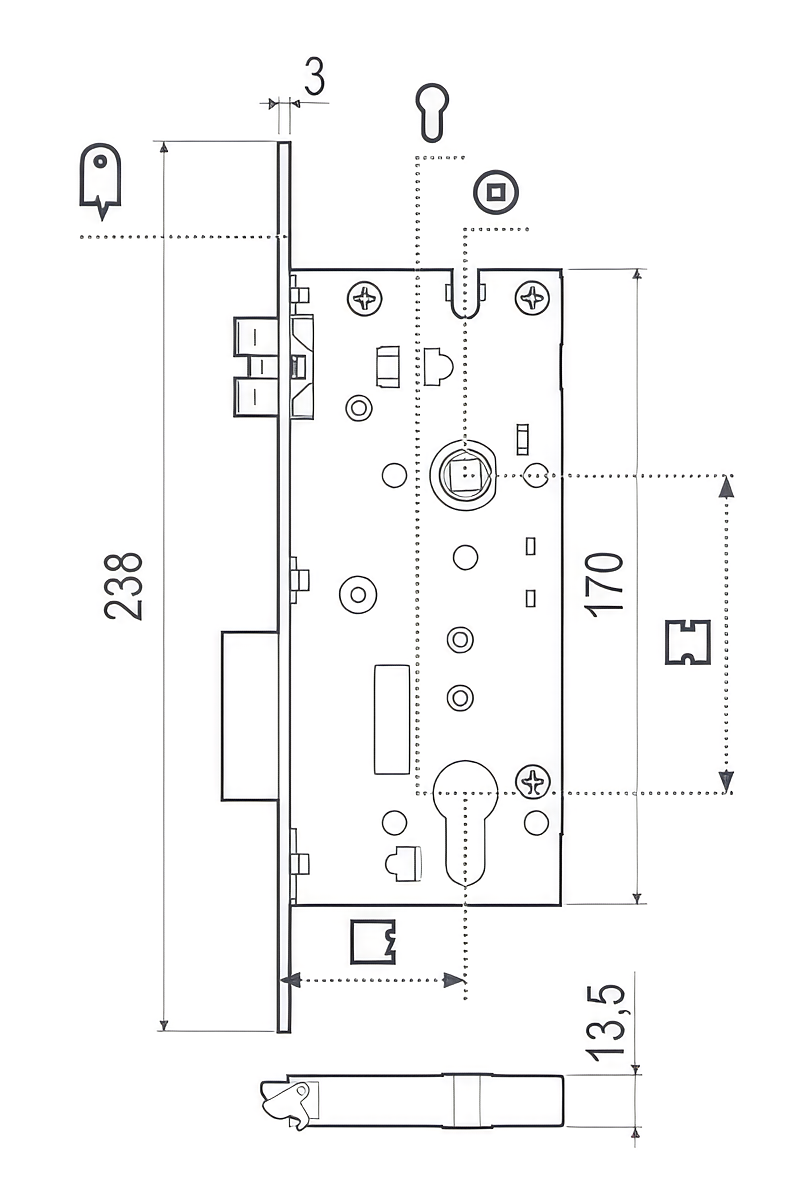

  • Opera DQ SL technical drawing
Opera DQ SL

Opera DQ SL

Panic exit lock for hotels and public buildings
$0.00
Shipping calculated at checkout.

Opera DQ SL is a panic exit lock designed for hotel and community doors where handles are required on both sides. Lowering the interior handle immediately releases the latch and bolt to allow rapid exit in emergencies. When paired with electric strikers, the door can be automated for badge or transponder access.

Features
Emergency Exit Function
  • Panic exit mechanism releases both latch and bolt when the handle is lowered from the inside
  • Enables fast emergency exit from the room
  • Exterior handle retracts only the latch while the panic side retracts both latch and bolt
Security & Operation
  • Designed for doors requiring handles on both sides
  • Intended for use with full-rotation Opera cylinders
Access Control Integration
  • Compatible with electric strikers
  • Allows automated door opening using badges or transponders
Applications
  • Suitable for hotels
  • Suitable for healthcare facilities and clinics
  • Suitable for restrooms and public building entrances or exits
Certifications
  • CE marking
  • EN 12209 certification
  • EN 1634 fire door certification
Material
  • Steel
Compatible Materials
  • Interior door panels
Dimensions

Axis
  • 85 mm
Faceplate (foreend)
  • 22 mm
Backset
  • 50 mm
  • 60 mm
  • 70 mm
Hub
  • 8 mm

Need additional specifications or technical guidance? Contact Us.
