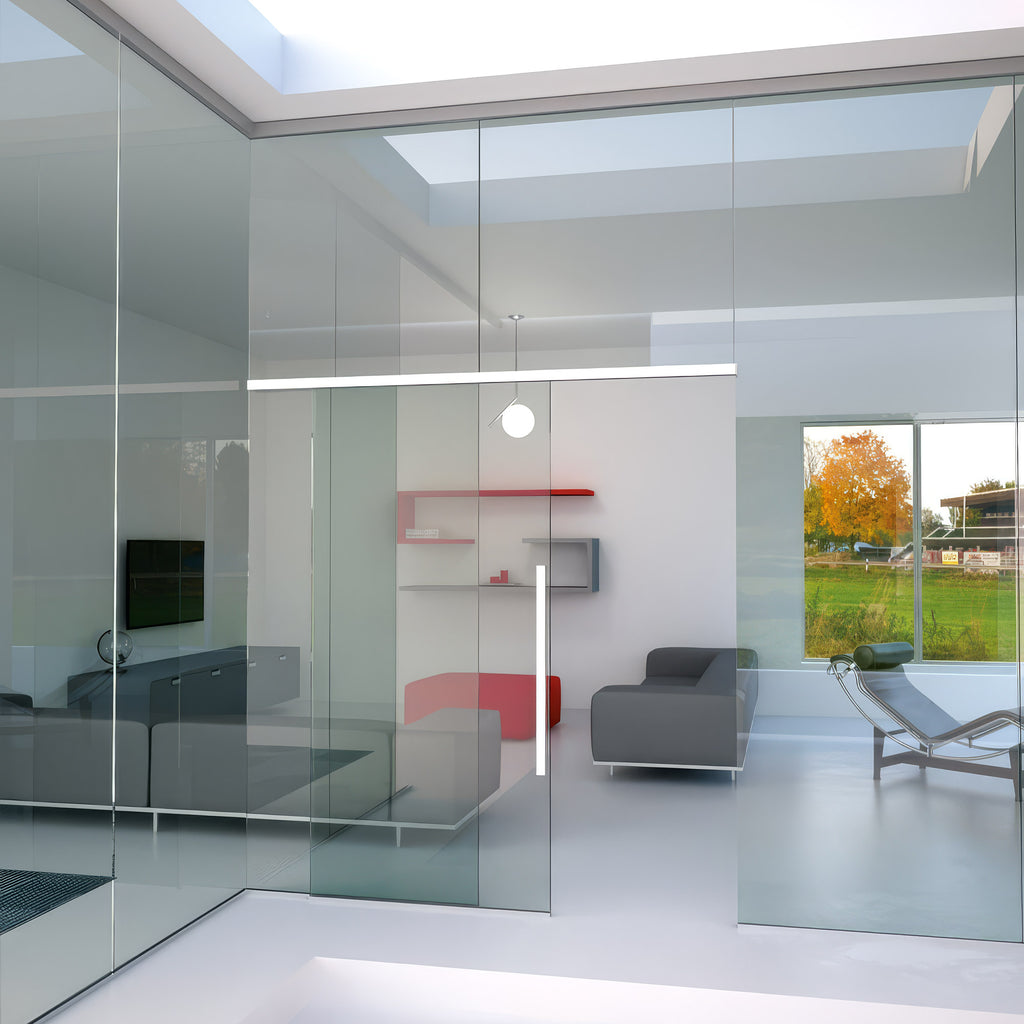

  • Modern interior design with glass walls, gray furniture, and a view of trees outside.

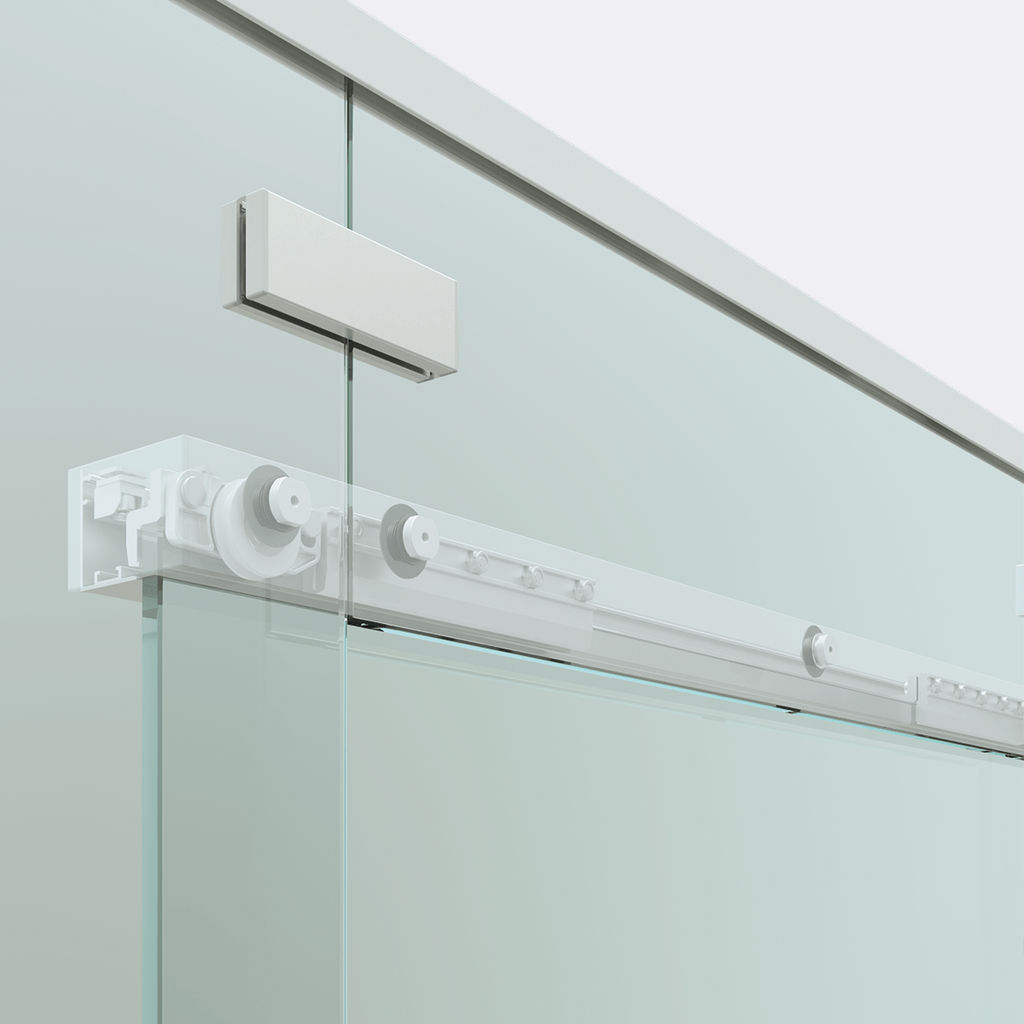

  • Close-up of Micro 50 Fix's door mechanism

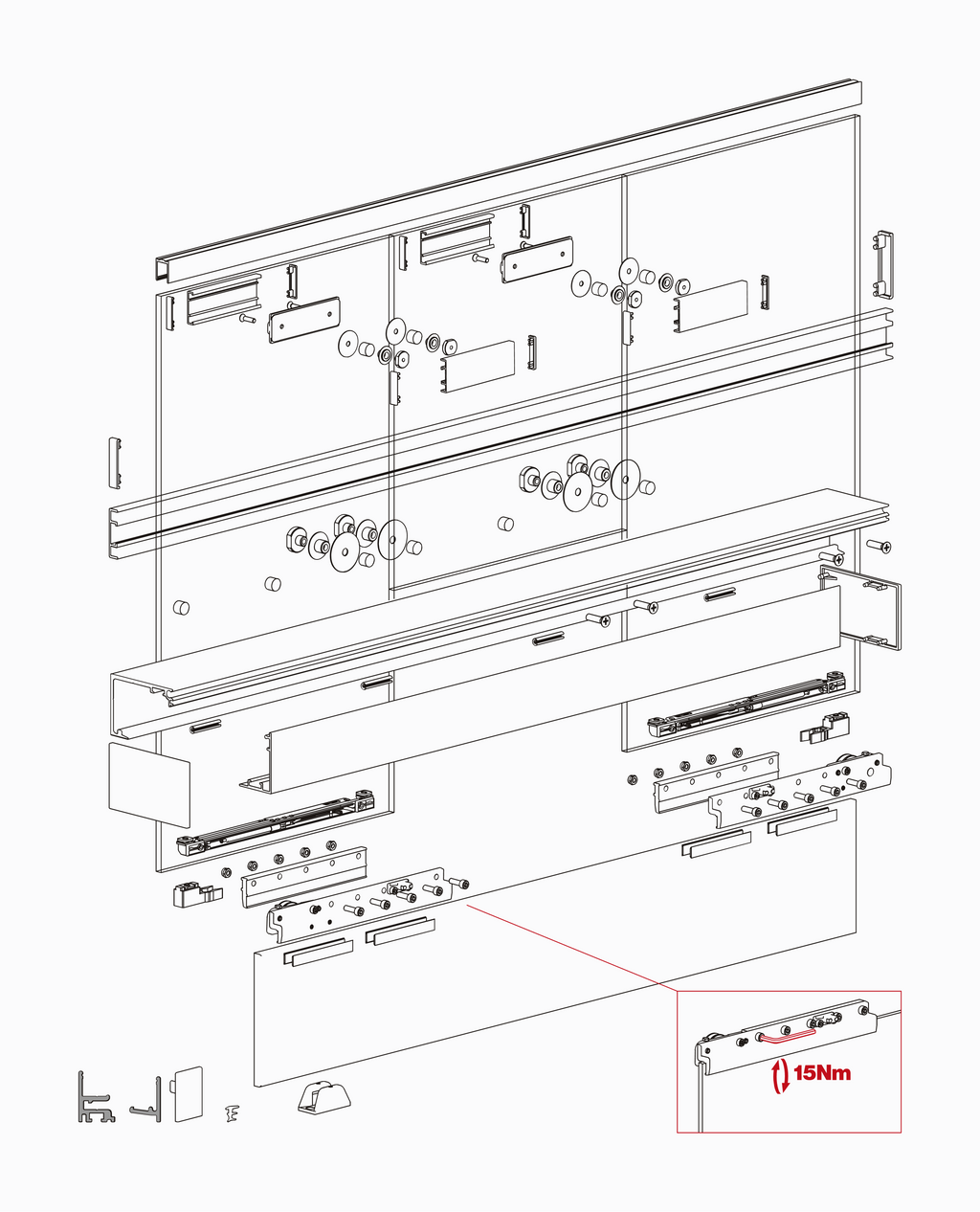

  • Micro 50 Fix technical diagram
Micro 50 Fix

Micro 50 Fix

Compact concealed sliding system for glass.
$0.00
Shipping calculated at checkout.

Micro 50 Fix is a concealed sliding system integrated into aluminum profiles with reduced dimensions. Designed for fixed glass walls, the system integrates sliding elements within a profile measuring only 50 mm. The system supports both monolithic and laminated glass while avoiding tension on the glass that could cause breakage.

Features
System Design
  • Concealed sliding elements integrated into aluminum profiles
  • Designed for fixed glass wall systems
  • Compact system with reduced profile dimensions
Glass Compatibility
  • Suitable for monolithic glass
  • Suitable for laminated glass
  • Clamp designed to avoid tension on the glass
Performance
  • Sliding clamps positioned at the edges of the door
  • Clamps equipped with ball bearings for balanced motion
  • Provides stable movement even with narrow doors
Installation and Adjustment
  • Sliding clamps feature fully external adjustment
  • System does not require drilling operations on the glass
Stopper Options
  • Classic stopper
  • Soft air closing
Materials
  • Door material: Glass
Compatible Materials
  • Compatible with monolithic or laminated glass
Dimensions

Glass thickness: 8–12.7 mm

Door width: 600–1600 mm

Maximum door weight: 80 kg

Profile dimension: 50 mm

Need additional specifications or technical guidance? Contact Us.
