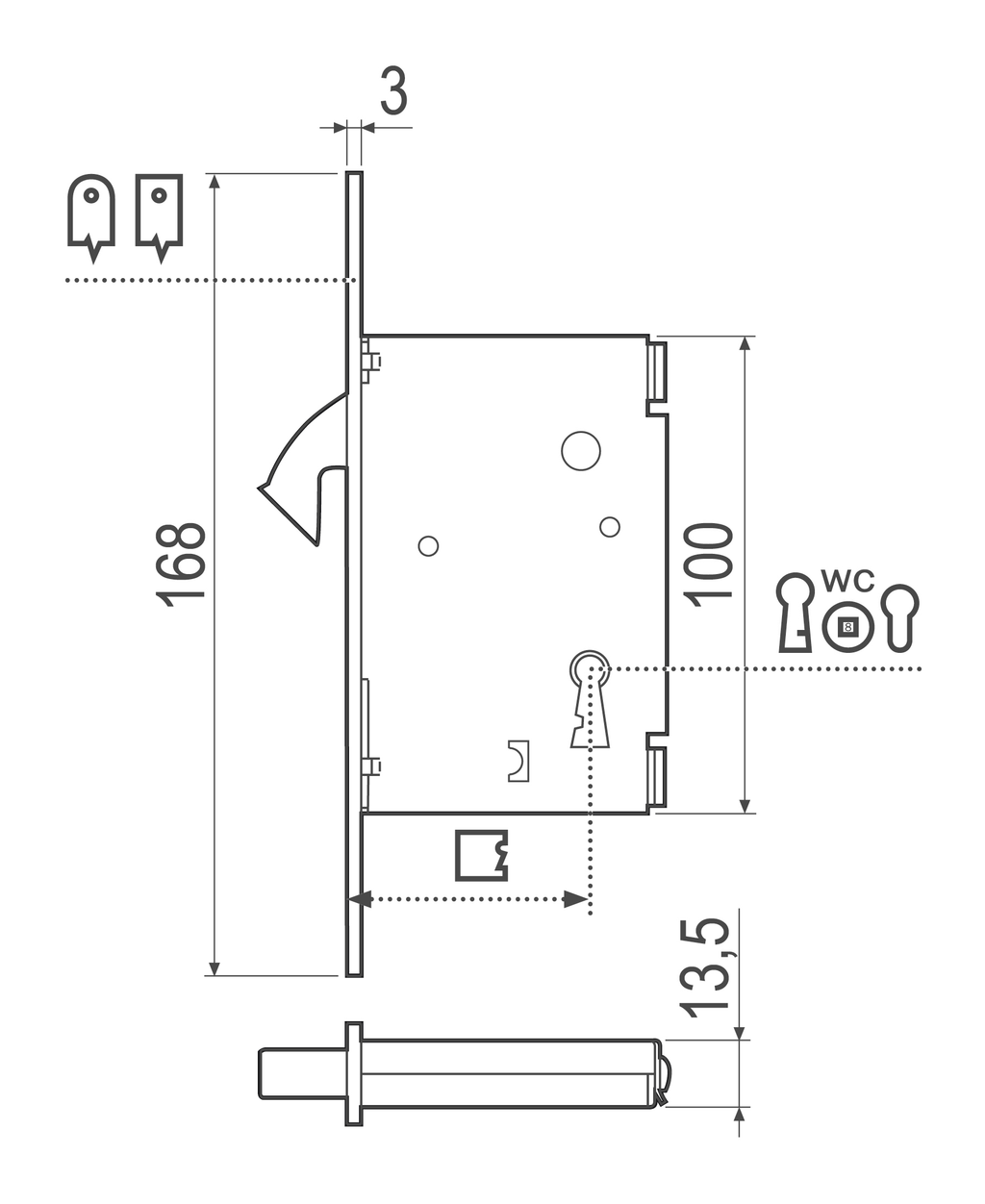

  • Mod. 70 technical drawing
  • Overview of lock finishes
Mod. 701

Mod. 701

Sliding door mortise hook lock.
$0.00
Shipping calculated at checkout.

Mortise lock designed for sliding doors with thick panels. The return hook mechanism provides secure locking while remaining compatible with round and oval flush handle catches. Multiple backset options allow the lock to accommodate different door configurations.

Features
Product Type
  • Mortise lock for sliding doors
  • Return hook locking mechanism
Closing Options
  • Key lock
  • Bathroom lock (WC, 8 mm)
  • Cylinder lock
Compatibility
  • Compatible with round flush handle catches
  • Compatible with oval flush handle catches
Materials
  • Steel
Compatible Materials
  • Sliding door panels
Dimensions

Faceplate (foreend)
  • 22 mm
Backset
  • 30 mm
  • 35 mm
  • 40 mm
  • 45 mm
  • 50 mm
  • 60 mm

Need additional specifications or technical guidance? Contact Us.
