System

• Invisible sliding system installed outside the wall
• Suitable for monolithic or laminated glass doors
• Compatible with glass thickness from 8–12.7 mm

Technology

• Integrated Fluid damper soft-closing system
• More than 50 mm of damping motion

Adjustment

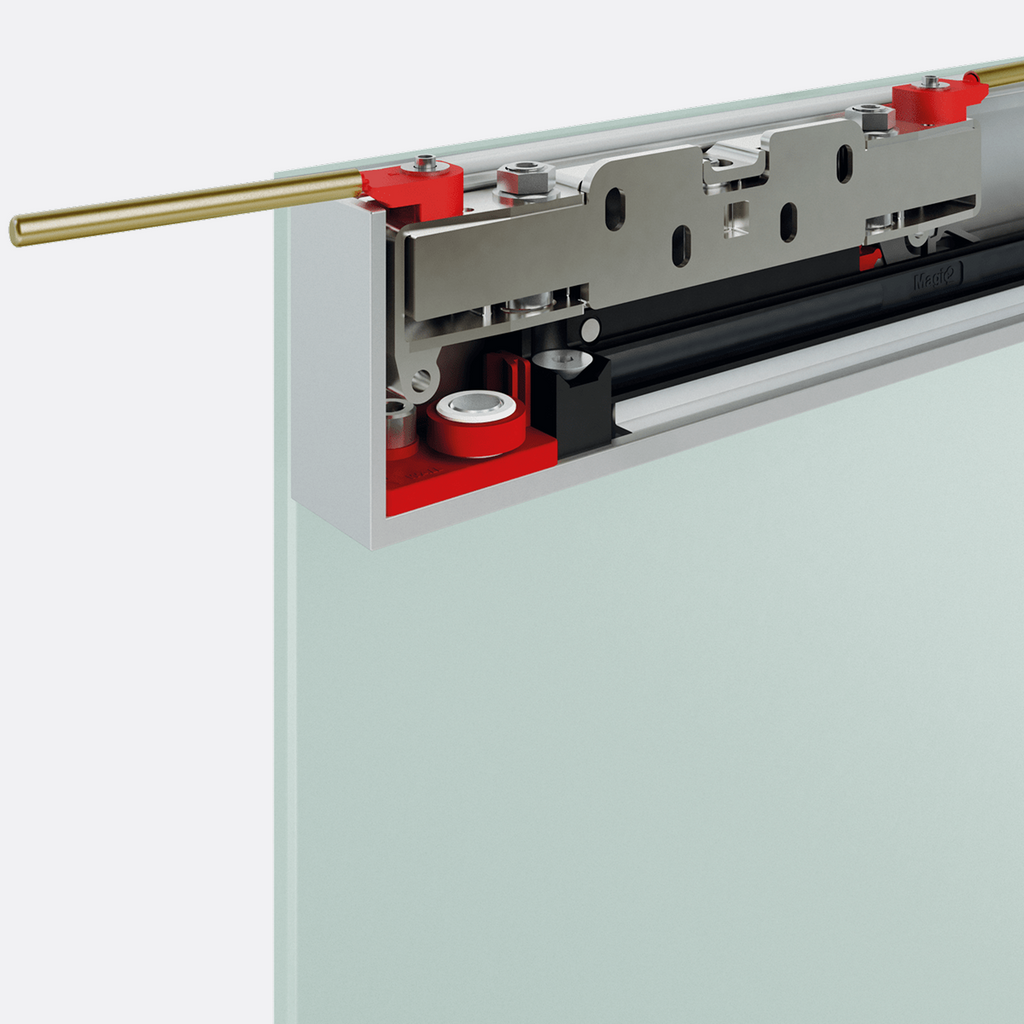

• Patented adjustment system including:Door height adjustment from the floorMicrometric adjustment of door distance from the wallMicrometric adjustment of door parallelism to the wall
• Adjustments accessible from the top sliding trolley without removing the door

Protection & Stability

• Wall-spacer wheels positioned on the door extremities to protect the door from wall contact

Safety

• Practical anti-jumping system with two activation elements and safety levers

Sliding Performance

• Reinforced lower guide in Zamak sliding in a silent plastic profile

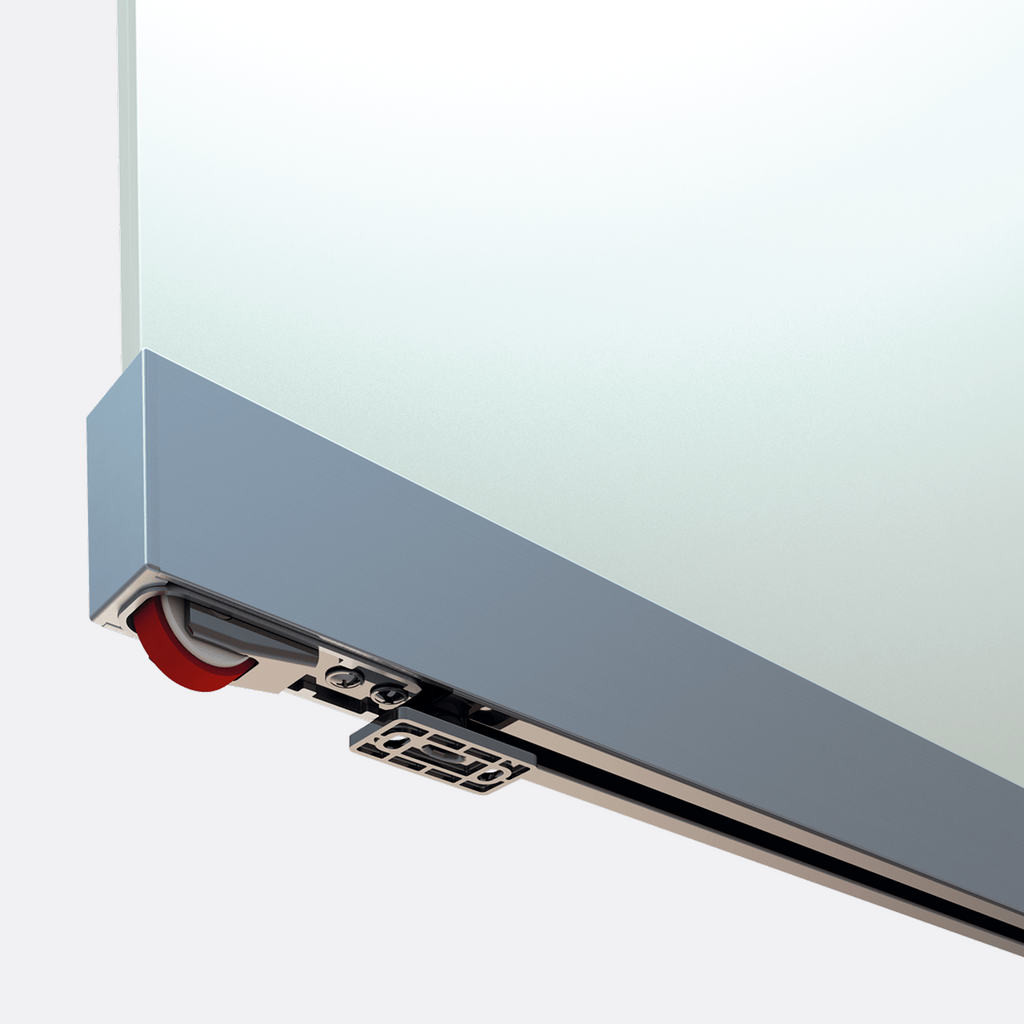

• Patented bottom wheels with suspension spring system
• Larger diameter wheels with larger bearings and steel pivots
• Rubber wheel surfaces designed to improve sliding quality and prevent marks on floors and walls

Stoppers

• Soft air closing

Materials

• Glass door panels

Compatible Materials

• Monolithic glass
• Laminated glass

Finishes

• Brushed Anodized Silver

Certifications

• Multi-patented system
• Designed and produced by Terno Scorrevoli
• Made in Italy
