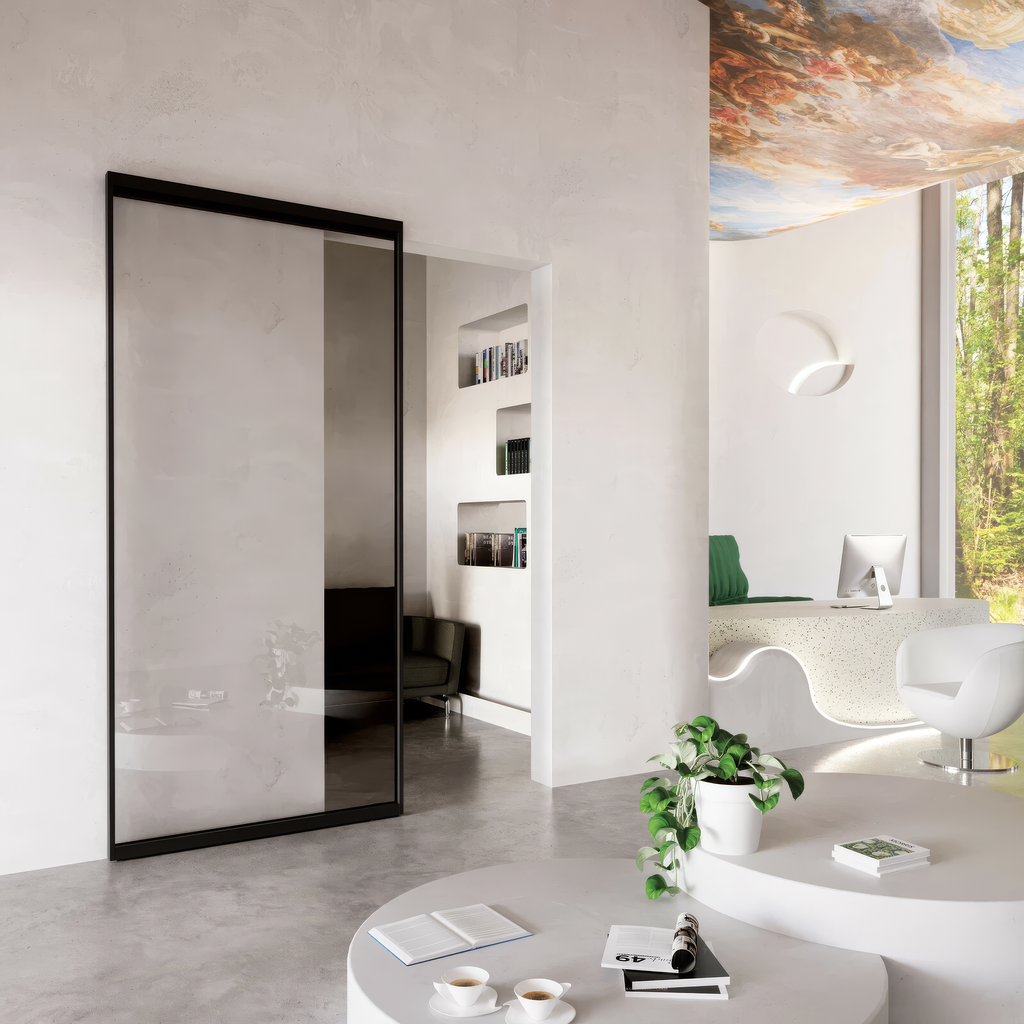

  • Modern interior design with a glass sliding door, white furniture, and a scenic ceiling.

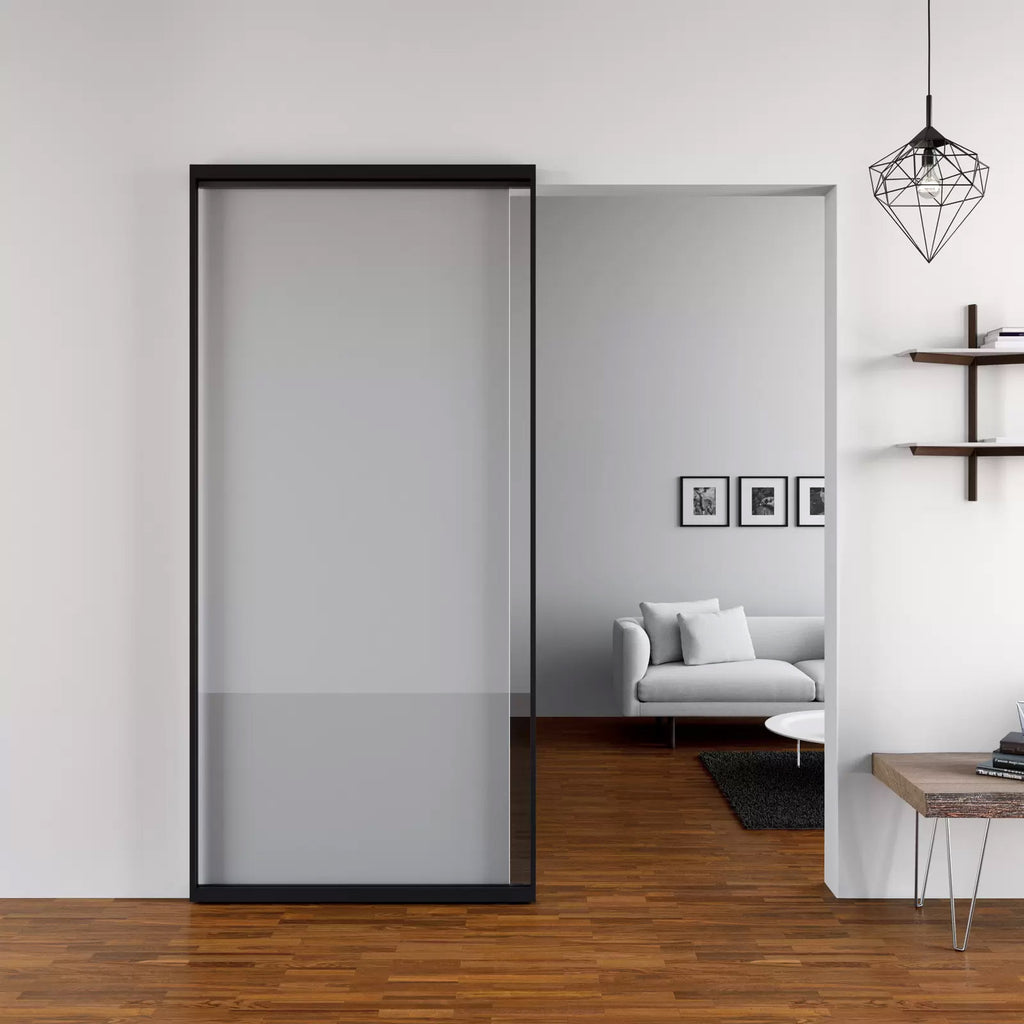

  • Close-up of installed sliding door system with the door panel in the opened position.

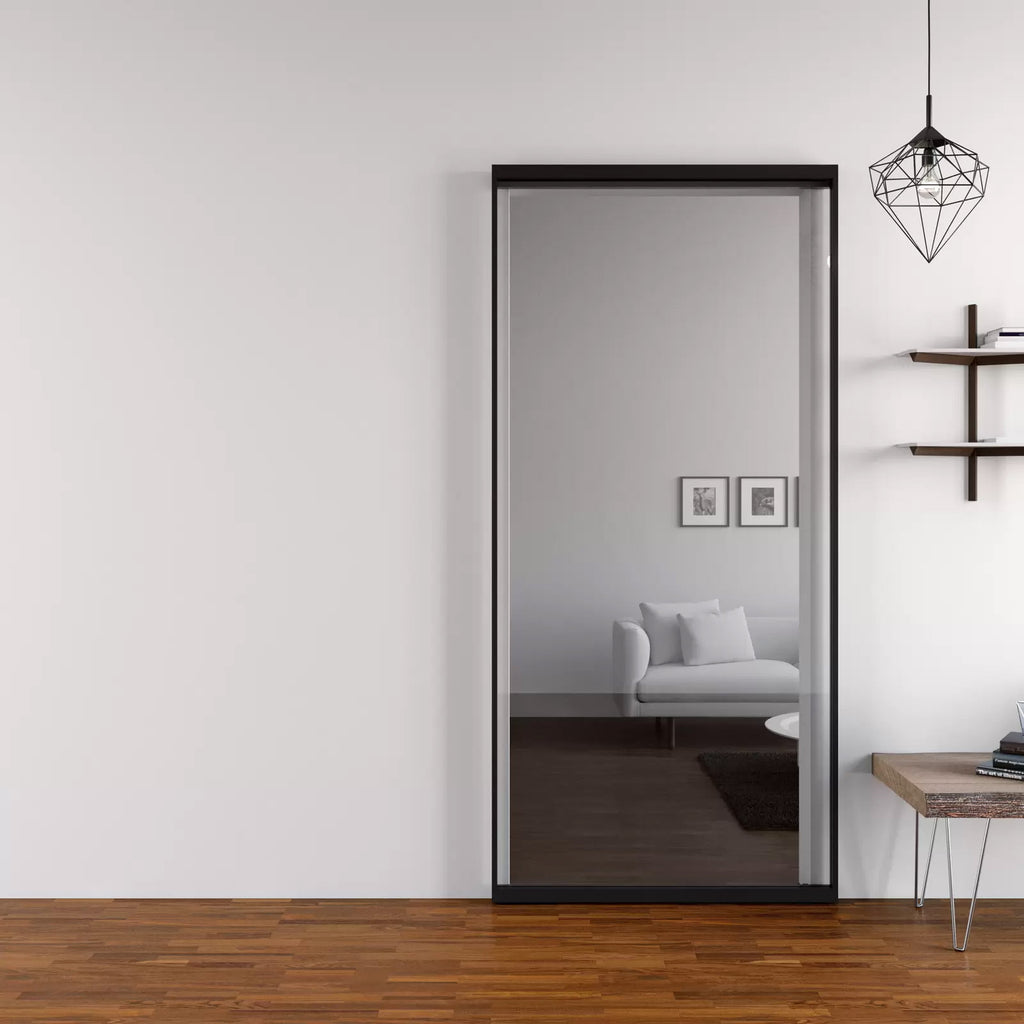

  • Close-up of installed sliding door system with the door panel in the closed position.

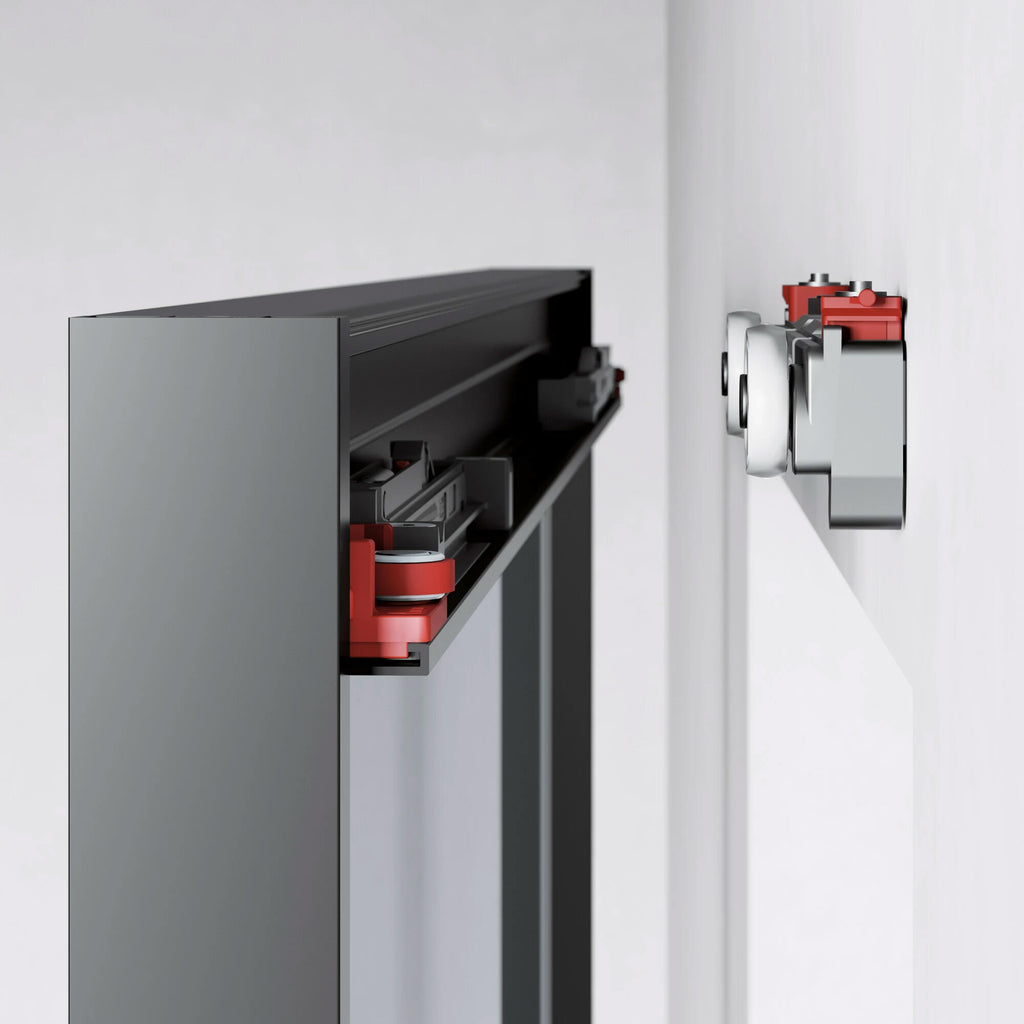

  • Close-up of Magic2 Frame's sliding mechanism

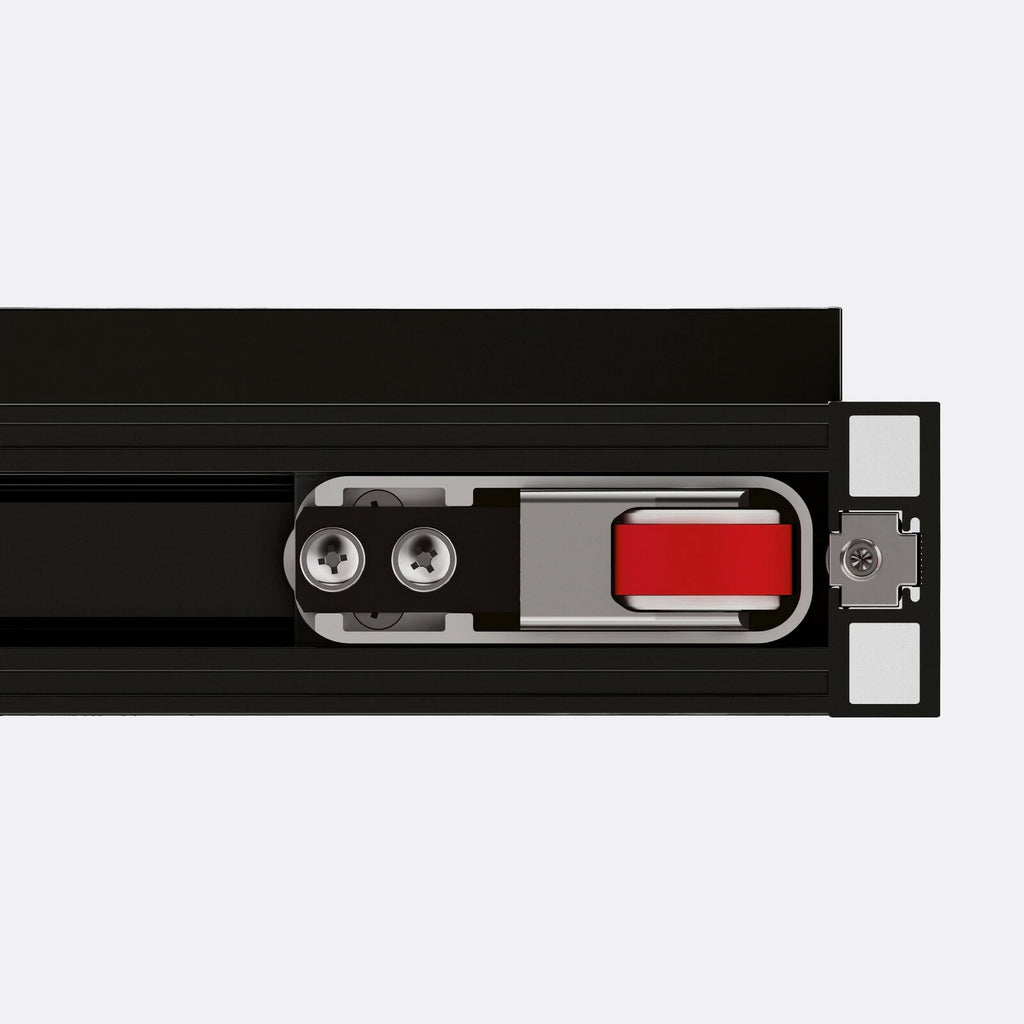

  • Close-up of Magic2 Frame's sliding track
  • Close-up of bottom wheels on Magic2 Frame

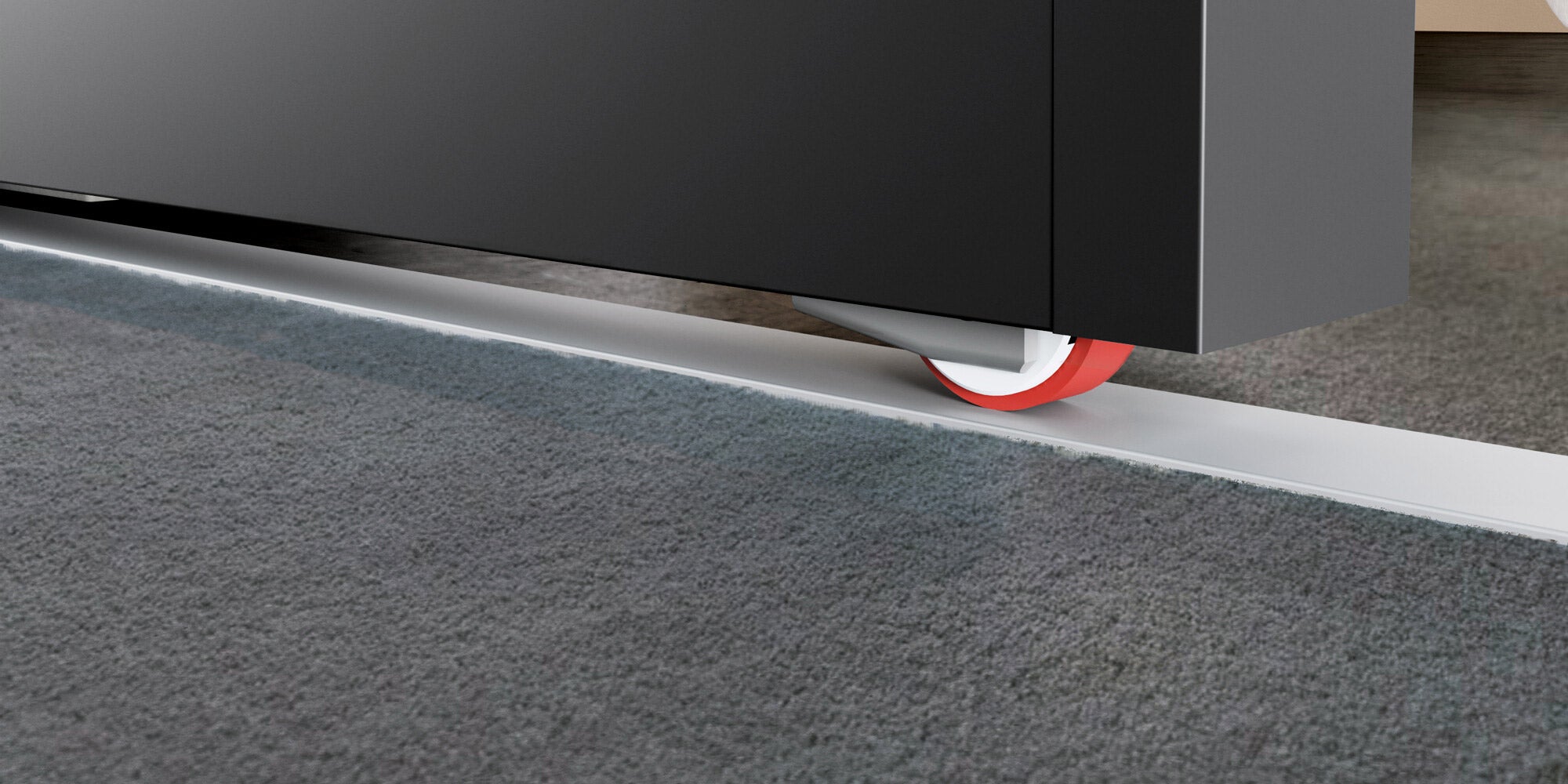

  • Close-up of sliding door guide wheel moving along recessed floor track beside carpeted floor.
  • Close-up of Magic2 Frame's anti-unhooking system

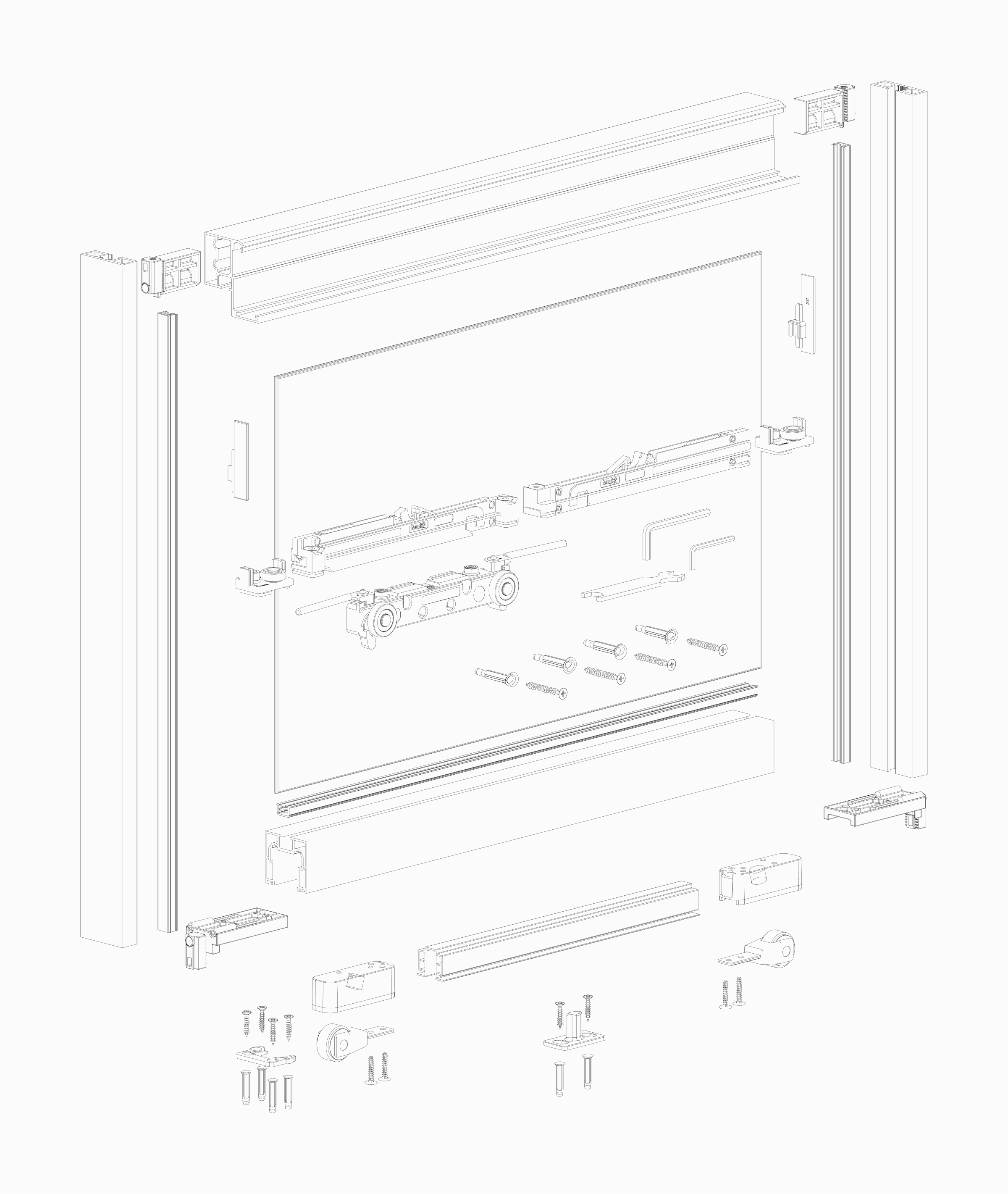

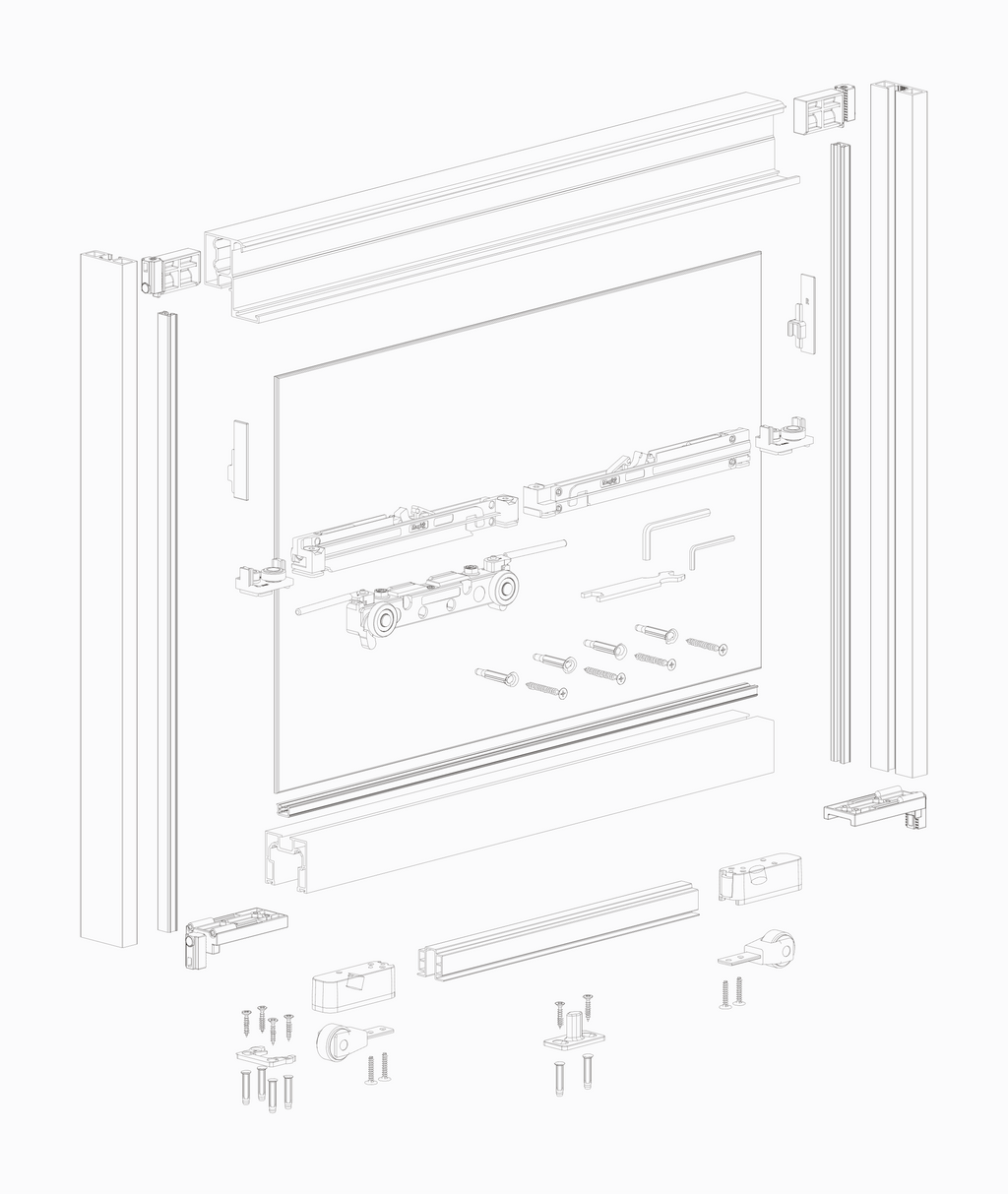

  • Magic2 Frame technical drawing
Magic 2 Frame

Magic 2 Frame

Sliding door system with concealed track.
$0.00
Shipping calculated at checkout.

Magic2 Frame combines the invisible sliding door system Magic2 with a Universal aluminum frame, creating a sliding door solution where all mechanisms are hidden. The system is suitable for solid brick, hollow brick, concrete, and plasterboard walls when specific anchors are used. Integrated soft-closing dampers with Fluid technology ensure smooth, quiet braking and improved user experience.

Features
System
  • Invisible sliding door system with concealed tracks, dampers, wheels, and upper guide
  • Universal aluminum frame designed for clean lines and reduced visual bulk
  • Suitable for brick, hollow brick, concrete, and plasterboard walls (with specific anchors)
Design
  • Minimal, linear design with reduced vertical profile visibility
  • Sliding track cover forms a continuous surface with the door
  • Profiles and accessories available in multiple finishes
Performance

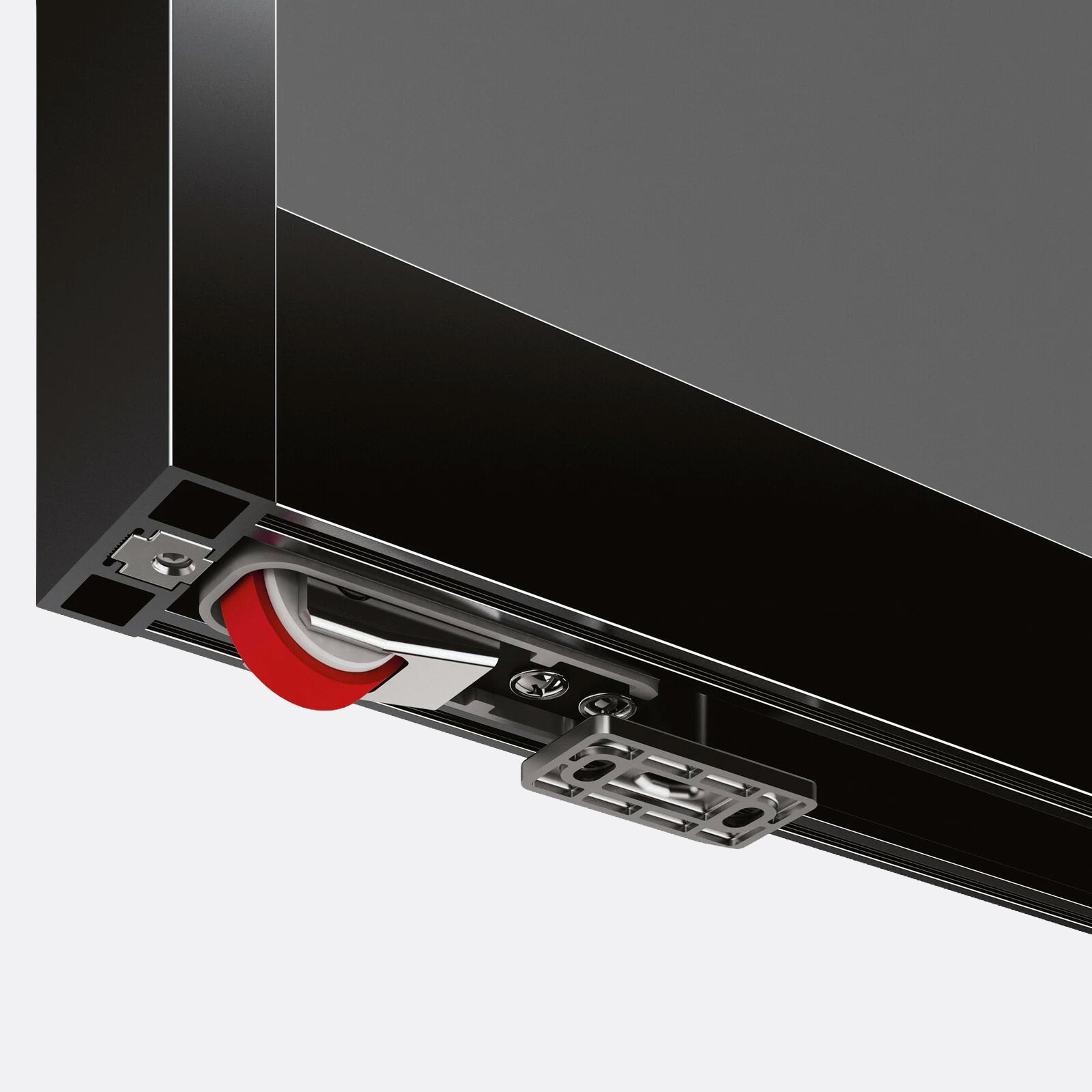

  • Patented bottom wheels unload the door weight onto the floor
  • Wheels leave no marks on the floor and absorb unevenness such as tile joints
  • Smooth and silent sliding movement
Safety

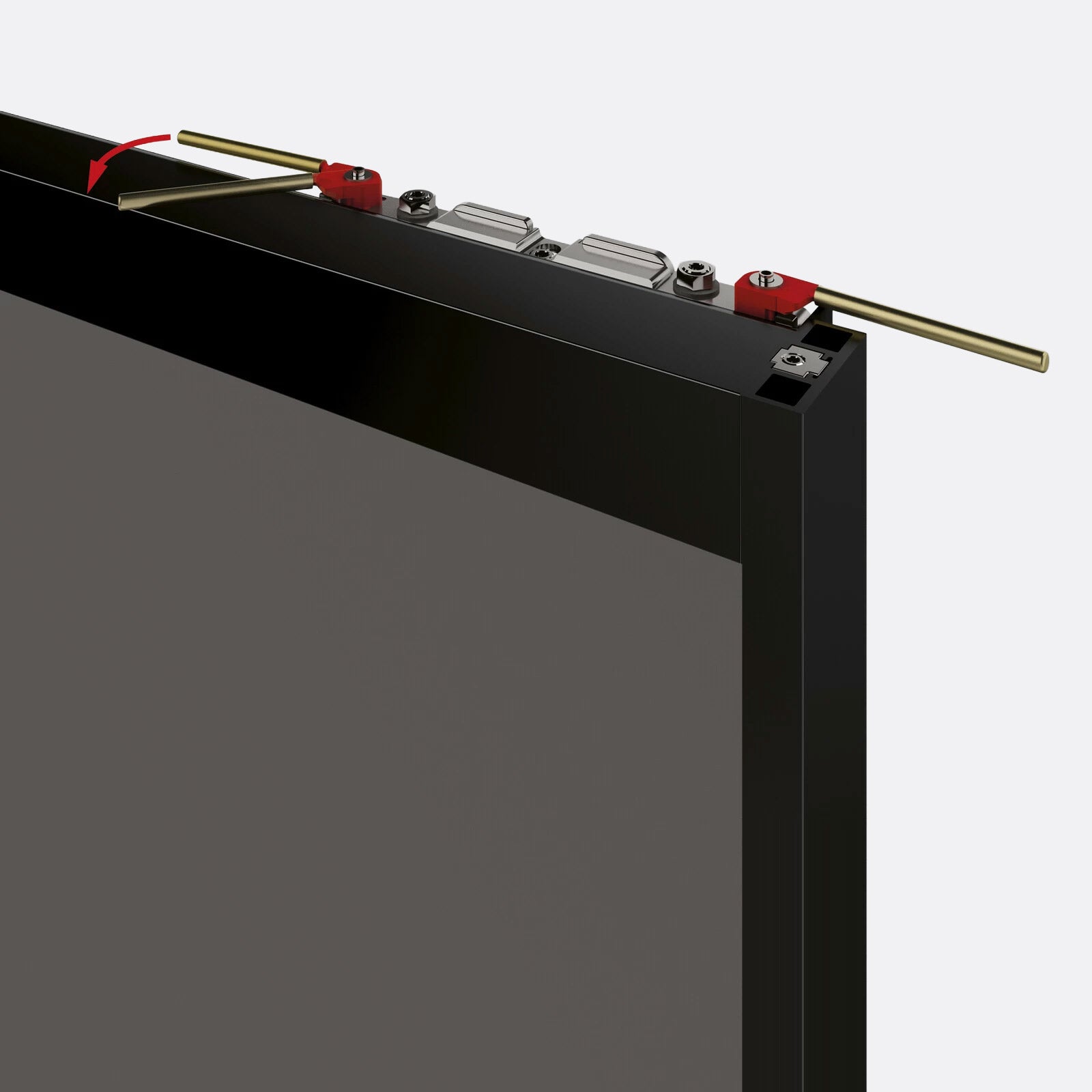

  • Anti-unhooking system with rotating anti-release elements and safety levers
  • Upper sliding guide designed for installer safety and secure door operation
Structure
  • Tubular extruded aluminum profiles with metal joint connectors
  • Load-bearing connectors and bi-extruded gaskets support glass weight through vertical uprights and horizontal cross tracks
Technology
  • Soft-closing dampers with Fluid technology and double returning springs
Testing & Certification
  • System quality and reliability tested by authorized laboratories
  • Tested up to 100,000 door opening cycles
  • Performance tested in Terno Scorrevoli TLAB laboratory
Materials
  • Aluminum frame
Compatible Materials
  • Monolithic glass
  • Laminated glass
Finishes

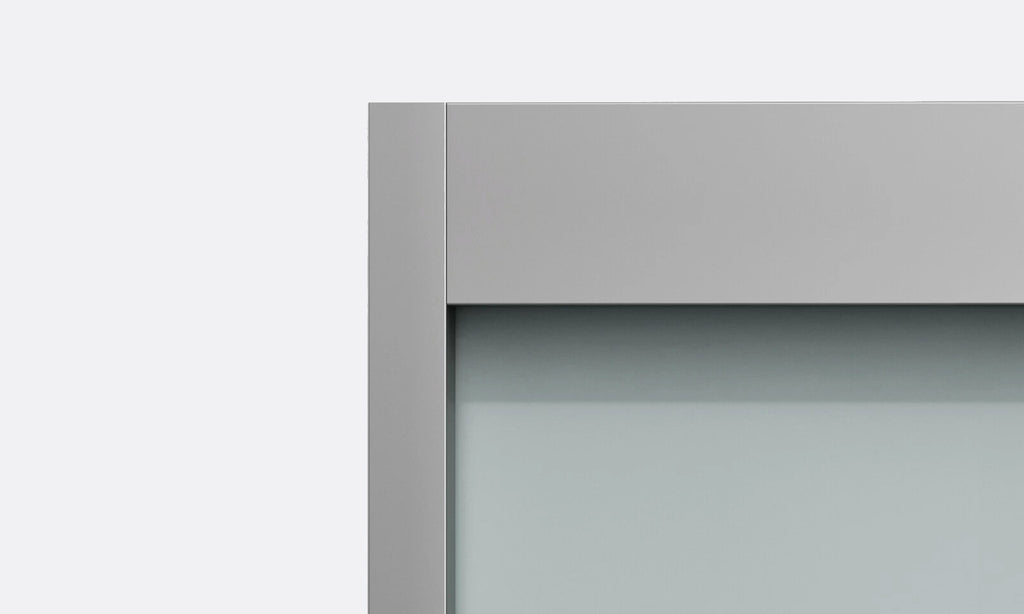

  • Brushed Anodized Silver
  • Brushed Anodized Black
  • Brushed Anodized Nickel
Dimensions

  • Door width: 680–1500 mm
  • Maximum door weight: 80 kg
  • Floor clearance: 10 mm

Need additional specifications or technical guidance? Contact Us.
