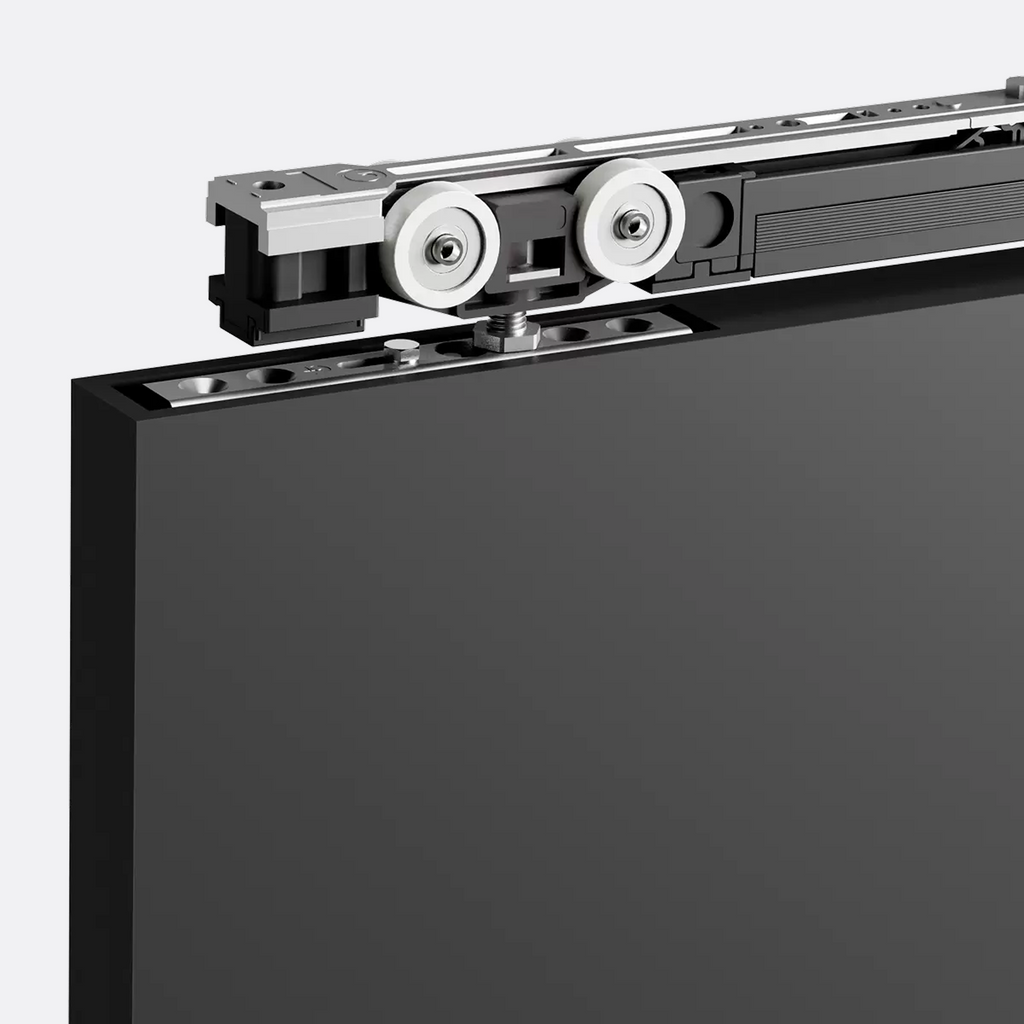

  • Hide Fluid door mechanism

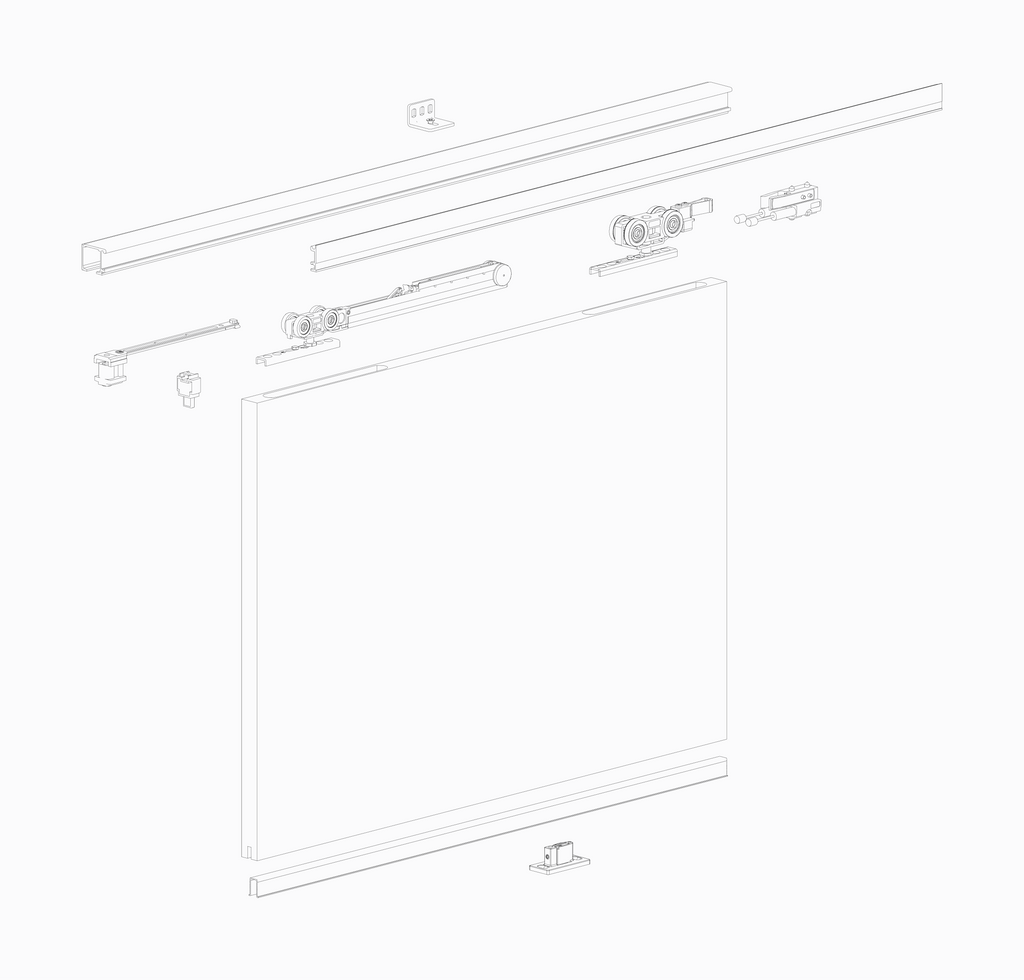

  • Hide Fluid technical drawing
Hide Fluid

Hide Fluid

Concealed sliding system with Fluid Technology.
$0.00
Shipping calculated at checkout.

Hide Fluid is a concealed bracket sliding system for wooden doors. The system features a lateral manual coupling bracket and can be fully recessed into the door to reduce the gap between the door and track. Fluid soft-closing dampers provide smooth braking and quiet sliding for doors of all sizes.

Features
System Design
  • Concealed bracket sliding system
  • Lateral manual coupling bracket
  • Bracket can be fully recessed into the door to reduce the gap between door and track
Technology
  • Fluid Technology
  • Fluid soft-closing dampers for controlled braking and noiseless sliding
Stopper Options
  • Fluid dampers
  • Shock absorber
Performance
  • Designed for doors of all sizes
  • Maximum load capacity up to 250 kg
Materials
  • Door material: Wood
Compatible Materials
  • Wooden doors
Dimensions

  • Door width: 710–1600 mm
  • Door weight capacity: 30–250 kg

Need additional specifications or technical guidance? Contact Us.
