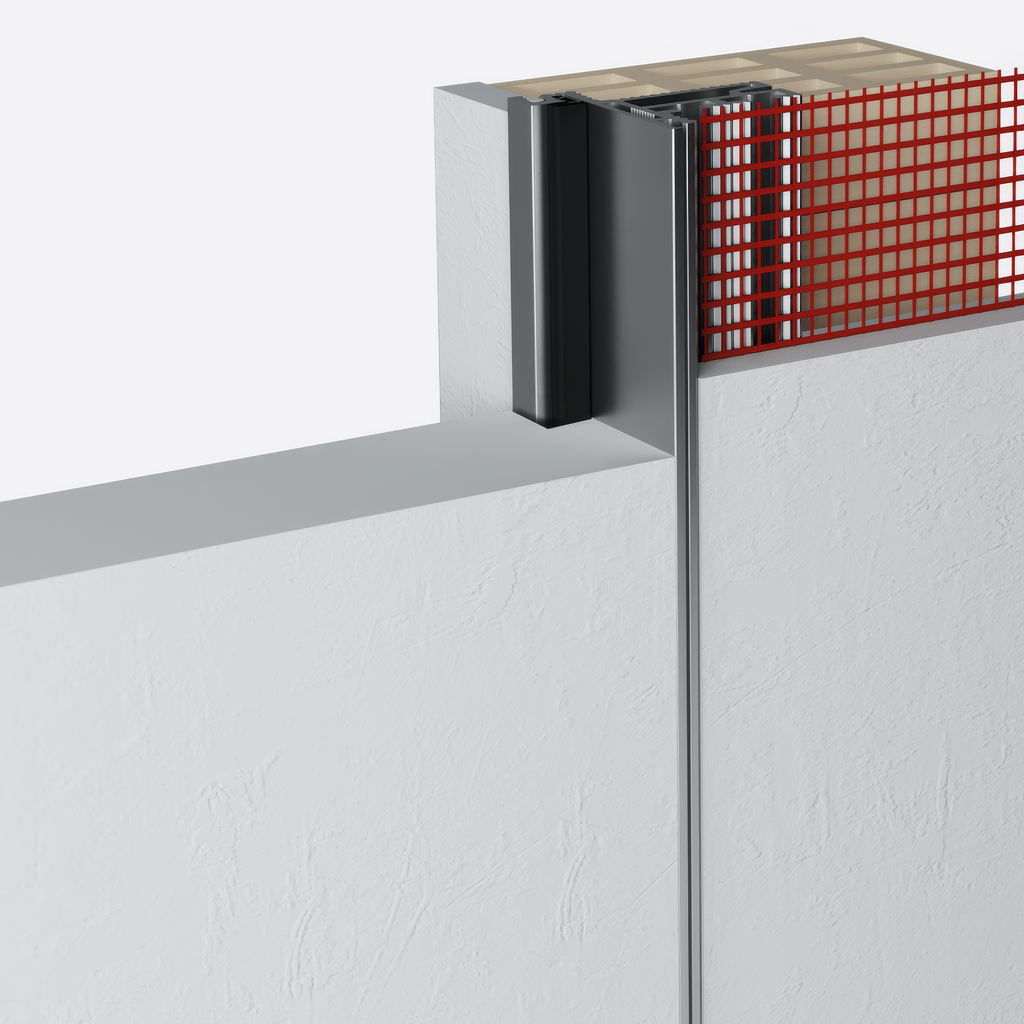

  • Close-up of Fusion's swinging mechanism

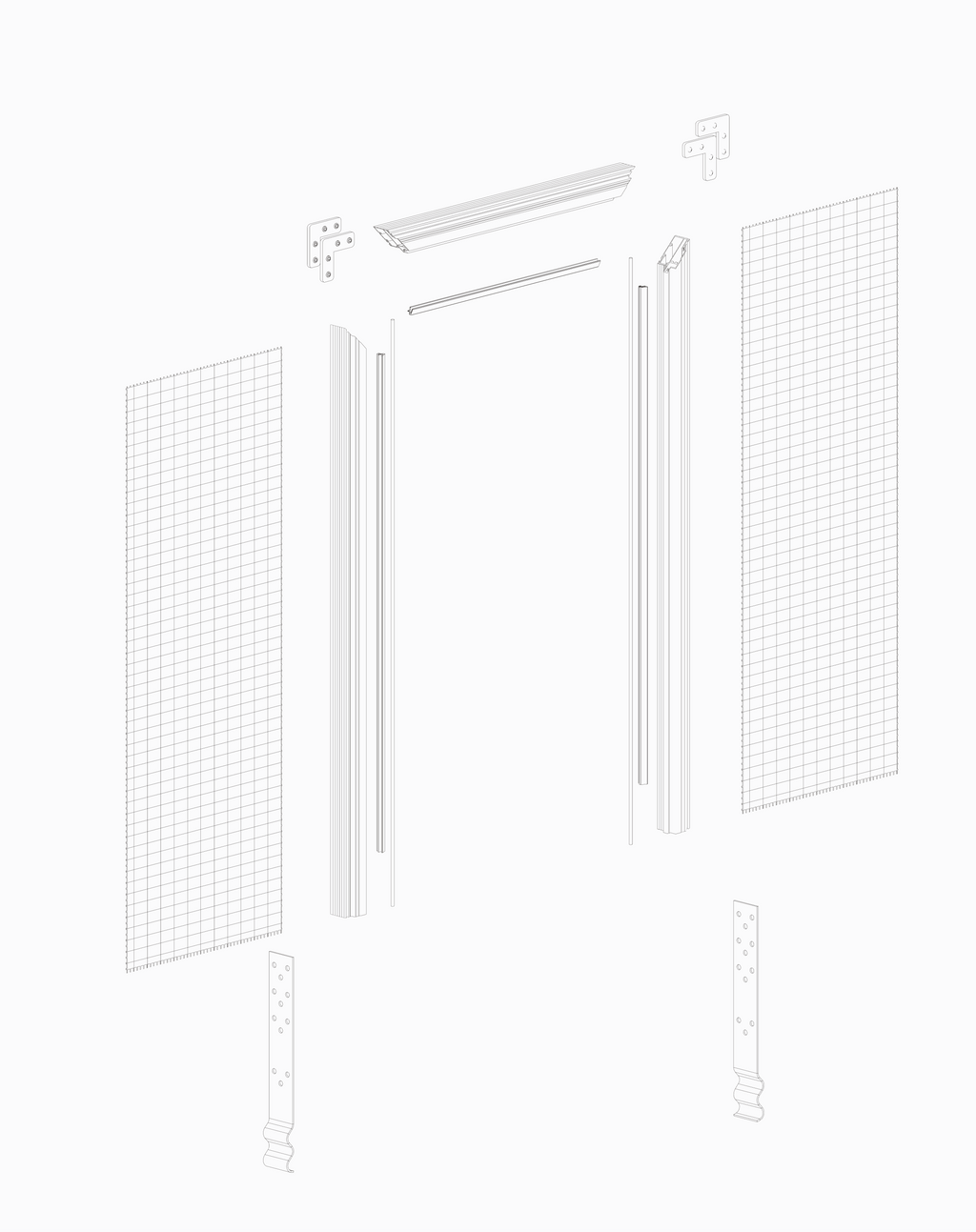

  • Technical drawing of Fusion
Fusion

Fusion

Flush swing wooden door system.
$0.00
Shipping calculated at checkout.

Fusion is a flush swing wooden door system designed for quick and easy installation using high‑quality components. The system is compatible with different models of concealed hinges currently on the market. It is designed for wooden doors with a thickness between 44 and 45 mm.

Features
Installation
  • Quick and easy installation using high‑quality components
Compatibility
  • Compatible with different models of concealed hinges currently on the market
Door Configuration
  • Designed for single‑door installations
Door Specifications
  • Suitable for wooden doors
  • Door thickness: 44–45 mm
  • Maximum door weight: 60 kg
Frame Options
  • Frames available for standard door sizes
  • Frames can be produced for custom sizes when height, width, and hinge quantity are specified
Hardware
  • Uses the standard "door‑catcher" B024020934 ALUTOP XT AGB for all versions
Dimensions

  • Door thickness: 44–45 mm
  • Maximum door weight: 60 kg

Need additional specifications or technical guidance? Contact Us.
