External Straightener

External Straightener

External door panel straightening system.
$0.00
Shipping calculated at checkout.

The External Straightener is an alignment system designed for honeycomb door panels with central adjustment. The threaded bar and aluminum profile allow precise straightening through pushing or pulling adjustments. Designed for quick installation, the system is suitable for multiple panel types and thicknesses.

Features
Function
  • Alignment system designed for honeycomb door panels
  • Central adjustment system allows precise straightening of door panels
Adjustment System
  • Adjustment stroke of 10 mm through pushing or pulling
  • Threaded bar mechanism allows controlled adjustment
Installation
  • Quick and simple to adapt and install
  • Aluminum profile available in three sizes that can be shortened
Compatibility
  • Applicable on wooden panels
  • Applicable on agglomerated panels
  • Applicable on hollow-core panels

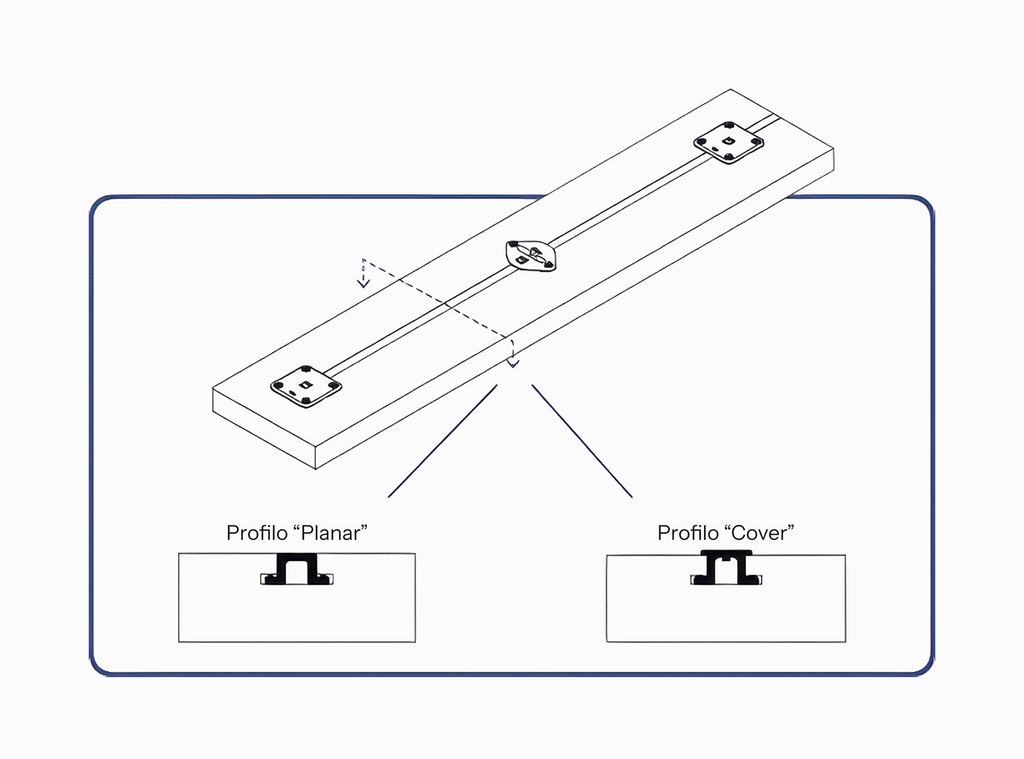

Profile Options
  • Aluminum covering profile with coplanar PLANAR configuration
  • Aluminum profile with COVER configuration
Materials
  • Aluminum covering profile
  • Aluminum structural profile
Compatible Materials
  • Wood panels
  • Agglomerated panels
  • Hollow-core panels
Dimensions

  • Adjustment stroke: 10 mm
  • Minimum panel thickness: 14 mm
  • Available in three profile sizes (can be shortened)

Need additional specifications or technical guidance? Contact Us.
