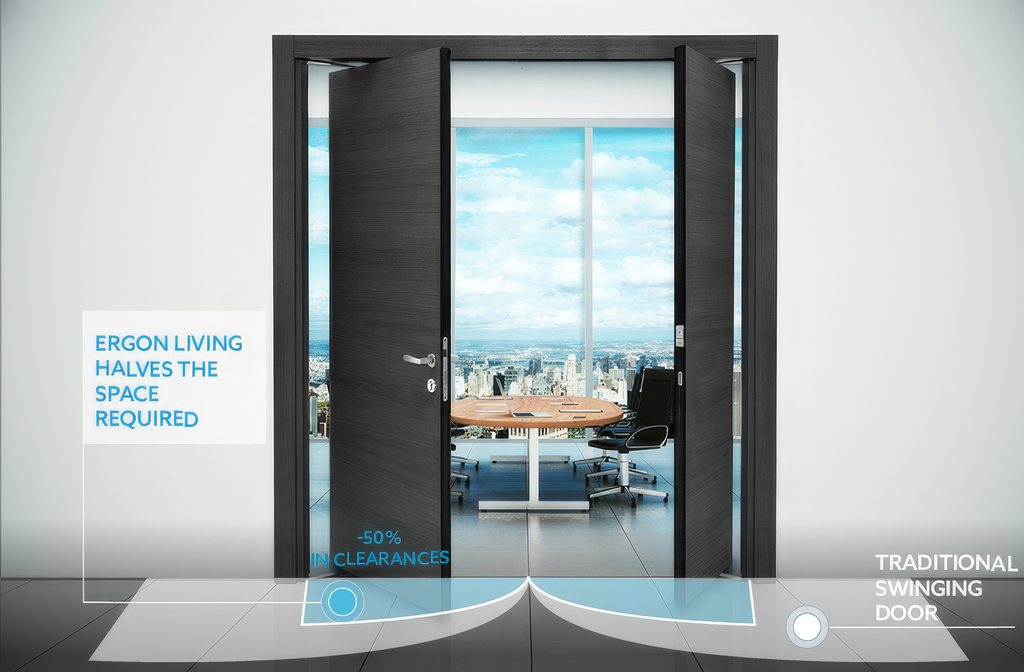

Modern door design with a view of an office space and annotation about space efficiency.

Ergon Living Double-Leaf

$0.00
Skip to product information
Modern door design with a view of an office space and annotation about space efficiency.
1/4
  • Modern door design with a view of an office space and annotation about space efficiency.

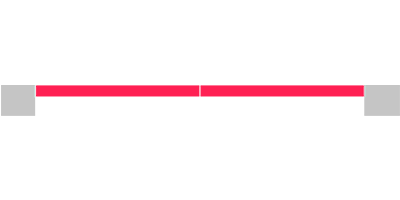

  • Gif demonstrating door swinging motion of Ergon Living Double Leaf
  • Top view of Ergon Living

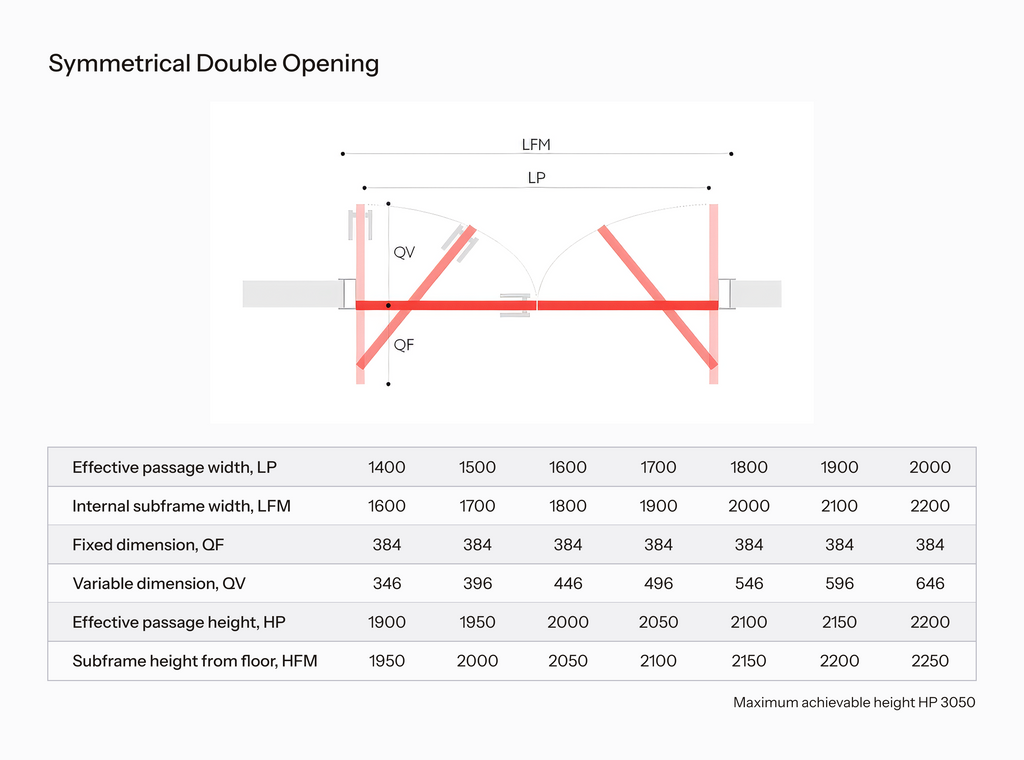

  • Diagram and table of door and swinging measurement
Ergon Living Double-Leaf

Ergon Living Double-Leaf

Swing-and-slide system for double-leaf doors.
$0.00
Shipping calculated at checkout.

The Ergon Living Double-Leaf system allows two doors to open smoothly without colliding with each other. The swing-and-slide movement reduces the space needed to open the doors by half compared to traditional swinging doors. The doors can be pushed open from either side, allowing easy movement between rooms.

Features
Space Optimization
  • Reduces door clearance requirements by 50%
  • Swing-and-slide movement increases usable space
  • Eliminates obstruction between doorways
  • Expands construction possibilities
  • Increases available interior space
Operation
  • Bi-directional push opening
  • Opens from both directions
  • Operation comparable to a traditional swing door
Double-Leaf Opening
  • Compatible with counterposed double-leaf doors
  • Prevents conflicts between door leaves
  • Improves accessibility and circulation between rooms
  • Supports movement in both directions
Dimensions

Refer to the technical drawing and table in the gallery for complete measurements.

  • LP — Effective passage width: Clear opening width of the doorway.
  • LFM — Internal subframe width: Required width of the internal subframe.
  • QF — Fixed dimension: Fixed measurement required for installation.
  • QV — Variable dimension: Adjustable measurement depending on configuration.
  • HP — Effective passage height: Clear opening height of the doorway.
  • HFM — Subframe height from floor: Required height of the internal subframe from finished floor level.
Maximum achievable height
  • HP: 3050 mm

See the diagram and dimension table in the gallery for detailed configuration values.

Need additional specifications or technical guidance? Contact Us.
