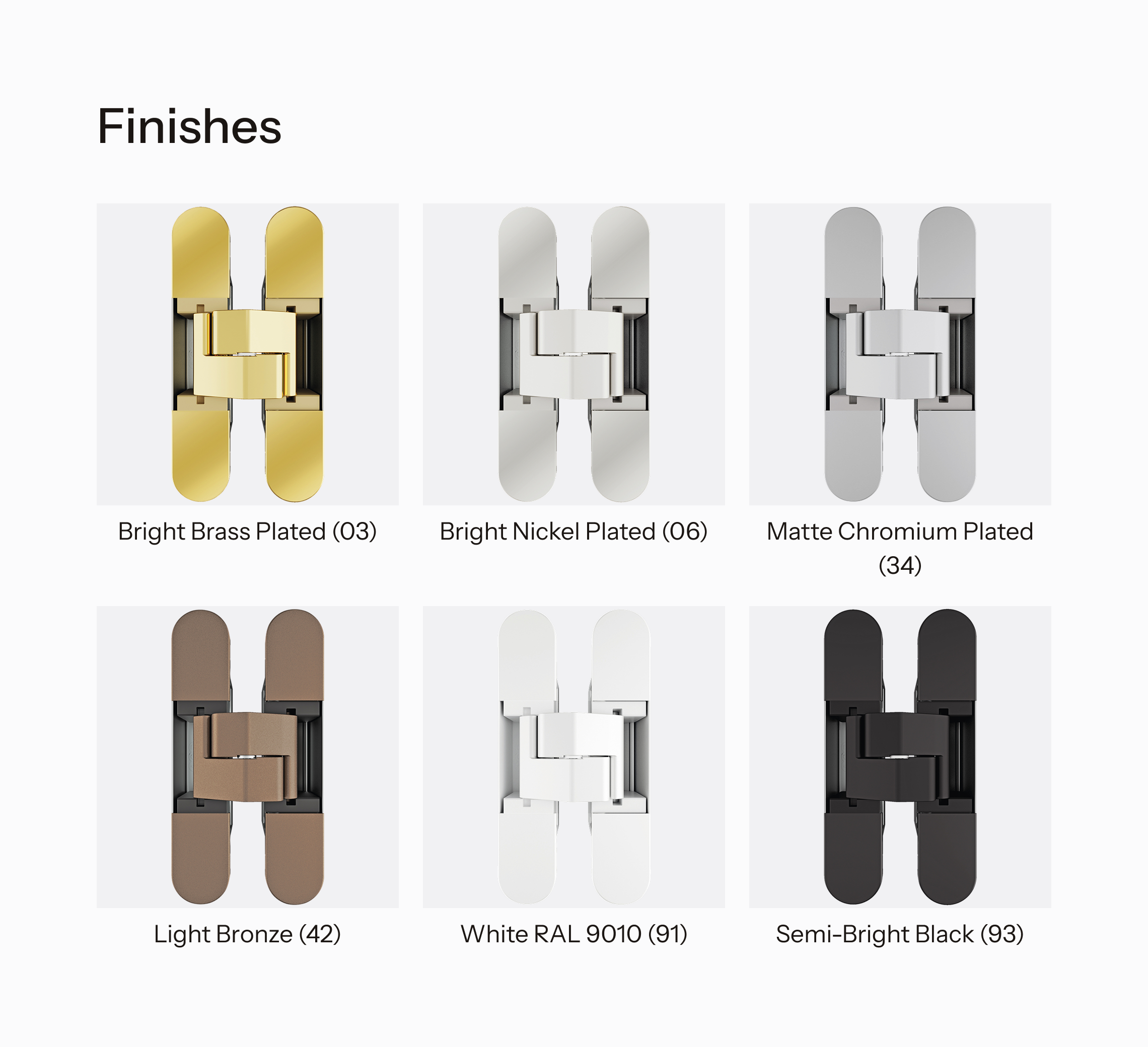

Bright Brass Plated (03)

$0.00

1/6

Eclipse 3.44

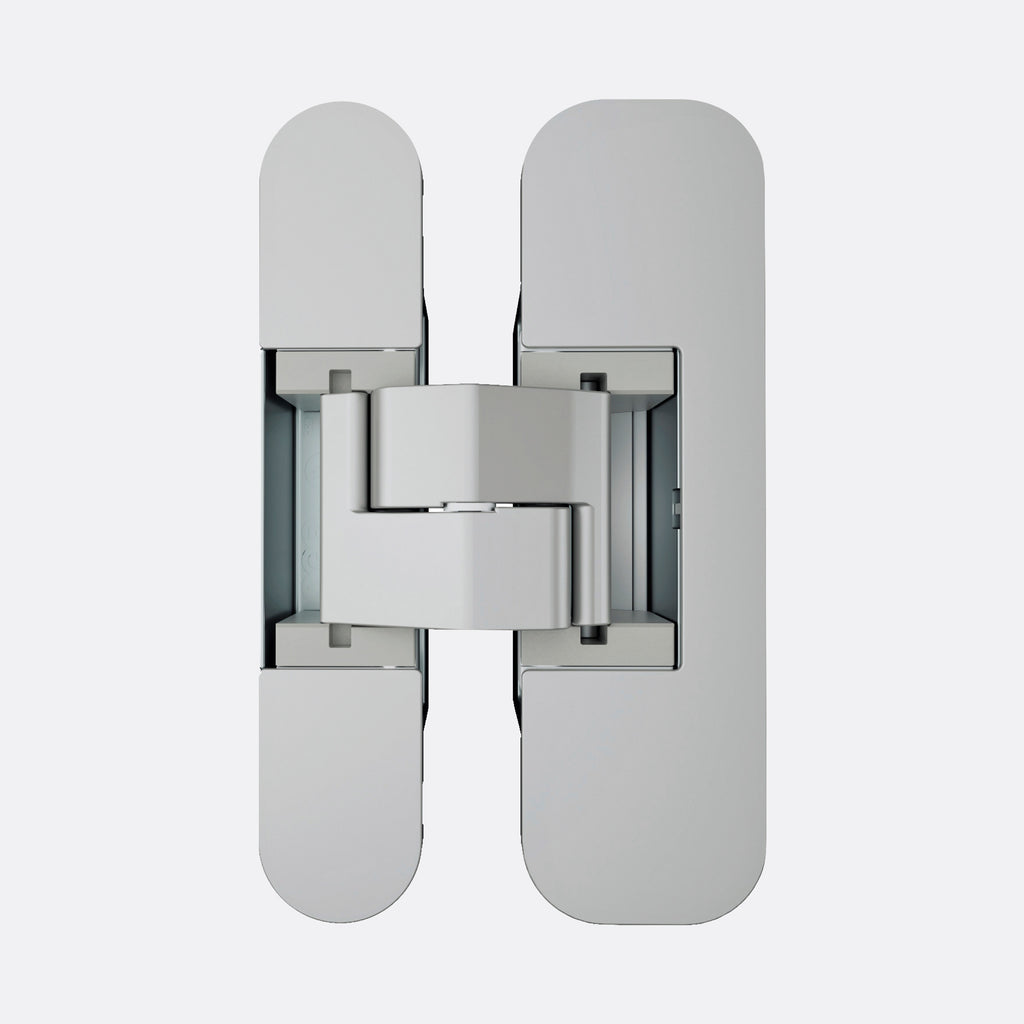

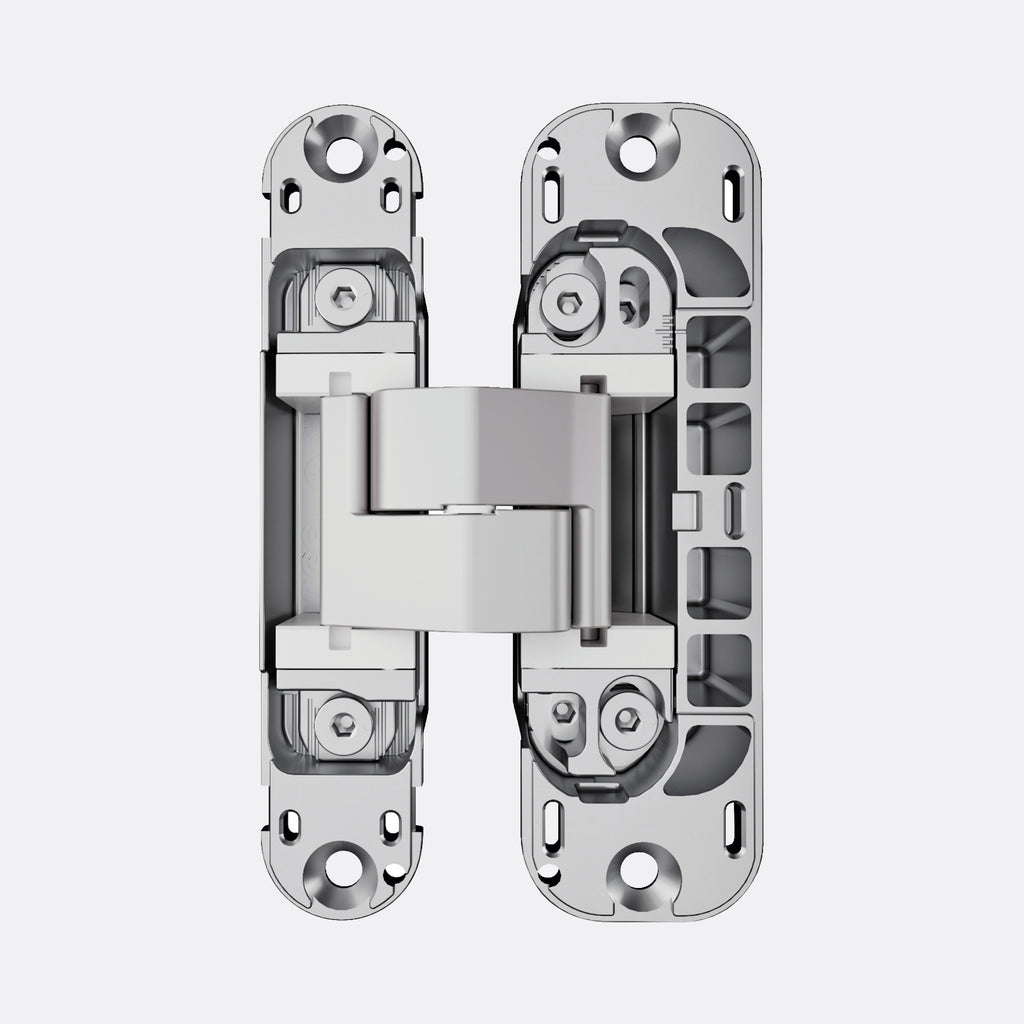

Concealed hinge for 44 mm flush doors

$0.00

Shipping calculated at checkout.

Eclipse 3.44 is a concealed hinge designed for flush interior doors with a thickness of 44 mm. It maintains consistent handle height even when the door rotates on its vertical axis and provides precise alignment through three independent adjustments. The hinge is suitable for both wood and aluminum door installations.

Construction

Minimal concealed hinge design
Flush covers conceal hinge components
Maintains handle height even when the door rotates on the vertical axis

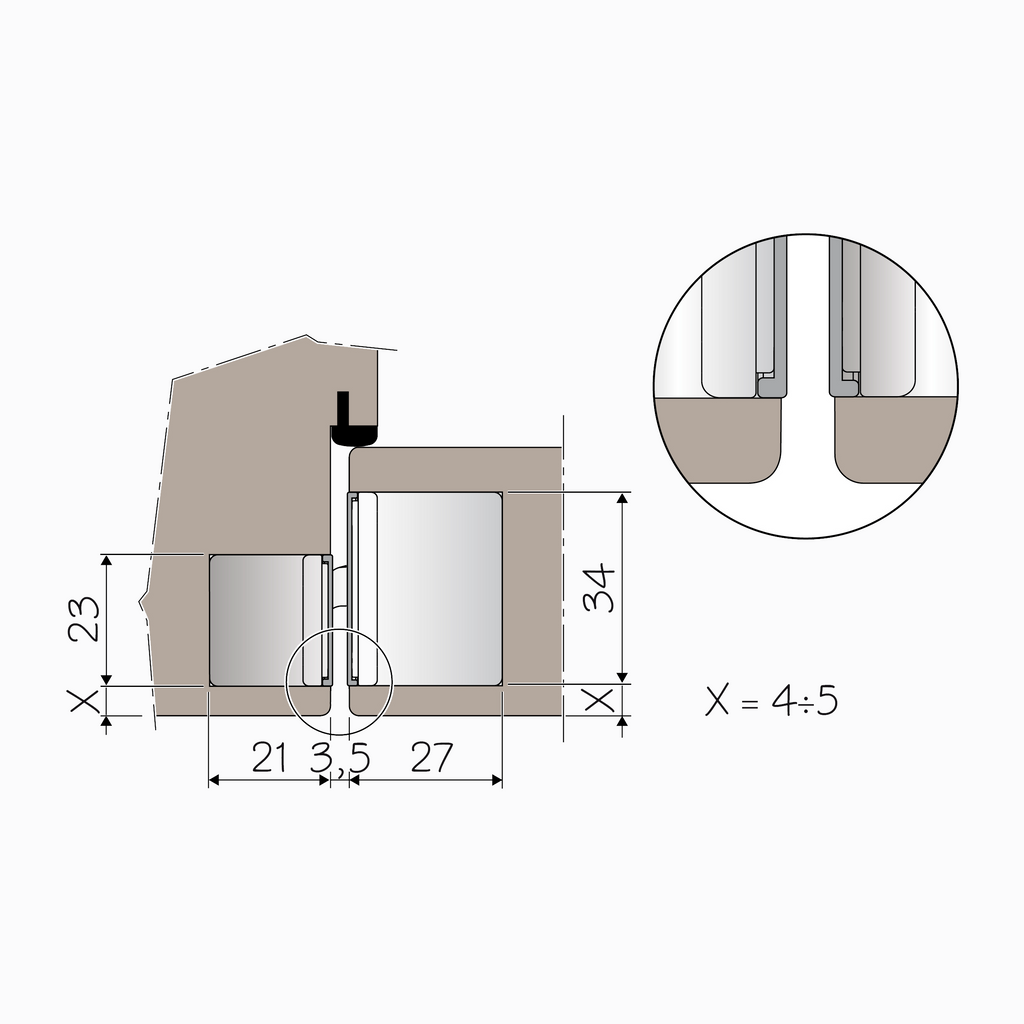

Compatible with the same frame milling used to create flush doors

Adjustment System

Three completely independent hinge adjustments
Adjustment performed using a unique 3 mm Allen key

Materials

Material: Zamak

Compatible Materials

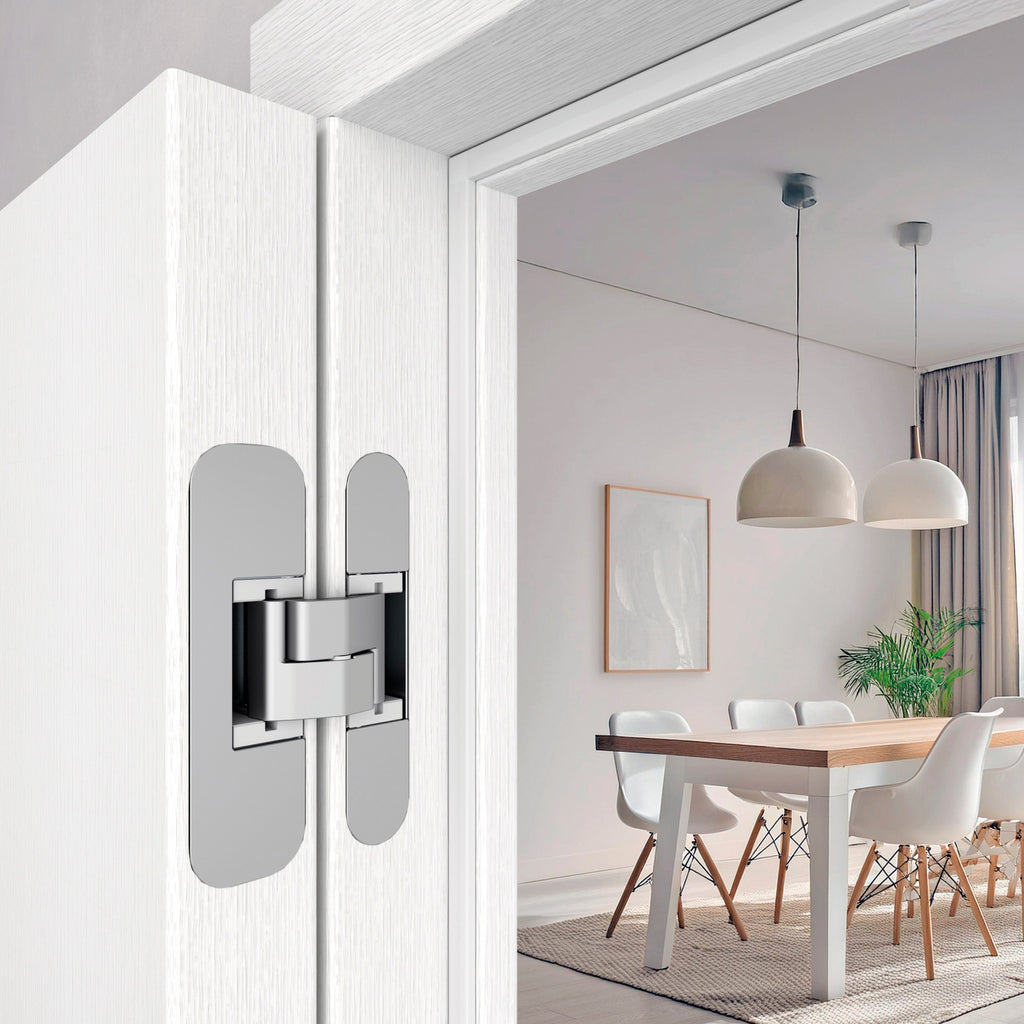

Compatible with: Wood doors and aluminum doors

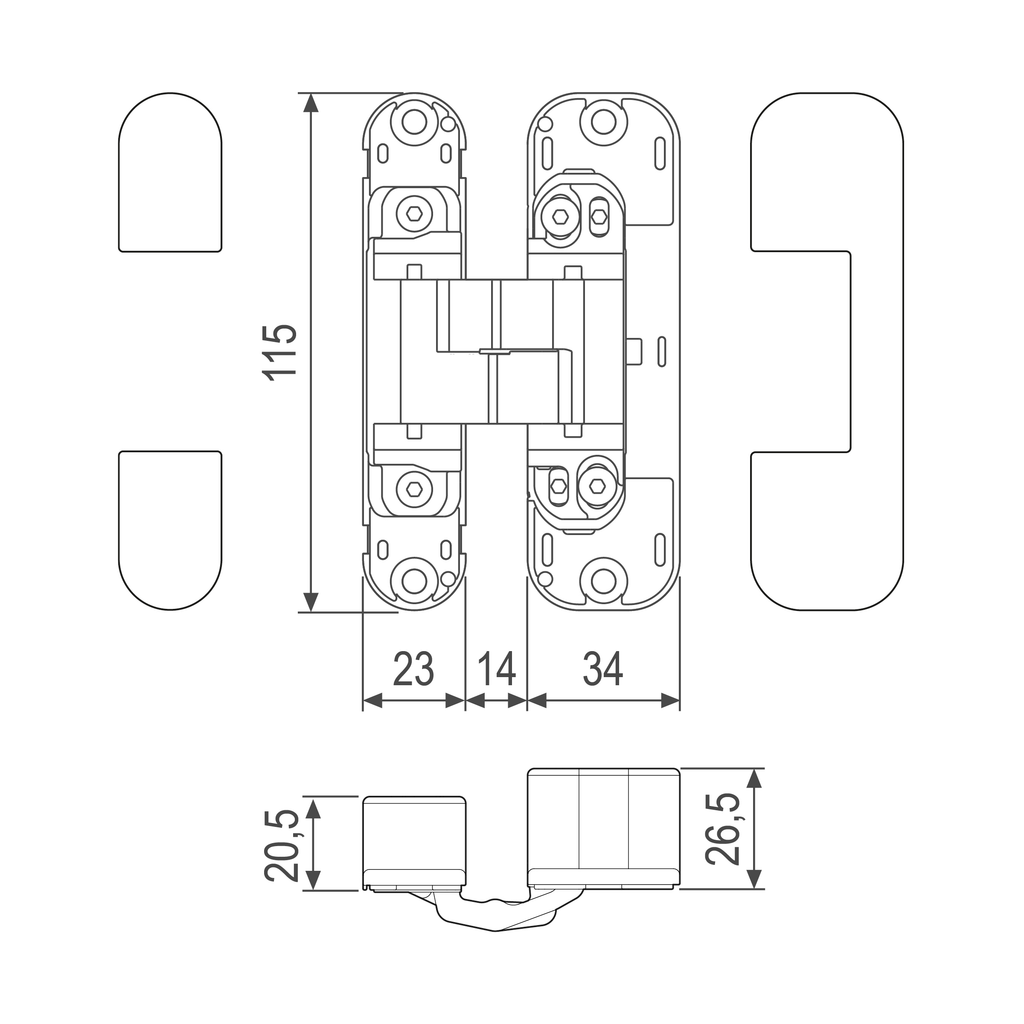

Dimensions

Height: 115 mm
Maximum extension: 14 mm

Adjustment Range

Pressure adjustment: ±1 mm
Vertical adjustment: ±2 mm
Horizontal adjustment: ±1.5 mm

Load Capacity

40 kg using 2 hinges
60 kg using 3 hinges

Door Compatibility

Door thickness: 44 mm

Recommended Hinge Configuration

For doors taller than 1600 mm, a third hinge in the central position is recommended to reduce deformation
A third hinge positioned at the top is recommended when using an overhead door closer or in high-traffic environments
A fourth hinge is recommended when using an overhead door closer together with door seals
