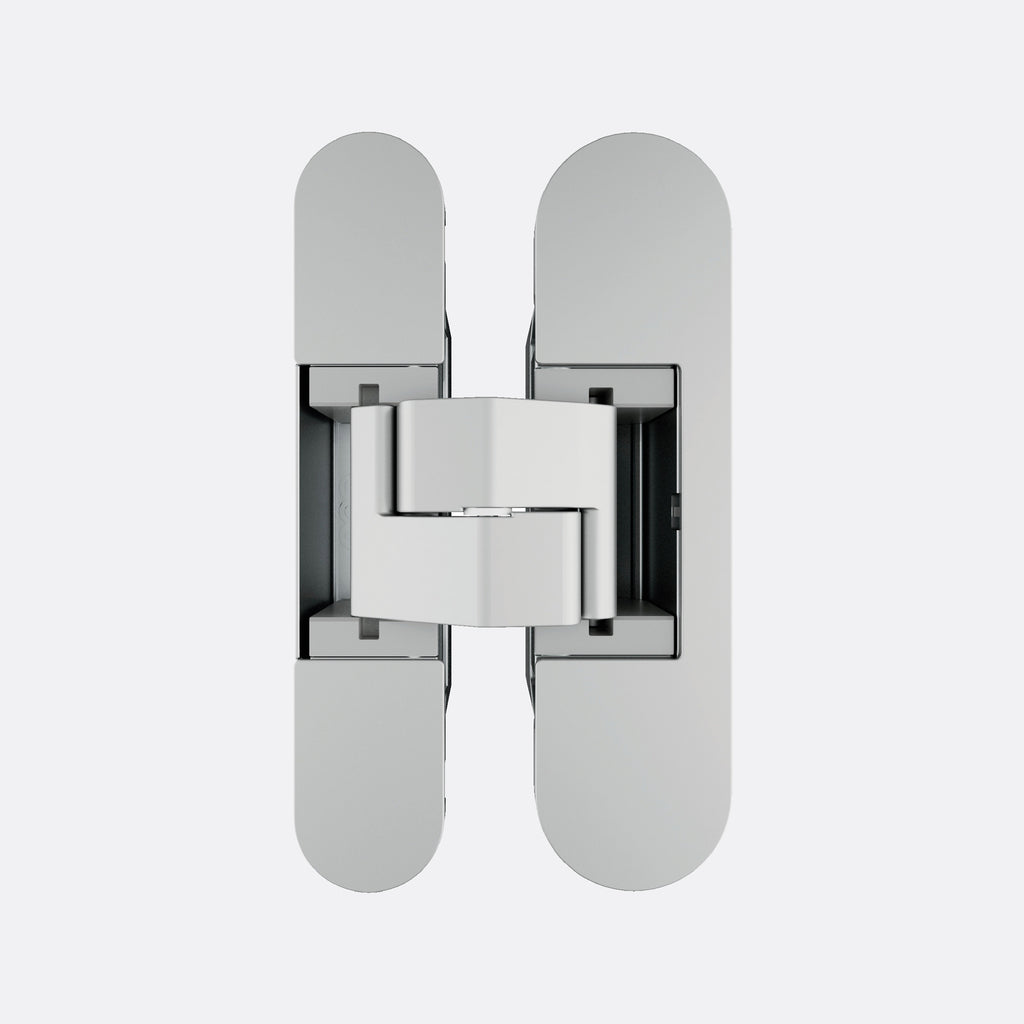

Eclipse 3.4 HD

Bright Brass Plated (03)

$0.00

1/6

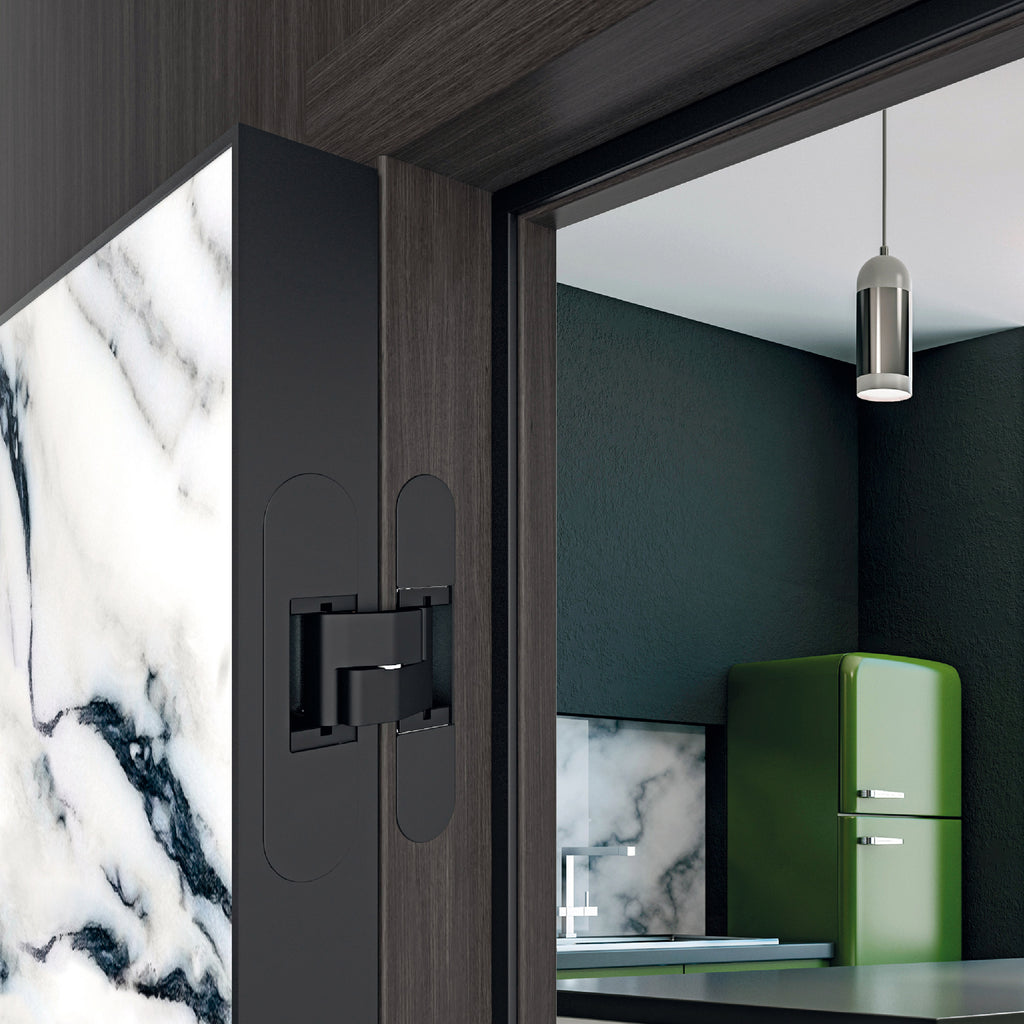

Eclipse 3.4 HD

Heavy-duty concealed hinge for flush doors

$0.00

Shipping calculated at checkout.

Finish

Concealed hinge with steel levers designed for heavy interior doors and flush door applications with 38–40 mm thickness. It maintains consistent handle height even when the door rotates on the vertical axis. Independent three-axis adjustments allow precise alignment while supporting higher door loads.

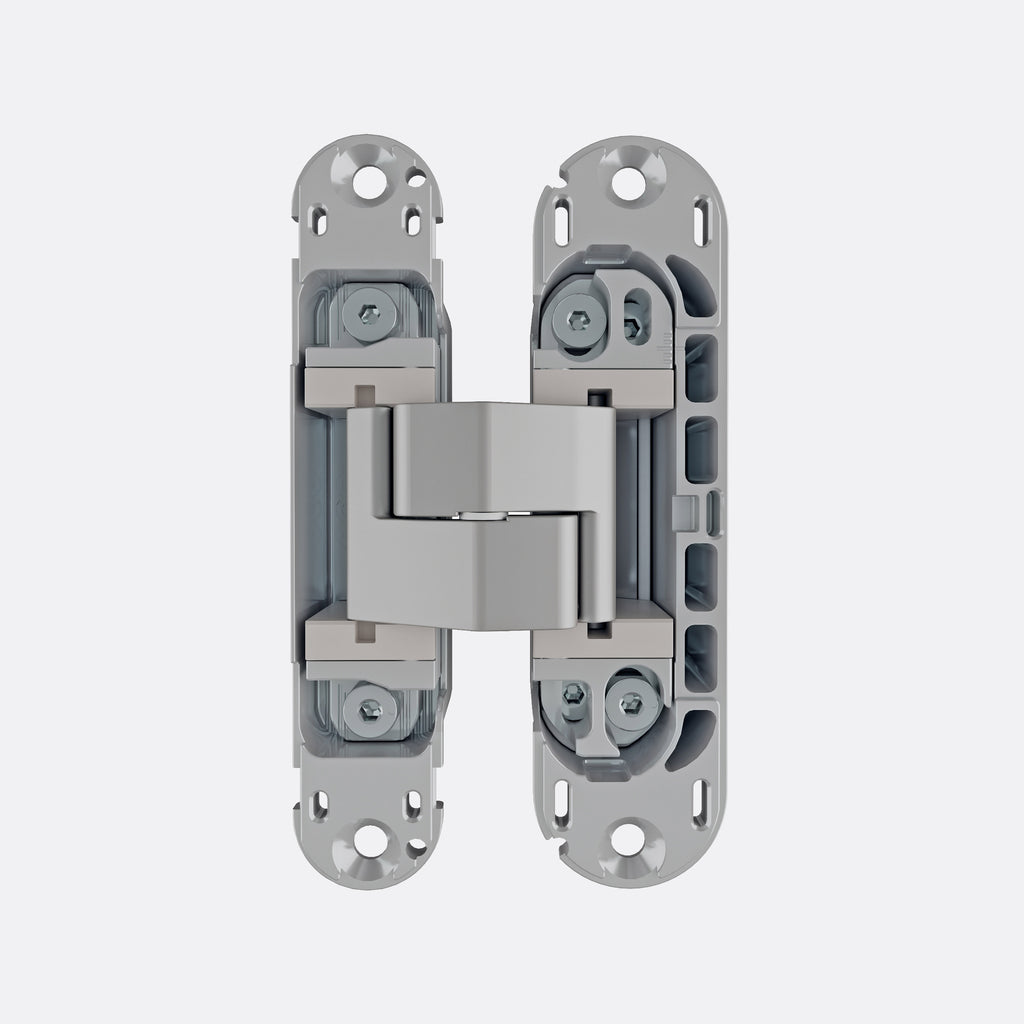

Construction

Steel levers designed for heavy door applications
Flush covers conceal hinge components for a clean appearance
Maintains handle height even when the door rotates on the vertical axis
Suitable for use with overhead door closers and floor door stops
Compatible with the same frame milling used for flush door installations

Adjustment System

Three completely independent adjustments
Adjustment performed using a unique Allen key

Materials

Material: Zamak and steel

Compatible Materials

Compatible with: Wood doors and aluminum doors

Certifications

Fire door certified according to EN 1634
UL listed door hinge

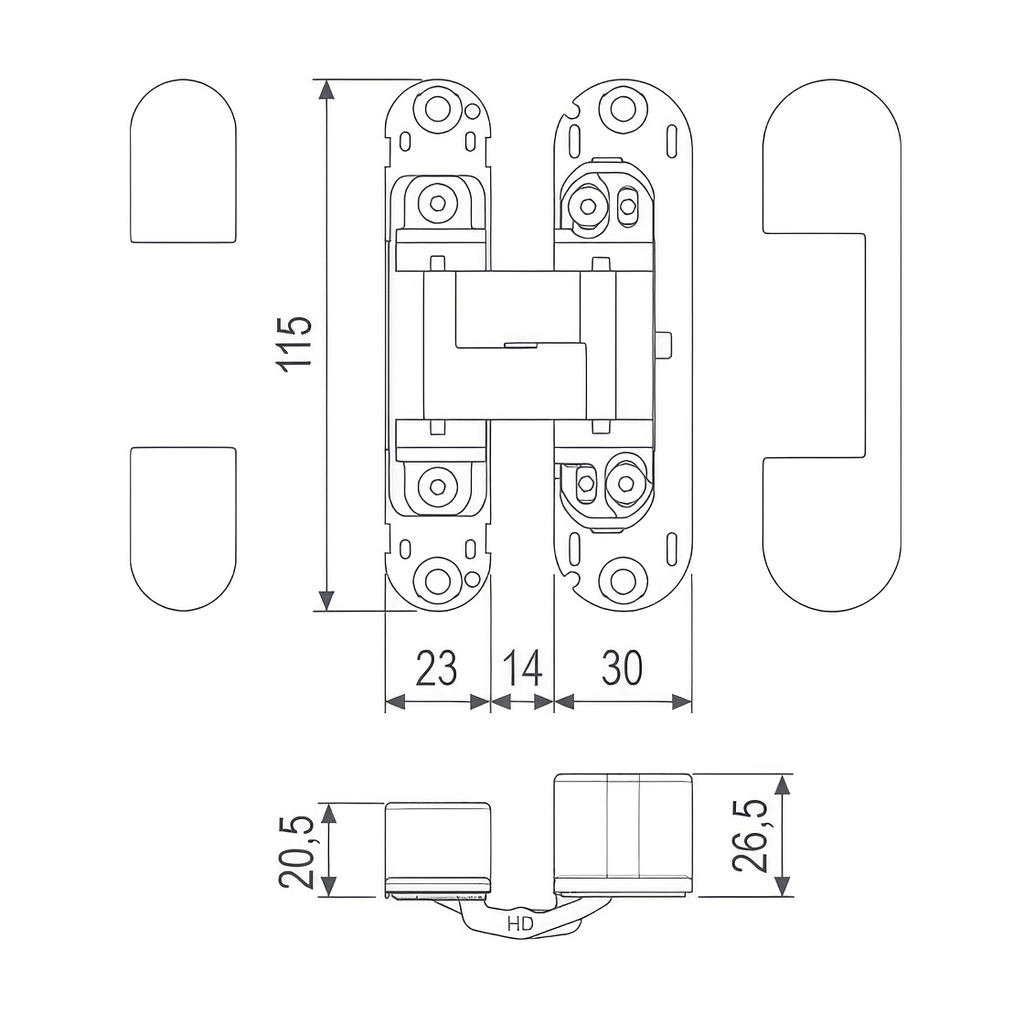

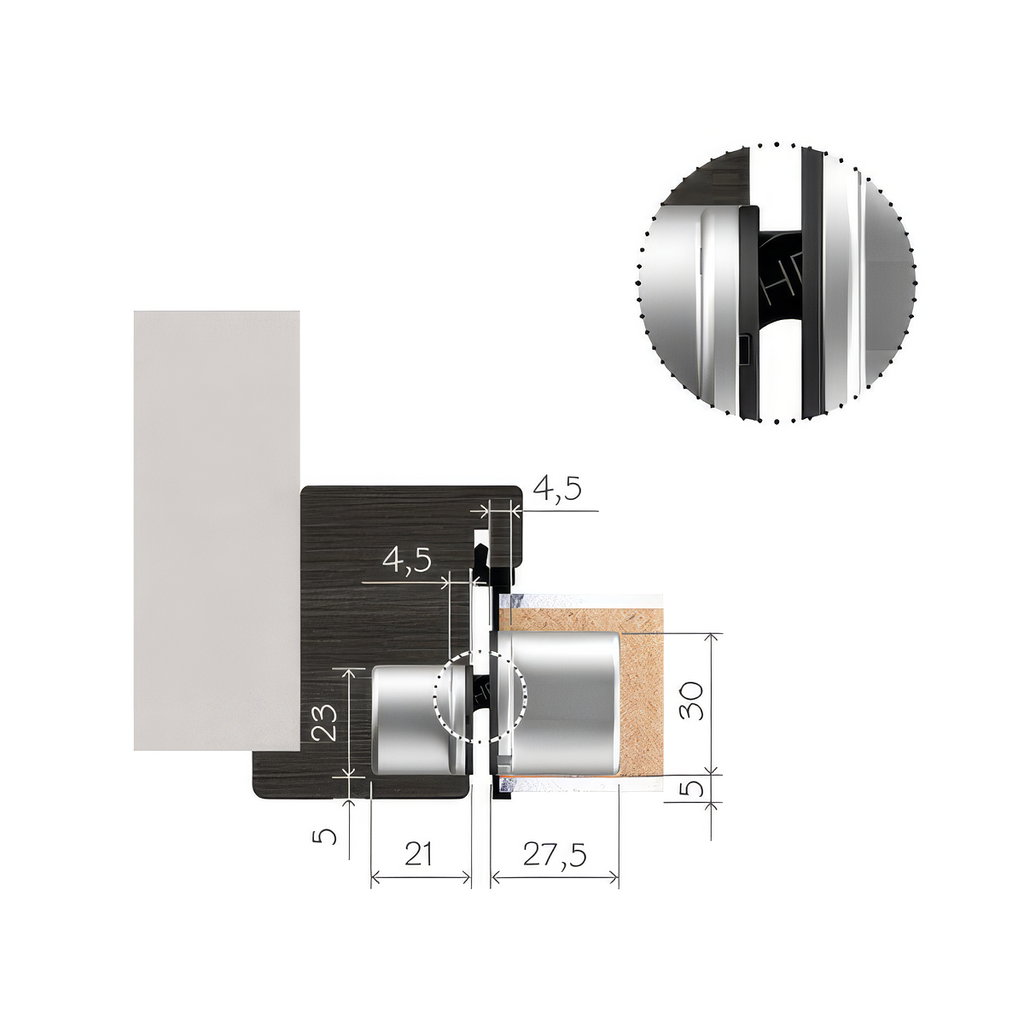

Dimensions

Height: 115 mm
Maximum extension: 14 mm

Adjustment Range

Pressure adjustment: ±1 mm
Vertical adjustment: ±2 mm
Horizontal adjustment: ±1.5 mm

Load Capacity

60 kg using 2 hinges
80 kg using 3 hinges

Door Compatibility

Door thickness: 38–40 mm

Recommended Hinge Configuration

For doors taller than 1600 mm, a third hinge in the central position is recommended to reduce deformation
A third hinge positioned at the top is recommended when using an overhead door closer or in high-traffic environments
A fourth hinge is recommended when using an overhead door closer together with door seals
