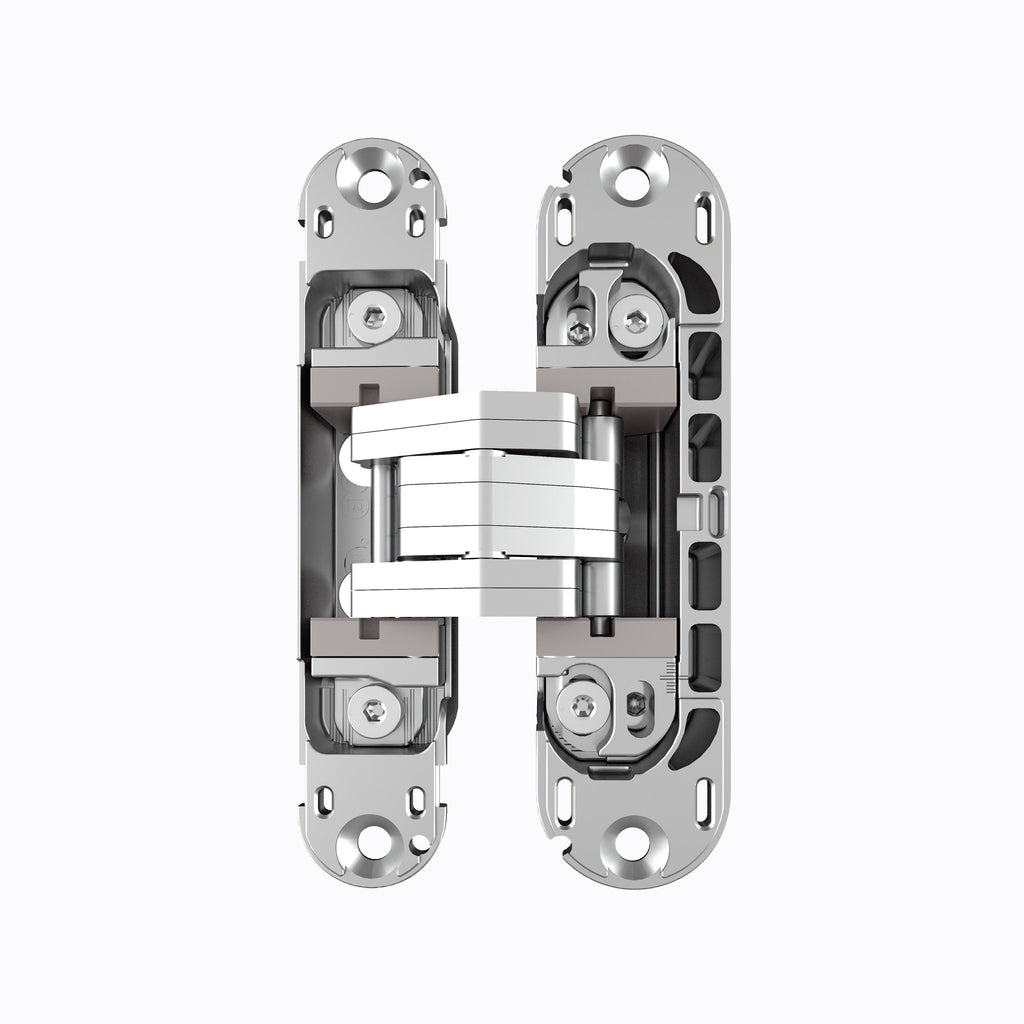

Eclipse 3.4 HD Self

Self-closing concealed hinge for flush doors

$0.00

Shipping calculated at checkout.

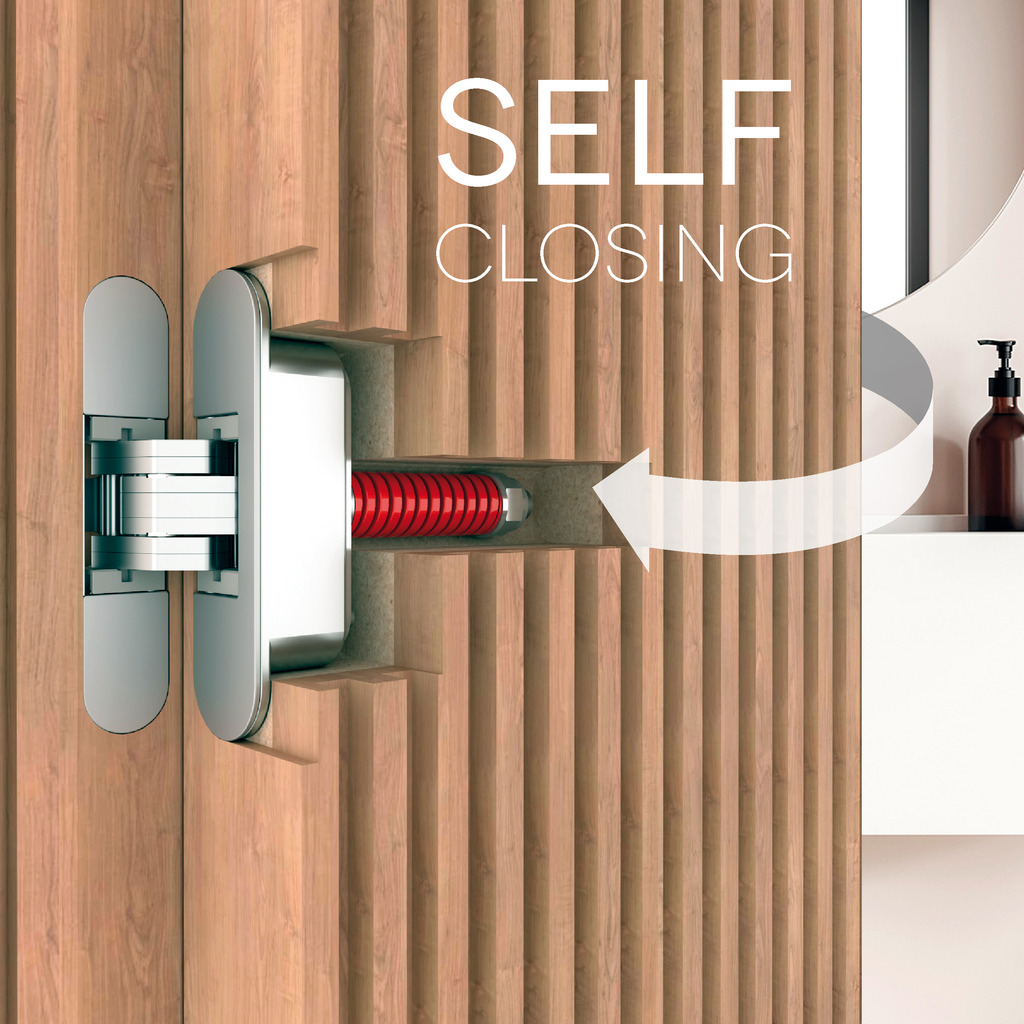

Eclipse 3.4 HD Self features an integrated self-closing spring system designed for interior flush doors. It supports wood and aluminum doors while maintaining consistent handle height when the door rotates on its vertical axis. Independent three-axis adjustments allow precise alignment and controlled closing performance.

Construction

Integrated self-closing hinge with built-in spring closing system
Designed for flush door applications
Flush covers conceal hinge components
Compatible with the same milling used for the Eclipse 3.4 range, with additional milling for the spring body
Frame part reduced to 21 mm

Adjustment System

Three completely independent hinge adjustments

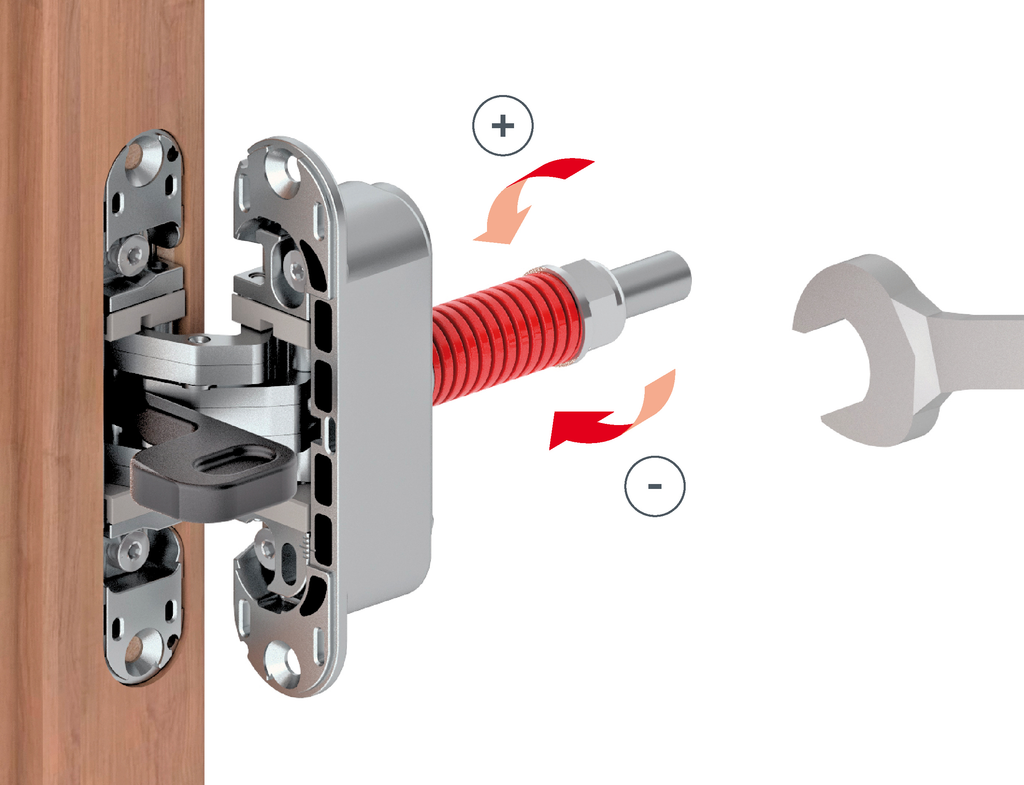

Adjustable closing force through the integrated spring mechanism
Closing force increased by turning the spring nut counterclockwise
Closing force reduced by turning the spring nut clockwise

Materials

Material: Zamak and steel

Compatible Materials

Compatible with: Wood doors and aluminum doors

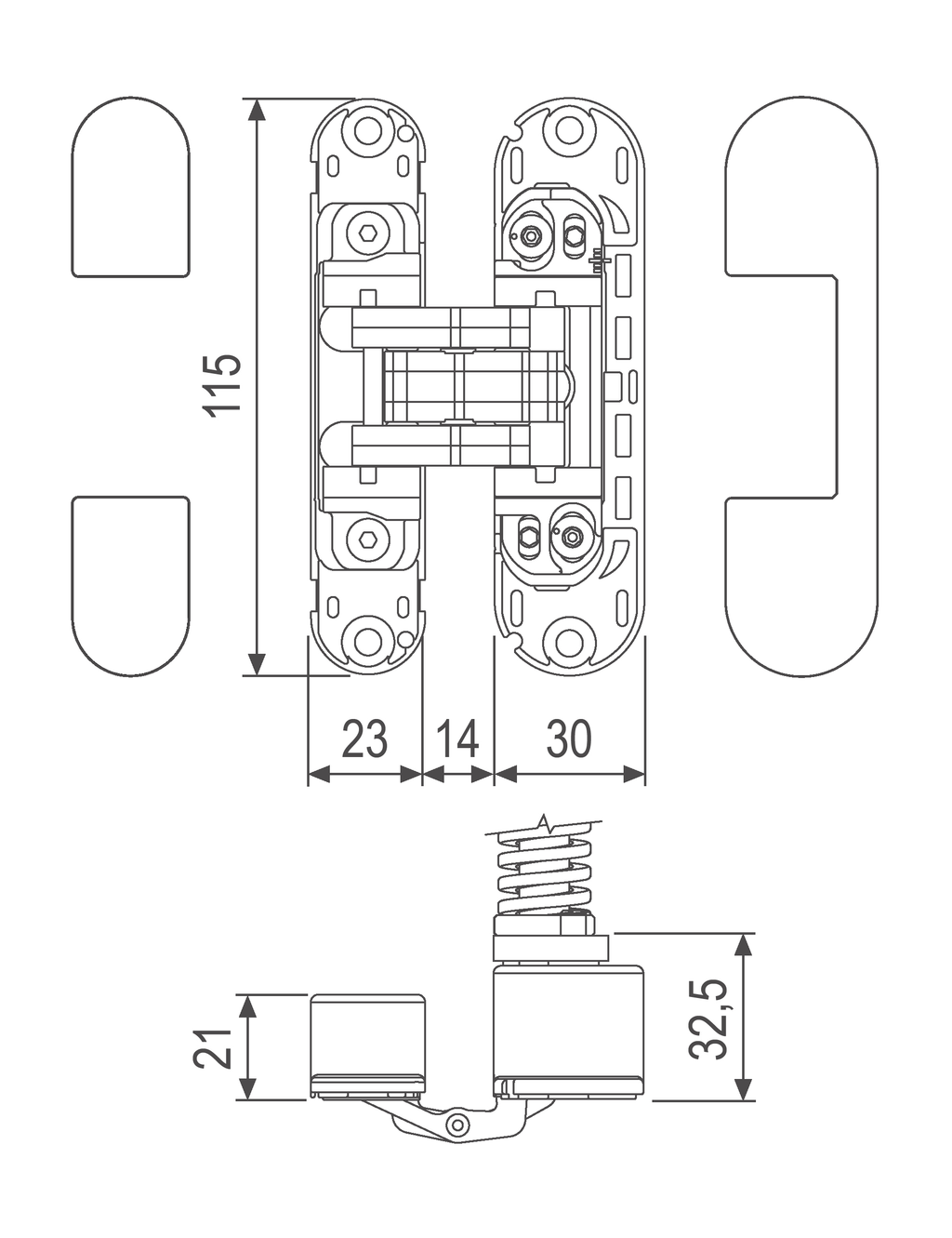

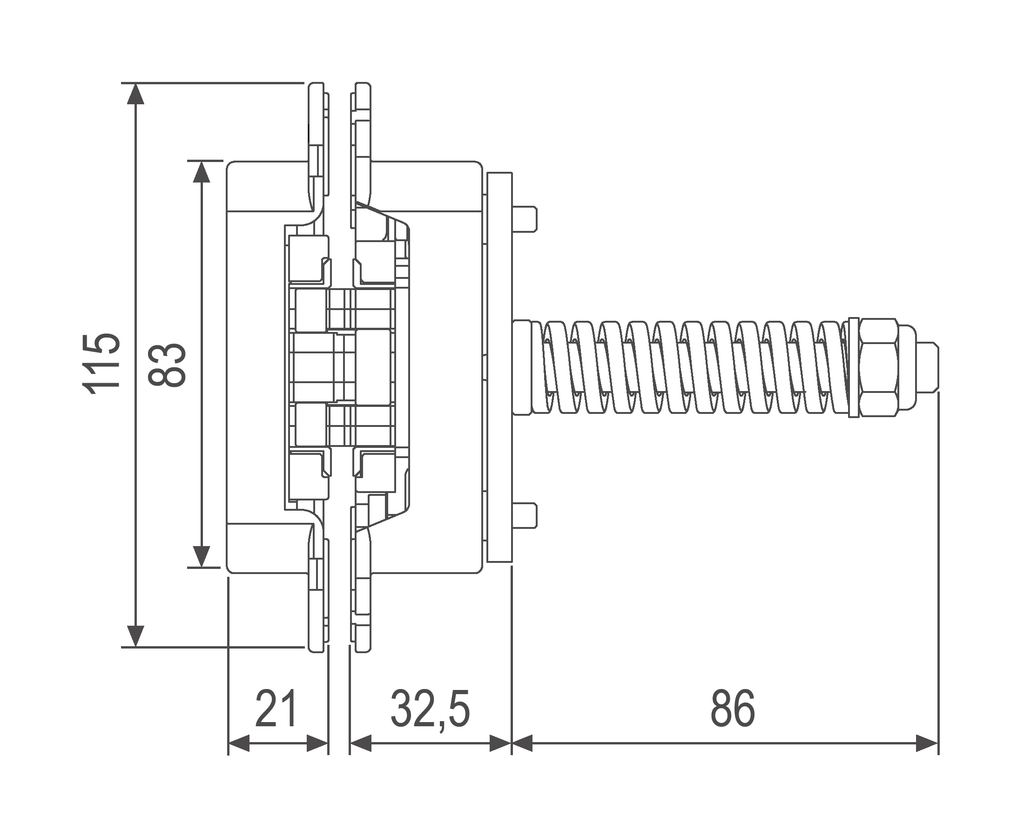

Dimensions

Height: 115 mm
Maximum extension: 14 mm
Frame part width: 21 mm

Adjustment Range

Pressure adjustment: ±1 mm
Vertical adjustment: ±2 mm
Horizontal adjustment: ±1.5 mm

Load Capacity

Capacity depends on the hinge model used when paired with Eclipse 3.4 or Eclipse 3.4 HD hinges

Recommended Hinge Configuration

For doors taller than 1600 mm, a third hinge in the central position is recommended to reduce deformation
A third hinge positioned at the top is recommended when using an overhead door closer or in high-traffic environments
A fourth hinge is recommended when using an overhead door closer together with door seals
