Eclipse 3.3

Concealed hinge with reduced milling depth

$0.00

Shipping calculated at checkout.

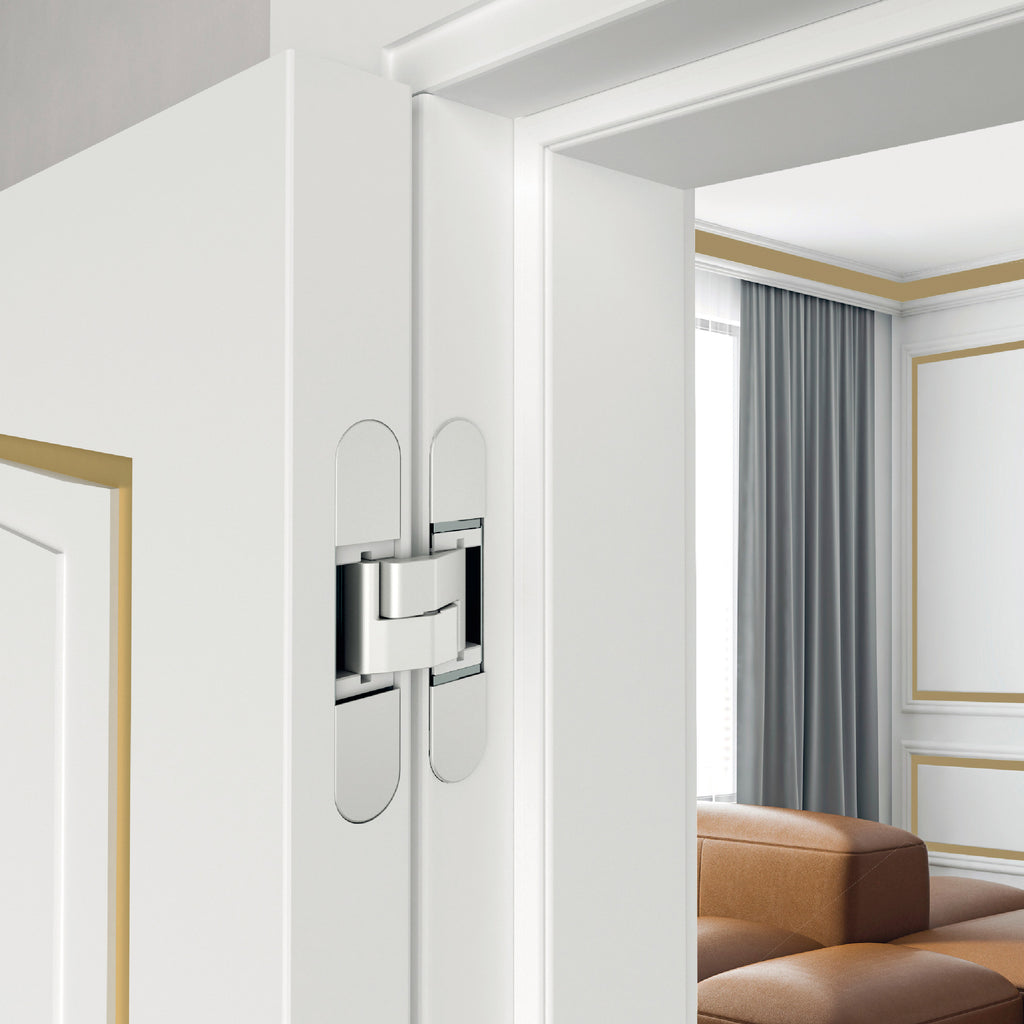

Eclipse 3.3 is designed for flush interior doors with or without rebate and features a reduced frame milling depth for minimal door design. Its shallow installation makes it particularly suitable for renovation projects where frame depth is limited. The hinge maintains a clean appearance with flush covers that keep the hardware concealed.

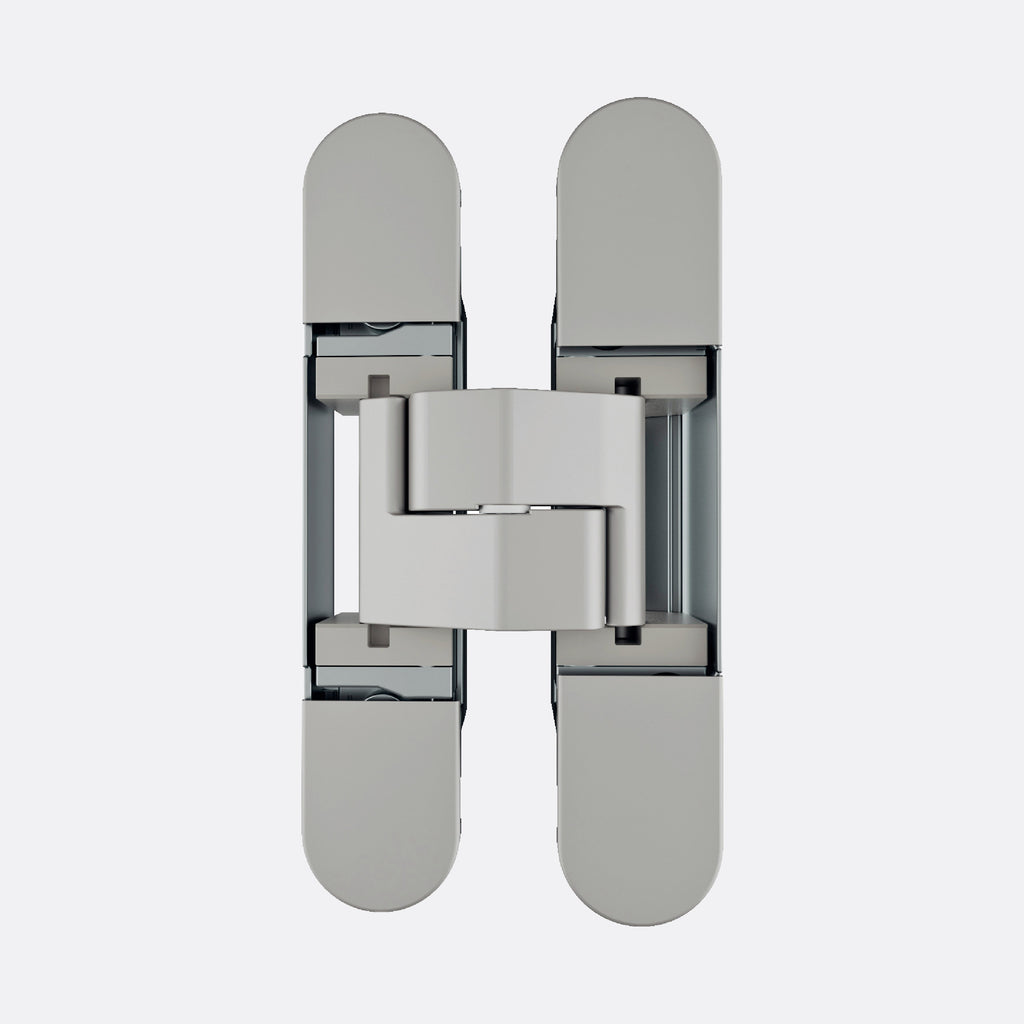

Construction

Reduced frame milling depth for minimal door design
Flush aluminum covers conceal hinge components
Reduced dimensions for discreet installation

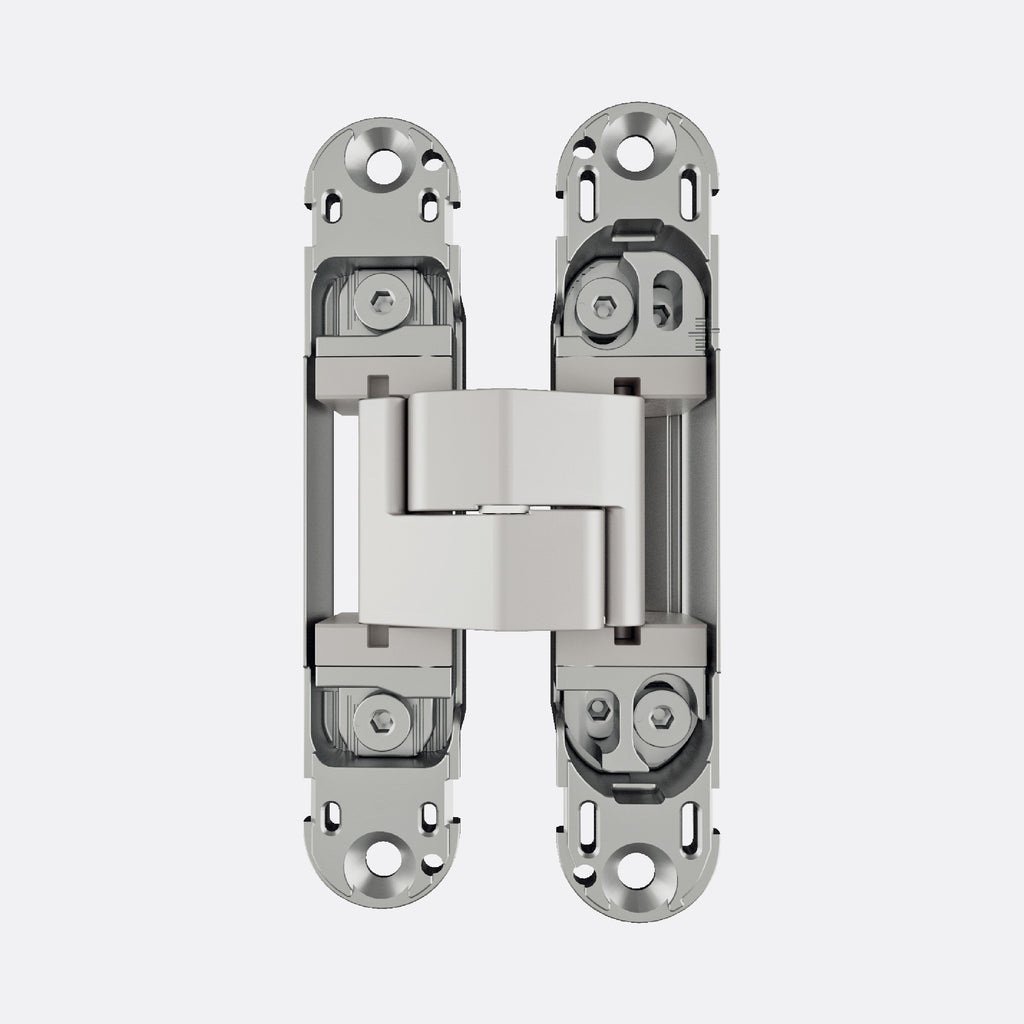

Adjustment System

Three completely independent adjustments
Adjustment performed using a 3 mm Allen key

Performance

Designed for flush doors with or without rebate
Suitable for renovation applications
Compatible with aluminum frames
Maintains concealed hardware appearance

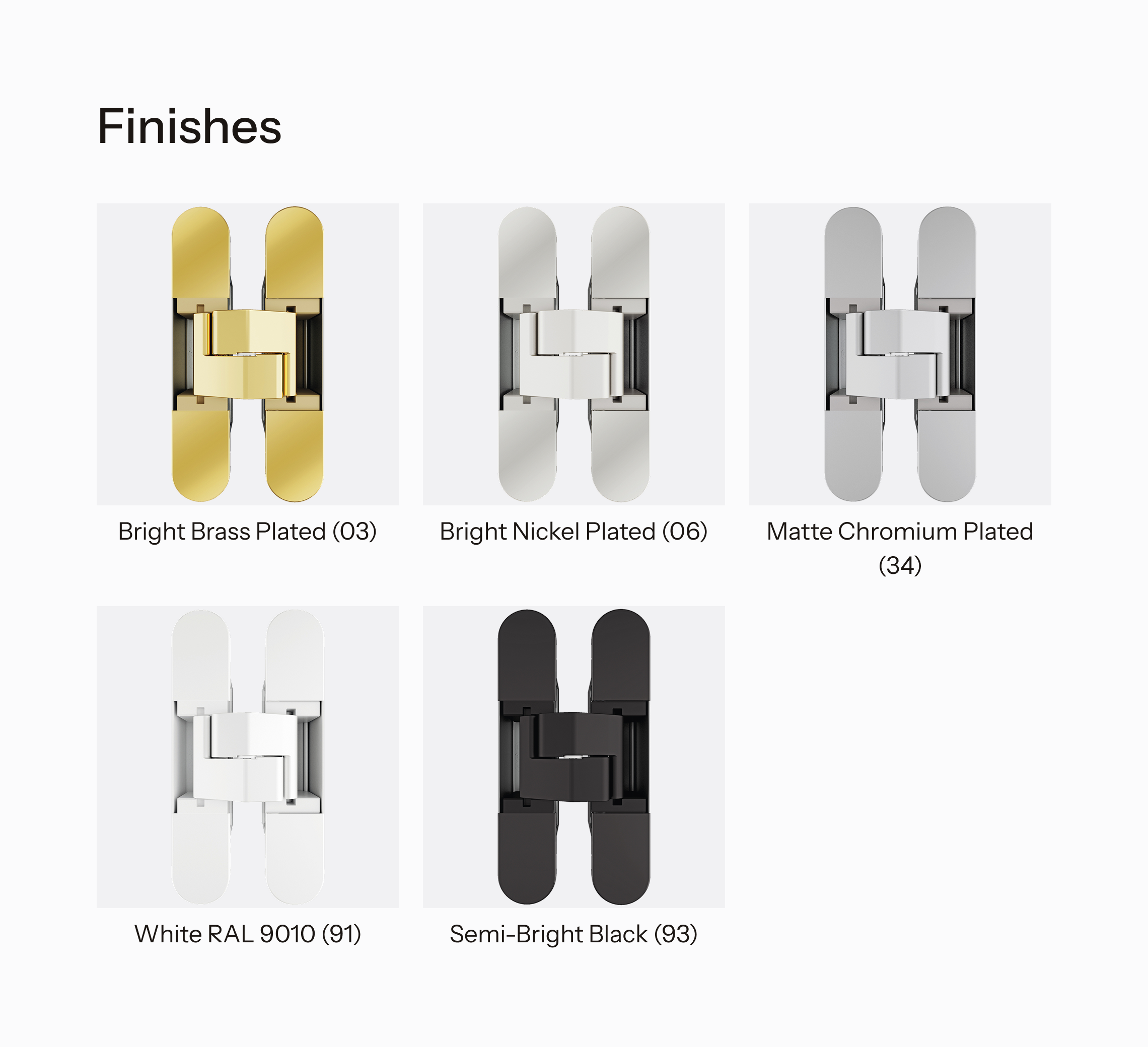

Materials

Material: Zamak

Compatible Materials

Compatible with: Wood doors and aluminum doors

Certifications

Fire door certified according to EN 1634
UL listed door hinge

Dimensions

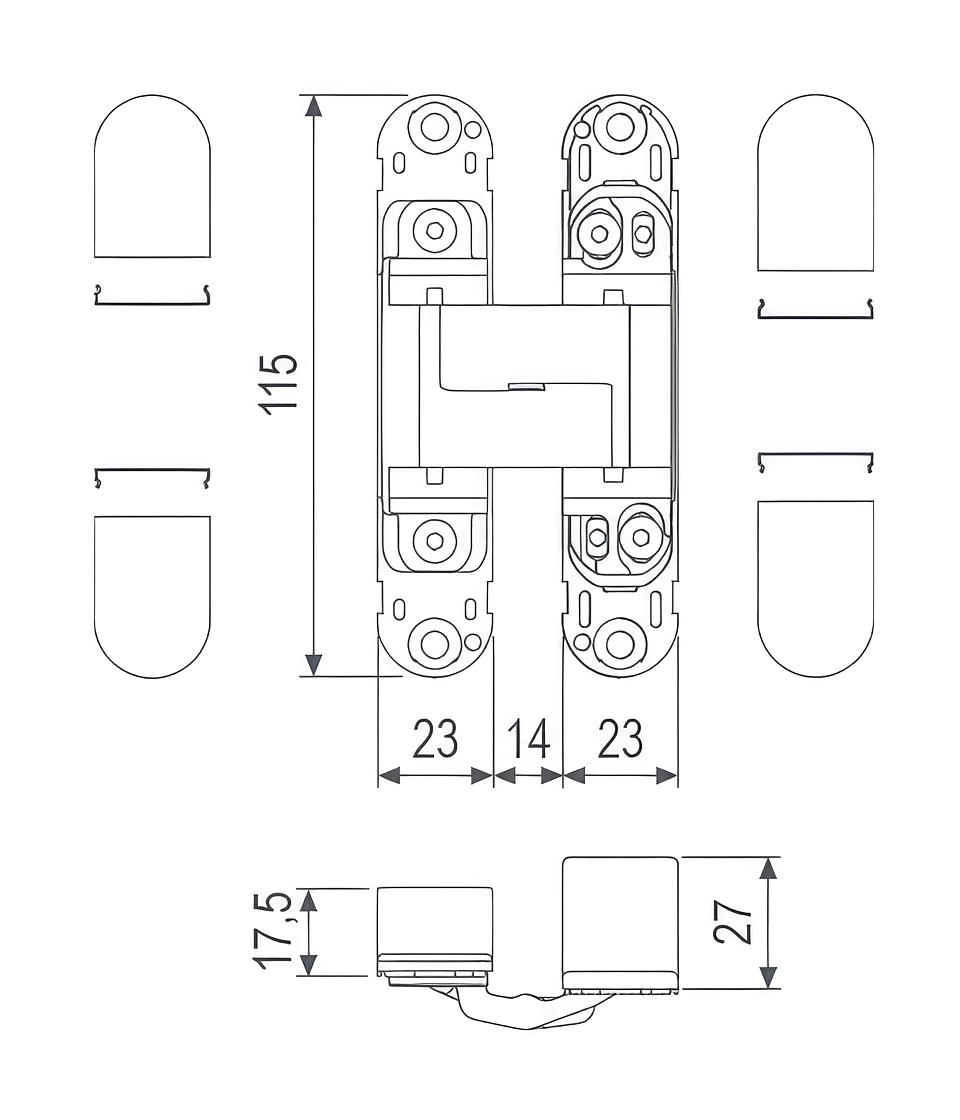

Height: 115 mm
Maximum extension: 14 mm

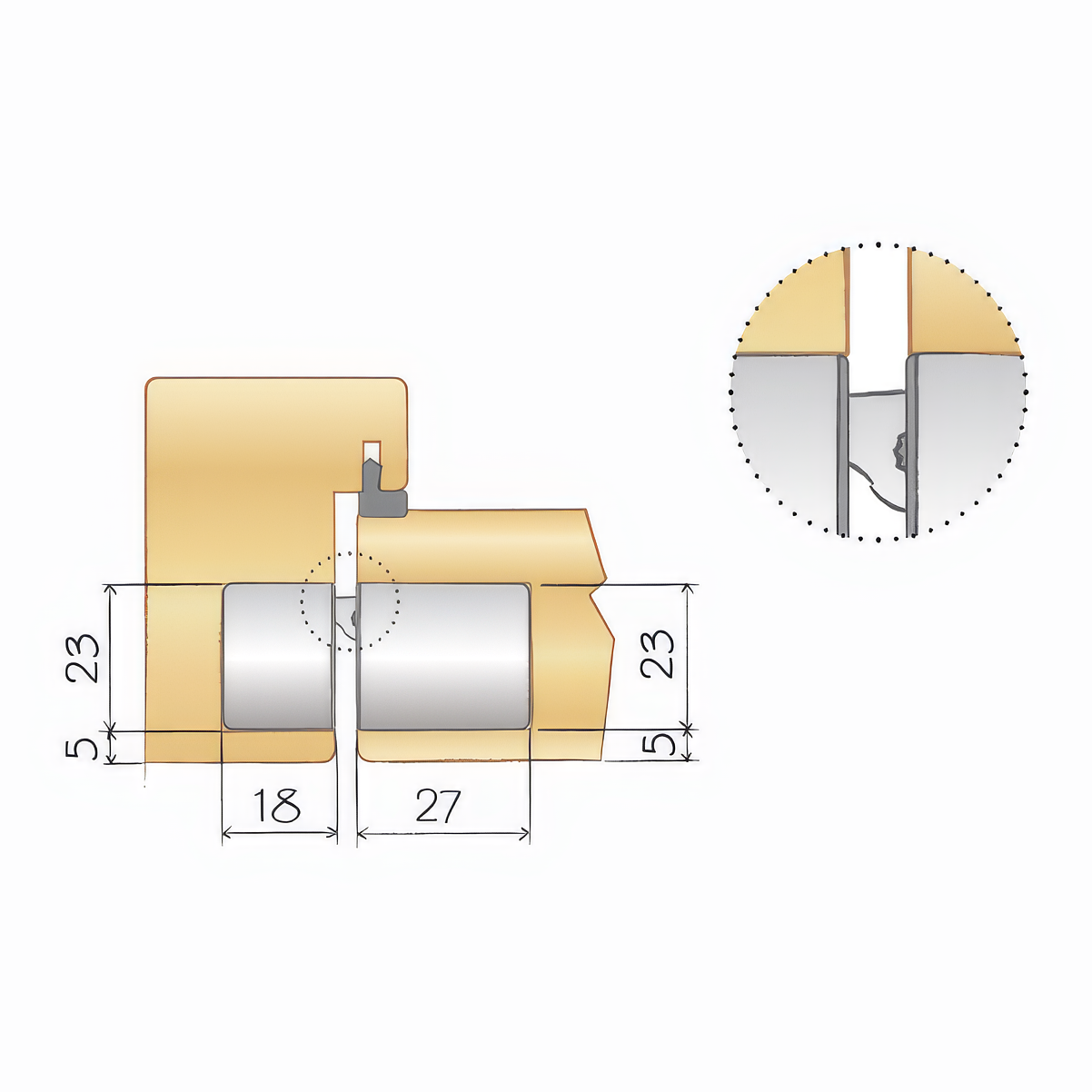

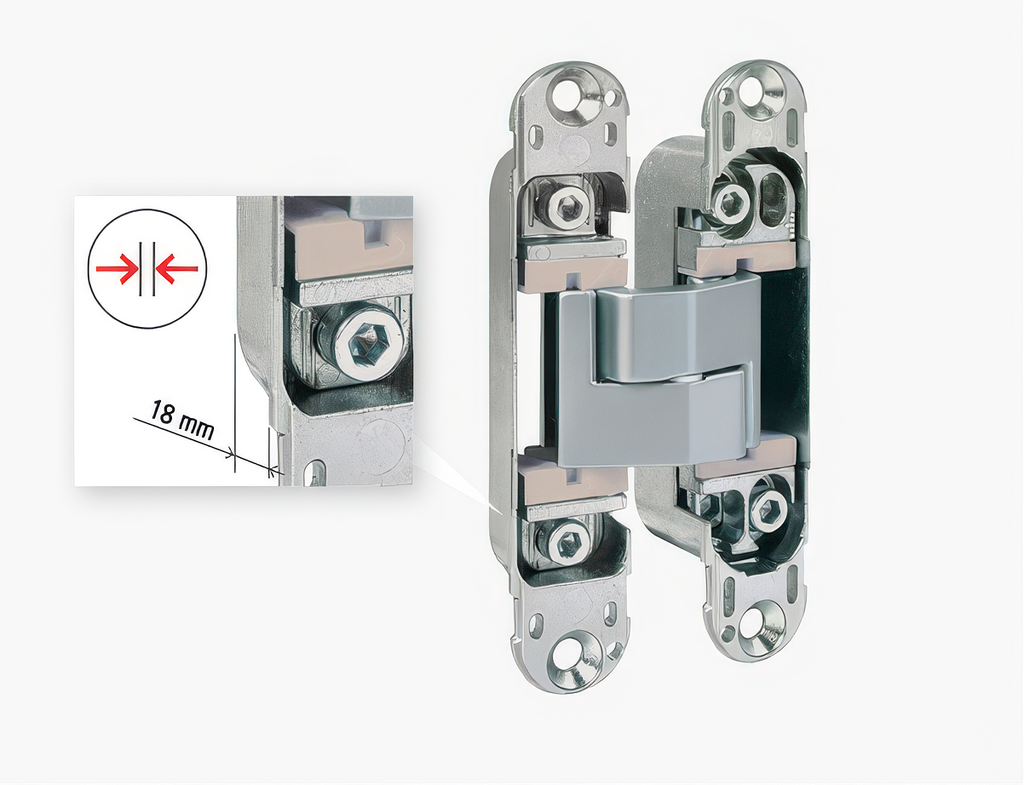

Reduced milling depth: up to 17.6 mm

Adjustment Range

Pressure adjustment: ±1 mm
Vertical adjustment: ±2 mm
Horizontal adjustment: +2 / −1 mm

Load Capacity

40 kg using 2 hinges
60 kg using 3 hinges

Recommended Hinge Configuration

For doors taller than 1600 mm, a third hinge in the central position is recommended to reduce deformation
A third hinge positioned at the top is recommended when using an overhead door closer or in high-traffic environments
A fourth hinge is recommended when using an overhead door closer together with door seals
