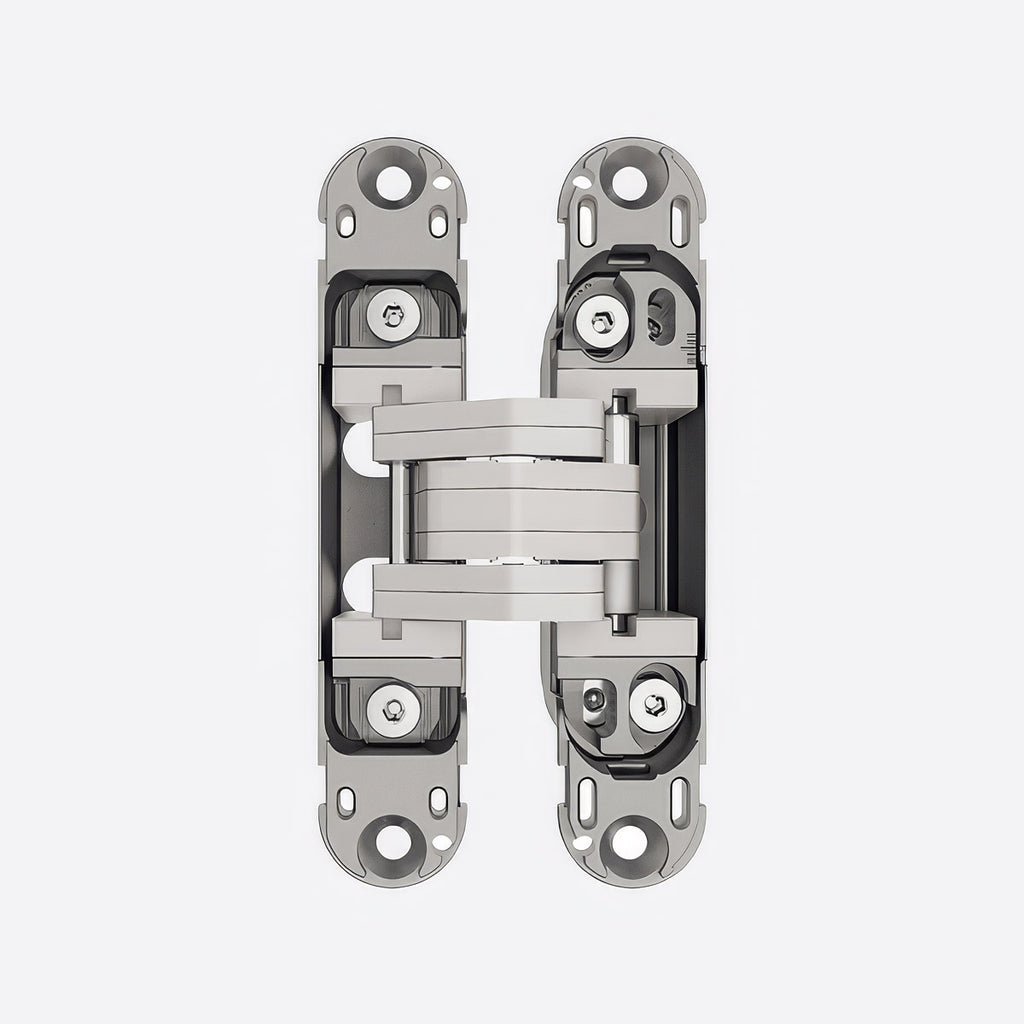

Back of Eclipse 3.2 HD Self hinge
1/6
  • Back of Eclipse 3.2 HD Self hinge

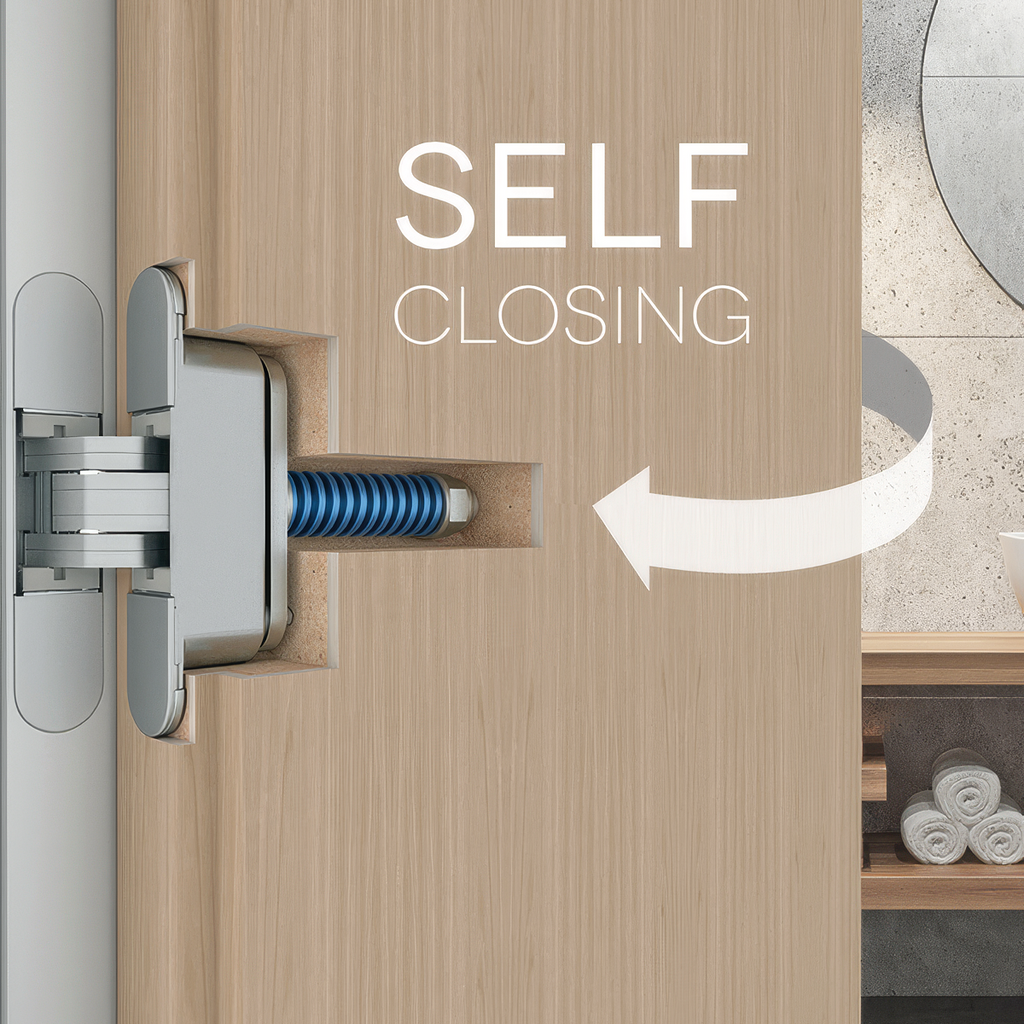

  • Cross section of wood door with Eclipse 3.2 HD Self installed

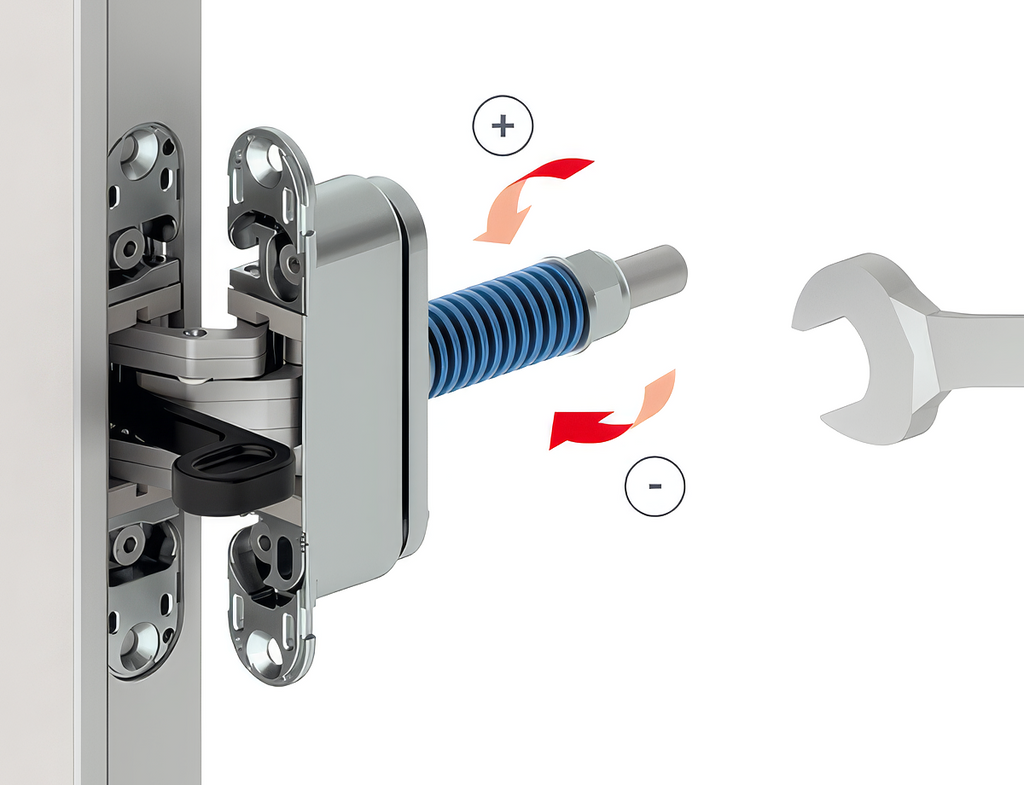

  • Diagram demonstrating the adjustment of Eclipse 3.2 HD Self's closing system

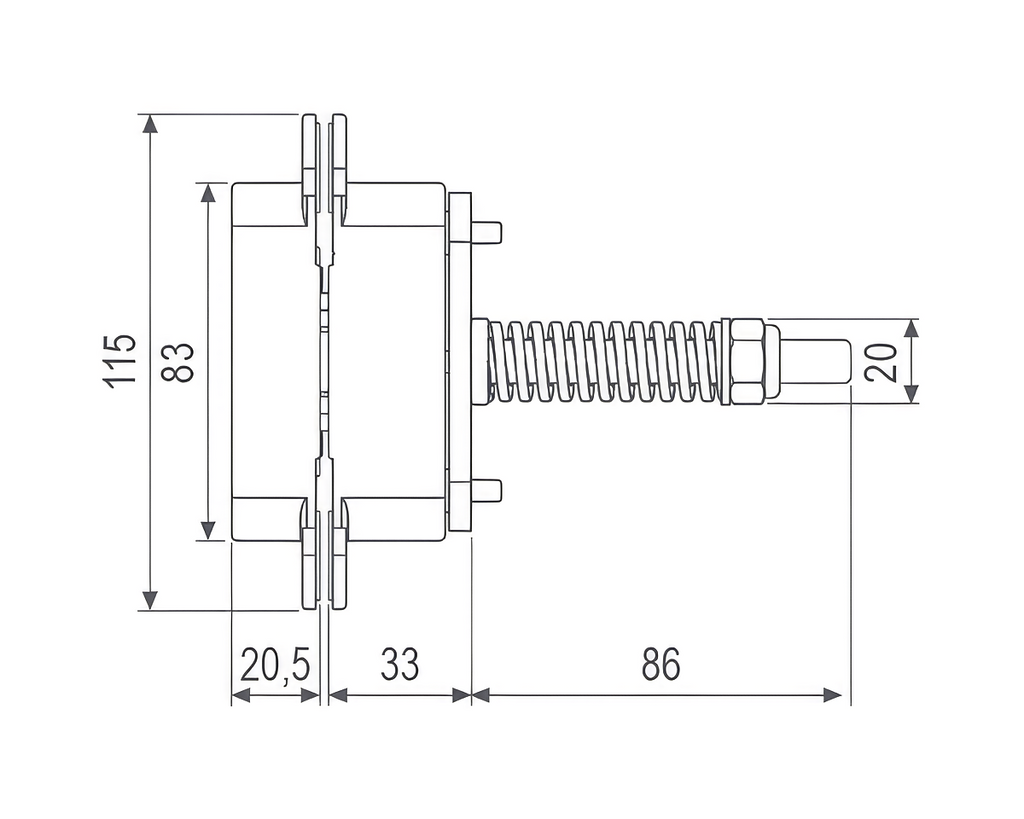

  • Technical drawing of Eclipse 3.2 HD Self's closing system

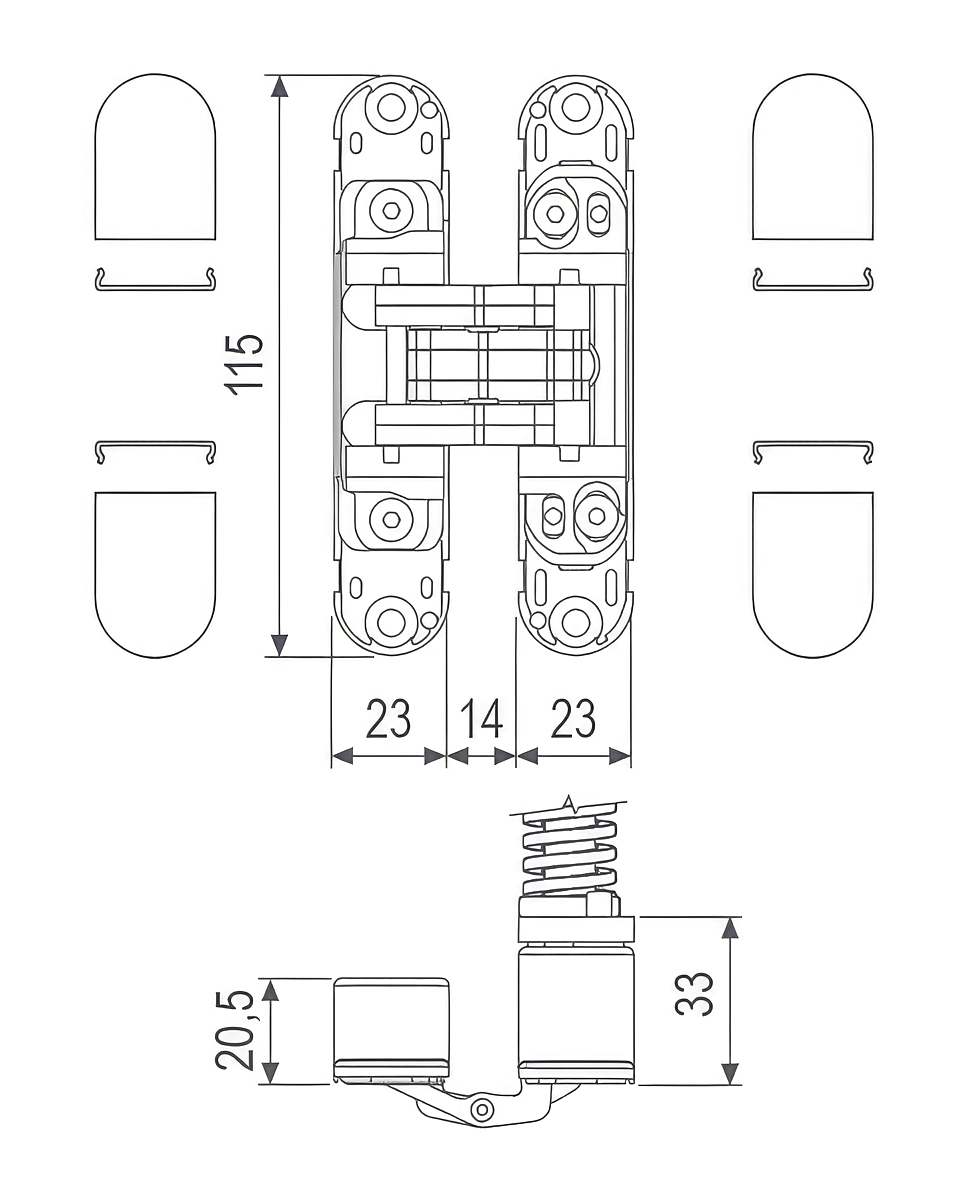

  • Technical Drawing of Eclipse 3.2 HD Self's hinge

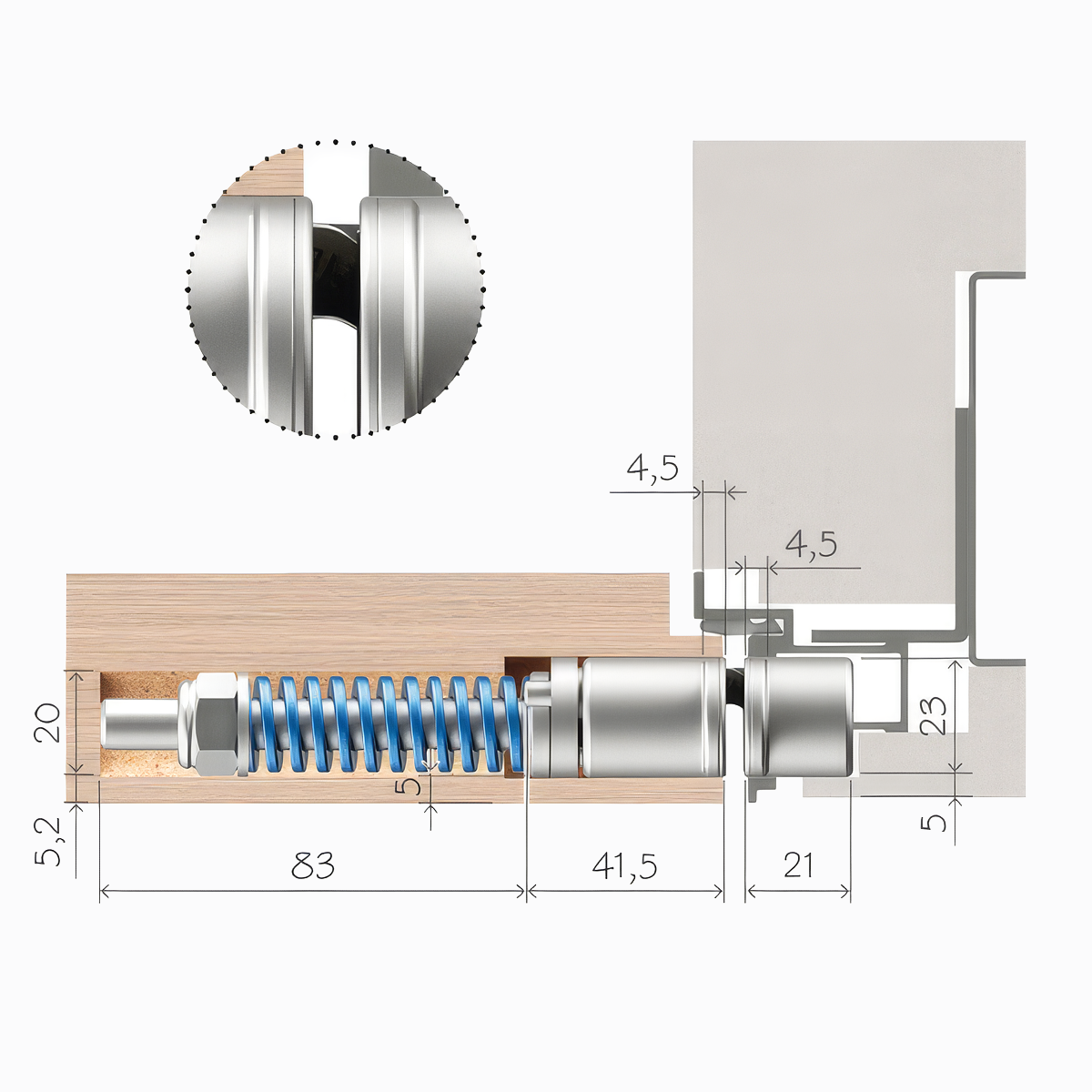

  • Technical drawing of a hinge installation in a door and frame
Eclipse 3.2 HD Self

Eclipse 3.2 HD Self

Self-closing concealed hinge for flush doors
$0.00
Shipping calculated at checkout.

Eclipse 3.2 HD Self features an integrated spring system that automatically closes the door after opening. Designed for flush interior doors, it supports both wood and aluminum applications while maintaining a clean, concealed appearance. The hinge uses the same milling as the Eclipse 3.2 series with additional milling for the spring body.

Features
Closing System
  • Integrated spring self-closing mechanism
  • Adjustable closing force using a 17 mm wrench
  • Closing force can be increased or reduced by adjusting the spring
Construction
  • Steel levers designed for heavy doors
  • Flush covers conceal adjustment screws
  • Reversible hinge design
  • Uses the same milling as the Eclipse 3.2 range with additional milling for the spring body
Adjustment System
  • Three completely independent adjustments
  • Adjustment performed using a 3 mm Allen key
Performance
  • Designed for flush doors with or without rebate
  • Suitable for heavy interior doors
  • Allows precise door alignment through multi-axis adjustment
Materials
  • Material: Zamak and steel
Compatible Materials
  • Compatible with: Wood doors and aluminum doors
Compatibility
  • Compatible with Eclipse 3.0 hinges
  • Compatible with Eclipse 3.2 hinges
  • Compatible with Eclipse 3.2 HD hinges
Dimensions

Dimensions
  • Height: 115 mm
  • Maximum extension: 14 mm
  • Frame part width: 21 mm
Adjustment Range
  • Pressure adjustment: ±1 mm
  • Vertical adjustment: ±2 mm
  • Horizontal adjustment: ±1.5 mm
Spring Options
  • Blue spring: suitable for sashes up to 40 kg
  • Red spring: suitable for sashes up to 60 kg

For additional dimensional information, please refer to the technical documentation or contact us for more details.

Need additional specifications or technical guidance? Contact Us.
