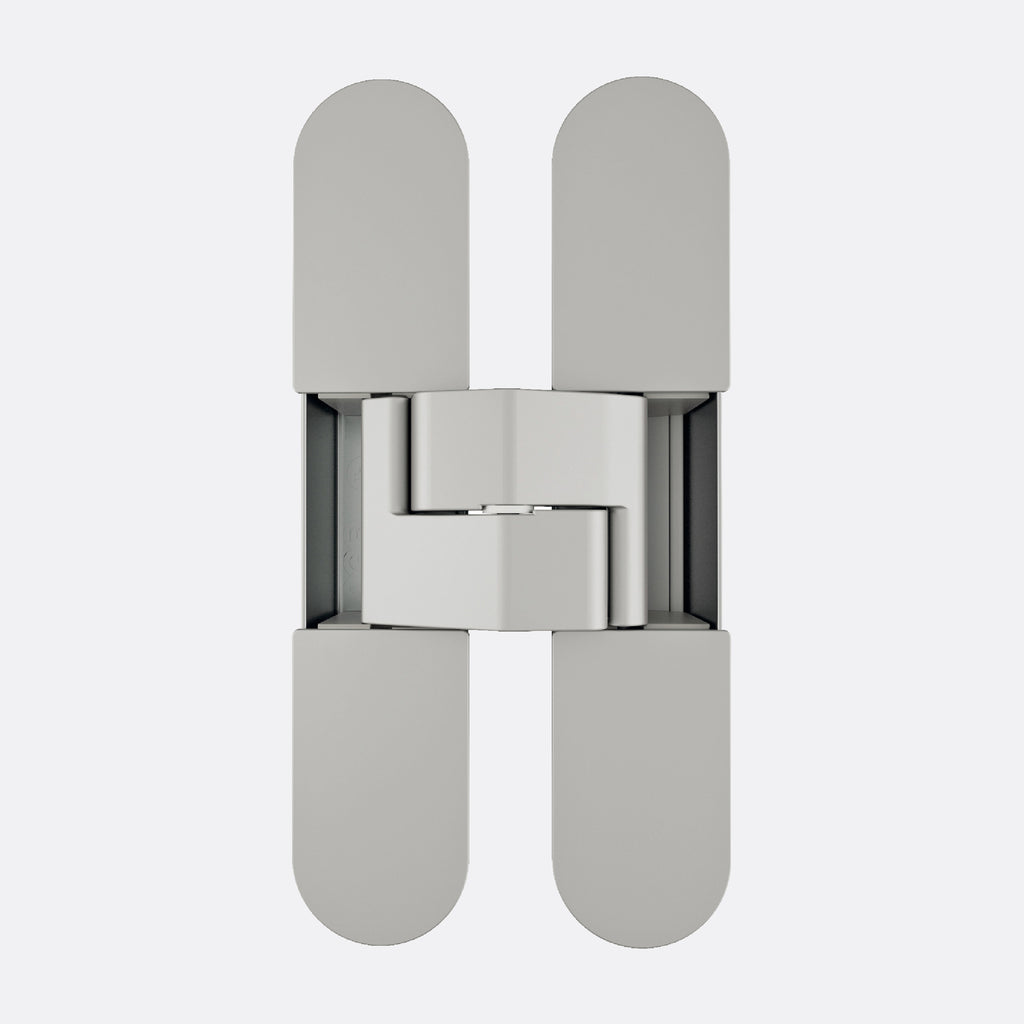

Eclipse 3.0

Concealed hinge for aluminum and wood doors

$0.00

Shipping calculated at checkout.

Finish

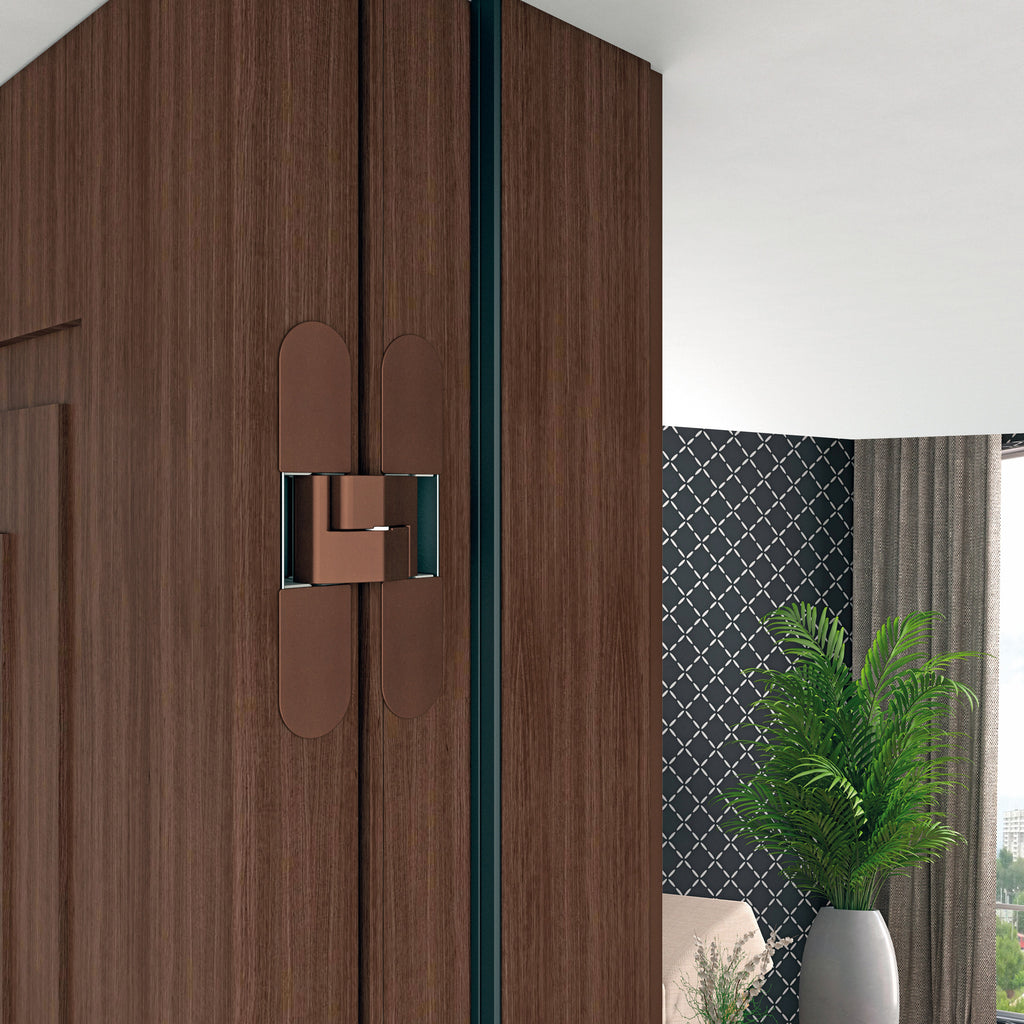

Eclipse 3.0 is designed for flush internal doors with or without rebate. Its compact design allows the hinge to remain completely hidden while maintaining smooth door operation. Suitable for aluminum frames and fire-rated doors, it also offers simple installation with cover plates.

Compatibility

Compatible materials: wood and aluminium doors
Suitable for aluminium door frames

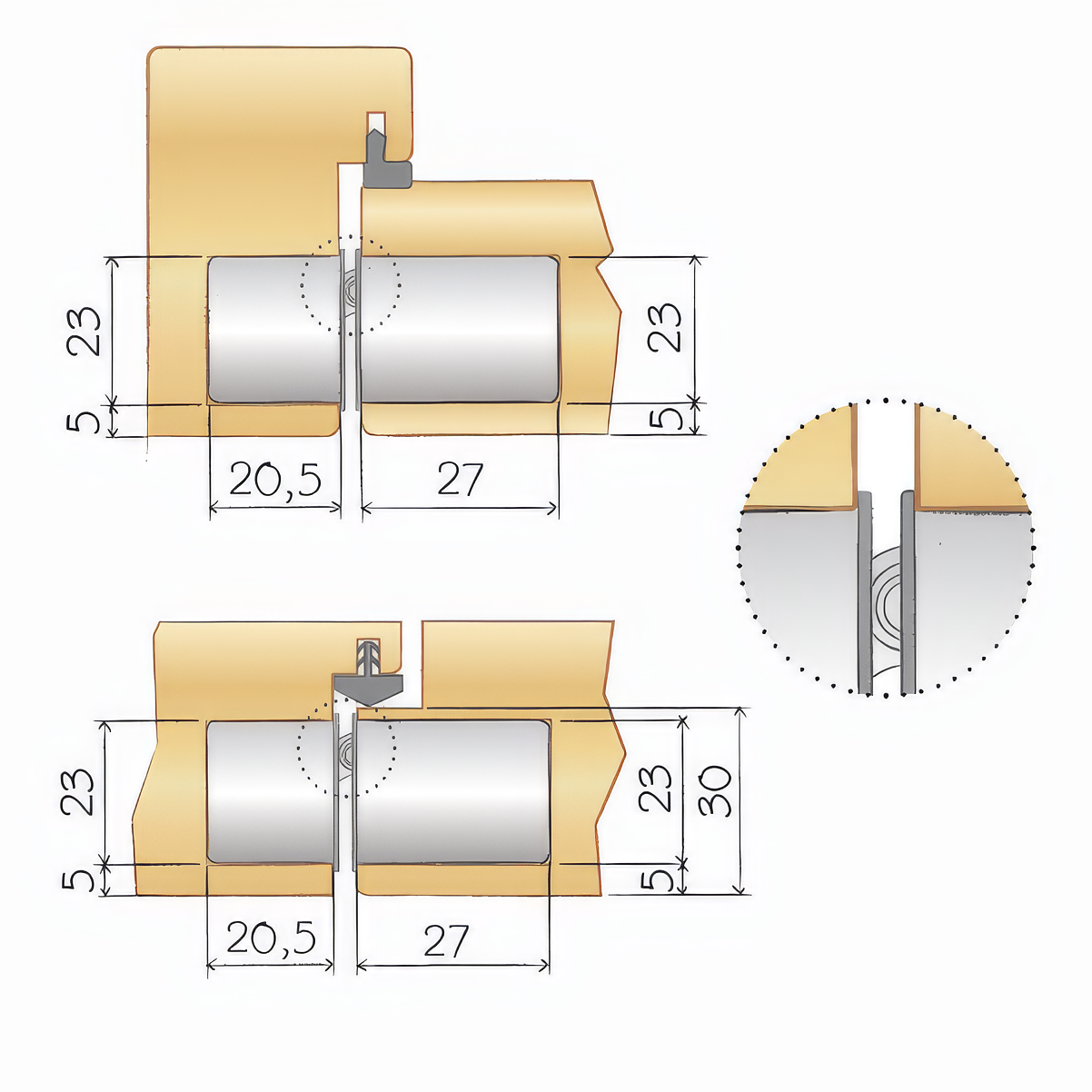

Designed for flush doors with or without rebate

Construction

Material: zamak
Reduced hinge dimensions allow the hinge to remain fully concealed

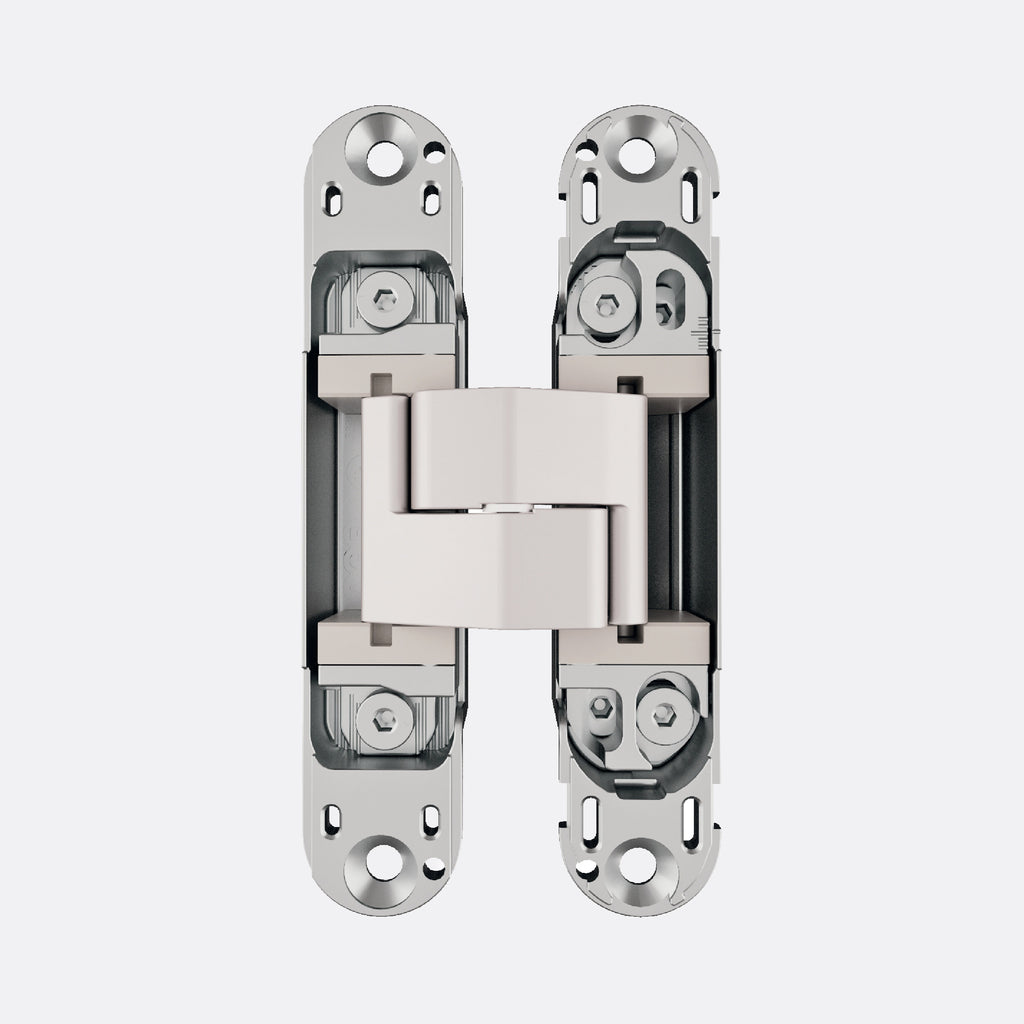

Cover plates hide installation hardware and maintain a clean door appearance

Adjustment System

Three independent adjustments using a 4 mm Allen key
Designed for long-term stability and ease of adjustment
Adjustments tested according to EN 1935 cyclic testing standards

Installation & Use

Easy installation with concealed mounting system

Certifications

Fire door certified according to EN 1634
UL listed door hinge

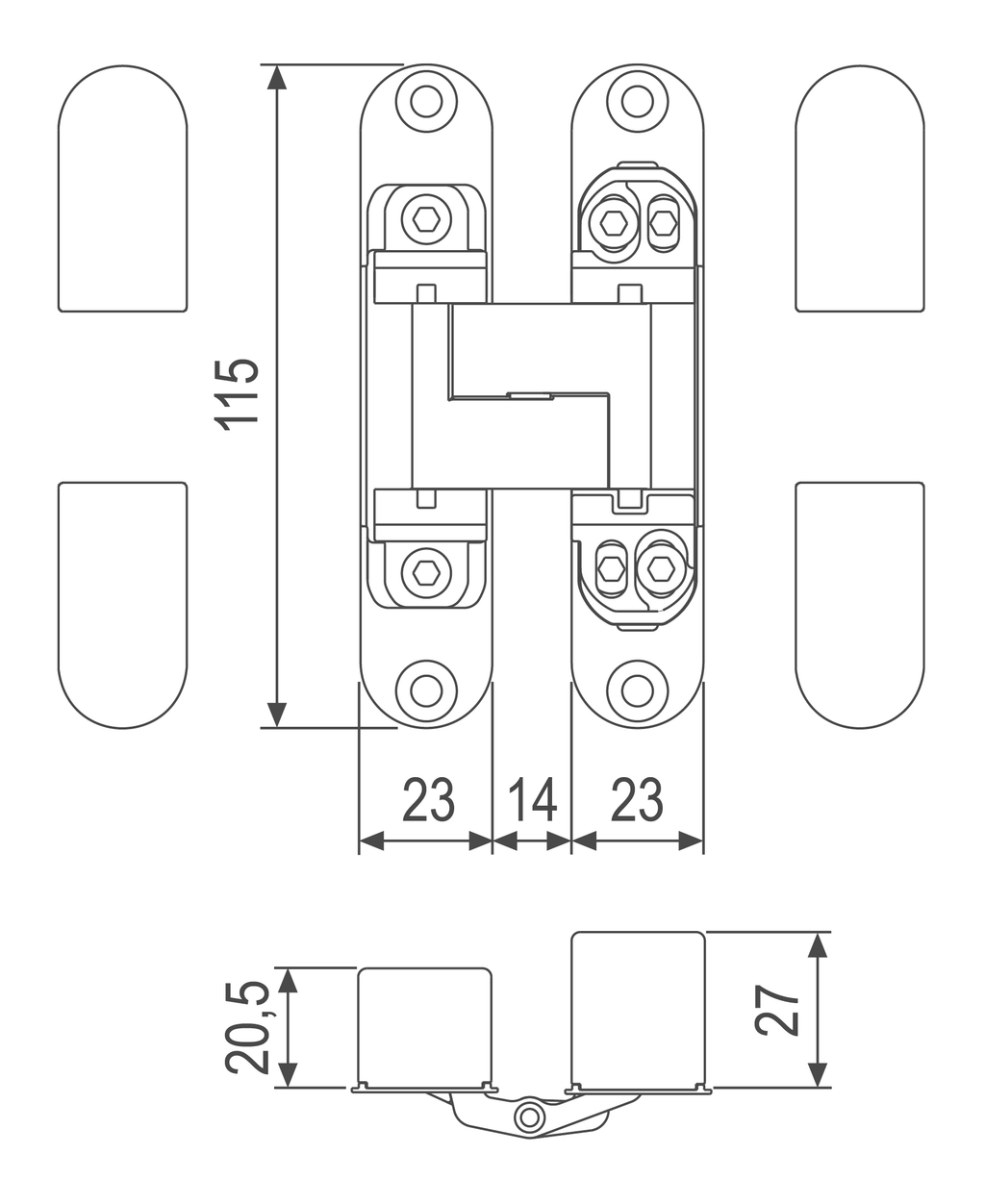

Height

115 mm

Maximum Extension

14 mm

Adjustment Range

Pressure adjustment: ±1 mm
Vertical adjustment: ±2 mm
Horizontal adjustment: ±1.5 mm

Load Capacity

40 kg using 2 hinges
60 kg using 3 hinges

Recommended Hinge Configuration

For doors taller than 1600 mm, a third hinge in the central position is recommended to reduce deformation.
A third hinge paired at the top may be recommended when using an overhead door closer or in high-traffic environments.
A fourth hinge may be recommended when using an overhead door closer together with door seals.
