Eclipse 2.1

Concealed hinge for flush interior doors

$0.00

Shipping calculated at checkout.

Finish

Eclipse 2.1 is designed for internal flush doors with a modern aesthetic. It provides smooth, precise movement up to 180° and offers wide adjustment on three independent axes. Cover plates conceal the adjustment screws to maintain a clean door design even when the door is open.

Compatibility

Compatible materials: wood and aluminium doors
Designed for internal flush doors
Suitable for sashes covered with glass

Construction

Material: Zamak
Flush metal covers conceal adjustment screws and preserve the door’s appearance when open

Adjustment System

Three independent adjustments for precise door alignment
Allows fine positioning of the door during installation

Performance

Smooth and precise sash movement up to 180°
Designed for high loading capacity
Maintains handle height even when the sash rotates on the vertical axis

Certification

Fire door certified according to EN 1634

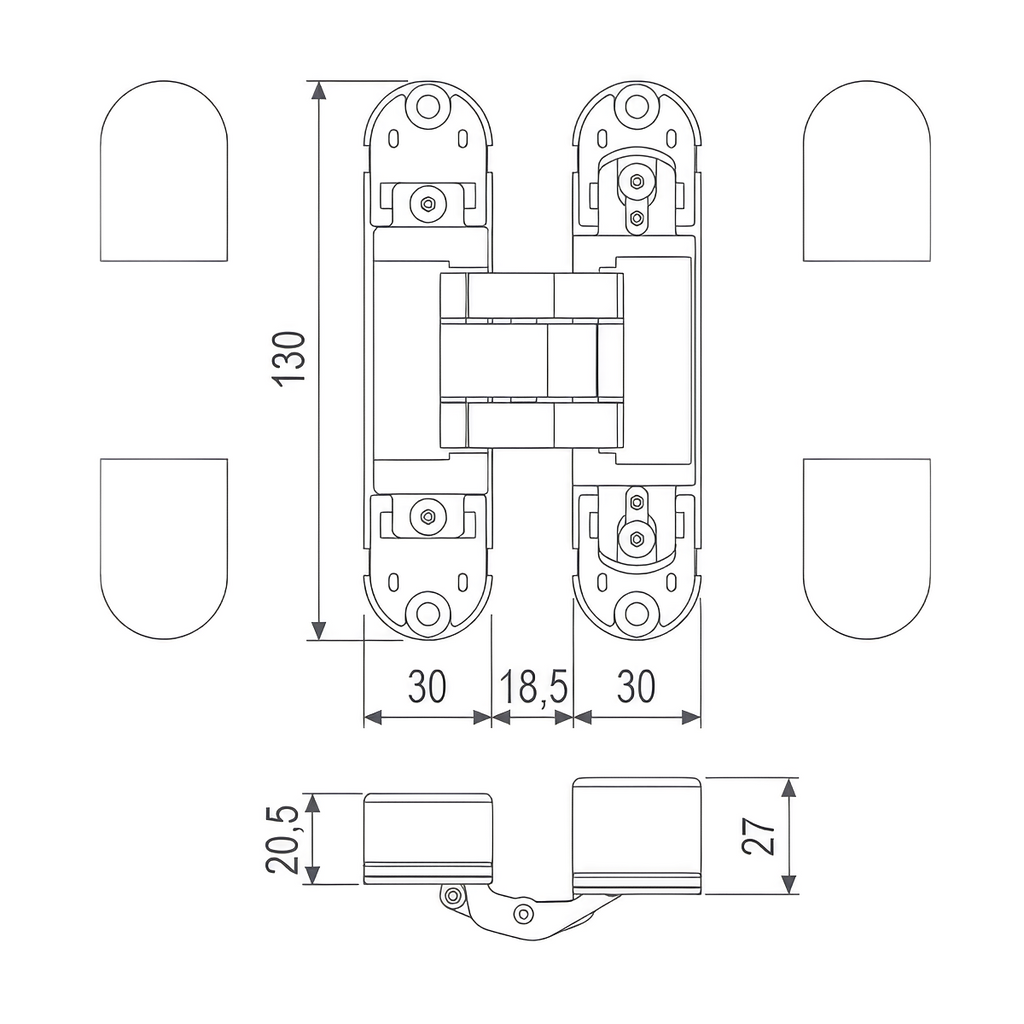

Height

130 mm

Maximum Extension

19 mm

Adjustment Range

Pressure adjustment: ±1 mm
Vertical adjustment: ±2 mm
Horizontal adjustment: ±1.5 mm

Load Capacity

60 kg using 2 hinges
80 kg using 3 hinges

Recommended Hinge Configuration

For doors taller than 1600 mm, a third hinge in the central position is recommended to reduce deformation.
A third hinge paired at the top may also be recommended when using an overhead door closer or in high-traffic environments.
A fourth hinge may be recommended when using an overhead door closer together with door seals.
