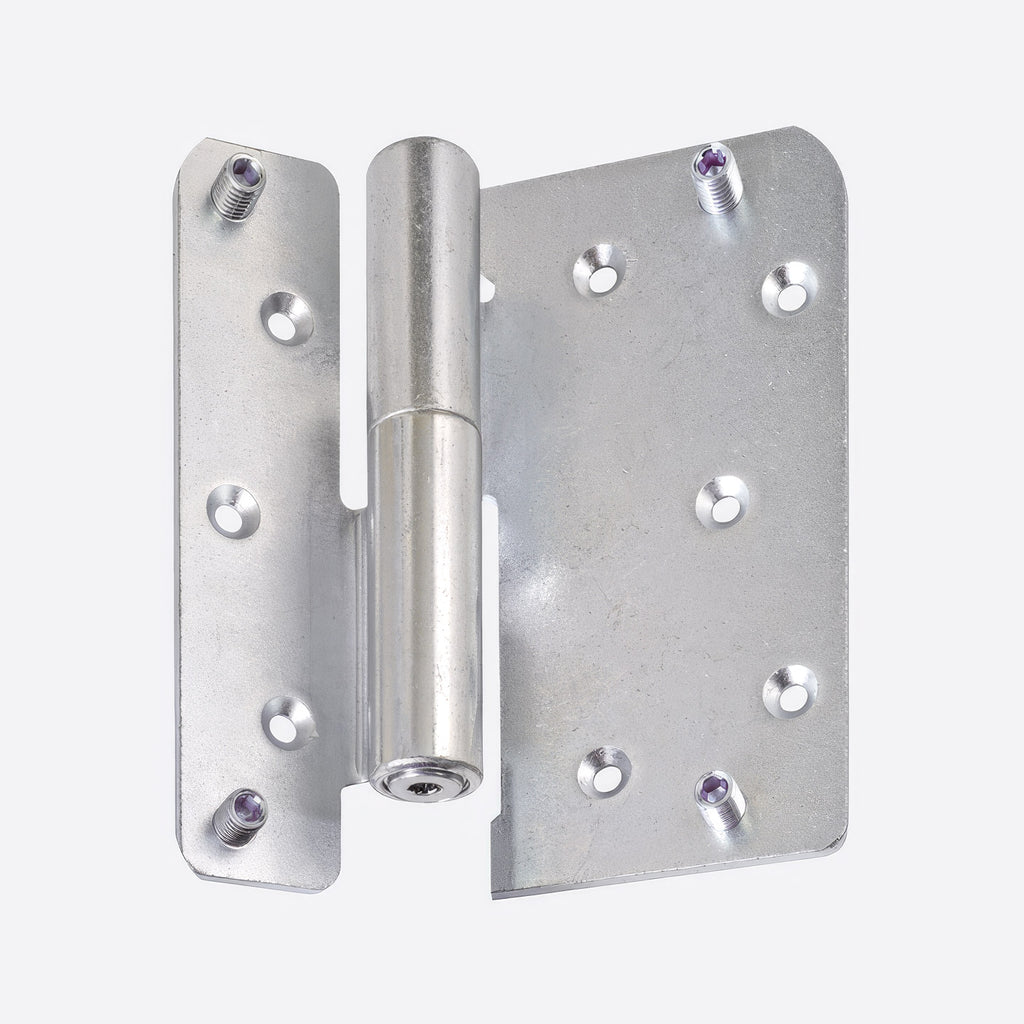

  • Alufix hinge

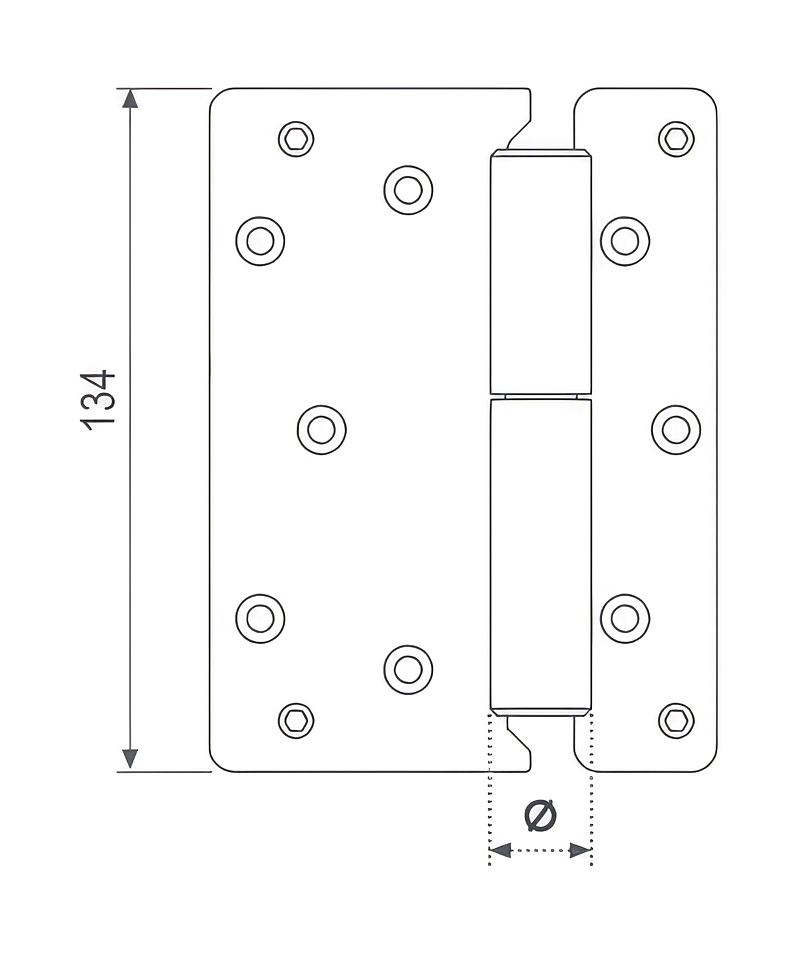

  • Technical drawing of Alufix
Alufix

Alufix

Surface-mounted hinge for wood-aluminum systems
$0.00
Shipping calculated at checkout.

Alufix is a surface-mounted hinge designed for wood–aluminum door and window systems. The hinge is installed on the wood rather than the aluminum cover, allowing the external aluminum profile to conceal the hinge wings so only the central body remains visible. Its self-jigging design allows quick installation without milling.

Features
Installation
  • Surface-mounted design applied directly to wood
  • Self-jigging installation that does not require milling
  • Allows aluminum profiles to be removed without removing the hinges
  • Installed using screws and supporting pins
Design
  • Hinge wings concealed by the external aluminum profile
  • Only the central hinge body remains visible for a discreet appearance
  • Compatible with outward-opening wood–aluminum systems
Adjustability
  • Vertical height adjustment using an Allen-head screw
  • Adjustable using a 5 mm Allen wrench
Strength
  • High load capacity supported by up to 8 screws and 4 threaded pins
  • Stainless steel hinge pin for durability
Finish
  • Silver Finish (15)
Material
  • Steel hinge body
  • Stainless steel hinge pin
Compatible Materials
  • Wood
  • Wood–aluminum door and window systems
Dimensions

  • Height: 134 mm
  • Diameter: 20 mm
  • Vertical Adjustment Range: Up to 6 mm
  • Screw Diameter: 4.5 mm
  • Drill Diameter: 7.2 mm

Need additional specifications or technical guidance? Contact Us.
