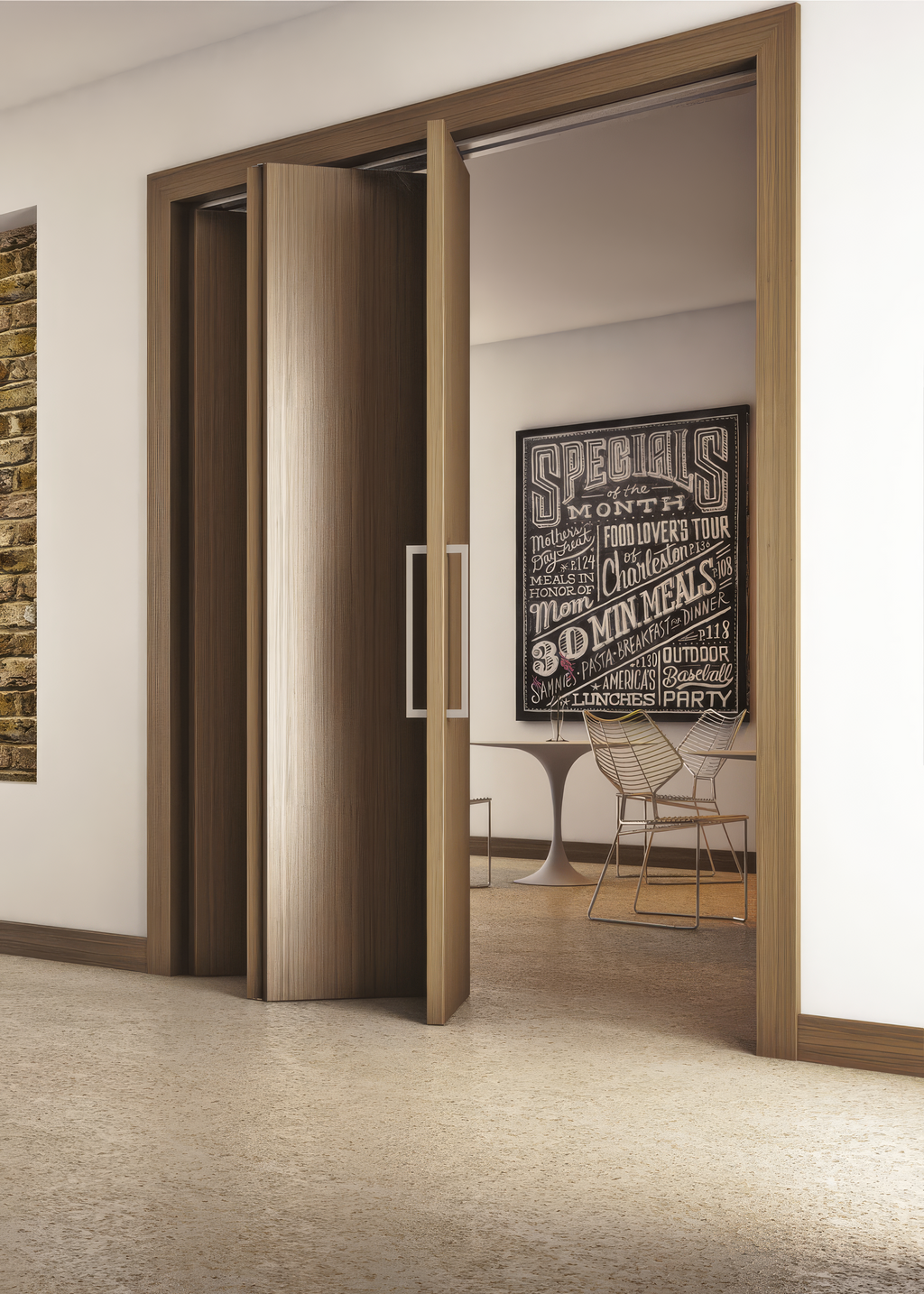

Modern interior with sliding wooden doors opening to a dining area.

Accordion

$0.00
Skip to product information
Modern interior with sliding wooden doors opening to a dining area.
1/3
  • Modern interior with sliding wooden doors opening to a dining area.

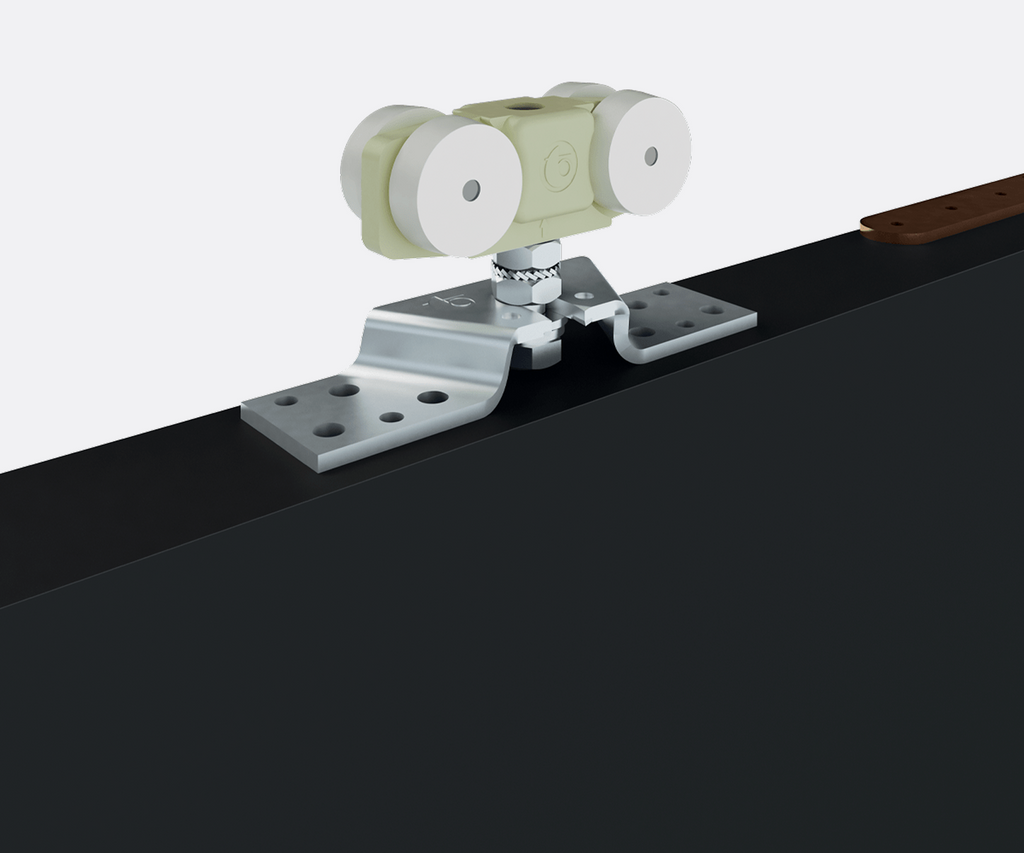

  • Close-up of Accordion's folding mechanism

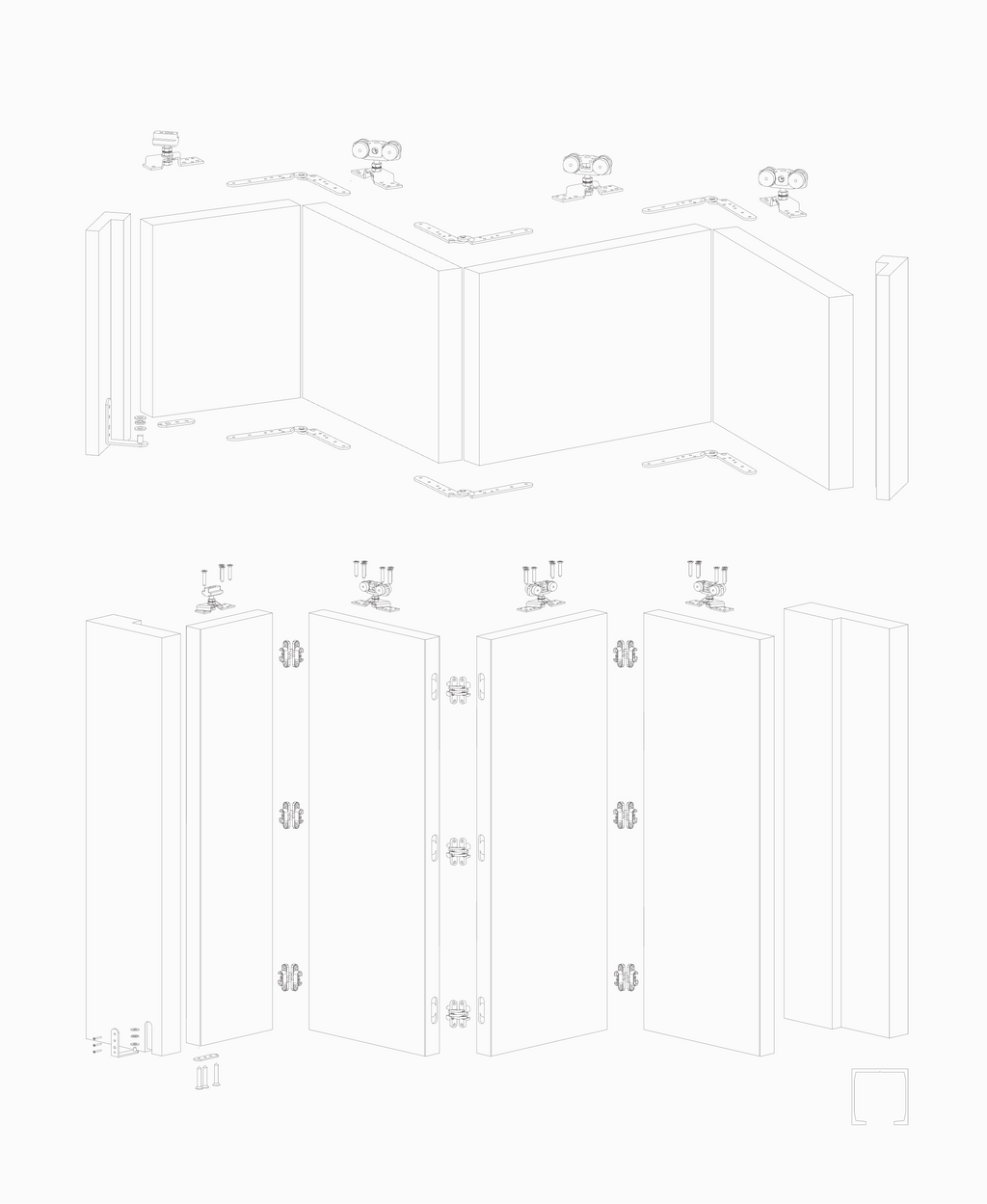

  • Technical drawing of Accordion
Accordion

Accordion

Accordion folding door system.
$0.00
Shipping calculated at checkout.

Accordion is a folding door system designed for multiple-leaf doors with hinges and a central sliding panel. The system supports configurations of three or four leaves and can be combined with pivot joints or hinges. The centrally fixed sliding system ensures balanced movement.

Features
System Design
  • Folding system designed for multiple-leaf doors
  • Supports configurations of three or four leaves
  • Central sliding system fixed to each leaf for balanced movement
  • Can be combined with pivot joints or hinges
Performance
  • Designed to provide balanced movement during operation
Materials
  • Door material: Wood
Dimensions

  • Minimum door thickness: 30 mm
  • Maximum door weight: 40 kg
  • Clearance to floor: 7 mm

Need additional specifications or technical guidance? Contact Us.
