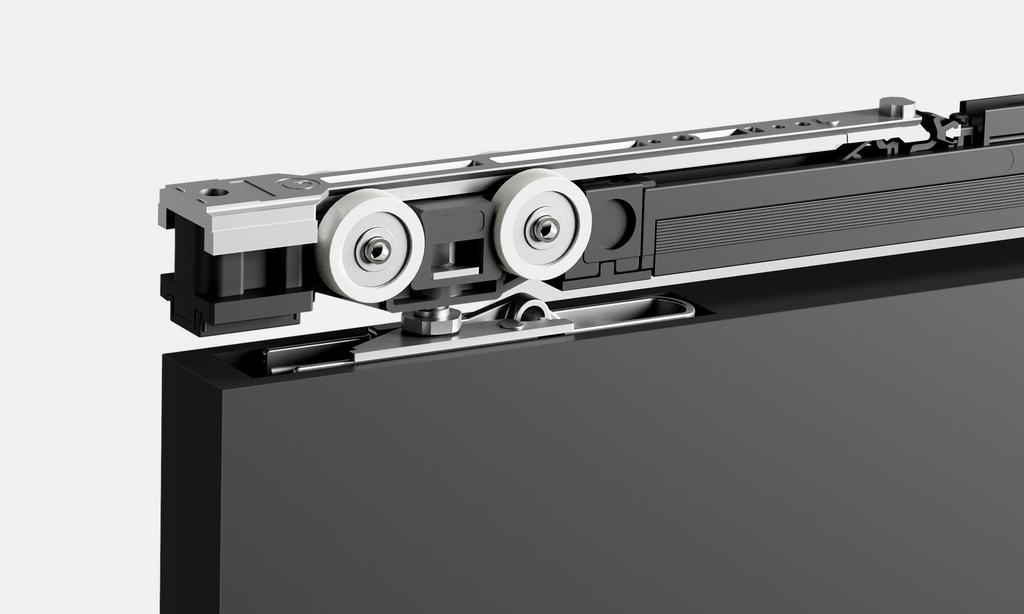

  • Close-up of Eccletica Fluid's door mechanism
  • Bracket position options for Eccletica Fluid

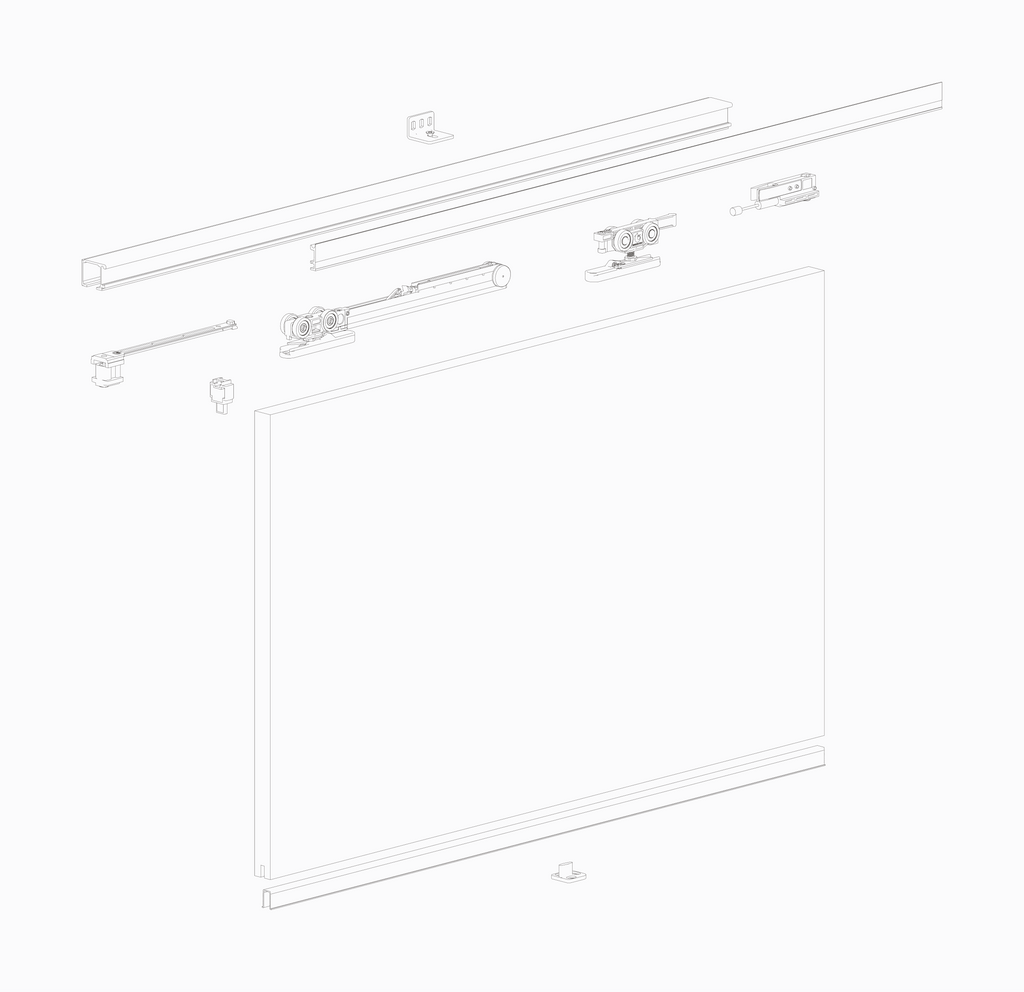

  • Eccletica Fluid technical drawing
Eclettica Fluid

Eclettica Fluid

Recessed sliding system for wooden doors.
$0.00
Shipping calculated at checkout.

Eclettica is an easy-to-assemble sliding system with an automatic lateral coupling bracket designed for wooden doors. The bracket can be recessed into the door to reduce the gap between the door and track, and the sliding rail can also be embedded into the ceiling. The system supports flexible bracket installation positions and smooth operation through Fluid Technology.

Features
System Design
  • Recessed sliding system for wooden doors
  • Automatic lateral coupler bracket
  • Bracket can be fully recessed into the door to reduce the gap between door and track
  • Sliding rail can be embedded into the ceiling
Installation & Adjustment
  • Easy-to-assemble system completed in a few simple steps
  • Automatic quick-locking bracket system
  • Trolley engagement by positioning and pressing the pin on the bracket lever
  • Adjustable system with simple installation process

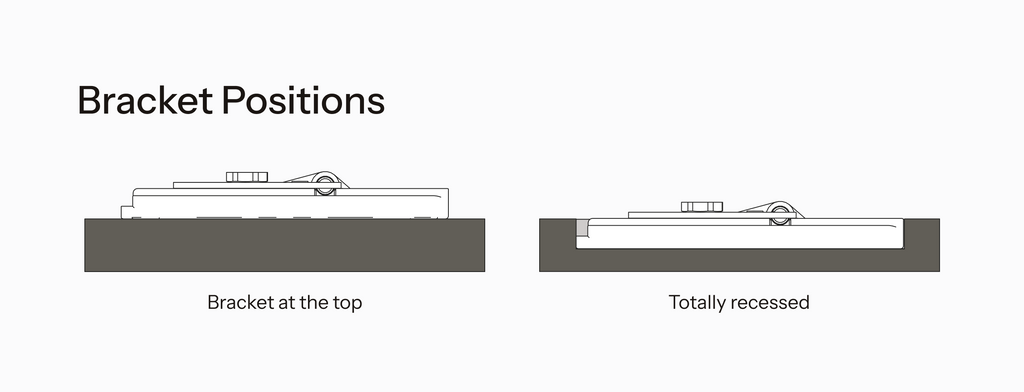

Bracket Configuration
  • Bracket can be fixed on top of the door without milling
  • Bracket can be fully recessed into the door for a reduced gap between door and track
Technology
  • Fluid Technology for smooth soft-closing
  • Silent movement and stable performance
Stopper Options
  • Fluid dampers
  • Shock absorber
Door Compatibility
  • Designed for wooden doors
  • Suitable for use with the Universal frame
Materials
  • Door material: Wood
Compatible Materials
  • Wood doors
Dimensions

  • Door width: 650–1600 mm
  • Maximum door weight: 250 kg

Need additional specifications or technical guidance? Contact Us.
