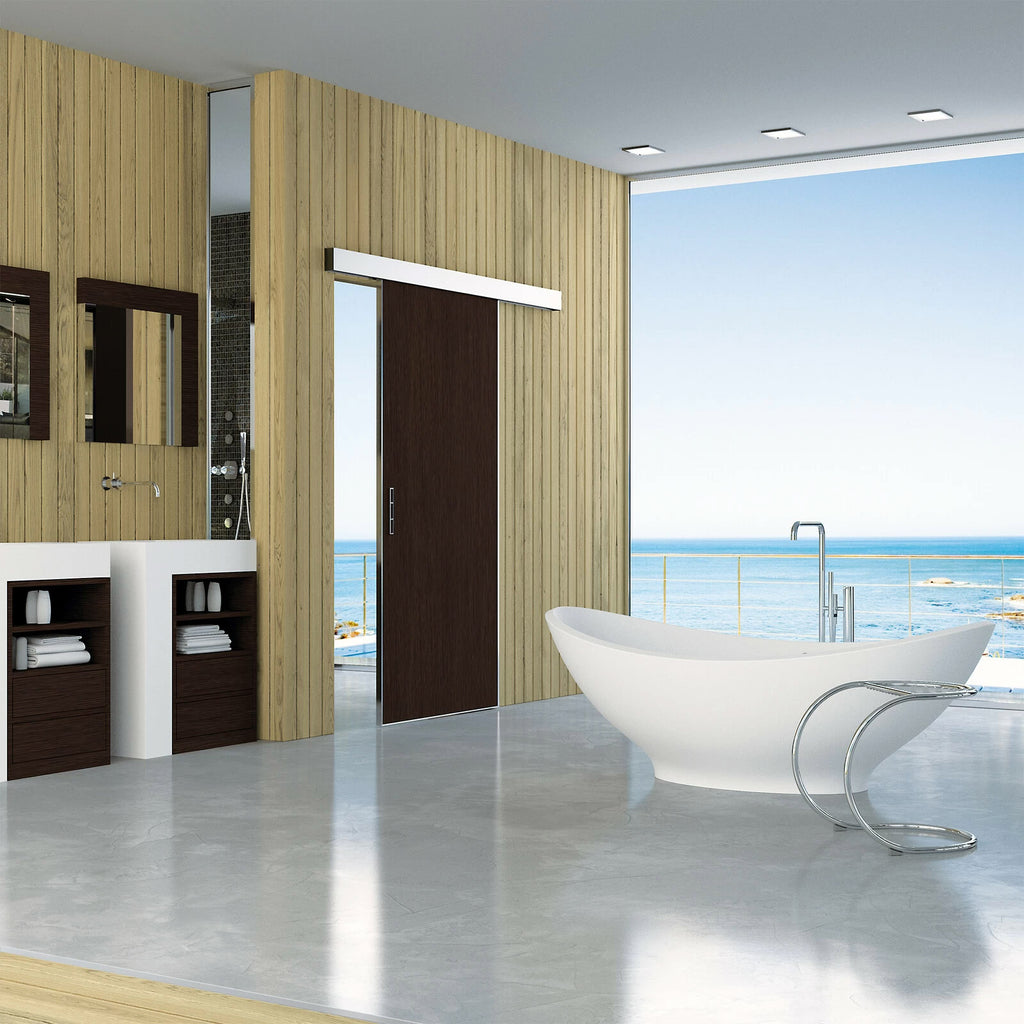

  • Modern bathroom with a freestanding bathtub and ocean view

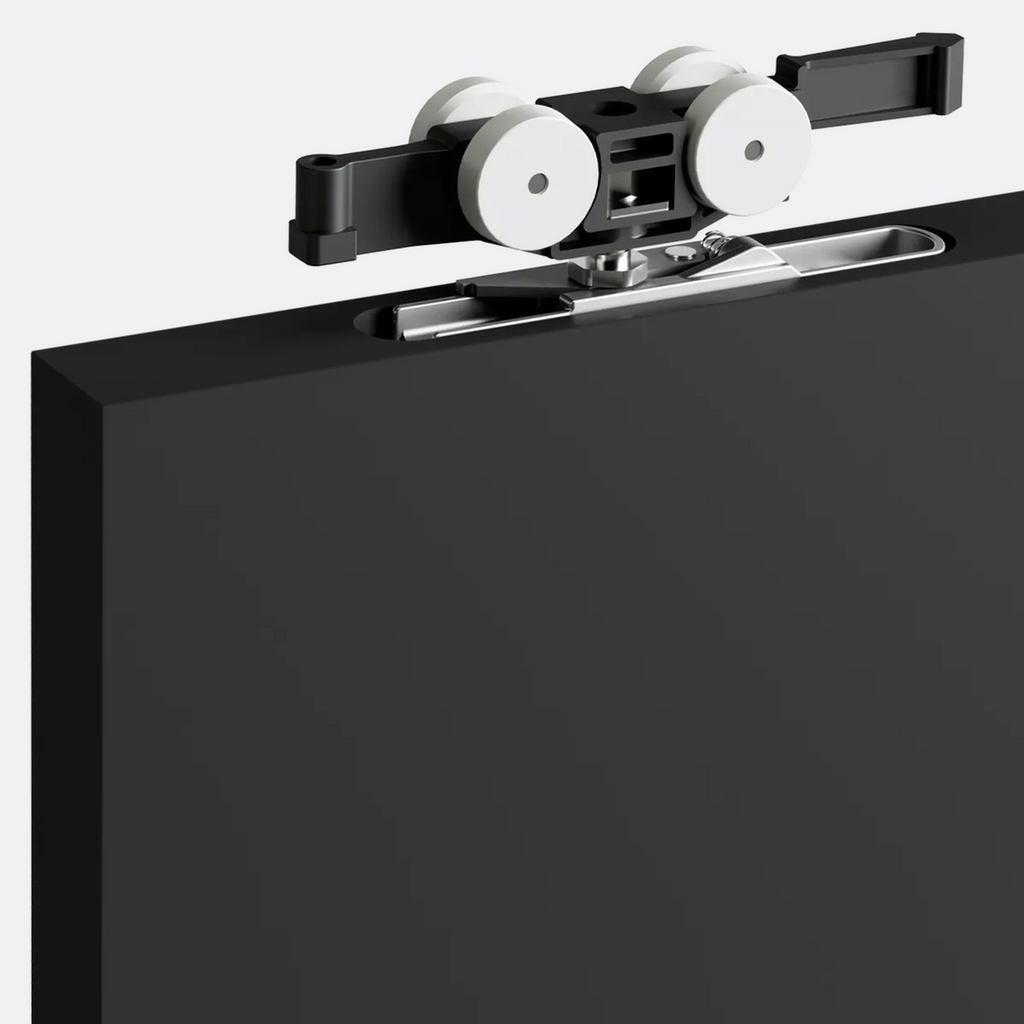

  • Close-up of Eccletica Basic's sliding door mechanism

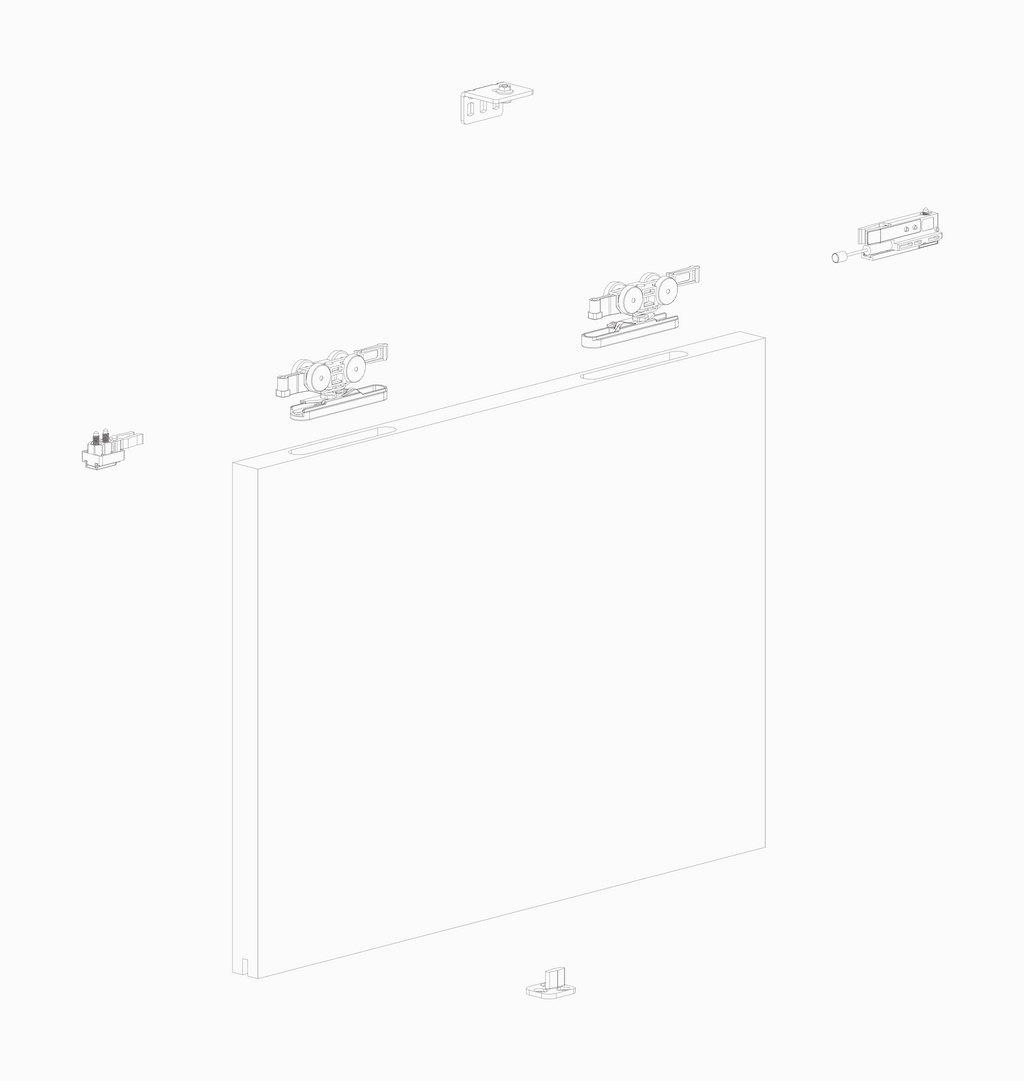

  • Eccletica Basic technical drawing
Eclettica Basic

Eclettica Basic

Automatic lateral bracket sliding system.
$0.00
Shipping calculated at checkout.

Eclettica Basic is an easy-to-assemble sliding system with an automatic lateral coupling bracket designed for wooden doors. The bracket can be fully recessed into the door to reduce the gap between the door and track, and the sliding rail can also be embedded into the ceiling. The system supports doors up to 240 kg and is available with standard or hydraulic stopper options.

Features
System Design
  • Sliding system with automatic lateral coupling bracket
  • Developed as an upgrade of the Hide bracket
  • Bracket can be fully recessed into the door to reduce the gap between door and track
  • Sliding rail can be embedded into the ceiling
Installation & Operation
  • Automatic lateral coupler bracket
  • Hooking system automatically engages the trolley by positioning and pressing the bracket lever pin
  • Release system allows manual release of the trolley via spring lever
  • Easy adjusting and easy mounting
Door Compatibility
  • Designed for wooden doors
Capacity
  • Maximum door weight: 240 kg
Stopper Options
  • Shock absorber
  • Classic stopper
  • Soft air closing
  • Hydraulic closing
Materials
  • Door material: Wood
Compatible Materials
  • Wood doors
Dimensions

  • Door width: 600–1500 mm
  • Maximum door weight: 240 kg

Need additional specifications or technical guidance? Contact Us.
