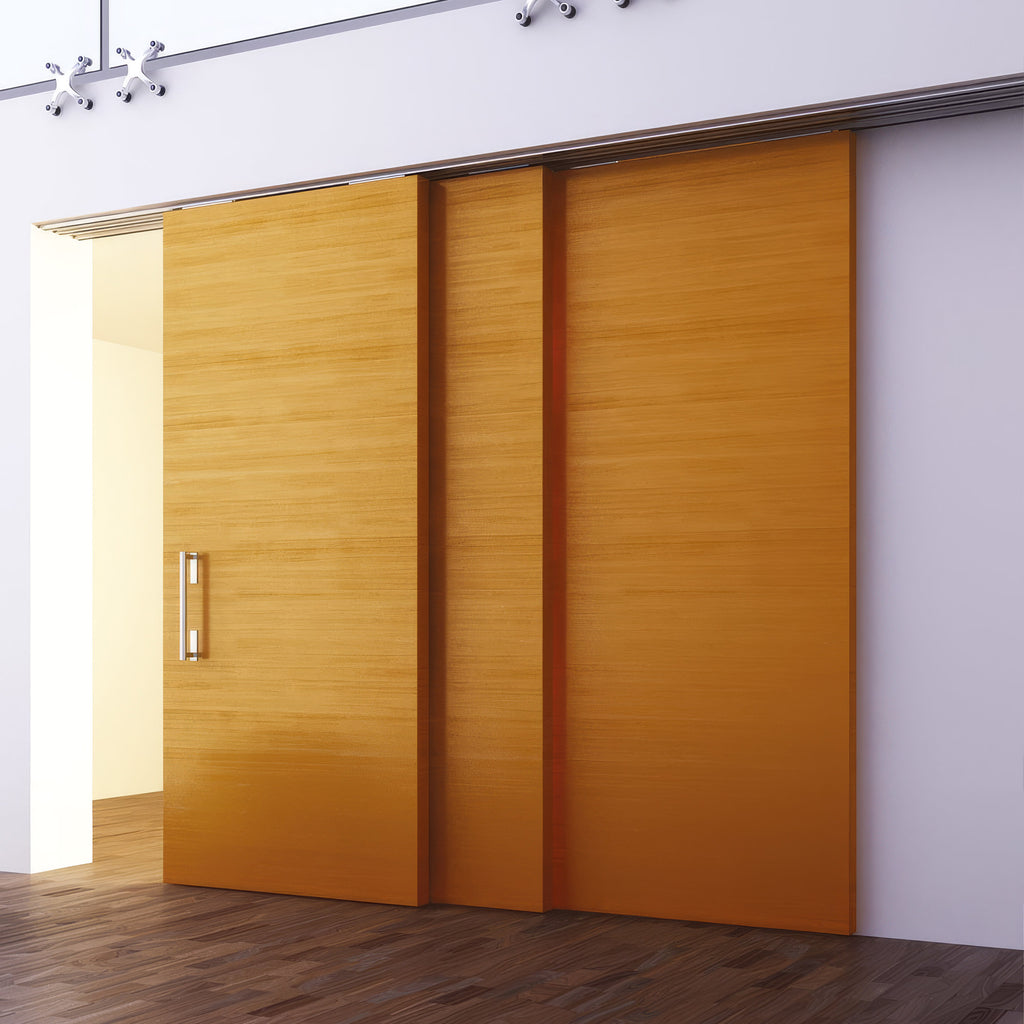

Modern interior with wooden sliding doors and a white wall.

Drag

$0.00
Skip to product information
Modern interior with wooden sliding doors and a white wall.
1/3
  • Modern interior with wooden sliding doors and a white wall.
  • Corner of a black flat-screen TV on a white surface with a dark background

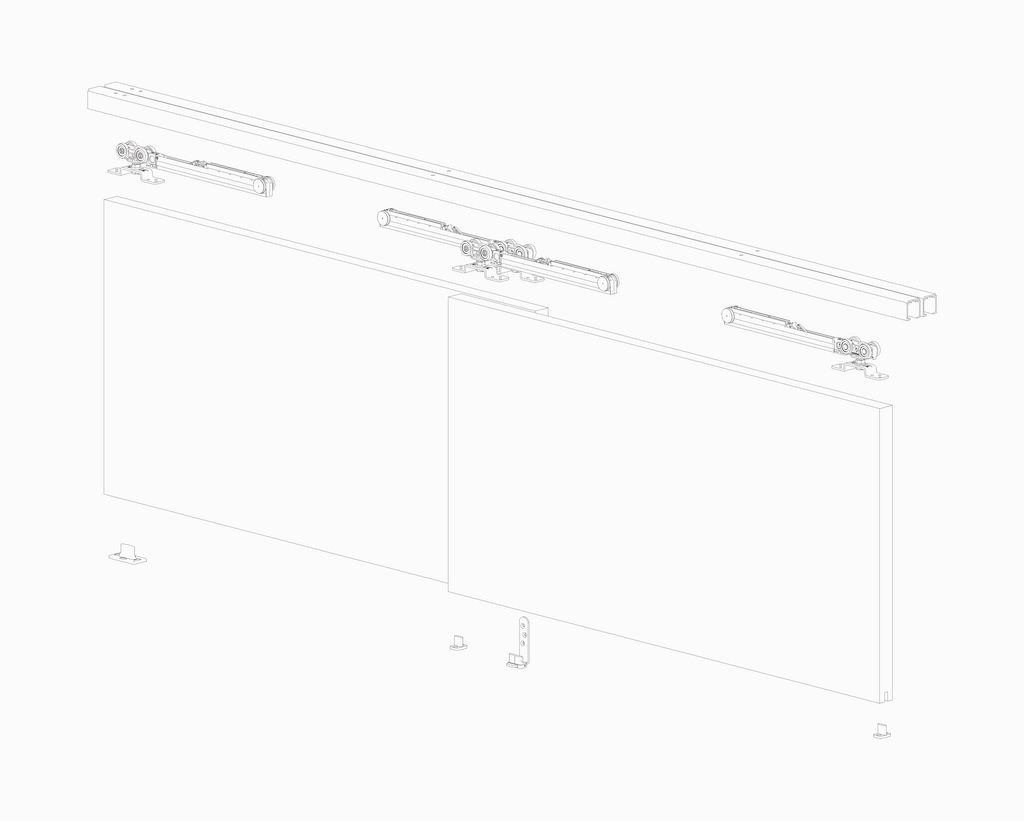

  • Drag technical drawing
Drag

Drag

Mechanism system for drag-opening doors.
$0.00
Shipping calculated at checkout.

Drag is a mechanism system designed for wooden drag-opening doors. The system is compatible with the standard Classic bracket and the frontal automatic clamp Step. It supports door capacities up to 80 kg.

Features
System Type
  • Mechanism system for drag-opening doors
Compatibility
  • Compatible with Classic standard bracket
  • Compatible with Step frontal automatic clamp
Door Compatibility
  • Designed for wooden doors
Performance
  • Maximum supported weight: 80 kg
Installation Characteristics
  • Close-to-floor clearance: 10 mm
Materials
  • Door material: Wood
Compatible Materials
  • Wood doors
Dimensions

  • Door thickness: 25–50 mm
  • Maximum door weight: 80 kg
  • Clearance from floor: 10 mm

Need additional specifications or technical guidance? Contact Us.
