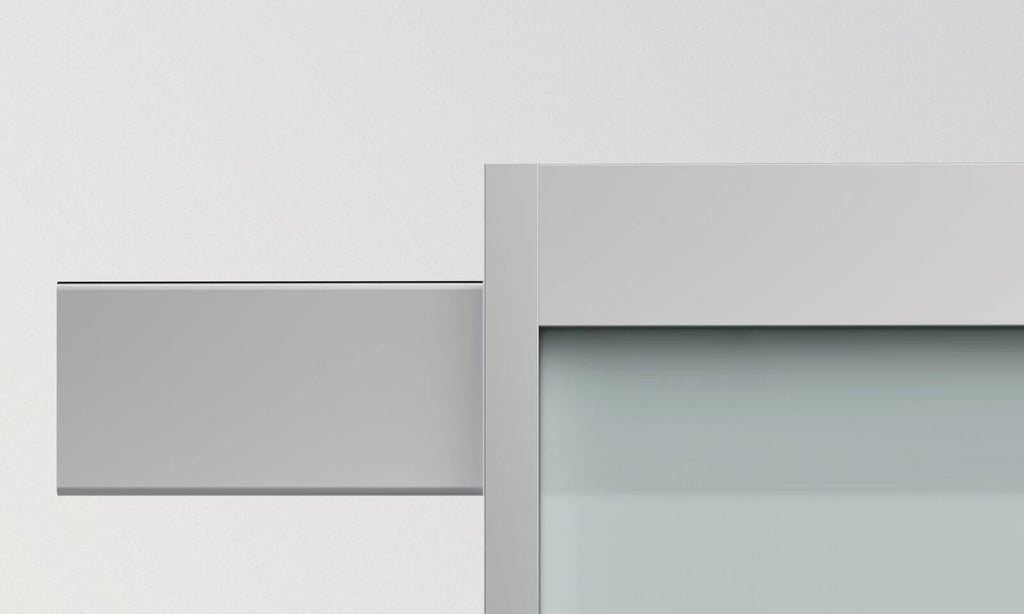

  • Brushed Anodized Silver

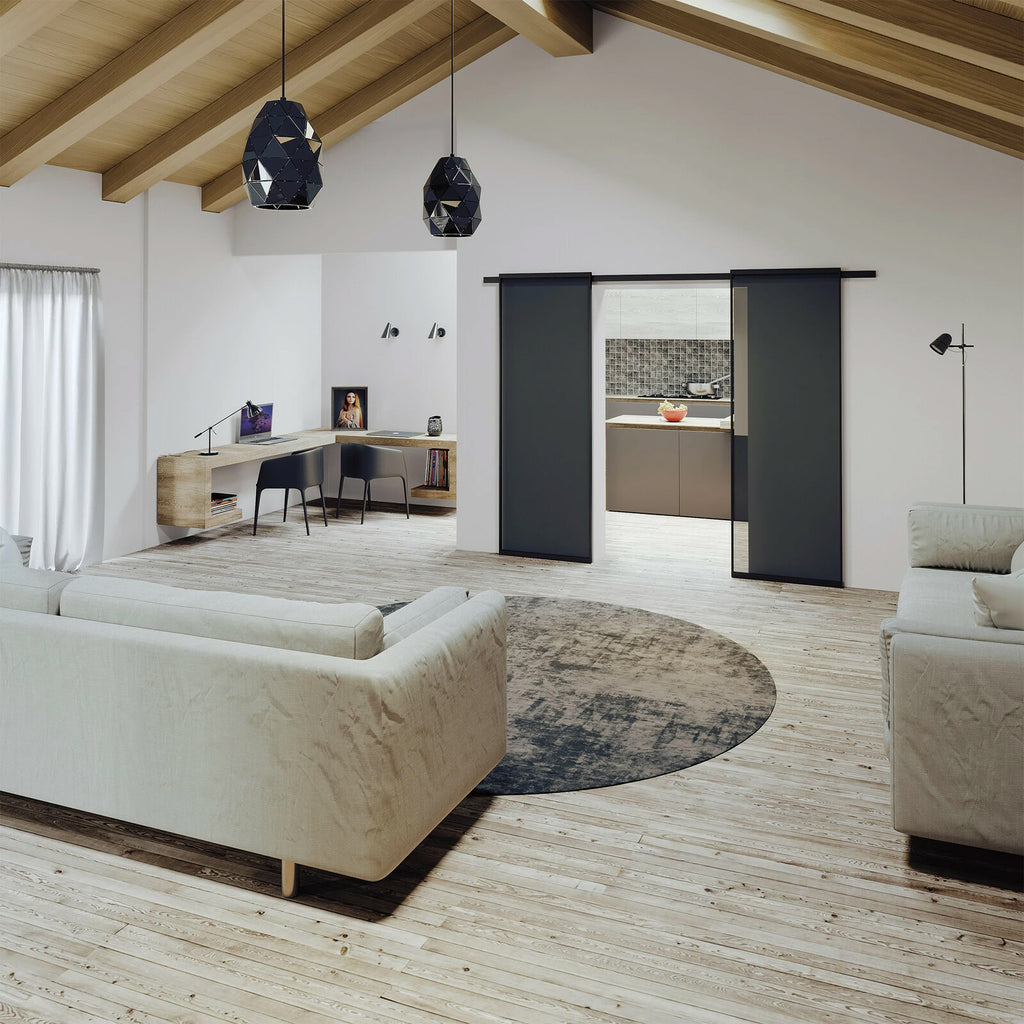

  • Modern living room with white sofas, wooden floor, and ceiling.

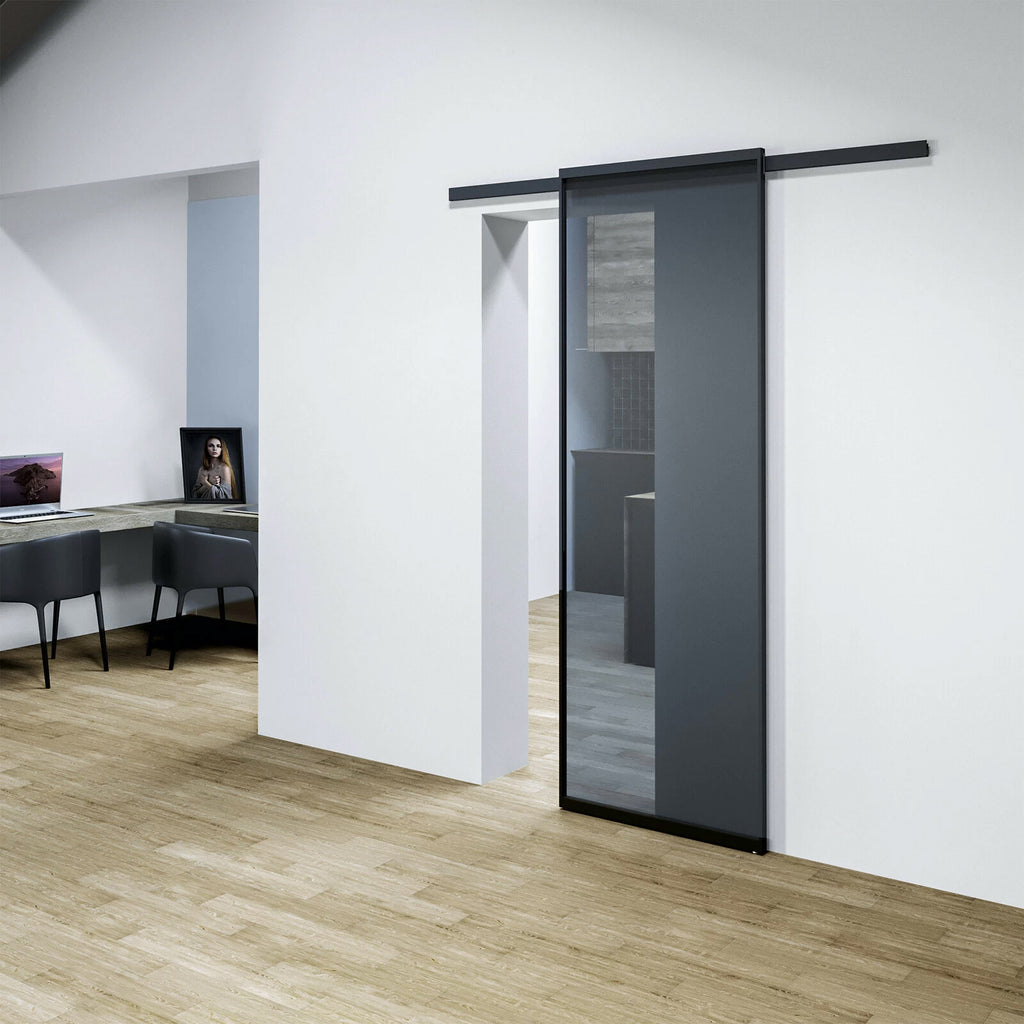

  • Modern sliding door in a minimalistic interior setting with wooden flooring and white walls.

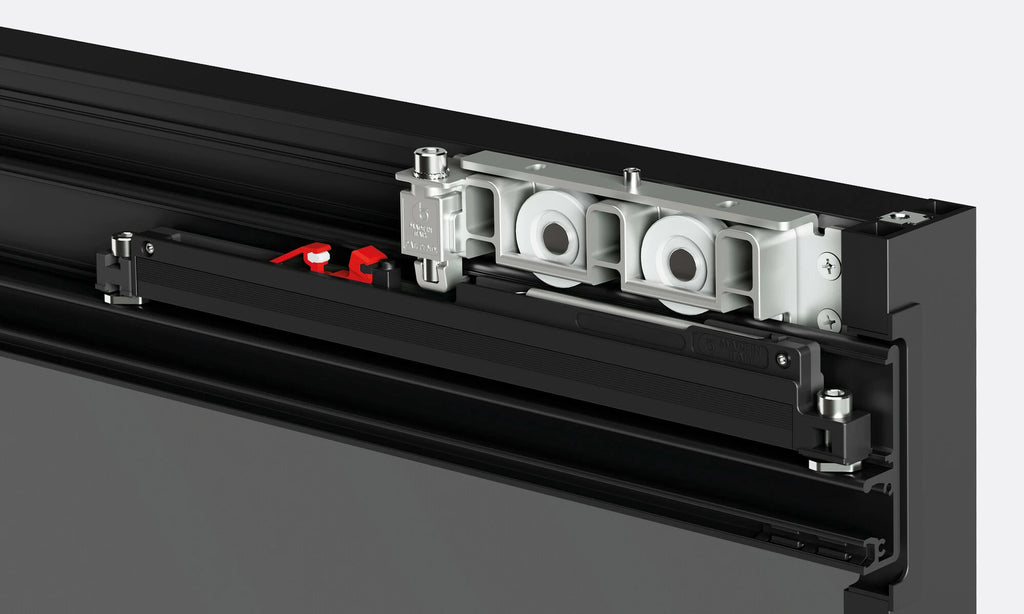

  • Close-up of Diva Fluid Frame's track and frame

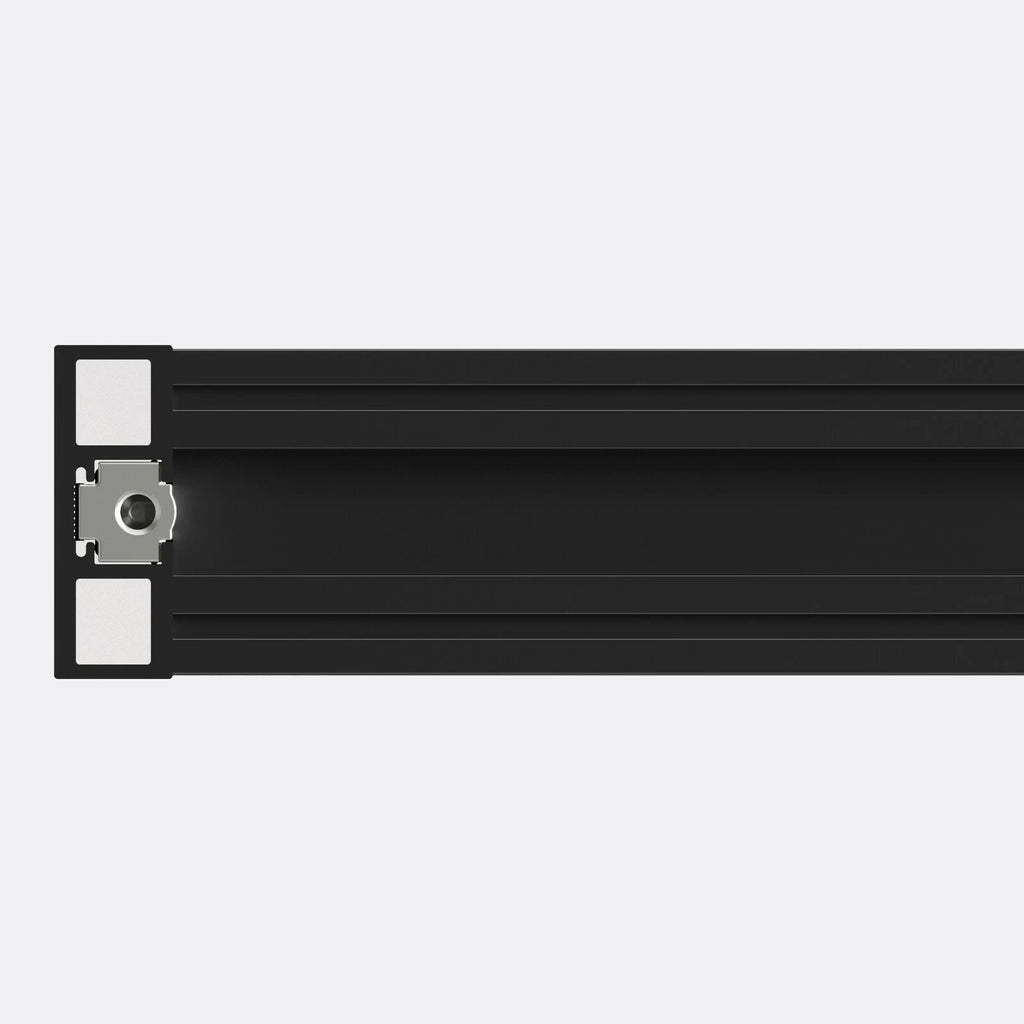

  • Close-up of Diva Fluid Frame's vertically slim upright profile for supporting glass panel with reduced visible framing

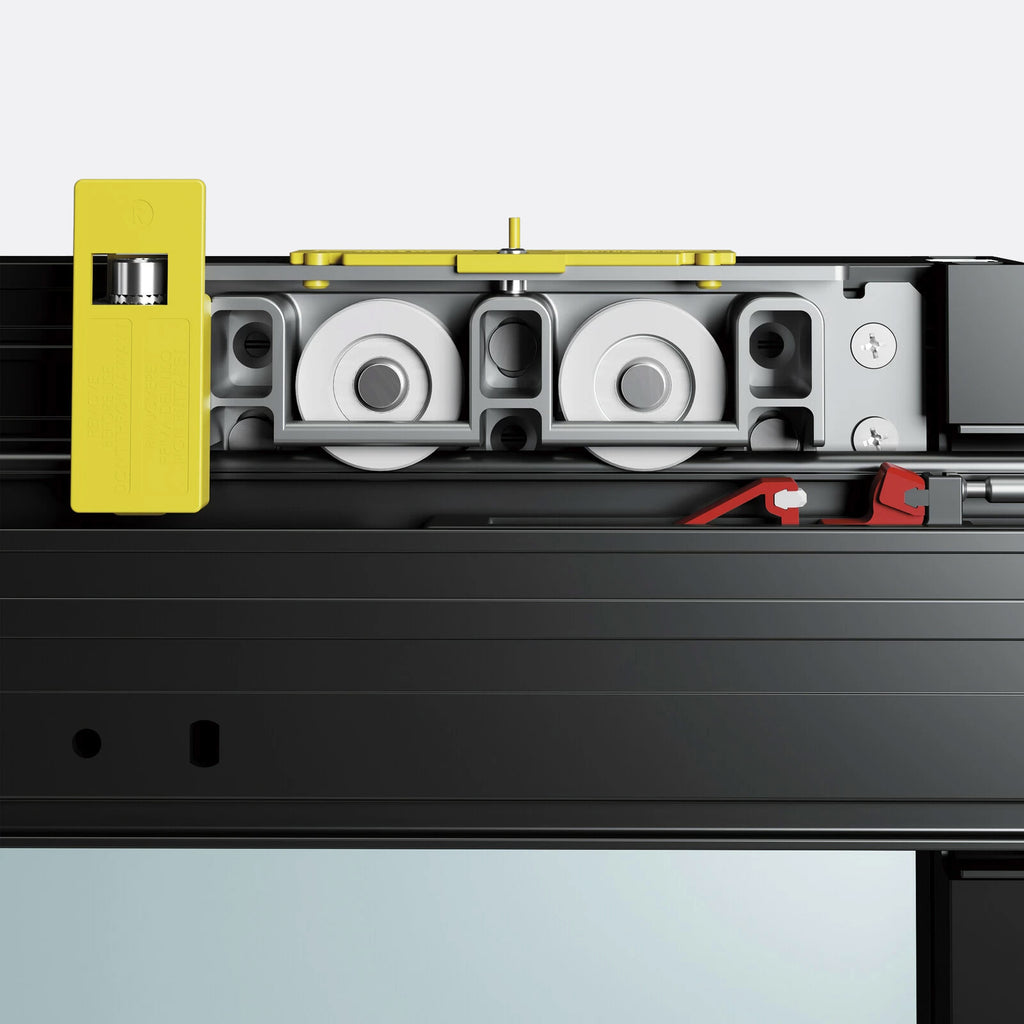

  • Close-up of Diva Fluid Frame's anti-unhooking system

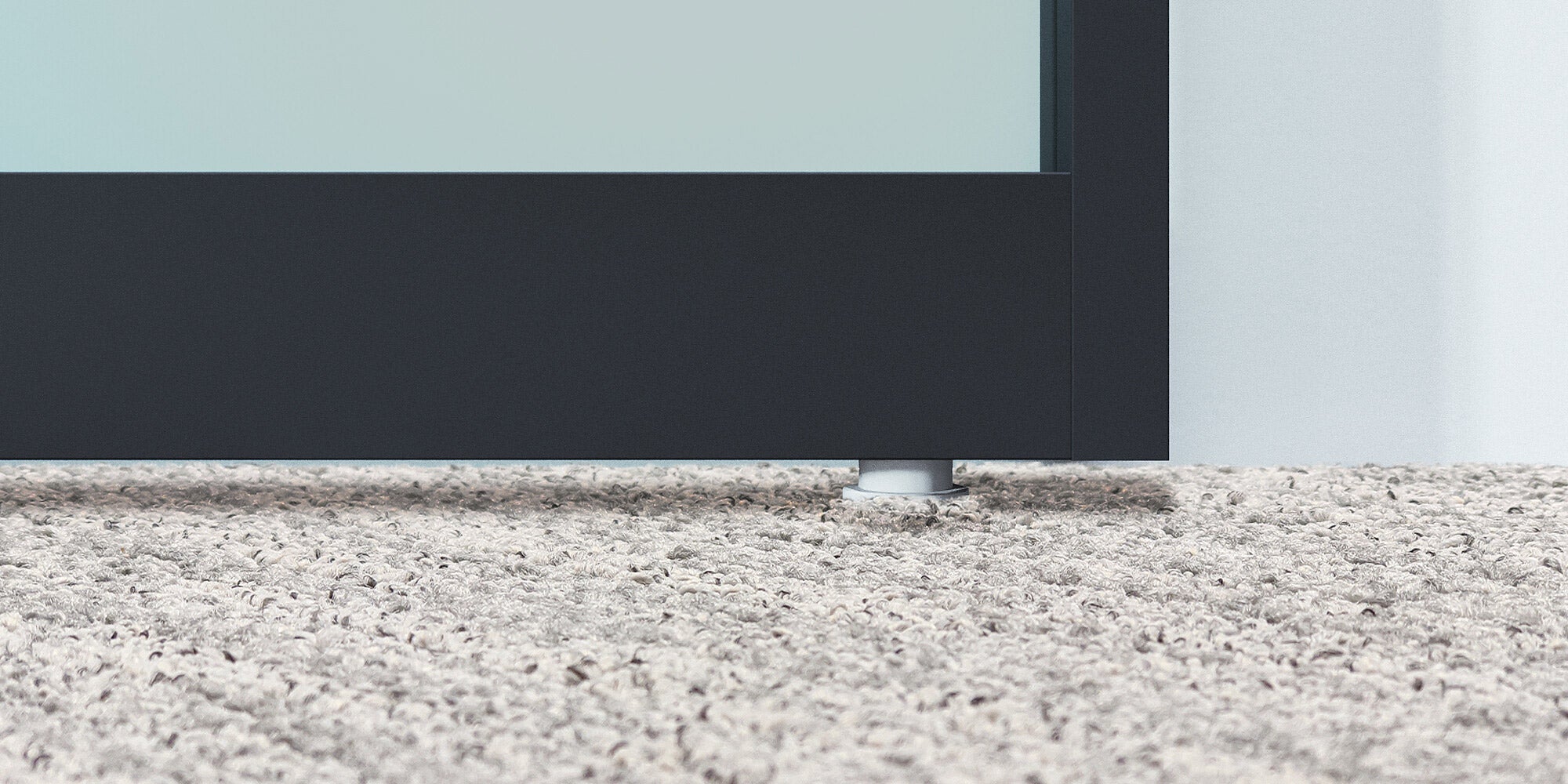

  • Close-up of floor area beneath sliding glass door showing no bottom track or sliding elements

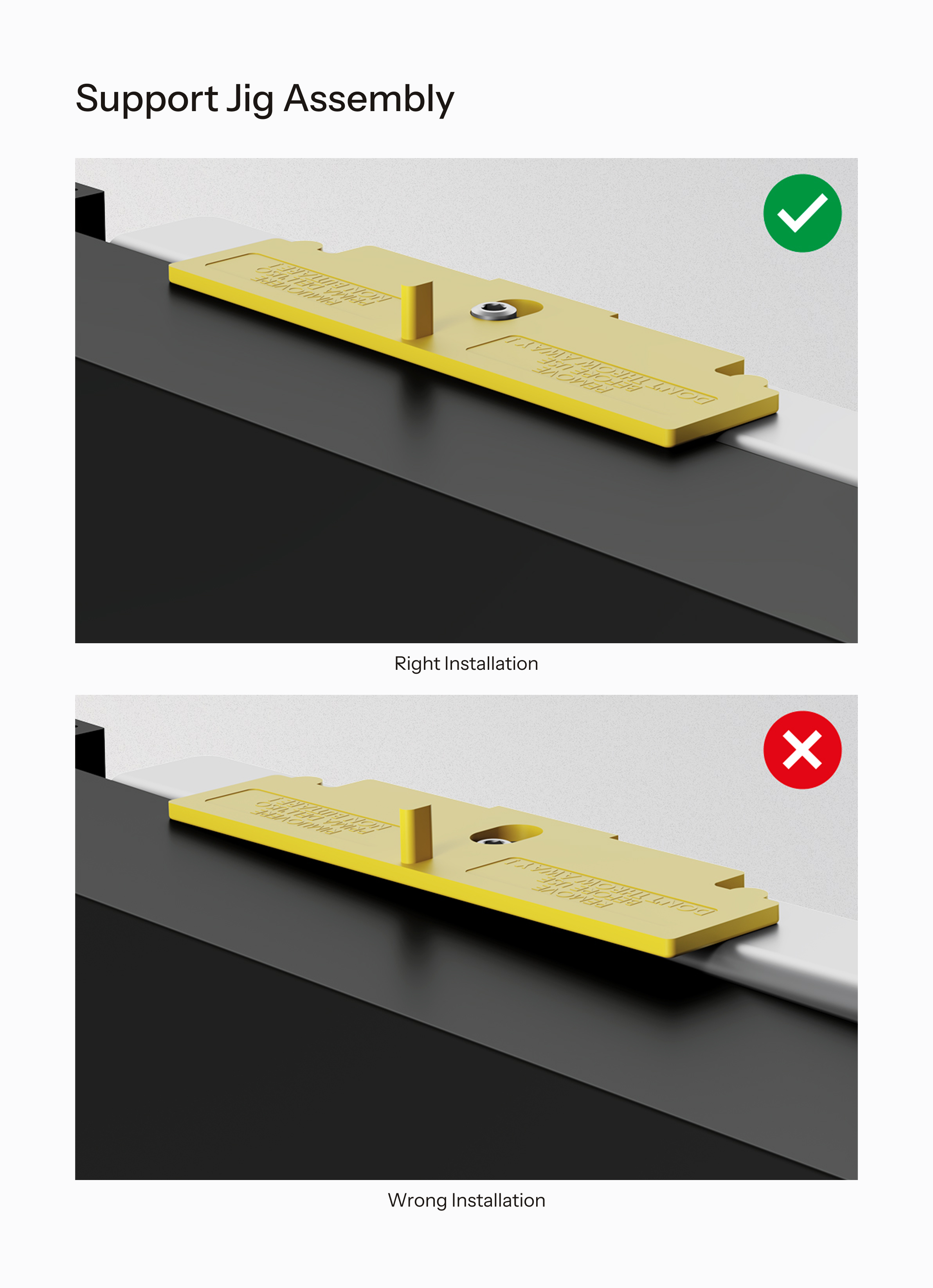

  • Correct and incorrect installation of the support jig
Diva Fluid Frame

Diva Fluid Frame

Sliding barn door system with aluminum frame
$0.00
Shipping calculated at checkout.

Diva Fluid Frame is a patented sliding system designed for barn doors, combining the Diva Fluid sliding system with the Universal aluminum frame. The system features exposed aluminum tracks, concealed sliding trolleys, and next-generation Fluid soft-closing technology. With minimal lines, reduced bulk, and high resistance, it delivers smooth movement, reliable performance, and versatile design possibilities.

Features
System
  • Patented sliding system for design barn doors
  • Combines Diva Fluid sliding system with Universal aluminum door frame
  • Exposed aluminum sliding track
  • Optimized sliding trolleys recessed into the door
Design
  • Minimal and linear aluminum frame design
  • Reduced bulk with vertically slim uprights
  • Clean lines aligned with contemporary design trends
  • No visible soft-closing damper
  • No visible sliding trolleys
Technology
  • Next-generation Fluid soft-closing dampers
  • Double-spring damping system for smooth braking
Performance
  • Smooth and silent movement
  • Effortless soft-closing motion
  • Reduced door opening force requirement
  • Reliable and consistent performance
Construction
  • Tubular extruded aluminum profiles
  • Metal joint connectors for maximum resistance
  • Bi-extruded gaskets for structural support
Installation
  • Simplified installation with support jig
  • No additional drilling or milling processes required
Safety
  • Patented anti-unhooking system to prevent accidental door detachment
Applications
  • Suitable for solid brick walls, hollow brick walls, and concrete walls
  • Suitable for plasterboard walls when specific anchors for plasterboard are used
  • Ideal for carpeted or uneven floors because the sliding mechanism is located at the top of the door
Certification
  • Patented system developed by Terno Scorrevoli
Dimensions

  • Door width: 600–1500 mm
  • Maximum door weight: 80 kg

Need additional specifications or technical guidance? Contact Us.
