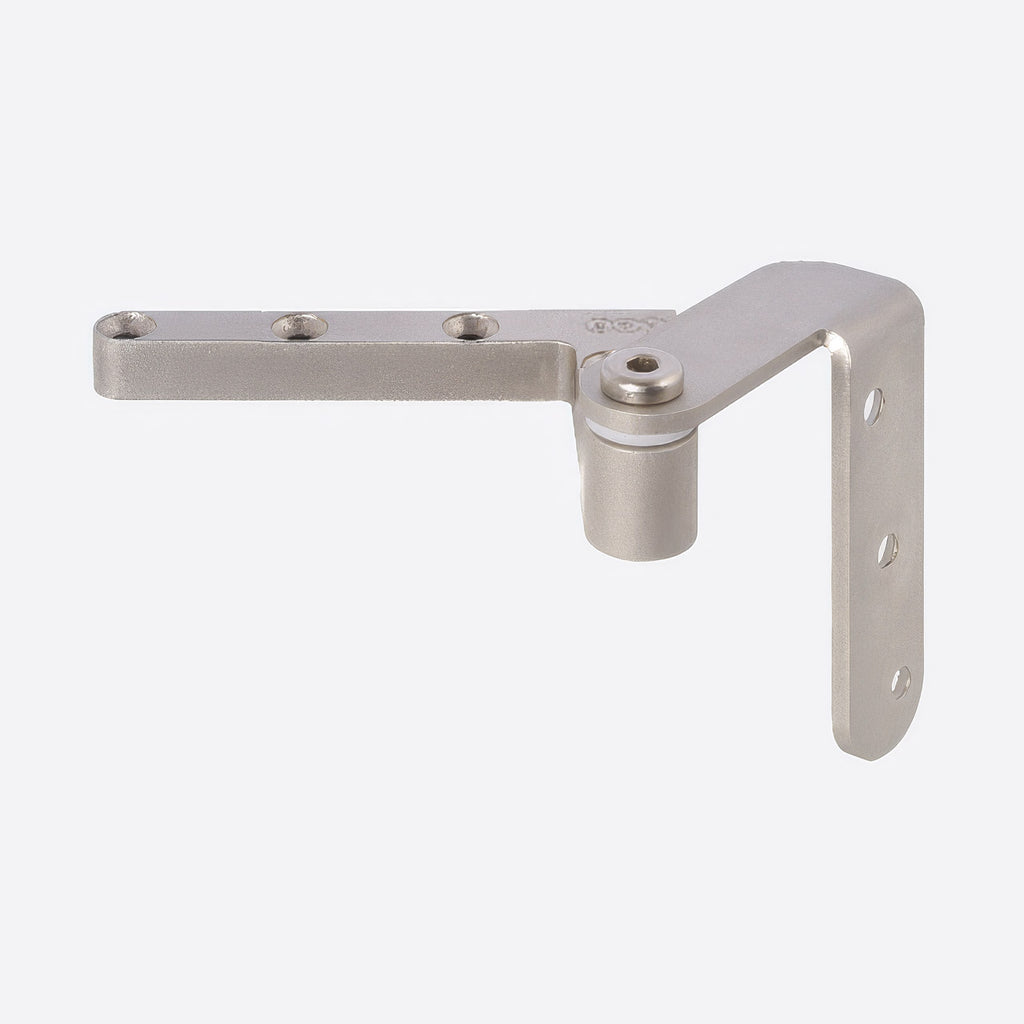

  • Compact hinge

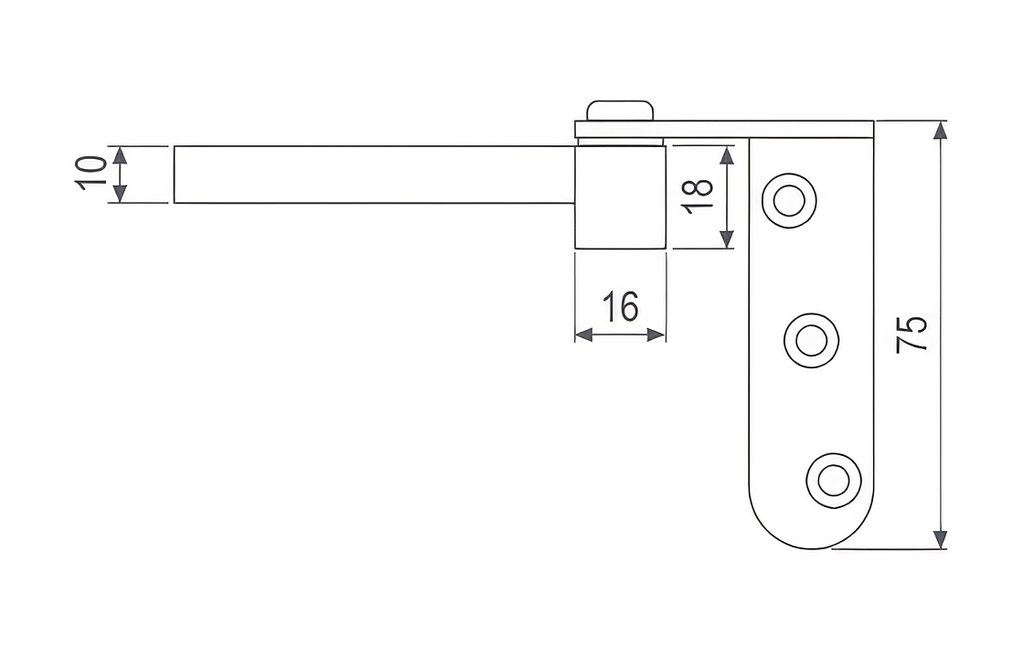

  • Technical drawing of hinge
Compact

Compact

Compact adjustable hinge for flush doors
$0.00
Shipping calculated at checkout.

Compact hinge designed for modern flush interior doors. Its reduced rotating body minimizes visibility when the door is closed while allowing precise adjustment after installation. The hinge supports three-dimensional adjustment and allows doors to open up to 180°.

Features
Adjustability
  • Three-dimensional adjustment via eccentric pin
  • Vertical adjustment
  • Horizontal adjustment
Performance
  • 180° door opening capability
  • Compact rotating body designed to reduce hinge visibility when the door is closed
  • Designed for flush door applications
Construction
  • Die-cast hinge body
  • Supporting frame component with three fastening screw holes
  • Sash component with four fastening screw holes
  • Pin fastening dowel for secure installation
  • Self-lubricating nylon bushing for smooth rotation
Finish
  • Matt nickel plated finish
Material
  • Steel
Compatible Materials
  • Wood interior doors
Dimensions

  • Minimum Door Thickness: 35 mm
  • Height: 16 x 18 mm
  • Load Capacity: 40 kg

Need additional specifications or technical guidance? Contact Us.
