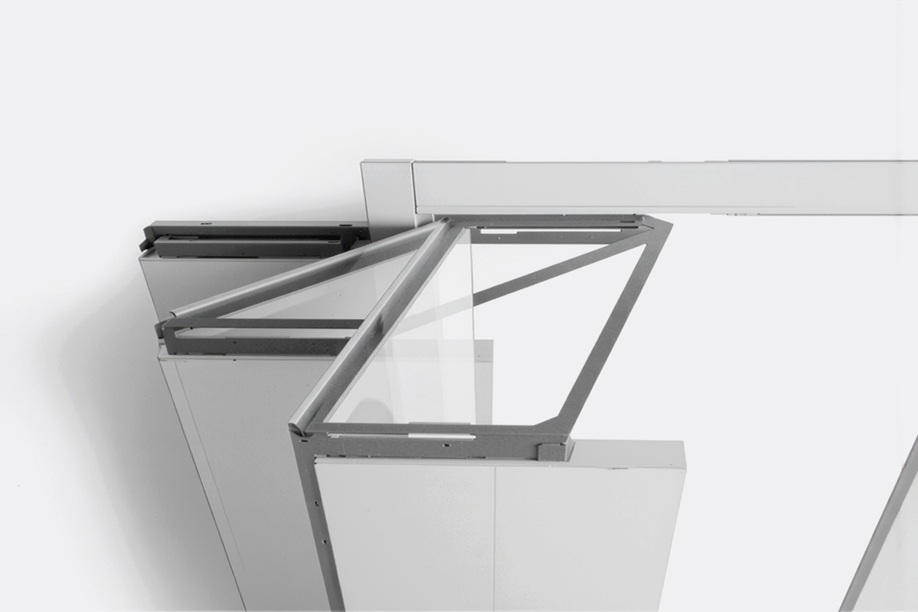

  • Top view of Compack 180 Triple Leaf

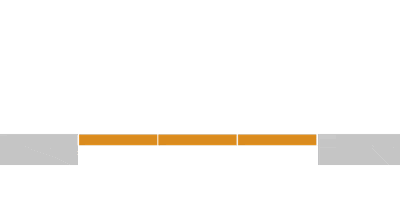

  • Gif demonstrating door opening motion of Compack 180 Triple Leaf

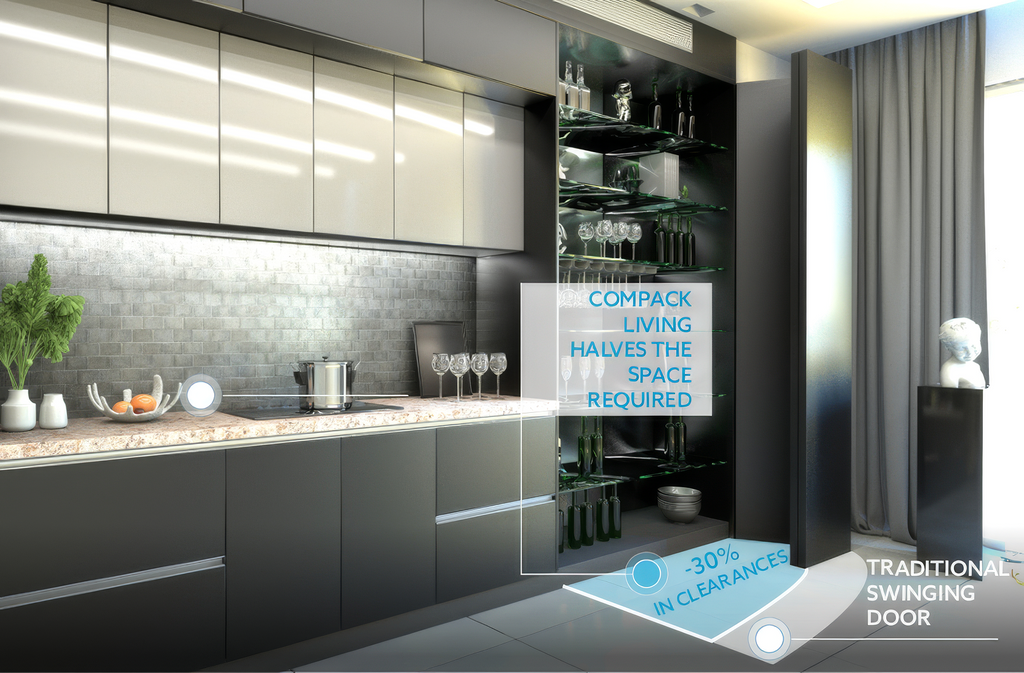

  • Annotated image of a modern kitchen highlighting door swinging
  • Compack 90 and 180 installation video

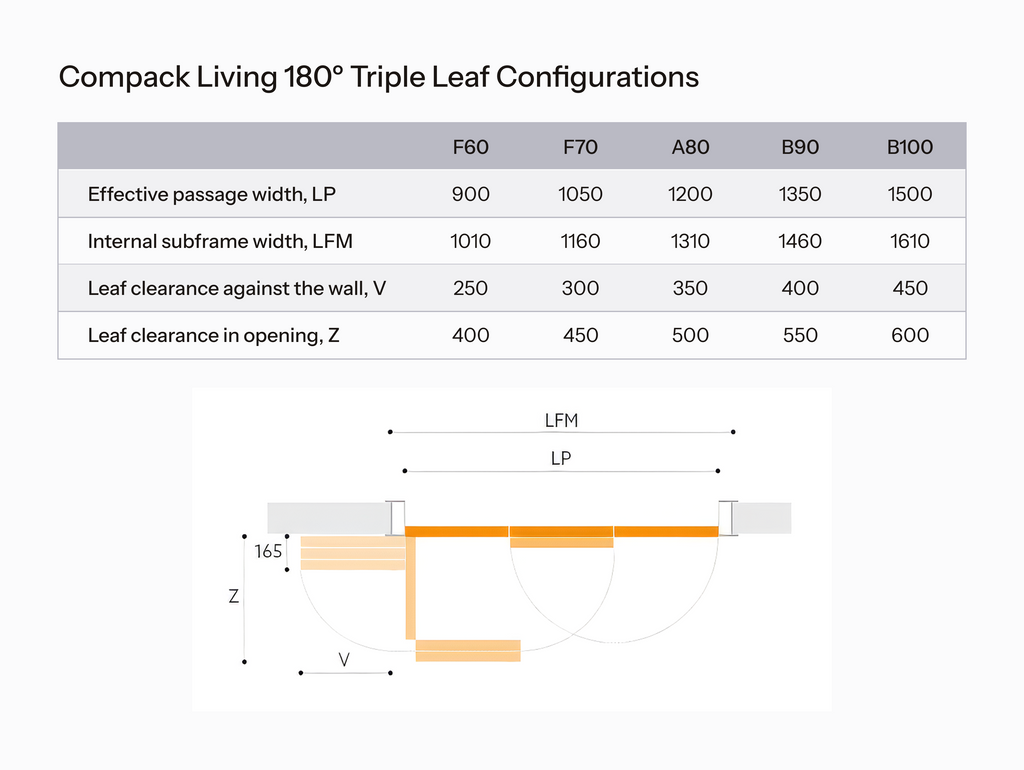

  • Chart detailing Compack Living 180° Triple Leaf Configurations with dimensions and clearances.
Compack Living 180 Triple-Leaf

Compack Living 180 Triple-Leaf

180° triple-leaf folding door system.
$0.00
Shipping calculated at checkout.

Compack Living 180° Triple-Leaf is a folding door hardware system designed for triple-leaf door configurations that reduce doorway clearance while increasing usable living space. Using a patented hinge applied to the top of the door, the leaves fold laterally against the wall and open to 180°. In a triple-leaf configuration, the clearance required for the open door is reduced to approximately one third of the doorway.

Features
Opening Mechanism
  • Folding door system with 180° opening
  • Leaves fold laterally against the wall
  • Uses a patented hinge applied to the top of the door
  • Designed to reduce clearance by 50% compared to traditional swing doors
Triple-Leaf Configuration
  • Designed for three-leaf door systems
  • Achieved by installing an additional leaf with shared concealed hinges on the external half-leaf
  • Reduces the clearance of the open door to approximately one third of the doorway
Installation
  • No special masonry work required
  • Compatible with door leaves and standard frames of any finish
  • Suitable for private and public indoor environments
Performance
  • Folding movement is stable, silent, and ergonomic
  • Stability comparable to traditional swing doors
  • Three-sided door jamb helps guarantee excellent soundproofing
  • Floor remains unaffected
Design
  • Patented system developed through collaboration between Celegon and Massimo Bonetti Design
  • Combines Italian technology, design, and manufacture
Dimensions

Refer to the technical drawing and table in the gallery for complete measurements.

  • LP — Effective passage width: Clear opening width of the doorway.
  • LFM — Internal subframe width: Required width of the internal subframe.
  • V — Leaf clearance against the wall: Distance between the folded door leaf and the wall.
  • Z — Leaf clearance in opening: Space required within the opening for the folding movement.

Measurements vary by configuration (F60, F70, A80, B90, B100). See the diagram for detailed values.

Need additional specifications or technical guidance? Contact Us.
