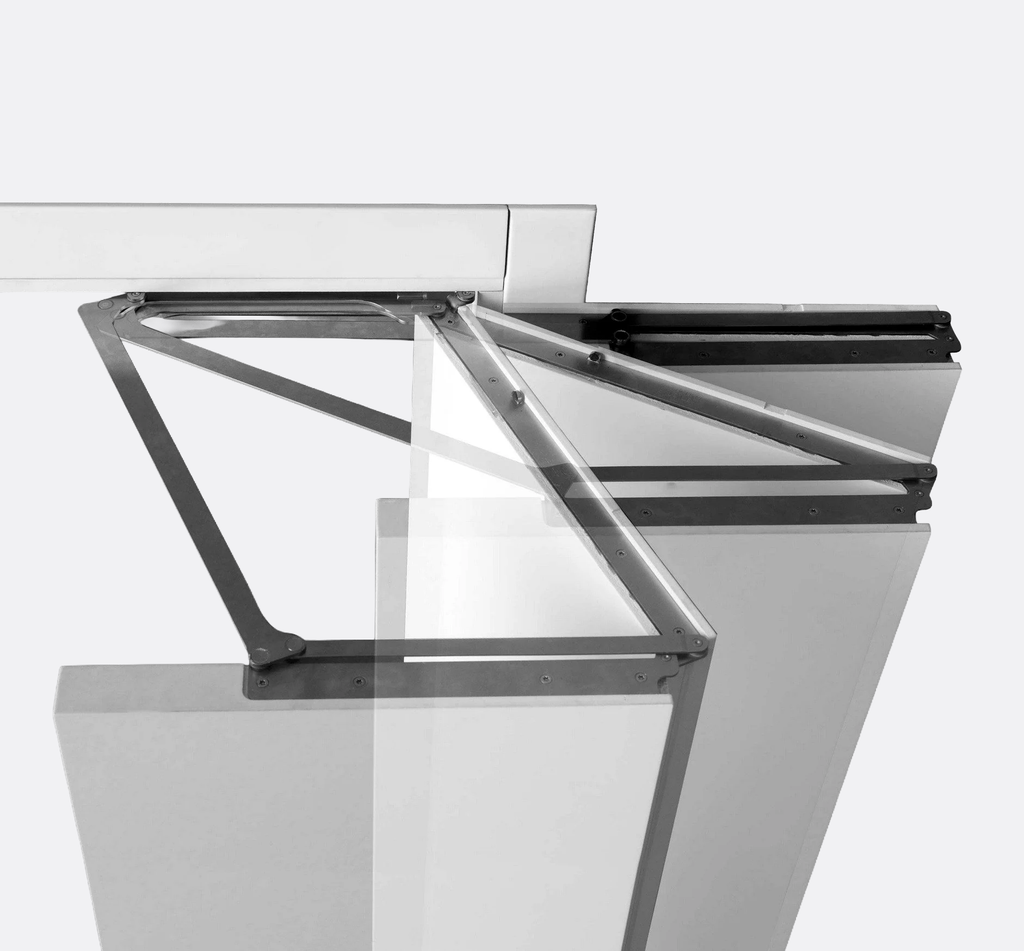

  • Top-view of Compack 180
  • Video demonstrating movement of Compack 180
  • Annotated image demonstrating door swinging of Compack 180
  • Compack 90 and 180 installation video
  • Chart detailing Compack Living 180° configurations with various dimensions.
Compack Living 180°

Compack Living 180°

180° folding door hardware system.
$398.99
Shipping calculated at checkout.

Compack Living 180° is a folding door hardware system that reduces doorway clearance while increasing usable living space. A patented hinge fixed to the top of the door allows the leaf to move parallel to the wall, opening to 180°. The system provides ergonomic, stable, and silent movement while offering a compact alternative to traditional swing doors and sliding doors.

Features
Opening Mechanism
  • Folding door system with 180° opening
  • Door leaf moves parallel to the wall, similar to a sliding door
  • Patented hinge fixed to the top of the door
  • Door operated using a traditional handle
Space Efficiency
  • Reduces clearance requirements by approximately 50% compared to traditional swing doors
  • Frees space next to the door opening due to reduced clearance needs
  • Designed to eliminate interference between doors
Performance
  • Stable, silent, and ergonomic movement
  • Stability comparable to a full-leaf swing door with traditional hinges
  • Three-sided door jamb closure helps guarantee excellent soundproofing
Installation
  • No masonry work required
  • Can be used as an alternative to traditional swing doors or sliding doors
  • Suitable for installation inside or outside the wall
  • Can be used on brick walls, walk-in wardrobes, and storage rooms
Design Flexibility
  • Allows new furnishing solutions by freeing space next to the door opening
  • Available with 180° opening or traditional 90° opening

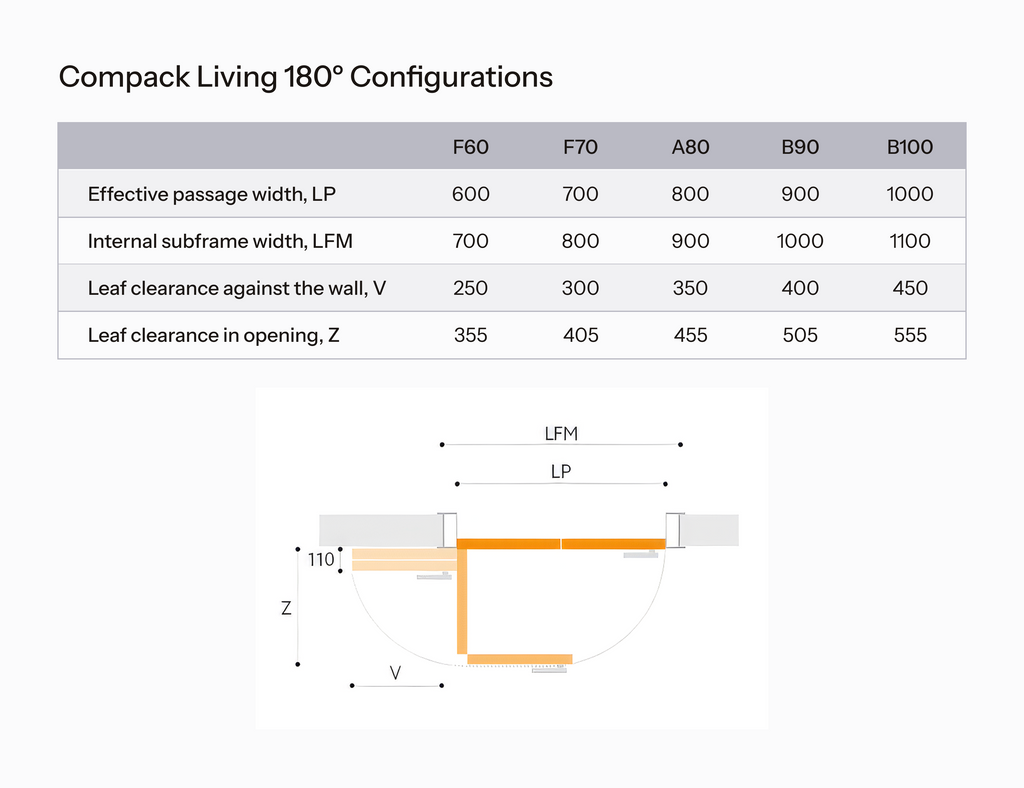

Dimensions

Refer to the technical drawing and table in the gallery for complete measurements.

  • LP — Effective passage width: Clear opening width of the doorway.
  • LFM — Internal subframe width: Required width of the internal subframe.
  • V — Leaf clearance against the wall: Distance between the folded door leaf and the wall.
  • Z — Leaf clearance in opening: Space required within the opening for the folding movement.

Measurements vary by configuration (F60, F70, A80, B90, B100). See the diagram for detailed values.

Need additional specifications or technical guidance? Contact Us.
