Name: Compack Living 90°
Brand: Avanti Interiors
Price: 460.00 USD
Availability: InStock

Compack Living 90°

$460.00

1/5

Compack Living 90°

90° Folding Door System.

$460.00

Shipping calculated at checkout.

Compack Living 90° is the natural development of the tried and tested Compack Living 180° system. Both systems use identical door leaves and frames, allowing a single product to create a folding opening at 90° or 180°. The absence of a sliding track and the use of a traditional handle make the system unique while ensuring fluid and stable door movement over time.

Opening Mechanism

Folding door system opening to 90°
Door leaf folds orthogonally against the wall
Can also be installed to open flat against the wall (180°) when used with the compatible system
No sliding track required
Uses a traditional handle for opening and closing

System Design

Shares identical door leaves and frames with COMPACK LIVING® 180°
Closed door rests against ledges on the two sides and top of the door frame
Door movement designed to be fluid and stable over time

Space Efficiency

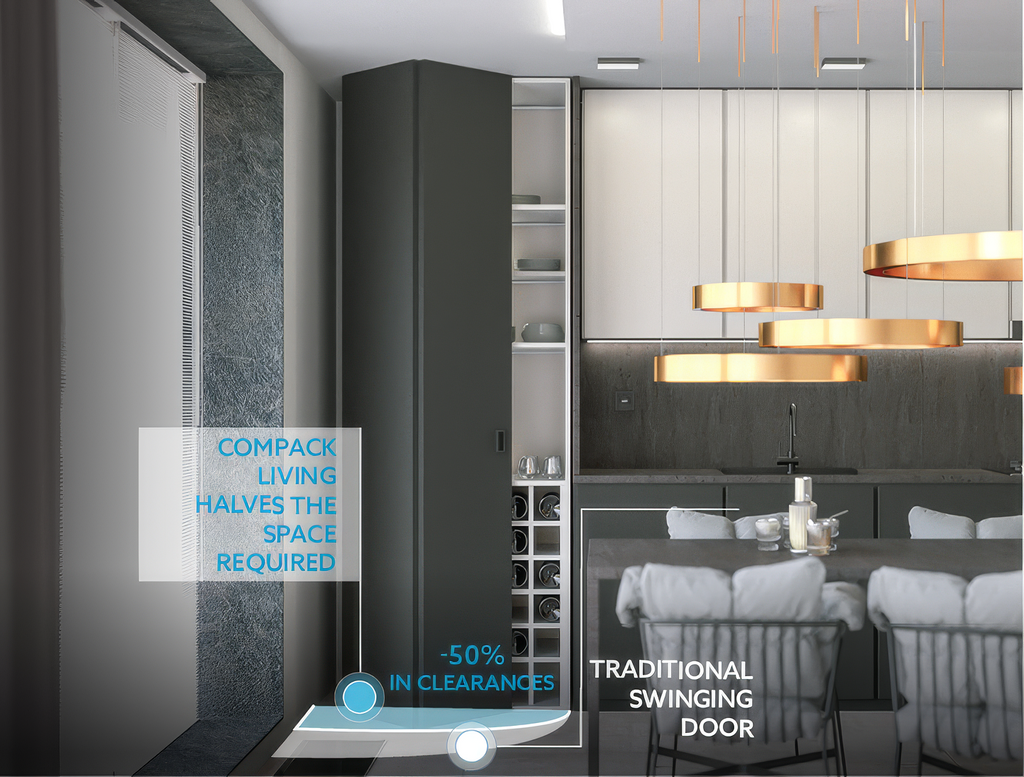

Reduces clearance requirements by up to 50% compared to a traditional swinging door

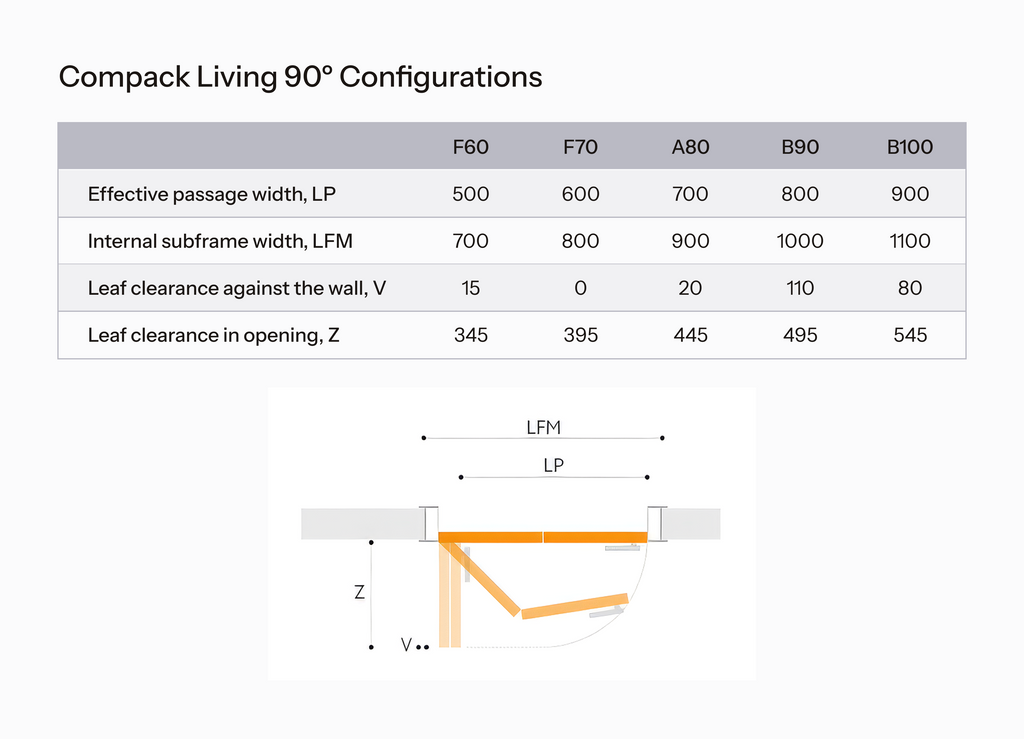

Refer to the technical drawing and table in the gallery for complete measurements.

LP — Effective passage width: Clear opening width of the doorway.
LFM — Internal subframe width: Required width of the internal subframe.
V — Leaf clearance against the wall: Distance between the folded door leaf and the wall.
Z — Leaf clearance in opening: Space required within the opening for the folding movement.

Measurements vary by configuration (F60, F70, A80, B90, B100). See the diagram for detailed values.
