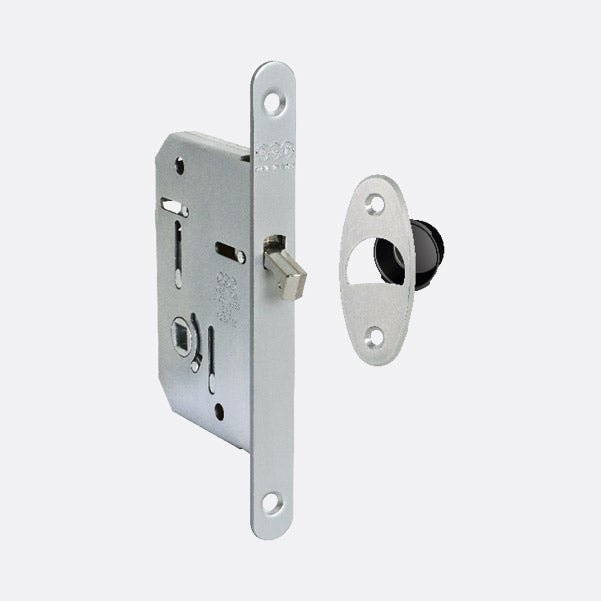

  • Scivola Tre lock body

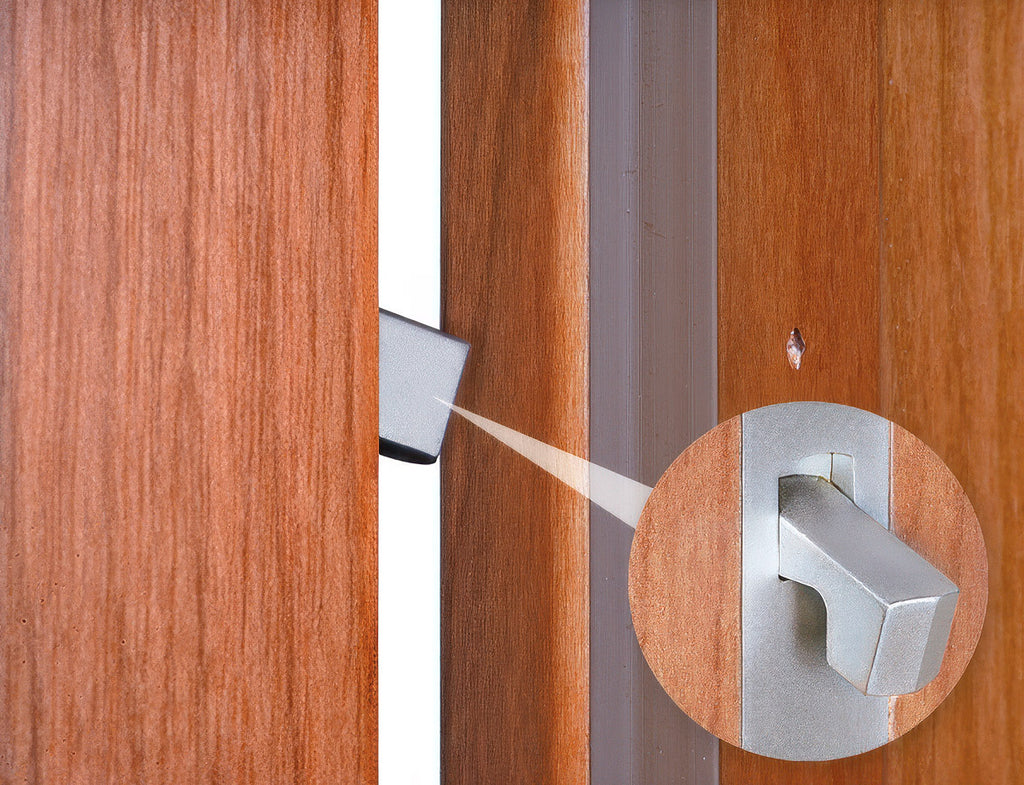

  • Close-up image of the patented head of the hook

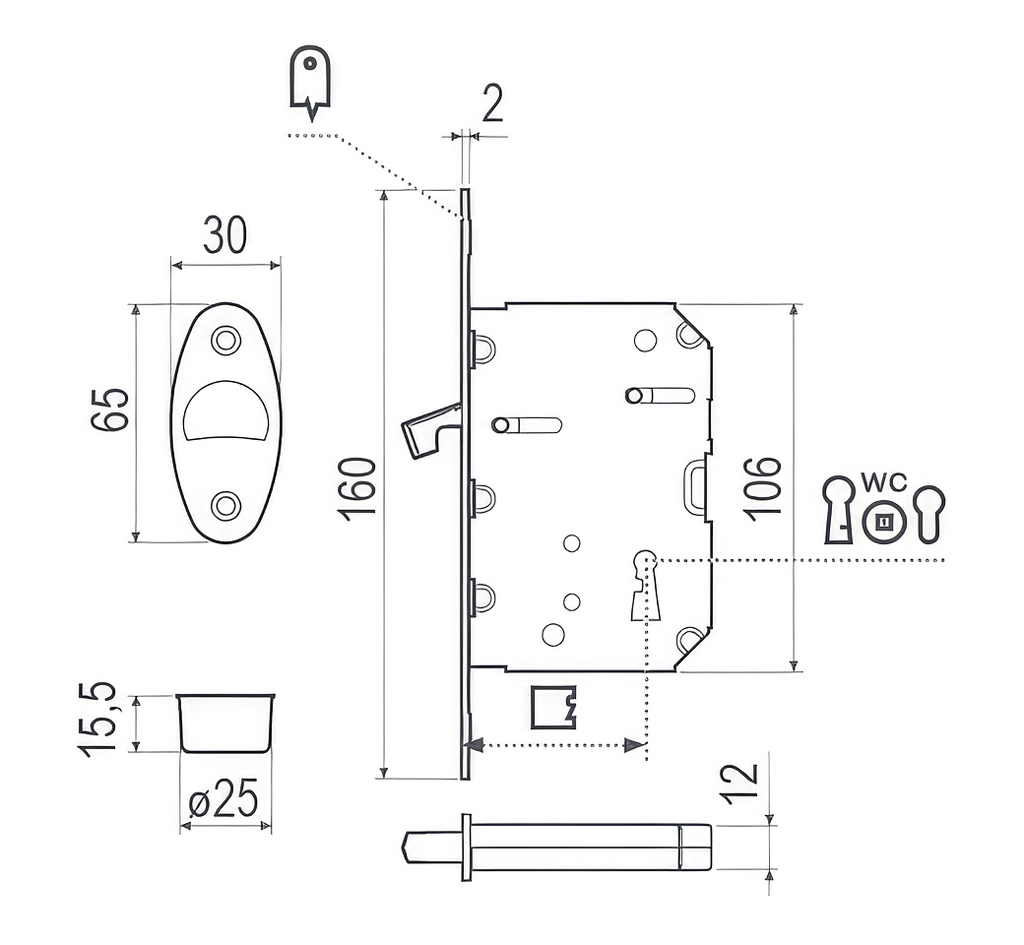

  • Scivola Tre technical drawing

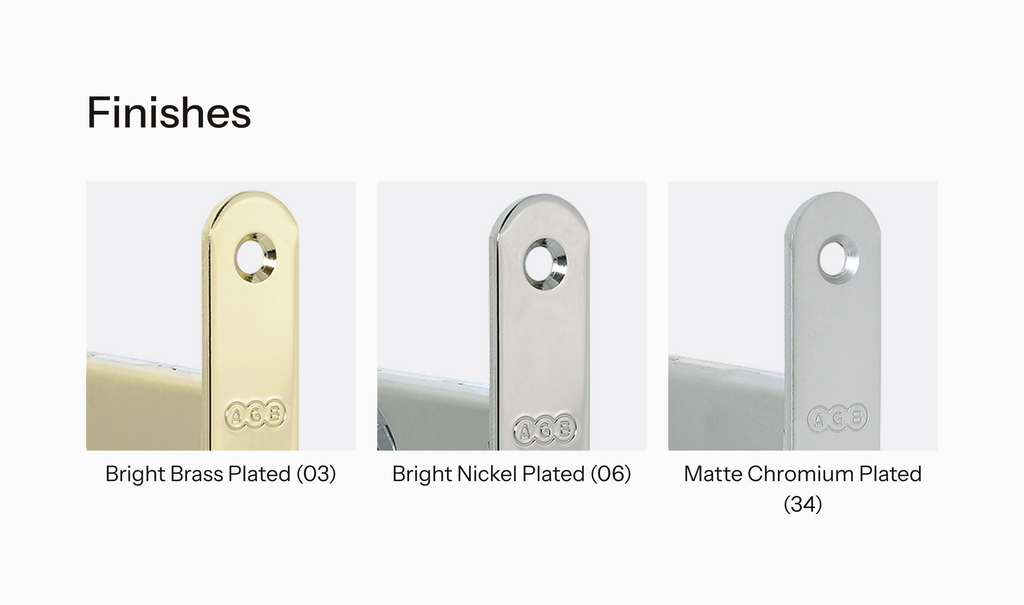

  • Lock finishes, which includes Bright Brass Plated, Bright Nickel Plated, and Matte Chromium Plated
Scivola TRE

Scivola TRE

Sliding door mortise lock
$0.00
Shipping calculated at checkout.

Mortise lock designed for internal sliding doors. The standardized milling pattern allows installers to choose the closing type during installation, including cylinder, key, or WC configurations. Designed for smooth operation and easy installation with interchangeable drilling.

Features
Closing Options
  • Key lock
  • Cylinder lock
  • WC (bathroom) lock
Design
  • Standardized drilling pattern allows the closing type to be selected during installation
  • Patented hook head helps mark the center of the striker housing on the jamb
  • Designed for smooth mechanical movement and reliable door closure
Installation
  • Simplified installation process
  • Compatible with standardized milling for sliding door locks
Material
  • Steel
Compatible Materials
  • Interior sliding doors
Dimensions

Faceplate (foreend)
  • 16 mm
Backset
  • 35 mm
  • 40 mm
  • 50 mm
Hub
  • 8 mm

Need additional specifications or technical guidance? Contact Us.
