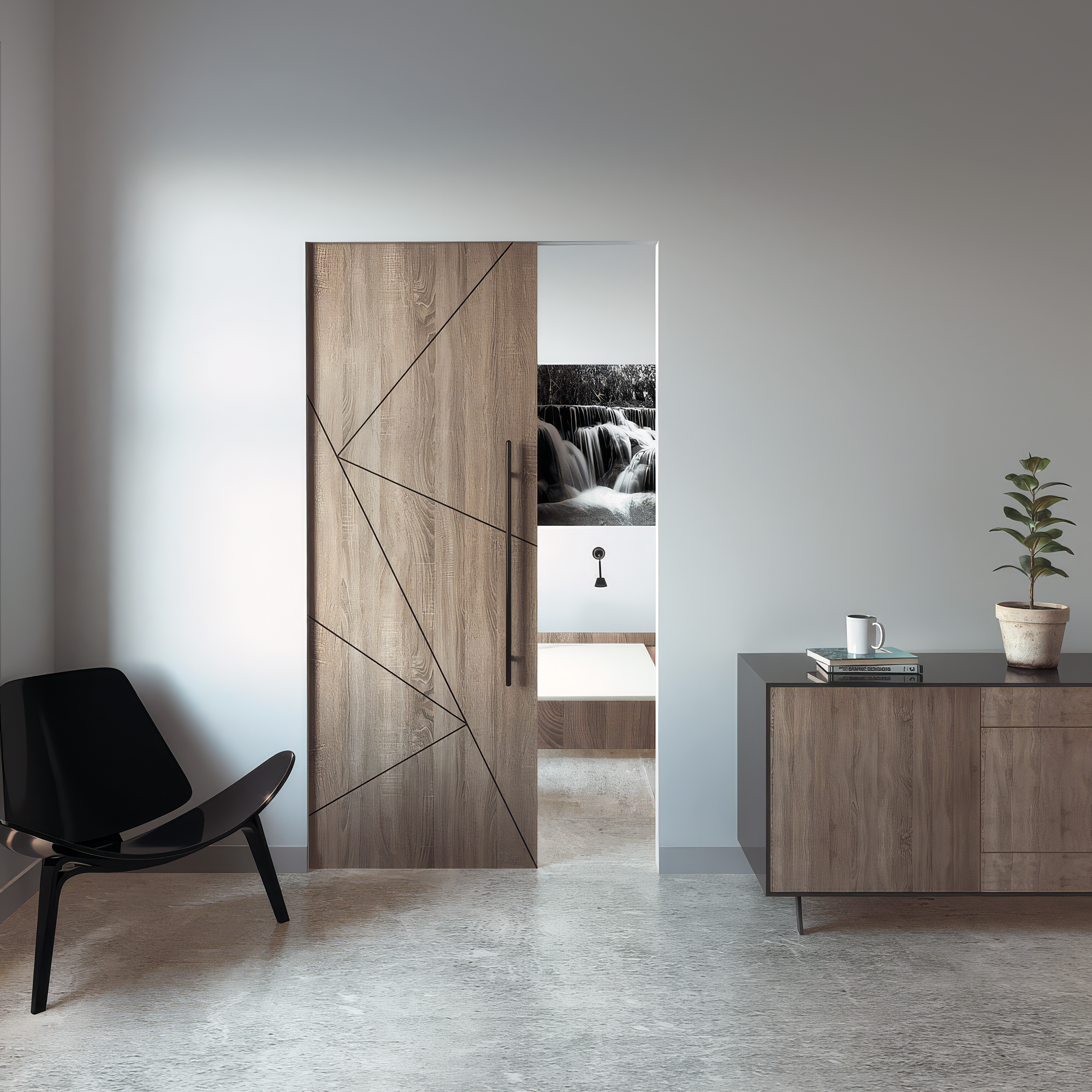

  • Modern interior with a wooden sliding door, black chair, and sideboard.

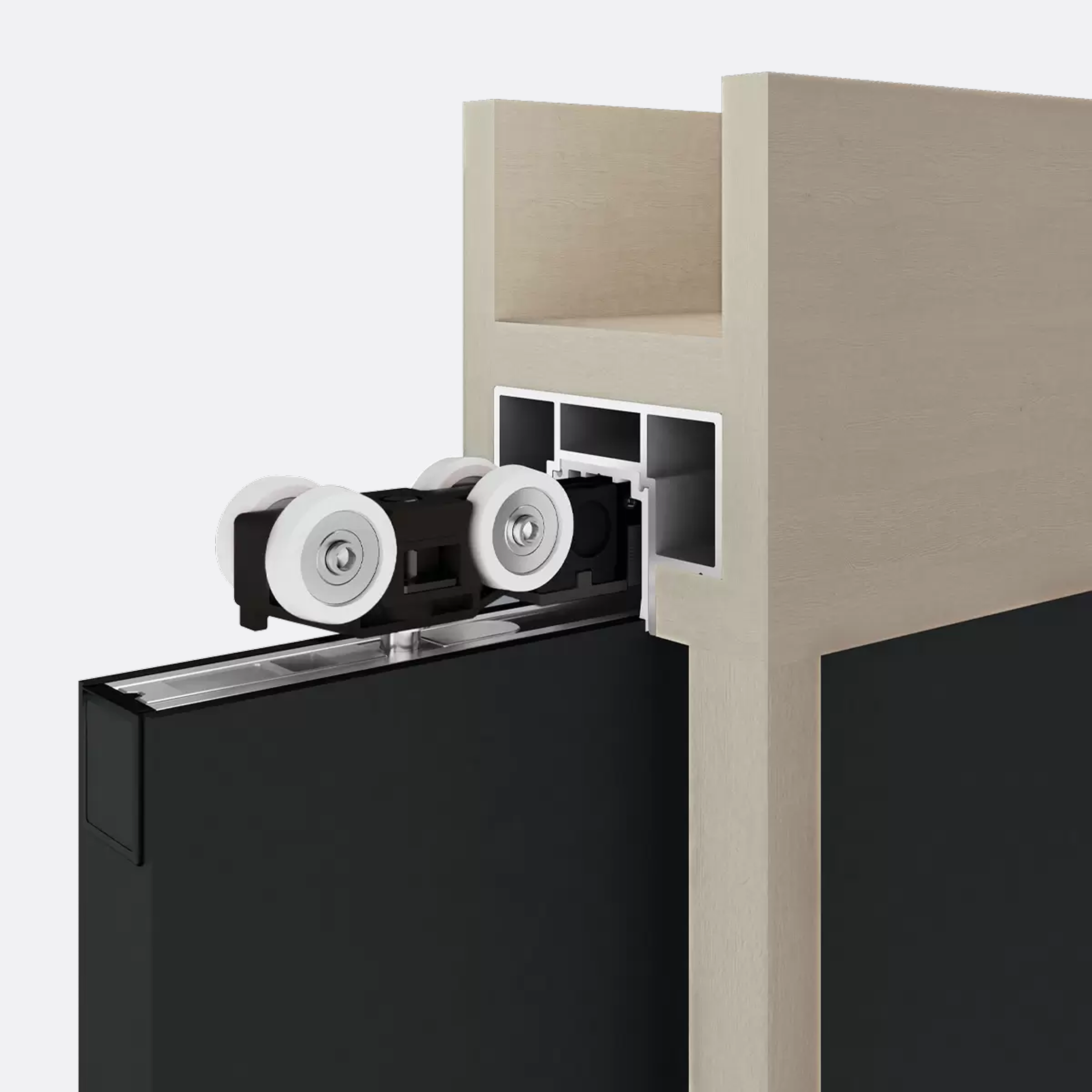

  • Close-up of Aluframes's sliding mechanism

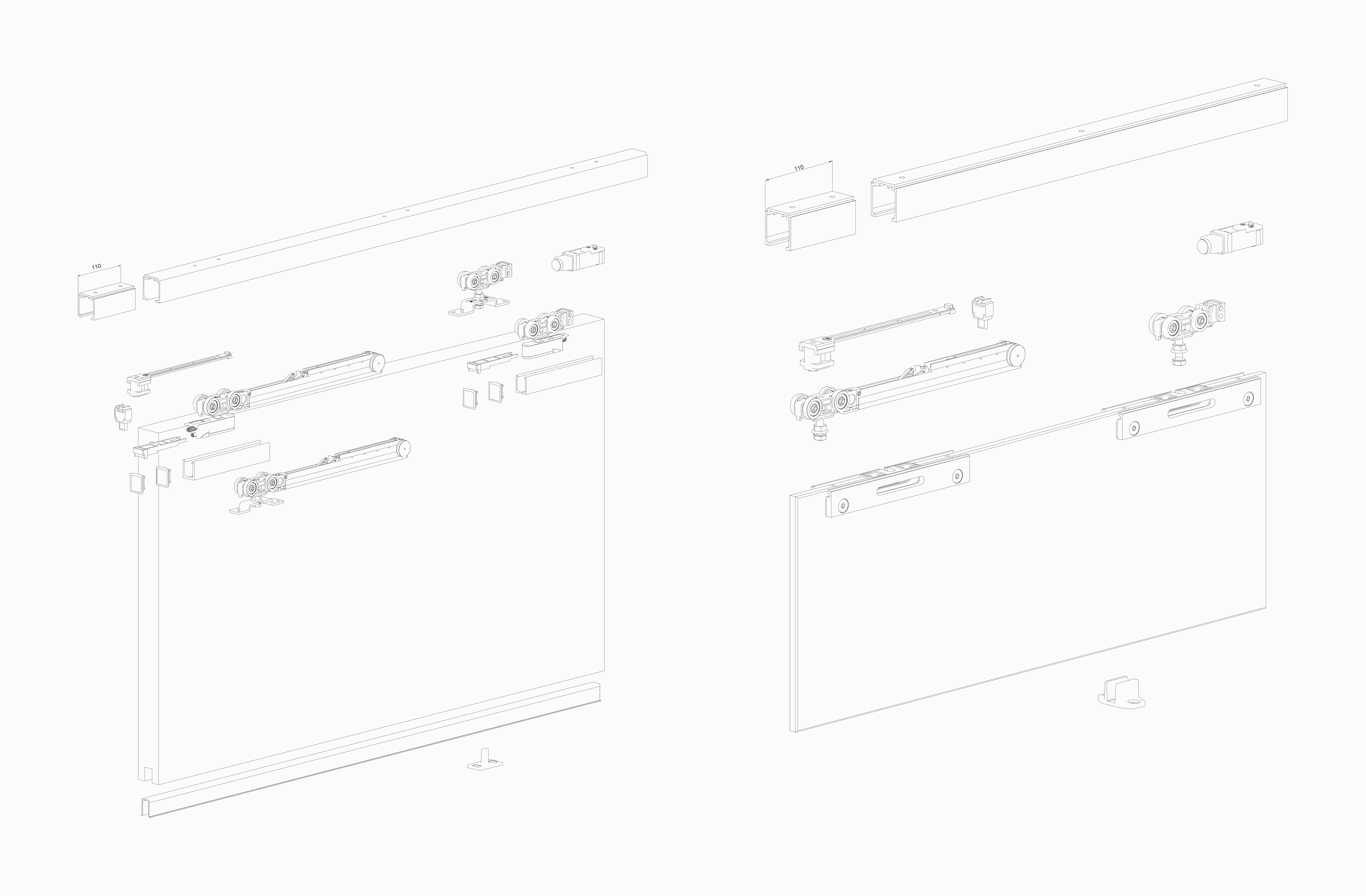

  • Aluframes technical drawing
AluFrames

AluFrames

Concealed track system for pocket sliding doors.
$0.00
Shipping calculated at checkout.

AluFrames is a concealed track system designed for the installation of wall-pocket sliding doors without a counterframe. The system supports wooden or glass doors and offers a maximum load capacity of 80 kg. It is designed for easy installation and inspection, allowing the door to be removed without breaking the plasterboard.

Features
System type
  • Concealed aluminum track system for pocket sliding doors
  • Designed for installation without a counterframe
Compatibility
  • For wooden doors with Evolution (concealed bracket) and Classic (standard bracket) sliding systems
  • For glass doors with Vetro 24 and Vetro 40 clamp series
Installation
  • Extremely easy to install
  • Door can be easily dismounted for inspection without breaking the plasterboard
Technology
  • Fluid dampers for smooth closing
  • Shock absorber
  • Push Magnetic system that combines soft closing with easier opening when the door is fully open
Performance
  • Maximum load capacity: 80 kg
Dimensions

  • Door width: 600–1500 mm
  • Maximum door weight: 80 kg
  • Clearance from floor: 6 mm

Need additional specifications or technical guidance? Contact Us.
